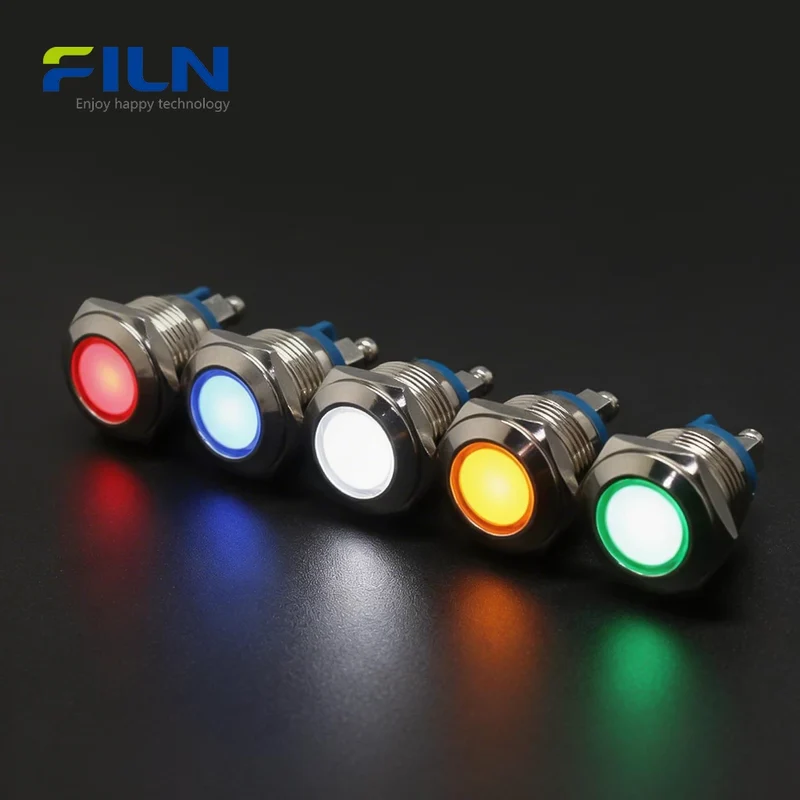

Indicator Light Blue 16mm Metal Flat Head Screw Terminal 2PIN FILN

2,95 €1,94 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

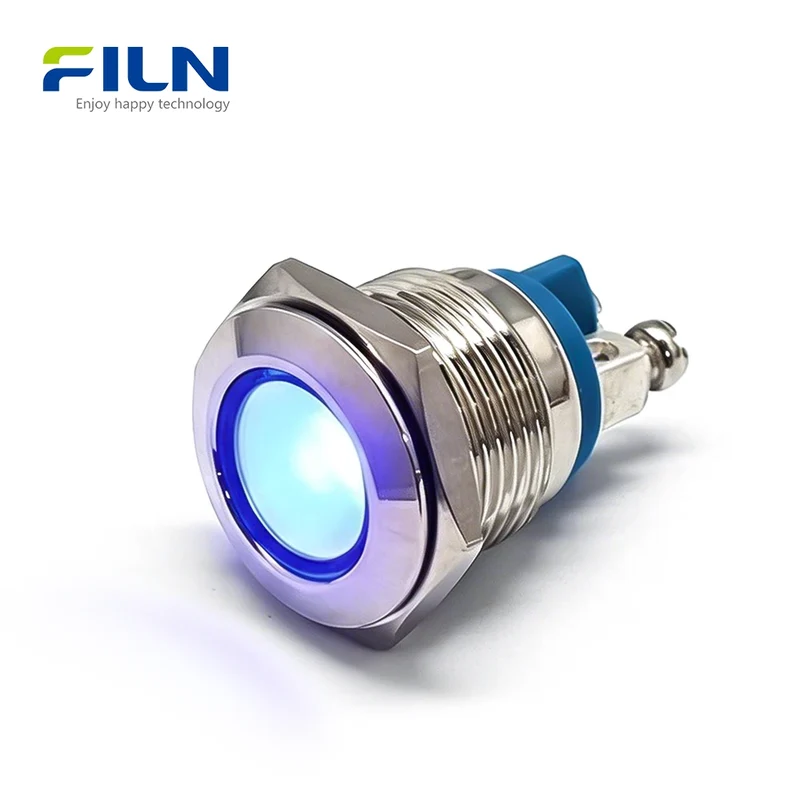

The indicator light blue 16mm model (FL1M-16FA-1) by FILN is a high-performance industrial signaling solution designed for demanding environments. Featuring a metal flat head and robust 2-pin screw terminals, this IP67 waterproof LED lamp ensures industrial-grade reliability and easy installation. Certified by UL, CE, VDE, RoHS, SGS, and ISO9001, it is widely used in automation equipment, CNC machines, and electrical cabinets. With support for custom voltage (12V, 24V, 110V, 220V) and a long lifespan of 50,000 hours, it offers superior visibility and durability for global B2B procurement needs.

Quick Specifications

Mounting Hole 16mm (0.63 inch)
Voltage 12-24V, 110-220V (Customizable)
LED Color Blue (Also Red, Green, Yellow, White available)
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours

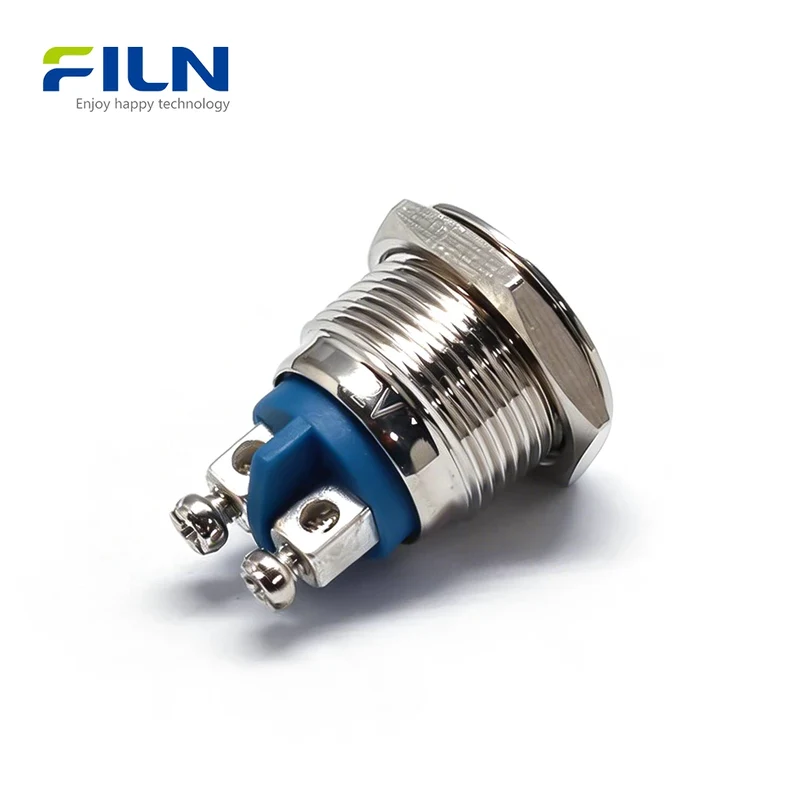

Wiring Type 2-Pin Screw Terminal

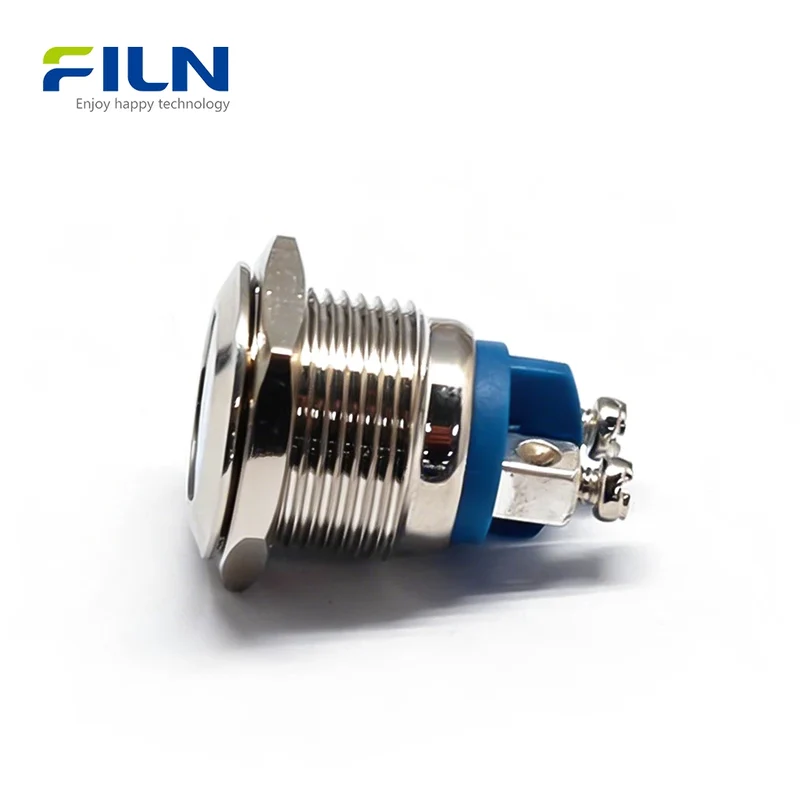

Head Style Flat Head (Silver Housing Only)
Certifications ISO9001, CE, VDE, RoHS, SGS, UL

Component Material List

Component Name Material Note
Shell (Housing) Copper Alloy Nickel/Chrome plated for corrosion resistance
Lamp Holder PA66 Nylon High strength, temperature resistant
Lampshade (Lens) PC Polycarbonate High light transmission, impact resistant
Light Source LED Long life, low energy consumption
Resistor Carbon Film Stable current protection
Terminal (Pin) Brass Excellent conductivity
Nut / Gasket Copper Alloy / Stainless Steel M16 Nut + Plum Gasket included
O-ring Silica Gel Provides IP67 waterproof seal

Rated Working Parameters

Rated Voltage Customized (3V-380V support)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

General Characteristics

Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Ambient Temperature 5~35℃
Air Pressure 86~106Kpa
Waterproof Rating IP67 Industrial Grade

Electric Property

Test Item Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown/flashover

Resistant Performance

High Temperature Resistance 80℃ for 96h
Low Temperature Resistance -40℃ for 96h
Moisture Resistance 40℃ 90-95%RH 96h
Temperature Cycling -40℃ → 25℃ → 85℃ (5 rounds)

Key Features

  • LED High Brightness: Superior visibility even in well-lit industrial environments.
  • Long Lifespan: Rated for over 50,000 hours of continuous operation.
  • IP67 Waterproof: Full protection against dust and water immersion.
  • Flat Head Design: Aesthetic "flush" mount profile prevents accidental damage.
  • Screw Terminal (2-Pin): Secure and convenient wiring without soldering required.

Applications

  • Industrial control panels and monitoring stations.
  • CNC machinery and metalworking equipment.
  • Electrical distribution cabinets and power systems.
  • Marine control systems and outdoor equipment.
  • Medical diagnostic devices and automation lines.

Installation Guide

  1. Drill a 16mm (5/8") mounting hole in the panel.
  2. Insert the indicator light blue through the front of the panel.
  3. Slide the waterproof O-ring and M16 nut onto the threaded body from the back.
  4. Tighten the nut securely to the panel.
  5. Connect wires to the 2-pin screw terminals and tighten the screws.

What is an Indicator Light Blue?

An indicator light blue is a panel-mounted LED signaling device used to communicate the status of electrical circuits or industrial machinery. The blue color specifically is often used in industrial standards to indicate "Mandatory Action" or specific status updates. The flat head design is preferred for its sleek, low-profile appearance, which reduces the risk of the light being caught or damaged by passing objects. Unlike pin-type terminals that require soldering, screw terminal indicator lights offer a more mechanical connection, allowing for faster field installation and easier maintenance in high-vibration environments.

Factory Direct Supply

  • Factory Direct: Direct sourcing from FILN (Yueqing Yulin Electronic Co., Ltd).
  • Full Customization: We support custom voltage, wire length, and specialized connectors.
  • Global Logistics: Fast shipping to US and European B2B markets.
  • Quality Assurance: Every unit is tested for IP67 seal and electrical integrity.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. What is the difference between screw terminals and pin terminals?
Screw terminals allow for direct wire connection by tightening a screw, making them ideal for field repairs. Pin terminals usually require soldering or quick-connect female terminals.

2. Can I use this 16mm indicator light on a marine boat?
Yes, the IP67 rating ensures it is fully waterproof and dustproof, making it perfect for marine control panels.

3. Does FILN support 110V AC customization?
Absolutely. We provide internal resistors pre-configured for 12V, 24V, 110V, or 220V AC/DC inputs.

4. Why choose a flat head over a domed head?
The flat head sits nearly flush with the panel, providing a cleaner aesthetic and reducing the chance of accidental impact damage.

5. Is the metal housing resistant to rust?
The housing is made of a high-quality copper alloy with nickel plating, which offers excellent corrosion resistance in industrial settings.

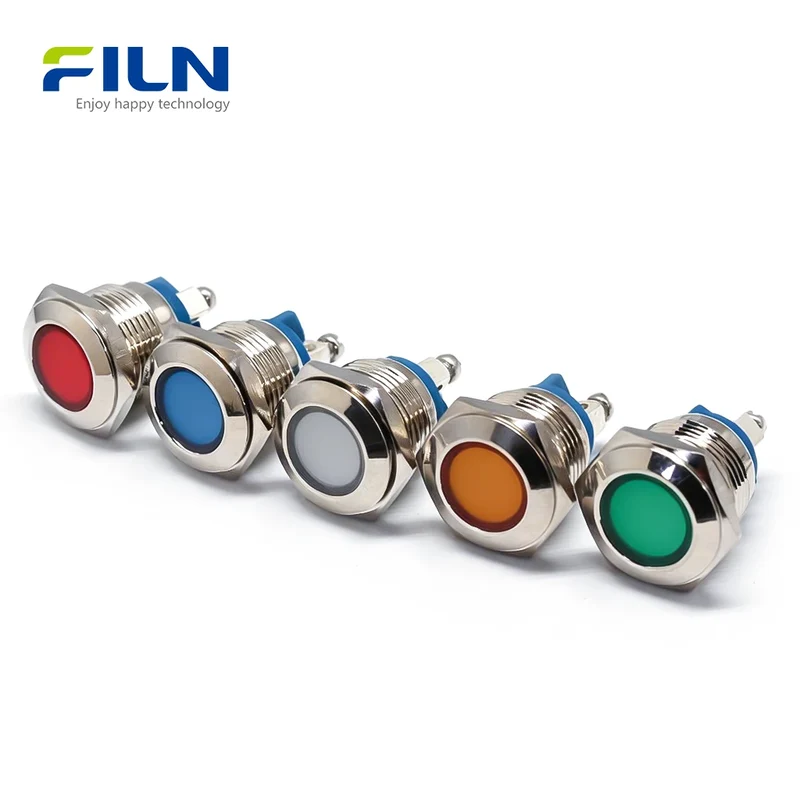

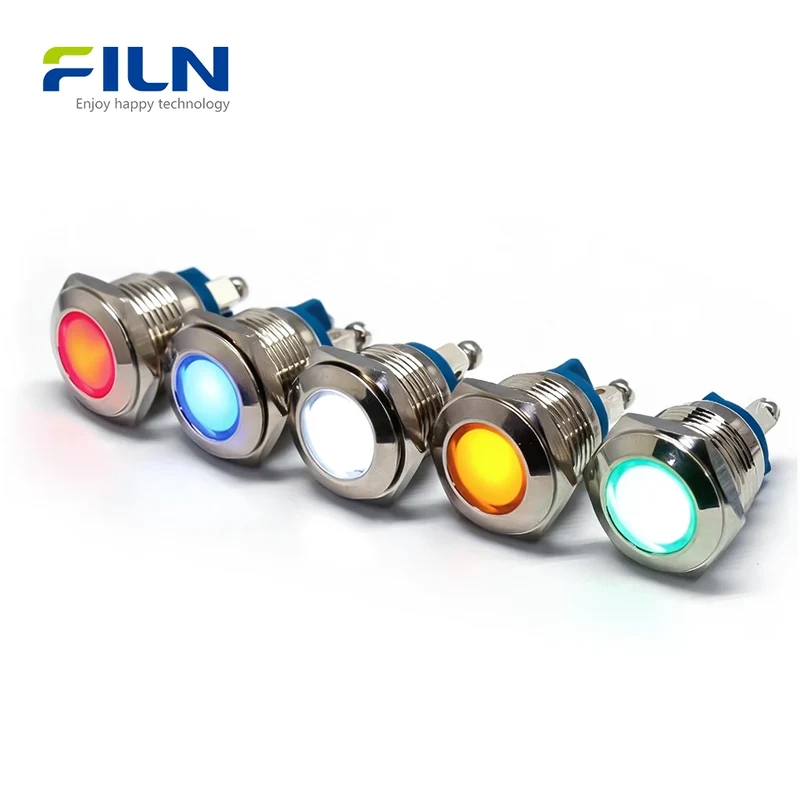

6. What color options are available for the 16mm series?
While this model is blue, we also manufacture red, green, yellow, and white versions.

7. How long is the delivery time for bulk B2B orders?
As a factory, we maintain high stock levels and can typically ship standard orders within 3-7 business days.

8. Is the LED replaceable?
No, the LED is integrated and sealed for IP67 protection, but with a 50,000-hour life, it rarely needs replacement.

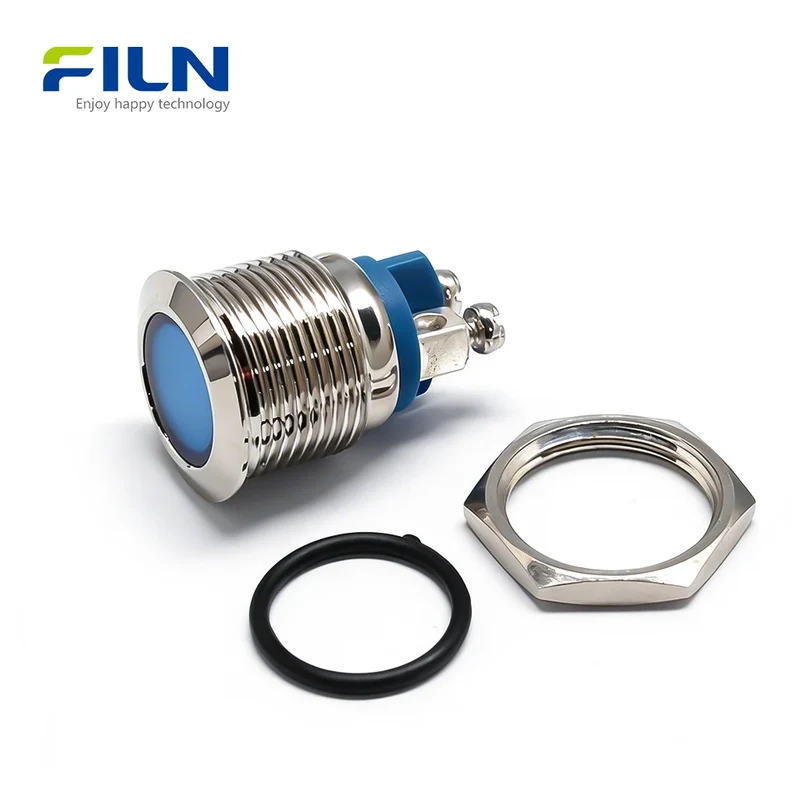

9. Does it come with mounting hardware?
Yes, each unit includes a waterproof O-ring and a securing hex nut.

10. Are these lights UL certified?
Yes, FILN products carry UL, CE, and RoHS certifications for global compliance.
