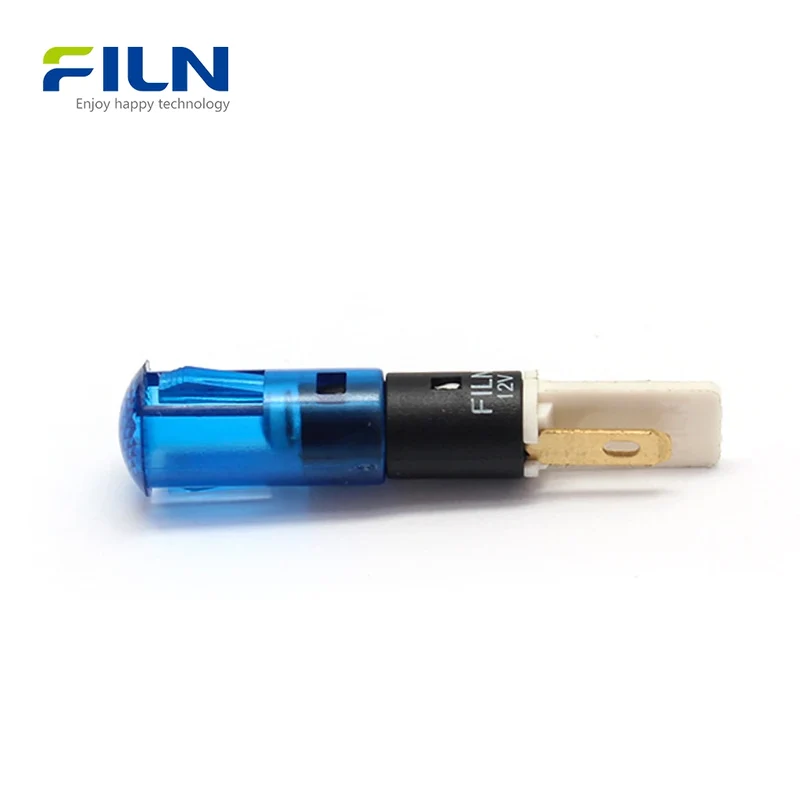

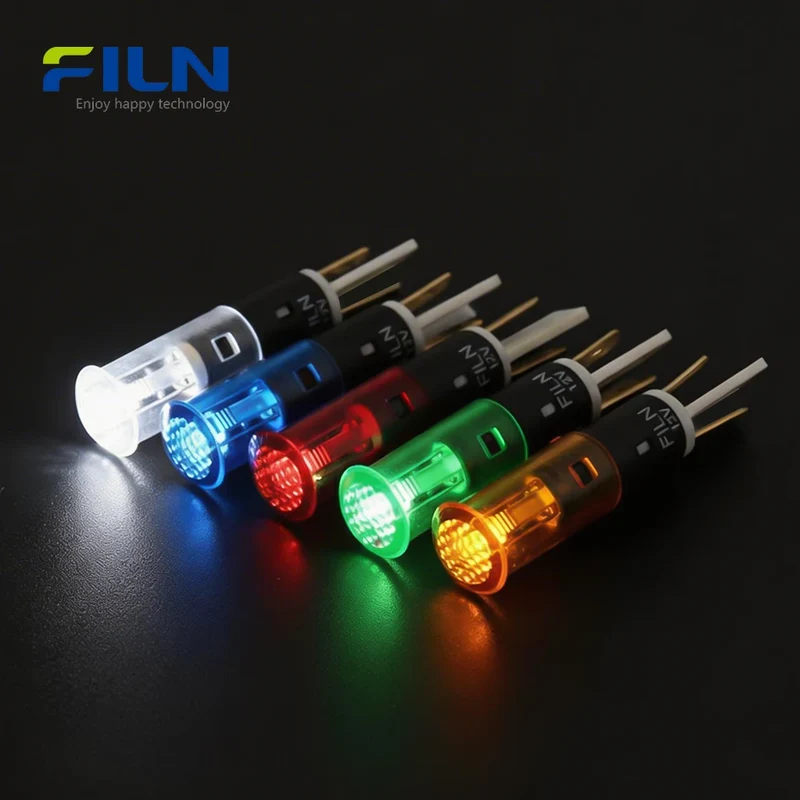

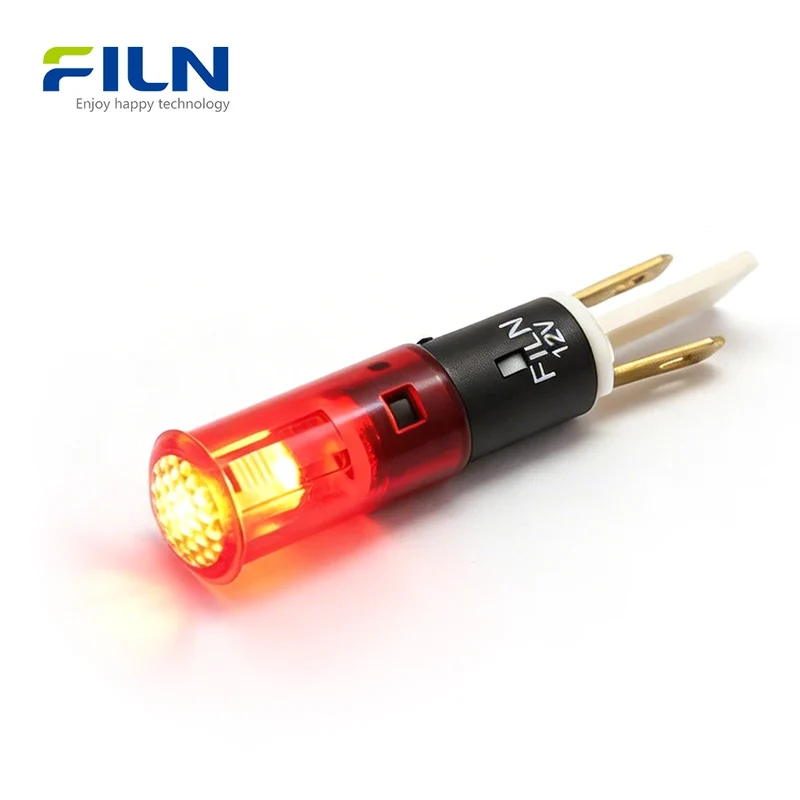

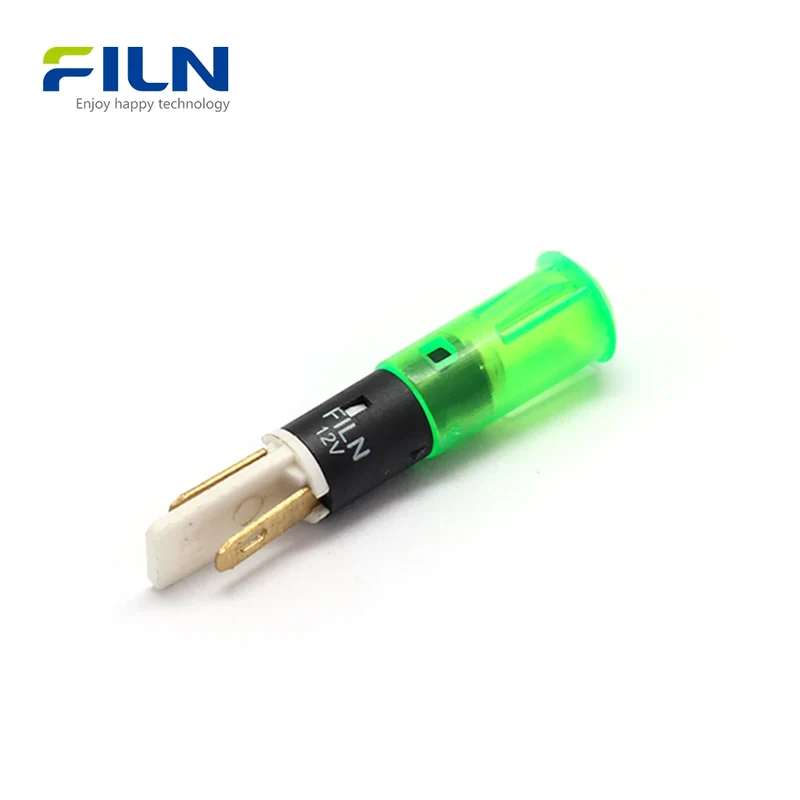

Indicator Light LED 8mm Plastic PA66 Flat Top 2-Pin Snap-in Panel Mount FILN

Product Overview

FILN introduces the FL1P-08QJ-2, a high-quality indicator light led for sale designed for efficiency and durability. This 8mm-plastic-indicator-light-led-for-sale features a flat-top round head and is manufactured using premium PA66 nylon. As a professional manufacturer, FILN ensures that every indicator light led meets global standards, including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. The snap-in-panel-mount-indicator-light-led system utilizes specialized elastic "ears" on the housing for a secure, tool-free installation. Whether you require 220v green indicator light led 8mm for industrial grids or 12V units for automotive use, our 2-pin terminal design simplifies wiring and reduces assembly costs. Plastic indicators offer superior electrical insulation and a lighter footprint compared to metal alternatives. Direct factory stock is available for immediate purchase with global shipping.

Quick Specifications

Mounting Hole	8mm (5/16 inch)
Voltage	12V-24V, 110V-220V (Supports Customization)

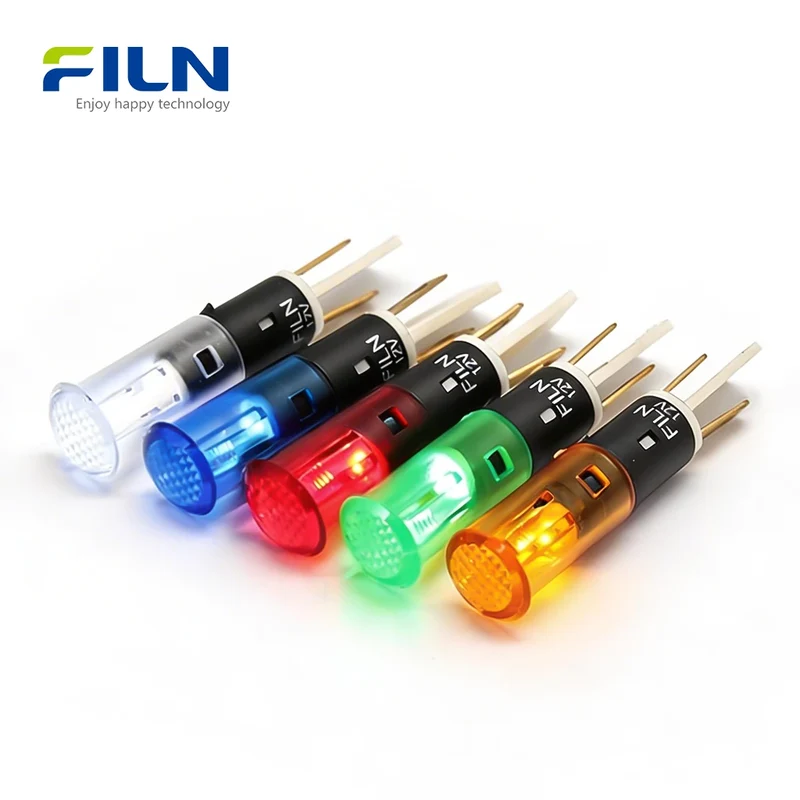

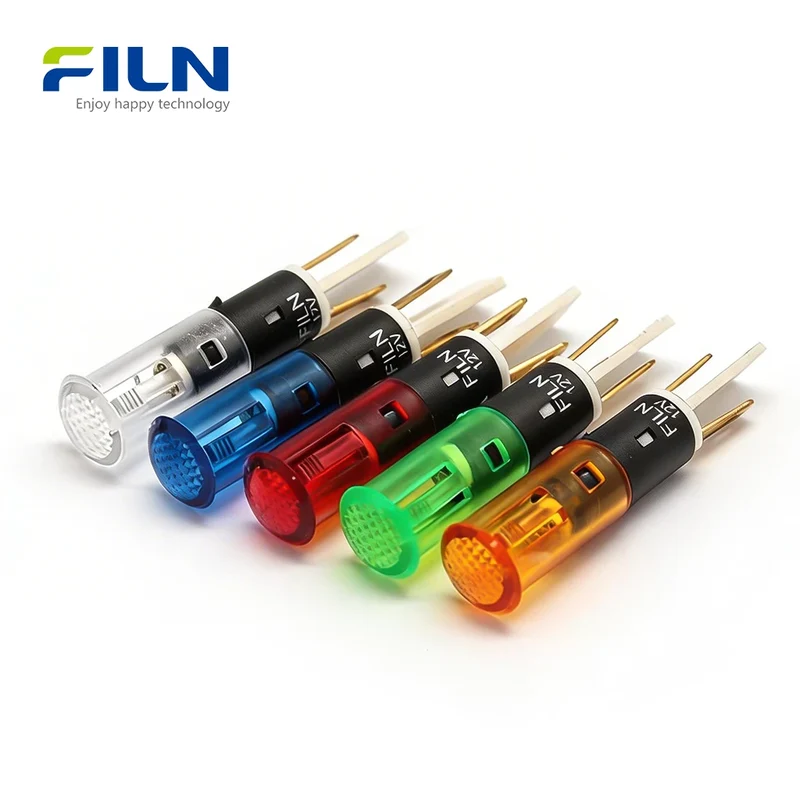

LED Color	Red, Green, Yellow, Blue, White
Head Style	Flat Top / Round Profile
Waterproof Rating	Non-waterproof (Snap-in Type)
Wiring Type	2-Pin / 2.8mm Terminal
Installation Method	Snap-in (Side-ear Tension)

Component Name	Material
Shell	PA66 Plastic
Lamp Holder	PA66 Plastic
Lampshade	PC
Luminescent Source	LED
Resistance	Carbon film resistance
2.8mm Terminal	H59 Brass

Rated Working Parameters

Rated Voltage	Customized 3V to 380V
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Flame-retardant PA66
Lens	High-diffusion PC
Terminal	Brass with Silver Coating

General Characteristics

Items	Parameter
Working Life	60,000 Hours
Insulation and Resistance	1800V/5s
Operating Temperature	-40℃ to +80℃
Air Pressure	86~106Kpa

Electric Property

Insulation Resistance	DC500V 1 min	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability Characteristics

Continuous Working Life

50,000+ hours under nominal load

Resistant Performance

High Temperature	80℃ for 96h
Moisture Resistance	40℃ 95%RH for 96h
Temperature Cycling	-40℃ ↔ +85℃ (5 Cycles)

Key Features

• LED high brightness: Clear visualization for 8mm-flat-top-led-indicator-lamp applications.
• Long lifespan: Solid-state reliability for over 60,000 hours of continuous service.
• Pin Terminal Design: The 2-pin-terminal-indicator-light-led rear ensures rapid connection.
• Snap-in Mounting: Quick snap-in-panel-mount-indicator-light-led installation saves labor time.
• Industrial PA66 Shell: Non-conductive and heat-resistant plastic housing for enhanced safety.

Applications

• Household electrical appliances and consumer electronics.
• Industrial control panels and industrial-snap-fit-indicator-light systems.
• Vehicle dashboard displays (white-led-indicator-light-12v-8mm).
• Cabinet power indicators and signal monitoring boards.
• Medical and communication device signaling.

Installation Guide

1. Drill an 8mm diameter hole in the panel board.
2. Ensure the panel surface is flat and within the recommended thickness range.
3. Insert the indicator-light-led-8mm-plastic-for-sale from the front of the panel.
4. Apply steady pressure until the side "ears" of the housing snap out to lock the unit in place.
5. Connect your 2.8mm female terminals to the 2-pin terminals at the base.

Understanding 8mm Snap-in LED Indicators

The indicator-light-led-8mm-plastic-for-sale is a vital component in modern electronic design.
Snap-in vs. Wiring: Snap-in models (FL1P-08QJ-2) provide the fastest installation speed by eliminating the need for nuts. However, threaded "wiring" models are often used where heavy vibration or moisture resistance is required.
Plastic vs. Metal: Plastic indicators made of PA66 provide superior electrical insulation and are cost-effective, while metal indicators are preferred for high-impact industrial settings.
Pin Terminals: Direct 2.8mm pins allow for modular wiring systems, making field replacement much faster than soldered wire lead versions.

Factory Direct Supply

FILN is a premier factory specializing in indicator light led solutions. Support direct factory purchase:

• Factory Direct Sale
• Voltage Customization
• Color Array Options
• Global Fast Shipping

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: Are these LED indicators in stock for fast shipping?
A: Yes, we keep a large inventory of standard colors and voltages for immediate global dispatch.

Q2: Can I get a white-led-indicator-light-12v-8mm for a custom car project?
A: Absolutely, the 8mm flat-top design is very popular for automotive dashboards.

Q3: Is the light bright enough for daylight use?
A: Yes, our LEDs are selected for high intensity to ensure visibility even under ambient light.

Q4: Do you offer bulk discounts for distributors?
A: We provide specialized B2B wholesale pricing. Please contact us with your volume requirements.

Q5: Can you customize the terminal length?
A: While the pin size is standard, we can customize wire leads if you prefer a pre-wired solution.
