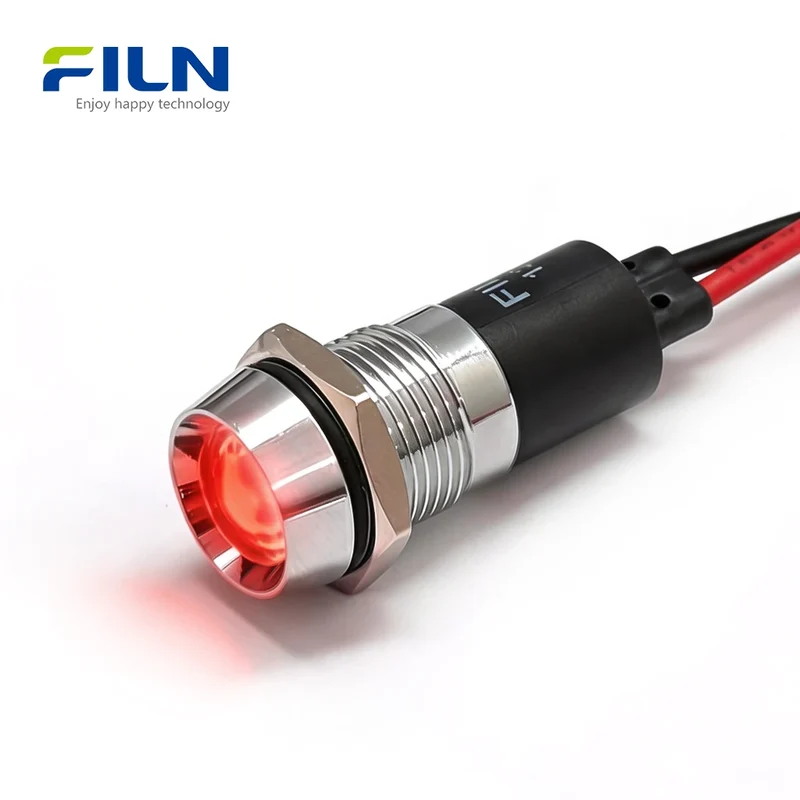

Indicator Light Red Metal 14mm Light 3V-250V IP65 Waterproof LED for Marine & Medical FILN

2,00 €1,29 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

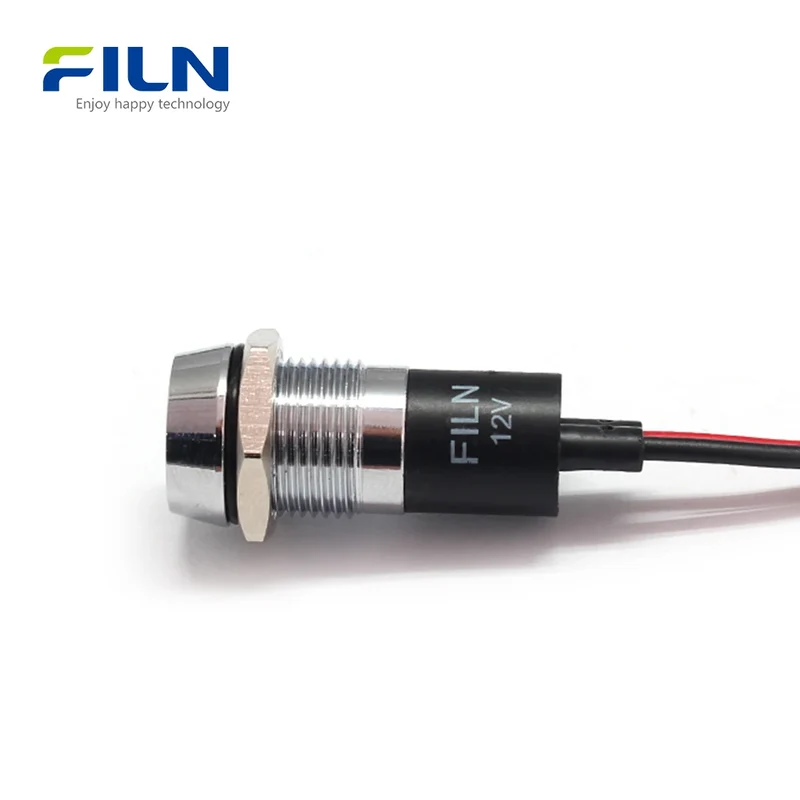

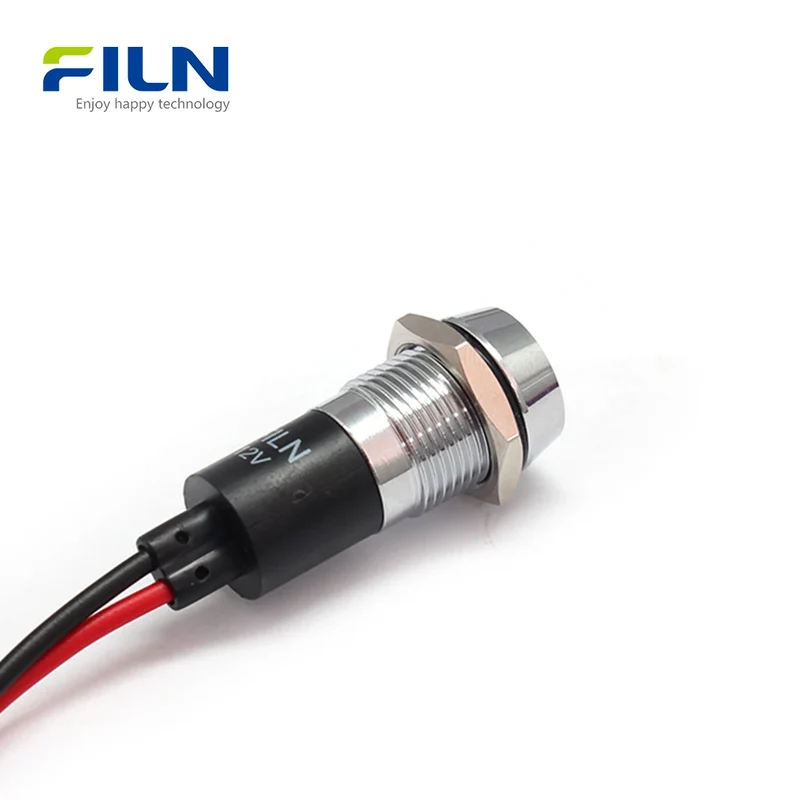

The FILN FL1M-14CW-1 is a professional 14mm indicator light red designed for high-performance signaling. This metal concave head indicator features pre-installed 15cm wire leads for convenient installation in diverse environments. Certified by ISO9001, CE, VDE, RoHS, SGS, and UL, it meets the highest international safety standards. Its IP65/IP67 waterproof rating ensures reliability in industrial control panels, medical devices, yachts, and new energy systems. Compared to the FL1M-14CJ-1 pin type, this wire lead version offers greater wiring flexibility. The concave head design enhances lens protection while the long lifespan LED ensures maintenance-free operation for up to 50,000 hours.

Quick Specifications

Mounting Hole 14mm / 0.55"
Voltage 12-24V / 110-220V (Support Custom)

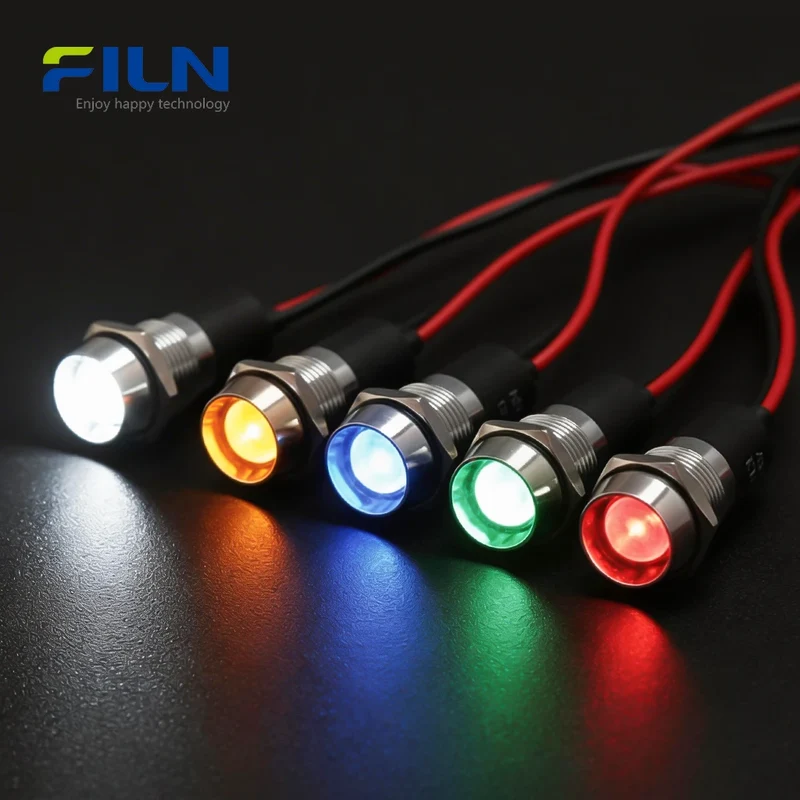

LED Color Red (Green, Yellow, Blue, White available)
Waterproof Rating IP65 / IP67
Wiring Type Wire Lead (15cm Length)
Lifespan 50,000 Hours

Rated Working Parameters

Rated Voltage Customized
Frequency(AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Chrome Plated Brass or Black Aluminum
Lens Polycarbonate (PC)
Seal Ring Silica Gel
Wire Material UL Certified Copper Wire

General Characteristics

Part Name FL1M-14CW-1
Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Durability Characteristics

Working Life 30mA 1000h 50,000 hours

Resistant Performance

High Temperature 80℃ 96h
Low Temperature -40℃ 96h
Temperature Cycling -40℃ → 25℃ → 85℃ (5 rounds)

Key Features

  • LED high brightness: Clear red signaling even in high-ambient light areas.
  • Long lifespan: Reliable operation up to 50,000 hours.
  • IP67 waterproof: Includes 14mm O-ring for extreme moisture protection.
  • Easy installation: Smooth M14 threads and pre-wired for convenience.

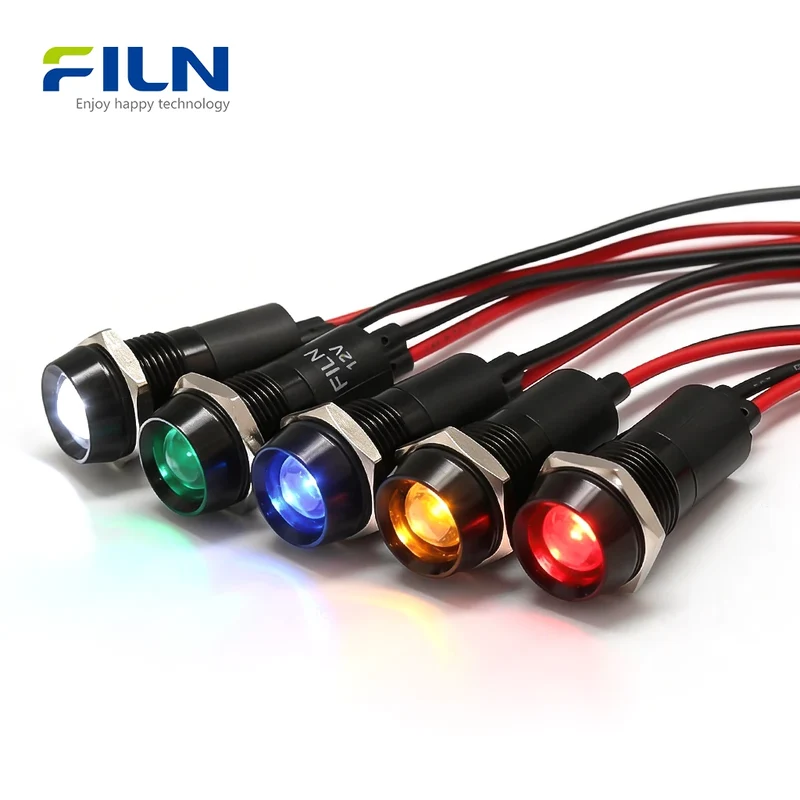

  • Industrial grade reliability: High-quality metal housing in Silver or Black.

Applications

  • Industrial Panels: CNC machines and automation cabinets.
  • Medical Equipment: Patient monitoring and laboratory testing devices.
  • Marine Systems: Yacht dashboards and ship control systems.
  • New Energy: EV charging stations and solar power inverters.
  • Transportation: Status indicators for trucks and specialty vehicles.

Installation Guide

  1. Drill a 14mm hole in your control panel.
  2. Insert the 14mm O-ring onto the indicator base.
  3. Pass the indicator light through the hole from the front side.
  4. Thread the M14 nut from the back and tighten securely.
  5. Connect the 15cm wire leads to your 12-24V or 110-220V circuit.

What Is an Indicator Light Red?

An indicator light red is a specialized visual signal used to convey status, warnings, or operational states in machinery. In industrial and medical settings, the red color often signals "Critical Stop," "Power On," or "Fault." The 14mm size provides a balance between high visibility and compact footprint. The concave head design is a significant advantage as it protects the LED from external damage and reduces glare. Unlike the pin-terminal FL1M-14CJ-1, the wire-lead FL1M-14CW-1 model simplifies installation in deep cabinets where manual soldering is difficult, ensuring a robust and vibration-resistant connection.

Factory Direct Supply

  • Factory Direct: Lowest price guaranteed for bulk orders.
  • Full Customization: Custom voltage, wire length, and connector types available. [cite: 4]
  • Fast Global Shipping: Reliable logistics for international B2B clients.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Visible FAQ

1. What are the advantages of a concave head? It protects the lens from physical impact and accidental touches.

2. Difference between wire lead and pin type? Wire lead (14CW-1) has 15cm wires for flexible installation; pin type (14CJ-1) is for quick plug-in/PCB.

3. Can I use this on a yacht? Yes, the IP67 waterproof rating makes it perfect for marine environments.

4. Supported voltages? 12-24V, 110-220V, and other custom voltages are supported.

5. What materials is it made of? Metal housing in silver (chrome brass) or black (anodized aluminum).

6. Is it suitable for medical devices? Yes, it meets the high reliability and certification standards for medical labs.

7. How long are the wires? 15cm is standard, but we can customize the length.

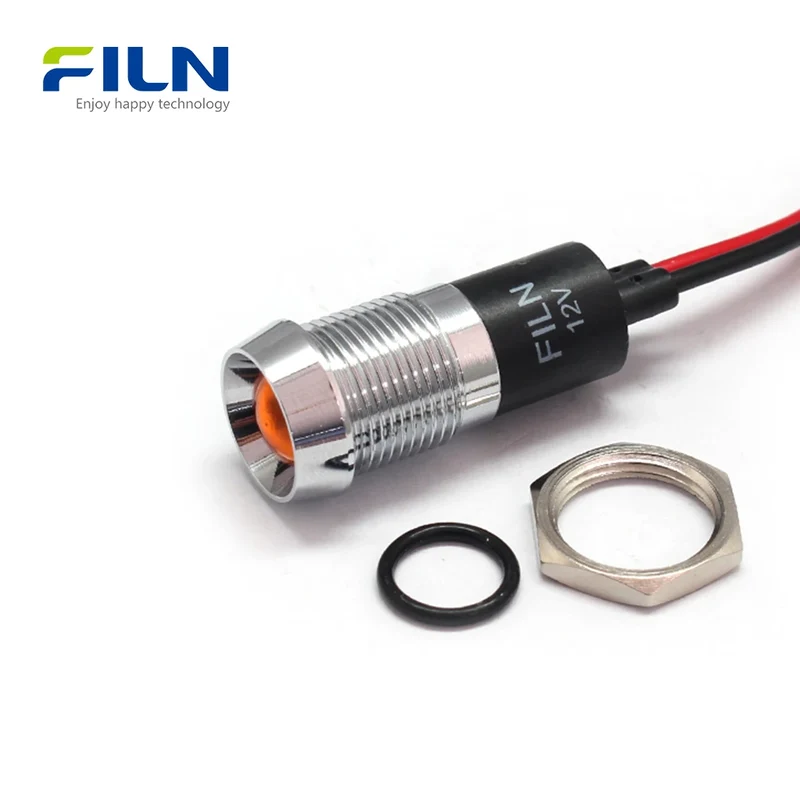

8. Does it include the nut? Yes, a matching M14 nut and waterproof O-ring are included.

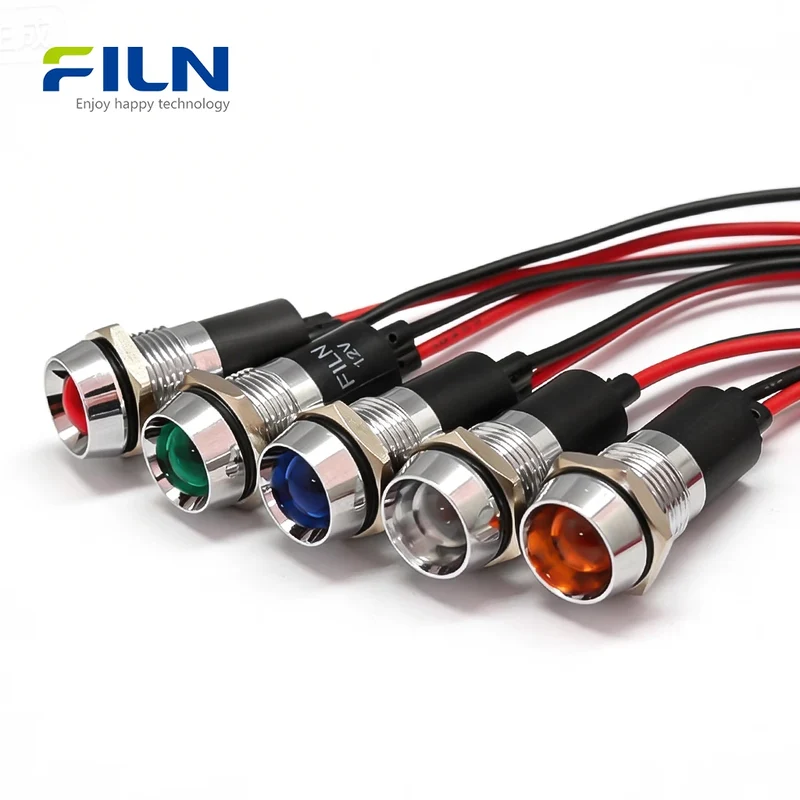

9. Are other colors available? Yes: Red, Green, Yellow, Blue, and White.

10. Is the threading smooth? Yes, we use precision M14 threads for easy installation.
