Indicator Red Light 19mm Metal Flat Head 15cm Wire Lead 12V 110V 220V FILN

Beschreibung

Product Overview

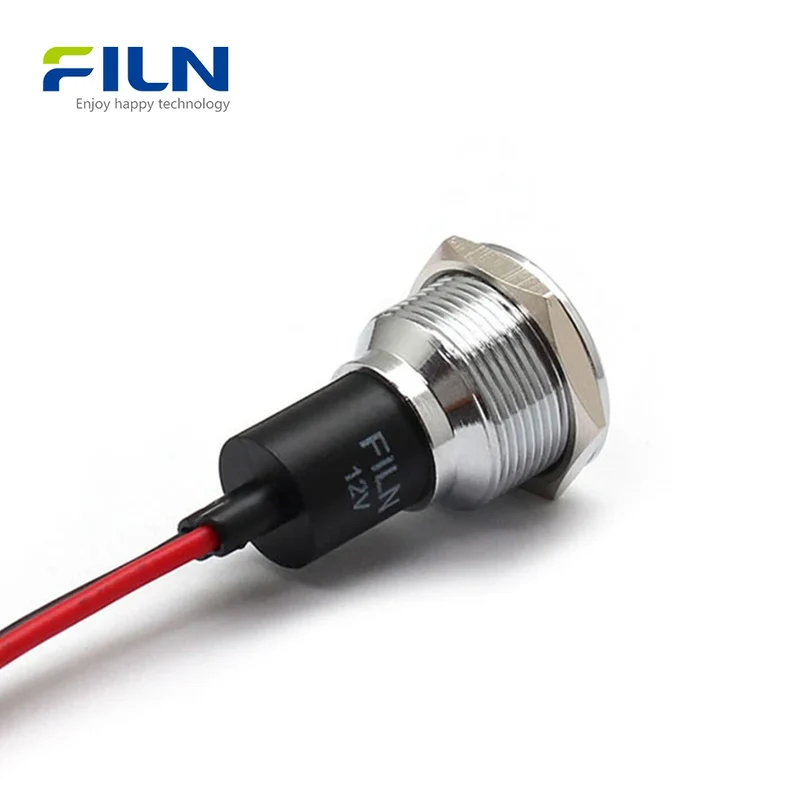

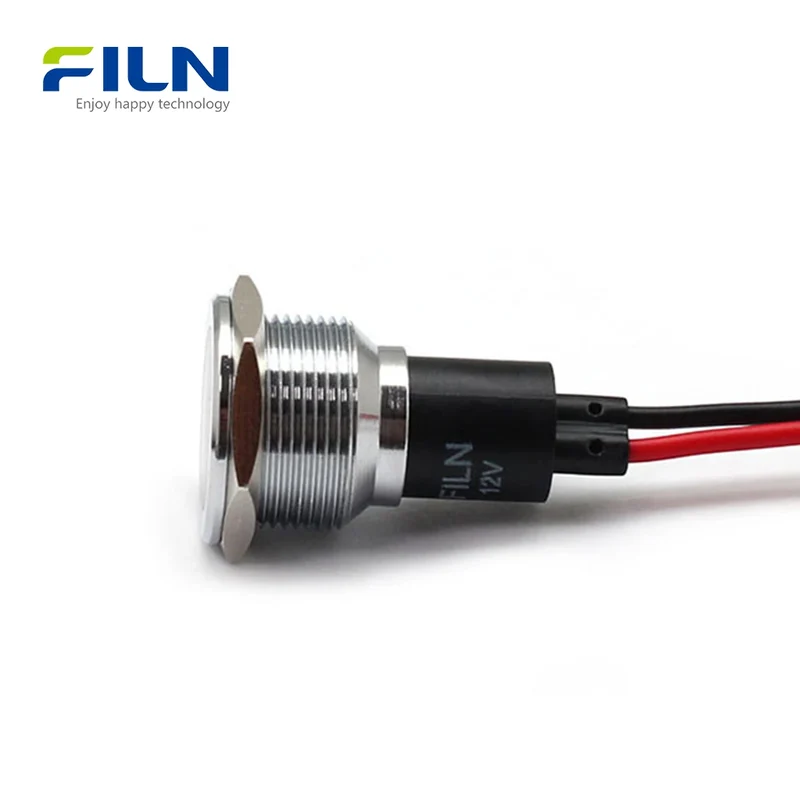

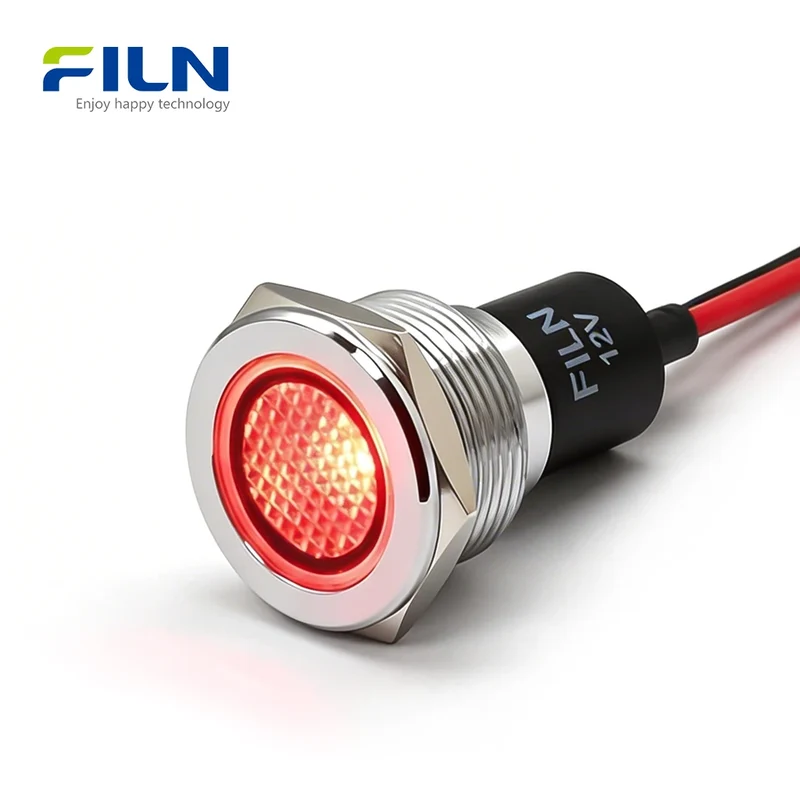

The indicator red light (Model: FL1M-19FW-1) by FILN is a versatile industrial signaling solution designed for high-performance signal transmission. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, this 19mm metal indicator is built for longevity. Featuring a flat head (flush mount) design, it offers a clean aesthetic and superior resistance to mechanical impact. Unlike plug-in versions, this model comes with 15cm pre-installed wire leads, providing a more reliable and vibration-proof connection for large and small electrical appliances. Whether integrated into 12VDC automotive systems or 220VAC industrial machinery, FILN's waterproof metal indicator ensures stable performance and rapid installation in any panel-mount application.

QUICK SPECIFICATIONS

Mounting Hole	19mm / 0.75 inch
Voltage	12-24V, 110-220V (Customizable)

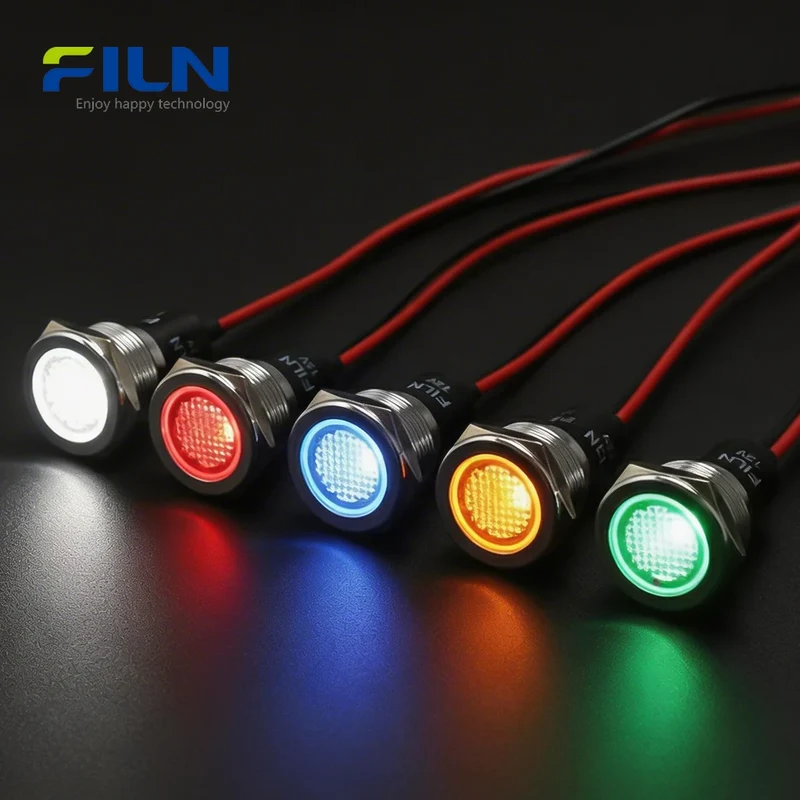

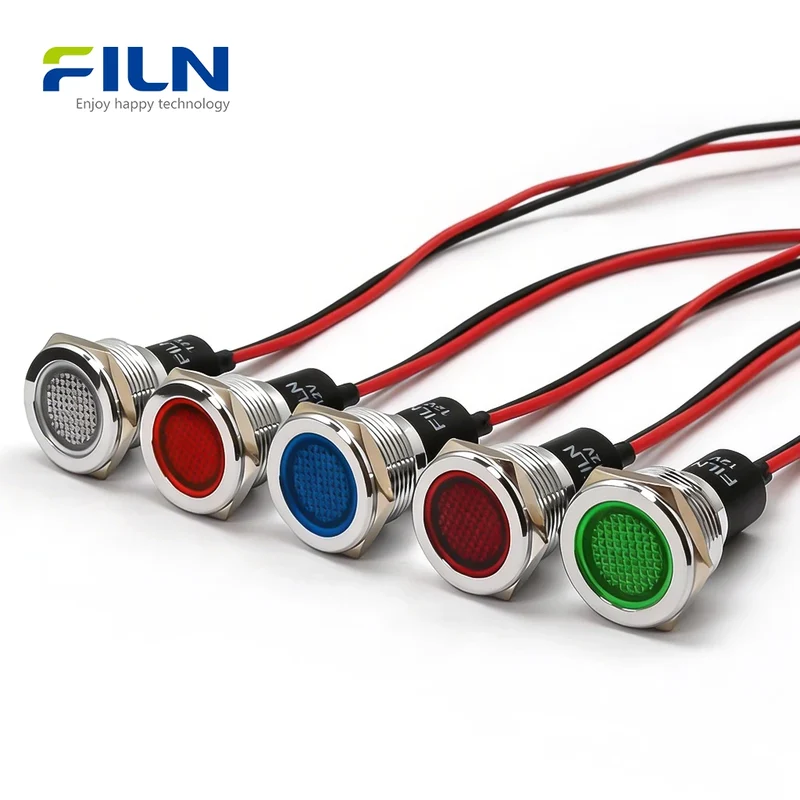

LED Color	Red (Default), Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Wiring Type	15cm Wire Lead (Custom Length Available)
Head Shape	Flat Round Head

Component Material List

Component Name	Material	Note
Shell	Copper Alloy	Nickel-plated Silver or Black Anodized
Lamp Holder	PA66 Nylon	High strength and temperature resistance
Lampshade	PC Polycarbonate	Flat design, high light transmittance
Wires	PVC / UL Standard	Pre-soldered 15cm wire leads
O-ring	Silica Gel	19mm waterproof protection
Nut	Copper Alloy	M19 nut for tight panel fixation

RATED WORKING PARAMETERS

Rated Voltage	Customized (12V-220V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

COMPONENT MATERIALS

Housing	Nickel-plated Brass / Black Anodized
Lens	Flat PC Lens
Seal Ring	Industrial Silicone
Wire Material	UL1007 Standard PVC Wires

GENERAL CHARACTERISTICS

Operating Temperature	-40℃ ～ 80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86 ～ 106Kpa
Waterproof Rating	IP65 / IP67

ELECTRIC PROPERTY

Parameter	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

DURABILITY CHARACTERISTICS

Continuous Working Life	30mA Load Test	50,000+ hours

RESISTANT PERFORMANCE

High Temperature	80℃ / 96h
Low Temperature	-40℃ / 96h
Moisture Resistance	40℃ 90-95%RH / 96h

KEY FEATURES

Flat Round Head: The sleek, flush-mount design is impact-resistant and easy to integrate into modern equipment.
15cm Pre-installed Wires: Saves assembly time and provides a highly stable, vibration-proof connection.
IP67 Waterproofing: Included silicone O-ring ensures the internal circuitry remains dry and safe.

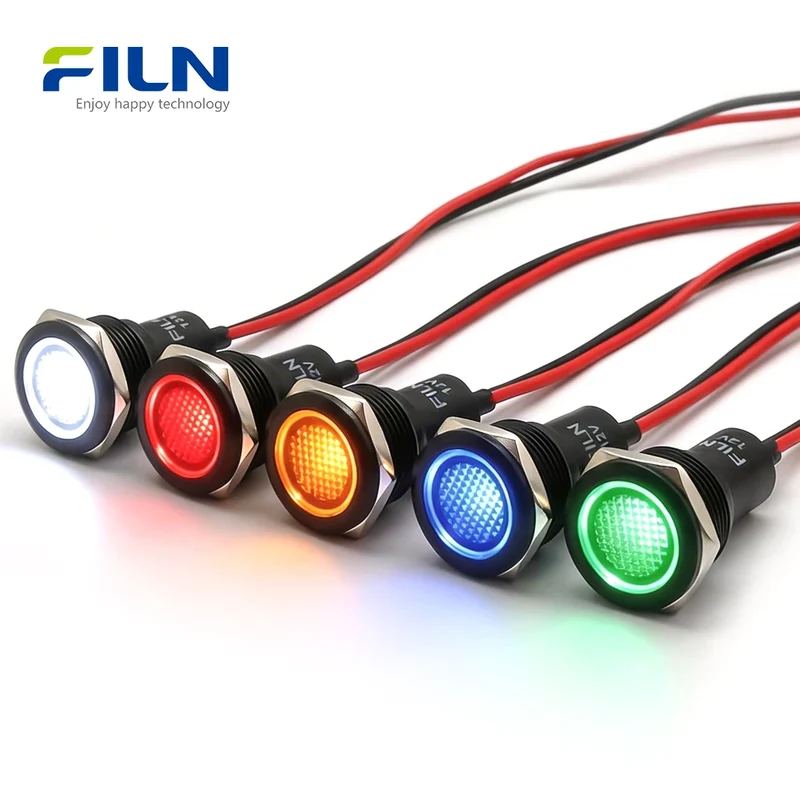

Dual Shell Colors: Available in classic silver nickel or professional matte black.
Industrial grade reliability: Heavy-duty metal construction for both indoor and harsh outdoor use.

APPLICATIONS

Large industrial control systems and automation panels.
Small household appliances and kitchen equipment.
CNC machines, lathes, and high-precision equipment.
Electrical distribution cabinets and signal transmission boxes.
Marine dashboards and automotive status displays.
Medical equipment and laboratory signaling.

INSTALLATION GUIDE

Panel Opening: Drill a 19mm hole in the device panel.
Insertion: Insert the indicator light into the hole from the front side.
Sealing: Position the large 19mm O-ring between the flat head and the panel to ensure waterproof integrity.
Nut Fixation: From the back of the panel, screw the M19 nut onto the threaded body. The smooth threading ensures a firm grip without effort.
Wiring: Connect the 15cm wire leads directly to your signal or power source.

WHAT IS AN INDICATOR RED LIGHT?

An indicator red light is the most common visual signal used to communicate a "Stop," "Warning," or "Power On" status in electrical circuits. In the 19mm form factor, a flat head design is preferred for its flush-to-panel finish, which minimizes the risk of accidental breakage compared to high-head types.

Wire Lead vs. Pin Terminal: While pin terminals offer modularity, wire lead designs are the industry standard for high-vibration applications (like CNC machines or vehicles). The 15cm pre-installed wires create a permanent, low-resistance path that won't loosen over time. Combined with the M19 copper nut for stability and a silicone O-ring for IP67 protection, these indicators are the reliable choice for any signal transmission requirement in both large-scale and small-scale machinery.

FACTORY DIRECT SUPPLY

As a specialized manufacturer, FILN provides high-performance indicator solutions with expert customization:

✅ Voltage Customization: 12V, 24V, 110V, 220V, and more.
✅ Wire Customization: Custom wire lengths (e.g., 30cm, 50cm) and gauges.
✅ Fast Shipping: Direct factory logistics for global B2B procurement.
✅ Shell Variations: Silver nickel-plated or professional black shells.

FILN Official Website: www.filn.com
Contact Us: [email protected]

FREQUENTLY ASKED QUESTIONS

1. Why should I choose the flat head indicator red light over other types?
The flat head design is ideal for flush-mount aesthetics and is less prone to damage from external force compared to raised-head designs.

2. What is the benefit of the 15cm wire lead vs. a plug terminal?
Wire leads provide a fixed, high-reliability connection that is superior for environments with high vibration where a plug might come loose.

3. Can FILN customize the wire length?
Yes, as a factory, we can provide any wire length (e.g., 50cm, 1m) to suit your specific equipment installation requirements.

4. Is the 19mm indicator light truly waterproof?
Yes, with the included silicone O-ring and proper installation, it meets IP67 standards, making it dust-proof and water-immersion resistant.

5. Are these indicators suitable for both 12VDC and 220VAC?
We offer internal circuitry optimized for specific voltages. Please specify if you need 12V, 24V, 110V, or 220V when ordering.

6. What is the role of the M19 nut?
The M19 nut secures the indicator to the panel. Our nuts feature smooth threading for easy hand or tool tightening.

7. In what scenarios are these lights commonly used?
They are used in signal transmission for anything from large industrial CNC machines to small household appliances.

8. Does the light include any mounting hardware?

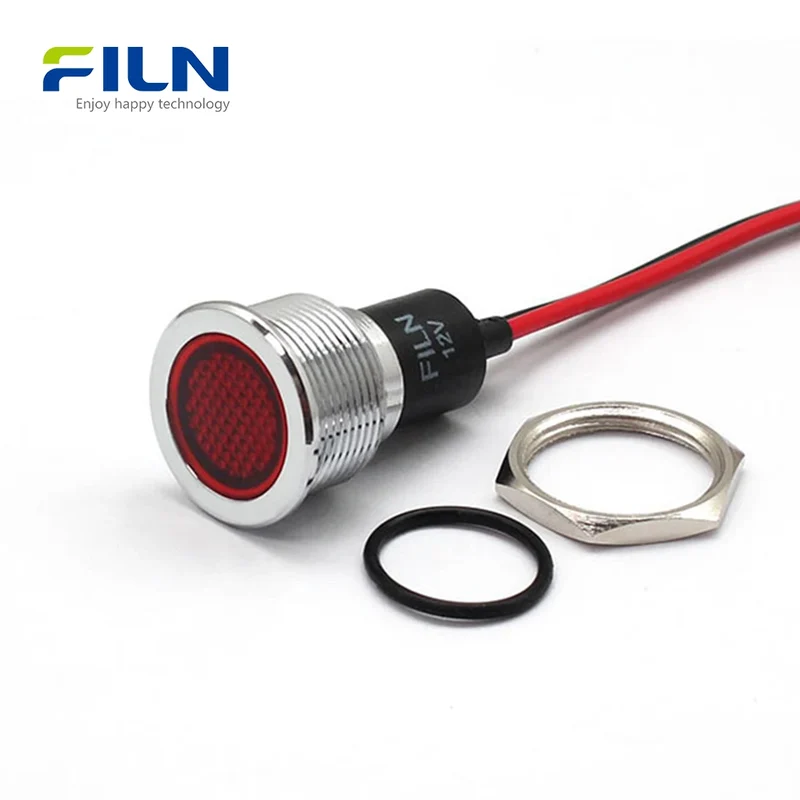

Every indicator comes with one 19mm silicone waterproof ring and one M19 copper fixation nut.

9. Are silver and black shell colors available for bulk orders?
Yes, both nickel-plated silver and black anodized shells are available to match your equipment's design.

10. What is the expected working life of the LED?
Our industrial LEDs are rated for a lifespan of over 50,000 hours of continuous operation.
