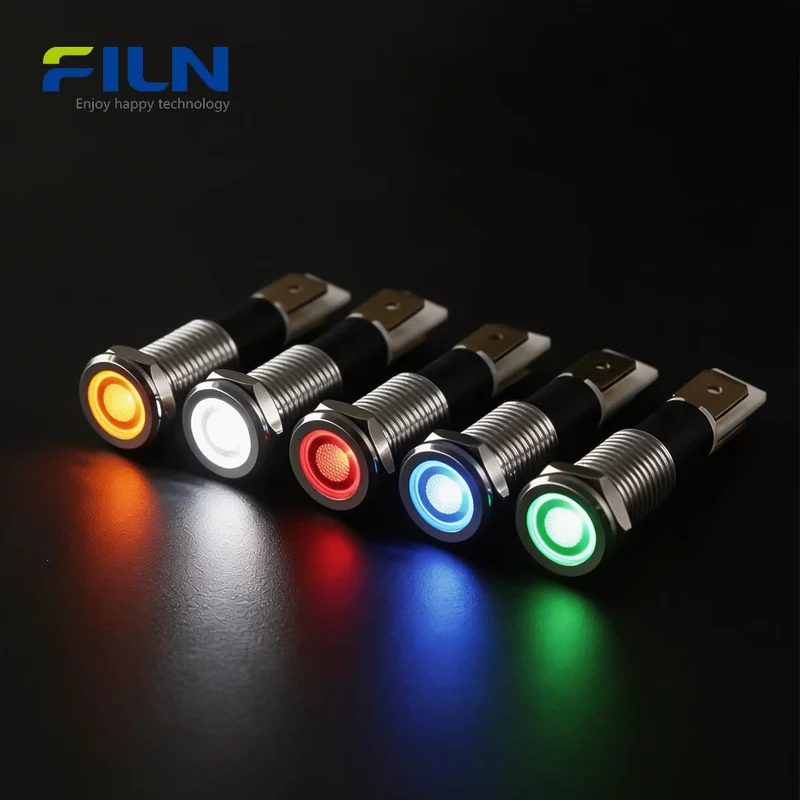

Lamp Indicator Light 10mm 3V-380V IP67 Waterproof LED Signal for CNC & Marine FILN

1,40 €0,71 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

The FILN 10mm lamp indicator light (Model: FL1M-10FJ-1) is an industrial-grade signaling solution featuring a durable metal flat-head design. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/IP67, this lamp indicator light ensures peak performance in harsh environments. Designed for automation, CNC machinery, electrical cabinets, and marine systems, it supports universal voltages from 12V-24V to 110V-220V. The flat-head aesthetic prevents mechanical damage while the pin-type terminals provide a more secure, vibration-resistant connection compared to standard wires.

Quick Specifications

Mounting Hole 10mm (0.39 inch)
Voltage 12V-24V / 110V-220V (Customizable)

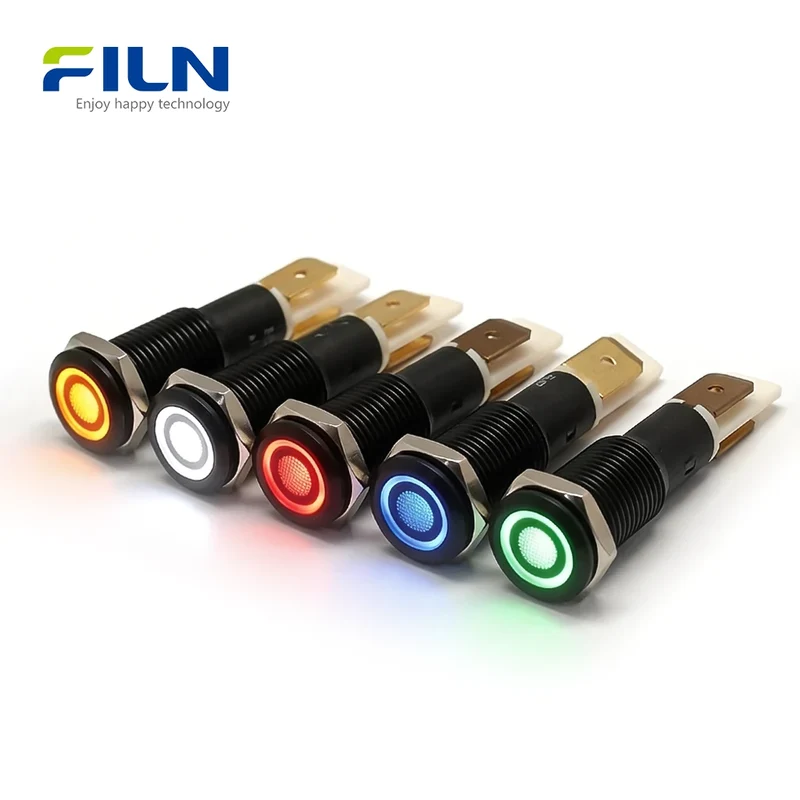

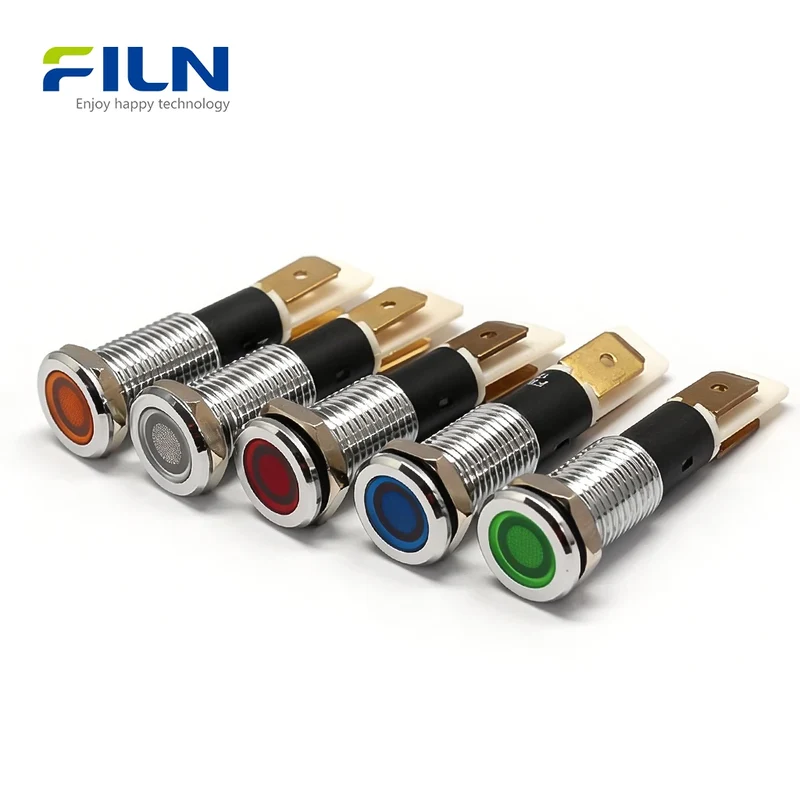

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours

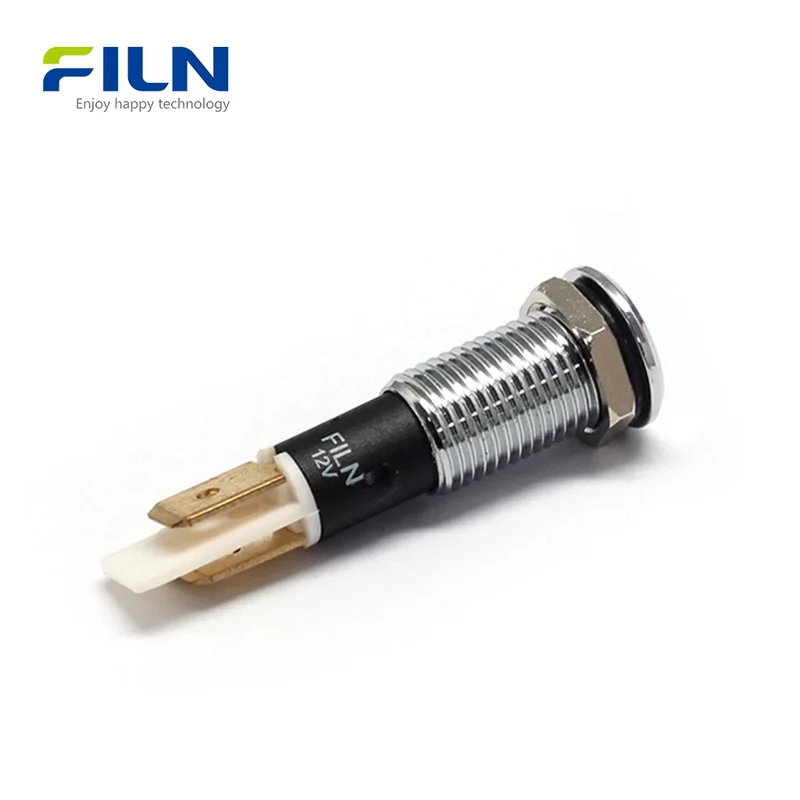

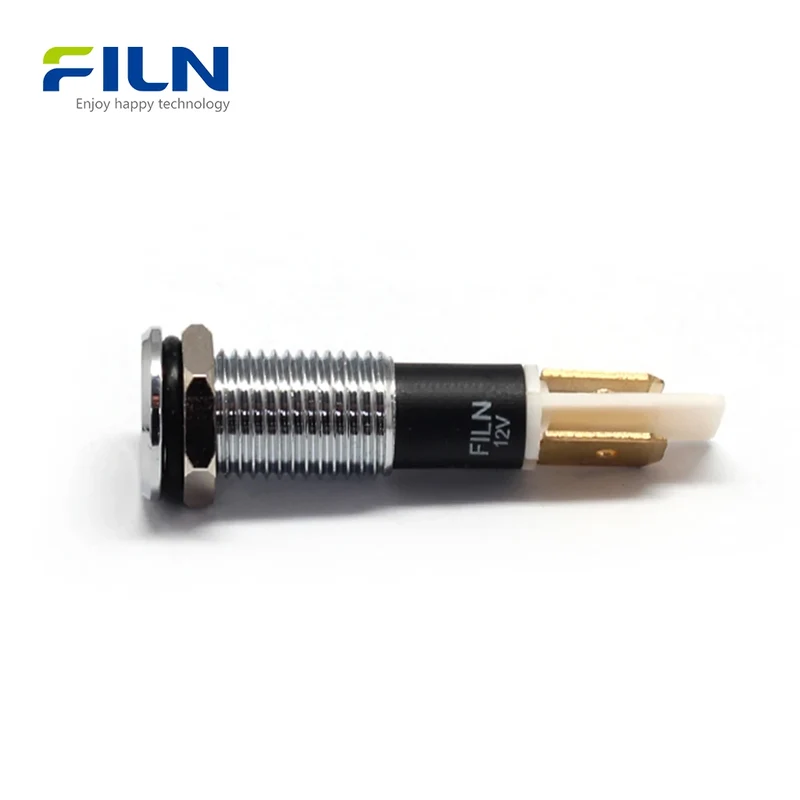

Wiring Type Pin Type (Plug-in)

Rated Working Parameters

Rated Voltage Customized Support
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Chrome Plated Brass / Black Anodized
Lens PC Polycarbonate
Seal Ring Silicone Rubber
Terminal Silver Plated Copper Pin

General Characteristics

Part Name Lamp Indicator Light
Operating Temp -40℃～80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Test Item Test Condition Requirement
Insulation Resistance DC500V 1min ≥100MΩ
Dielectric Strength 1500VAC / 60s No Breakdown

Durability Characteristics

Continuous Life 50,000 Hours (Tested at 30mA)

Resistant Performance

High Temperature 80℃ for 96h
Low Temperature -40℃ for 96h
Moisture Resistance 40℃ 95%RH 96h

Key Features

  • LED High Brightness: Superior visibility in both dark and brightly lit environments.
  • Long Lifespan: Exceeds 50,000 hours of maintenance-free operation.
  • IP67 Waterproof: Perfect for marine, medical, and outdoor heavy equipment.
  • Easy Installation: Features smooth M10 threads and quick-connect pin terminals.
  • Industrial Aesthetics: Sleek flat-head design available in silver or black.

Applications

  • Industrial Control Panels & CNC Machines [cite: 3]
  • Automation Equipment & PLC Signal Indication
  • Electrical Cabinets & Distribution Systems
  • Marine Systems & Boat Dashboard Displays
  • Medical Devices & Lab Instrumentation [cite: 3]
  • Commercial Appliances (Coffee Machines, Ovens)

Installation Guide

  1. Drill a 10mm mounting hole on the panel.
  2. Insert the indicator light from the front.
  3. Slide the O-ring over the body to ensure a waterproof seal.
  4. Secure tightly using the M10 nut from the back.
  5. Connect your circuit to the silver-plated pin terminals.

What Is a Lamp Indicator Light?

A lamp indicator light is a visual signal device used to convey status information to operators. In the FL1M-10FJ-1 series, the flat-head design provides several advantages: it creates a flush mounting surface that is easy to wipe clean and prevents the light from being damaged by passing objects. While wire-lead indicators are common, pin-terminal indicators are preferred in modular designs because they allow for quick replacements and cleaner cable management behind high-density control panels.

FILN Factory Direct Advantage

  • ✔️ Voltage & Wire Customization - Tailored to your specific needs.
  • ✔️ Global Certifications - UL, CE, RoHS, VDE compliant.
  • ✔️ Fast Global Shipping - Reliable delivery for B2B procurement.

Official Site: www.filn.com
Email: [email protected]

Frequently Asked Questions

Q1: What is the main benefit of the flat-head design?
A: It provides a flush, professional finish and is less prone to mechanical impact compared to raised heads.

Q2: Can I get this indicator in 110V for US markets?
A: Yes, we support 12V, 24V, 110V, and 220V customization.

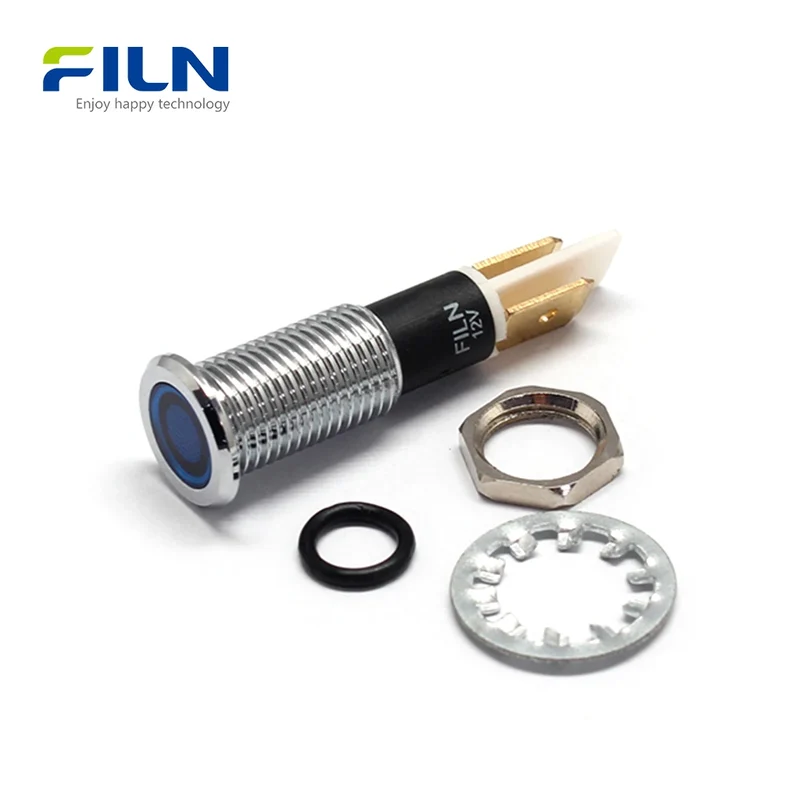

Q3: Is the M10 nut and O-ring included?
A: Yes, each unit includes a smooth M10 nut and a high-grade waterproof silicone ring.

Q4: What housing colors are available?
A: We provide silver chrome-plated brass and black anodized aluminum housing.

Q5: Are these suitable for CNC machines?
A: Absolutely. Their vibration resistance and IP67 rating make them perfect for CNC environments.

Q6: How do I connect the pin terminals?
A: You can use soldering or compatible female spade connectors for a secure fit.

Q7: Can I use this for outdoor marine panels?
A: Yes, the IP67 waterproof rating ensures protection against salt spray and moisture.

Q8: What is the lifespan of the LED?
A: Our high-quality LEDs are rated for over 50,000 hours.

Q9: Is it UL certified?
A: Yes, our products meet UL, CE, and VDE standards for industrial safety.

Q10: Do you offer bulk discounts for factories?
A: Yes, we are a direct factory (FILN) and offer competitive B2B pricing for large orders.
