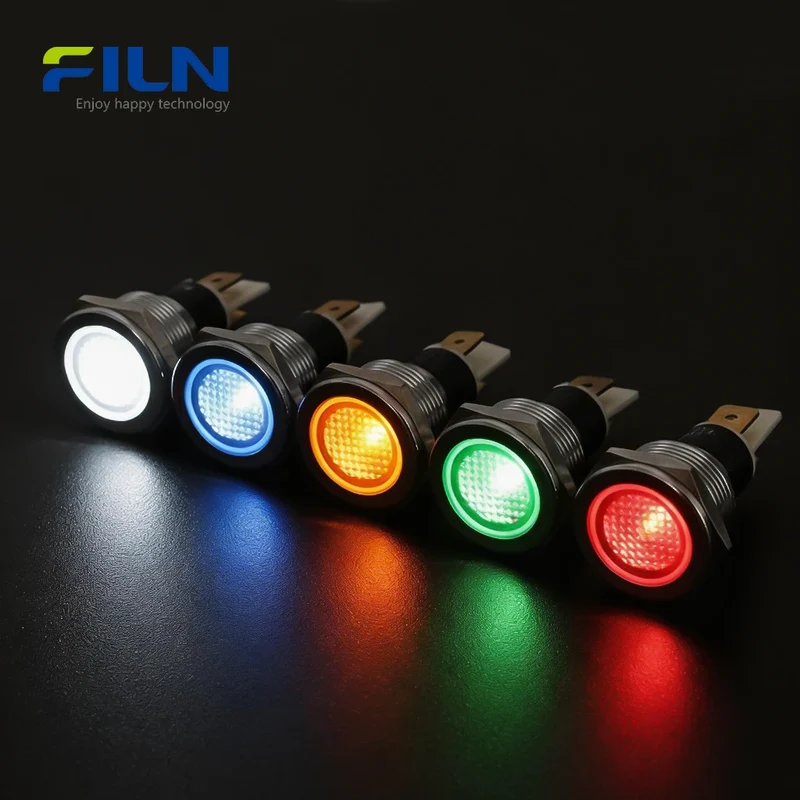

LED 12VDC Lights 19mm Metal Flat Head 2-PIN Plug Industrial Indicator FILN

2,59 €1,58 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

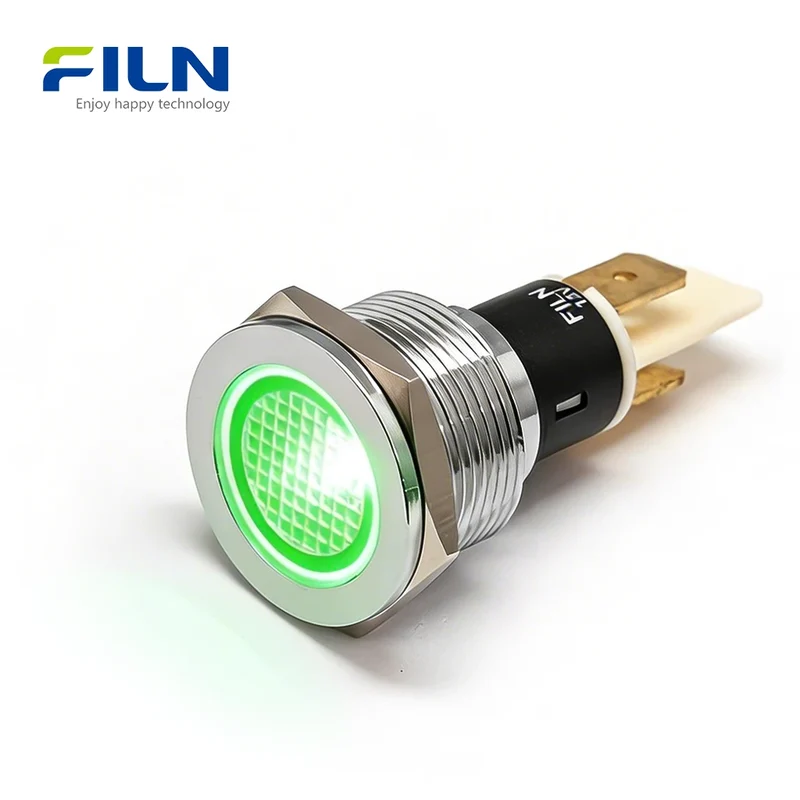

The led 12vdc lights (Model: FL1M-19FJ-1) from FILN represent a high-performance signaling solution for modern industrial applications. Fully certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, these 19mm metal indicators are built to withstand rigorous environments. The flat head design provides a sleek, flush-mount aesthetic that is easy to clean and prevents snagging in tight control panels. Utilizing a 2-PIN plug terminal, these lights offer rapid installation compared to traditional wiring. Designed primarily for 12VDC systems but supporting custom 110-220V ranges, they are ideal for automation, CNC machinery, and electrical cabinets seeking long-term reliability and high-visibility status indication.

QUICK SPECIFICATIONS

Mounting Hole 19mm / 0.75 inch
Voltage 12-24V, 110-220V (Customizable)

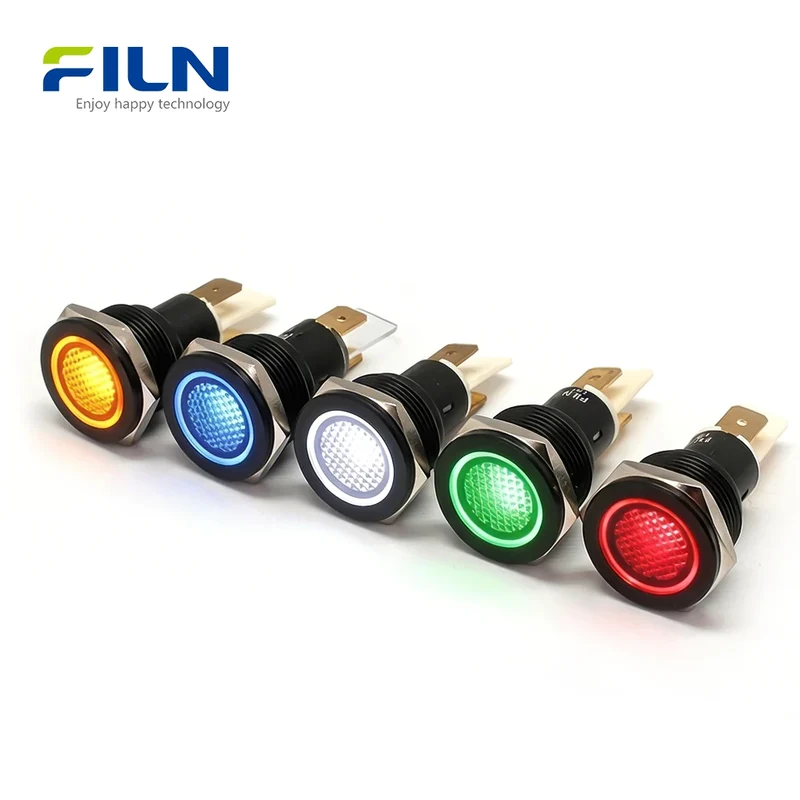

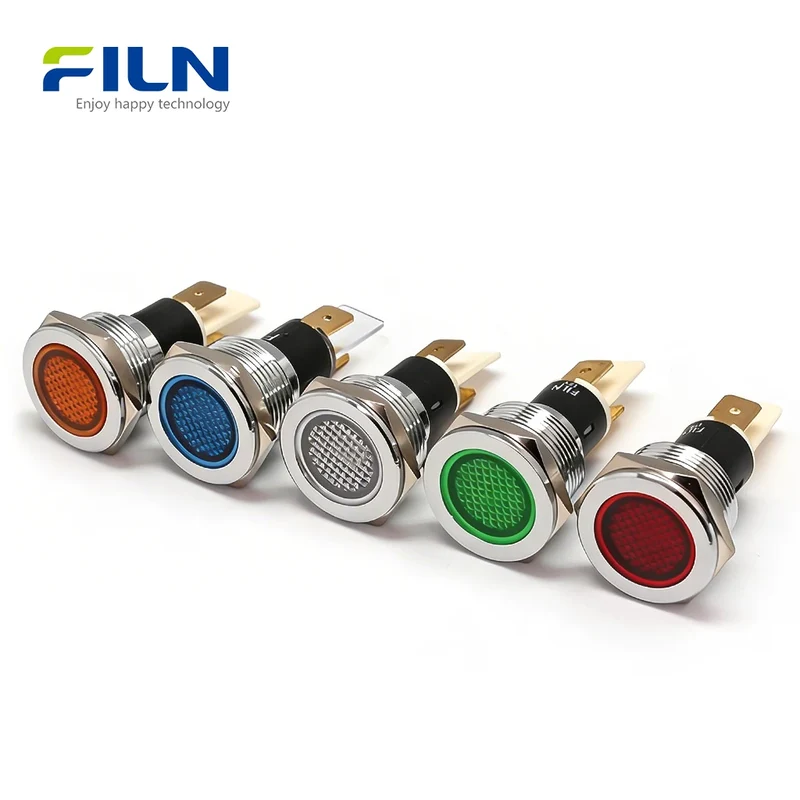

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67

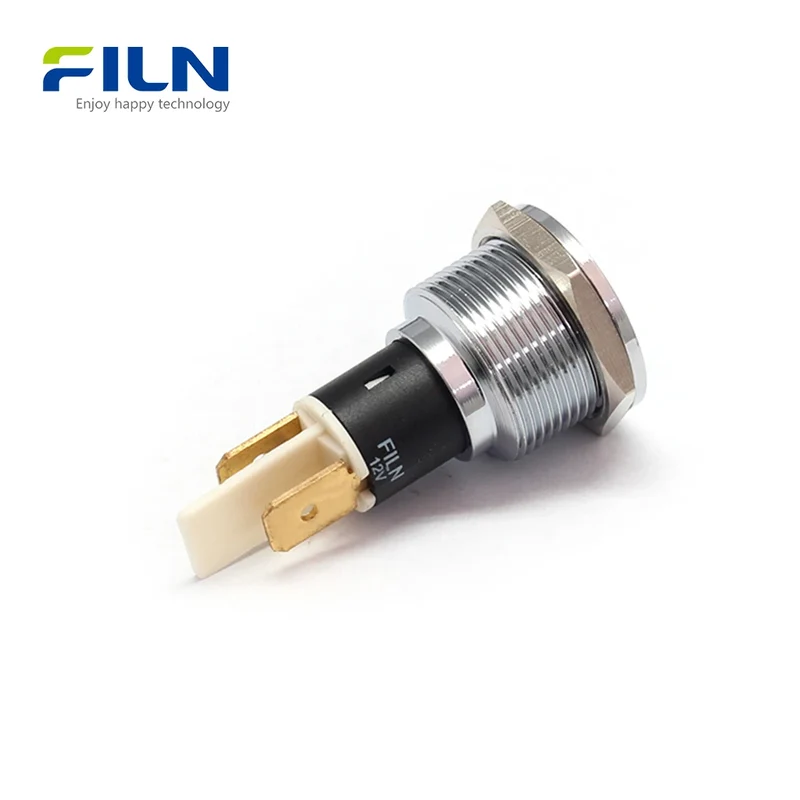

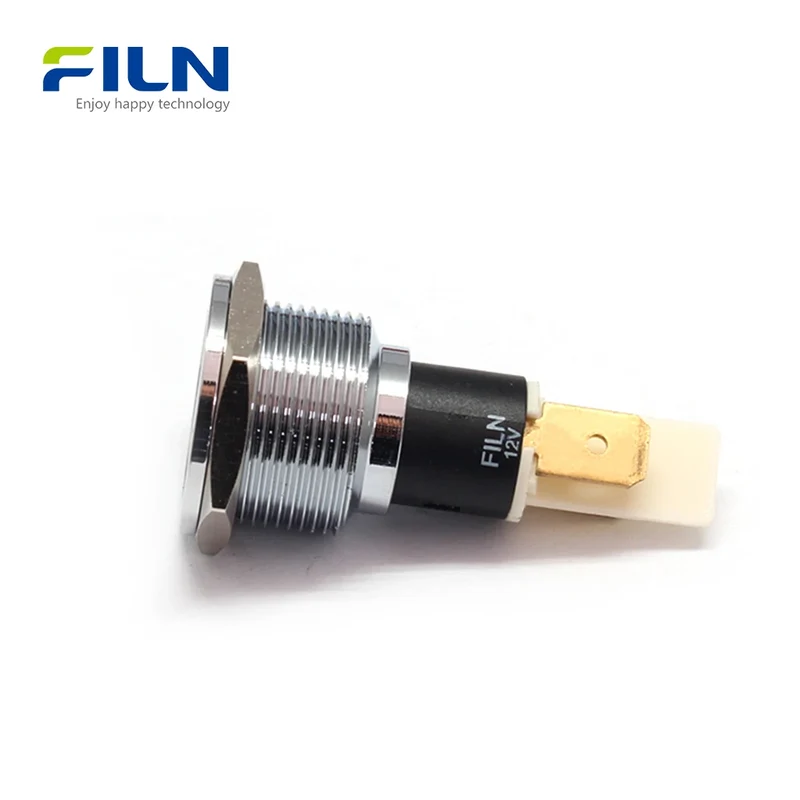

Wiring Type 2-PIN Plug (Pin Terminal)
Certifications ISO9001, CE, VDE, RoHS, SGS, UL

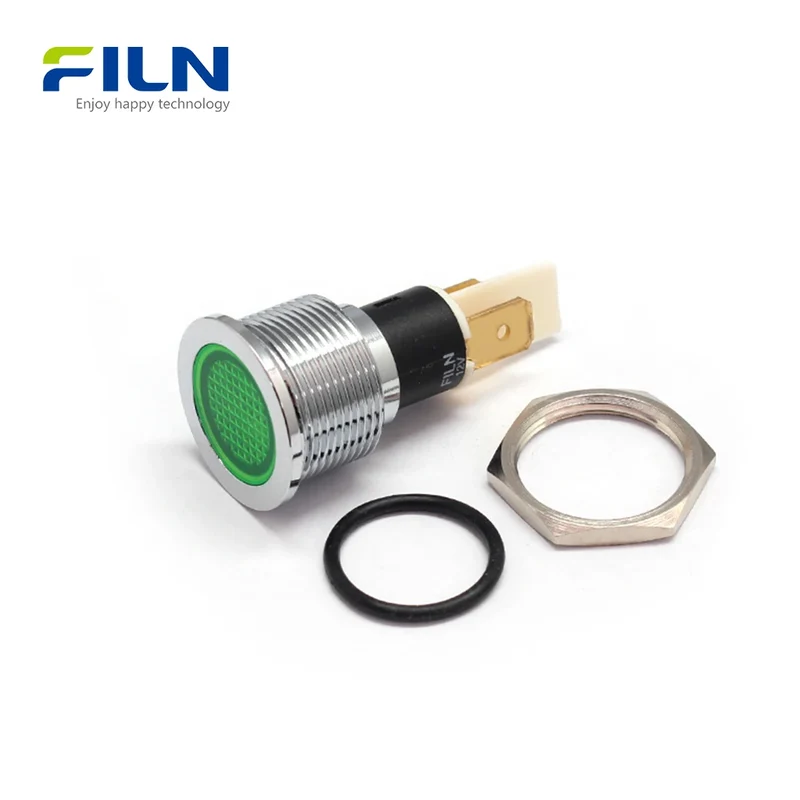

Component Material List

Component Name Material Note
Shell Copper Alloy Silver (Nickel) or Black Chrome finish
Lamp Holder PA66 Nylon High-strength, heat resistant
Lampshade PC Polycarbonate Flat head design, high light transmission
2-PIN Terminal Brass Plug-in design for easy connection
O-ring Silica Gel 19mm waterproof seal
Nut Copper Alloy M19 smooth thread for panel fixation

RATED WORKING PARAMETERS

Rated Voltage 12VDC (Customized 12-220V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

COMPONENT MATERIALS

Housing Nickel-plated Copper / Black Chrome
Lens Flat PC (Polycarbonate)
Seal Ring Waterproof Silicone
Terminal Brass Plug Pin
Wire Material Supports custom PVC/Teflon if requested

GENERAL CHARACTERISTICS

Operating Temperature -40℃ ～ 80℃
Relative Humidity ≤85% at +40℃
Ambient Temperature 5 ～ 35℃
Air Pressure 86 ～ 106Kpa
Waterproof Rating IP65 / IP67

ELECTRIC PROPERTY

Parameter Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown or flashover

DURABILITY CHARACTERISTICS

Continuous Working Life 30mA 1000h Test 50,000 hours

RESISTANT PERFORMANCE

High Temperature 80℃ / 96h
Low Temperature -40℃ / 96h
Moisture Resistance 40℃ 90-95%RH / 96h
Temperature Cycling -40℃ → 25℃ → 85℃ (5 Rounds)

KEY FEATURES

  • LED high brightness: High-efficiency chips for maximum visual impact.
  • Flat Head Design: Offers a modern, low-profile look and is resistant to mechanical stress.
  • Long lifespan: Engineered for over 50,000 hours of operation.
  • IP67 waterproof: Fully sealed against water and oil ingress.
  • Industrial grade reliability: Heavy-duty metal construction for harsh environments.

APPLICATIONS

  • Industrial control panels and monitoring stations.
  • CNC machines and precision manufacturing equipment.
  • Automation equipment and robotics.
  • Electrical cabinets and power distribution units.
  • Marine systems and outdoor signage.
  • Medical diagnostic and laboratory devices.

INSTALLATION GUIDE

  1. Panel Preparation: Drill a 19mm diameter hole in the desired panel location.
  2. Mounting: Insert the indicator light through the hole from the front side of the panel.
  3. Sealing: Ensure the 19mm silicone O-ring is positioned between the light head and the panel surface to provide a waterproof seal.
  4. Securing: From the back of the panel, screw the M19 nut onto the threaded metal body.
  5. Tightening: Tighten the nut firmly; the smooth threading ensures a secure fit without stripping.
  6. Electrical Connection: Attach your 12VDC power source to the 2-PIN plug terminals using quick-connectors.

WHAT IS AN LED 12VDC LIGHT?

An led 12vdc light is an essential signal component used in industrial automation to indicate power status, faults, or operational cycles. The flat head design is a specific engineering choice: unlike raised heads, flat indicators sit flush against the panel, making them less likely to be accidentally hit or damaged.

Plug vs. Wire Type: While wired indicators are permanent, the 2-PIN plug (pin) design allows for modularity. You can quickly disconnect and replace units without re-soldering. The combination of the 19mm silicone O-ring and the M19 nut creates a high-pressure seal that is critical for maintaining IP67 ratings in environments exposed to cutting fluids or heavy rain.

FACTORY DIRECT SUPPLY

FILN is a specialized manufacturer offering comprehensive customization for global industrial needs:

  • ✅ Voltage Customization: Available for 12V, 24V, 110V, 220V, and more.
  • ✅ Wire Length & Connector: Tailored to your specific assembly line.
  • ✅ Shell Finish: Choose between polished silver or professional matte black.
  • ✅ Global Logistics: Fast shipping directly from our factory to your site.

FILN Official Website: www.filn.com
Contact Us: [email protected]

FREQUENTLY ASKED QUESTIONS

1. Why choose led 12vdc lights with a flat head?
Flat head lights provide a low-profile installation that is easy to wipe clean and prevents mechanical interference in crowded panels.

2. What is the advantage of the 2-PIN plug terminal?
It allows for much faster assembly and field replacement compared to pre-wired indicators, as it uses standard push-on connectors.

3. Can these 12V lights be used on 220V AC systems?
Yes, FILN can customize the internal resistors to support 110V-220V AC/DC configurations upon request.

4. How effective is the IP67 waterproof rating?
With the included 19mm silicone O-ring, the light is fully protected against dust and can withstand immersion in water up to 1 meter deep.

5. Are the shells available in different colors?
We offer high-quality silver (nickel-plated) and black (anodized/chrome) shells to match your panel aesthetics.

6. What certifications does this product have?
Our led 12vdc lights are UL, CE, VDE, RoHS, and SGS certified, meeting international safety standards.

7. How do I install the 19mm indicator?
Drill a 19mm hole, insert the light with the O-ring from the front, and tighten the M19 nut from the back.

8. Is the LED brightness sufficient for daylight?
Yes, we use high-lumen LED chips that remain clearly visible even under bright factory lighting.

9. Does FILN offer custom wiring harnesses?
Yes, as a factory, we can provide custom wire lengths and pre-installed connectors to save you labor costs.

10. What is the expected lifespan of this metal indicator?
Under standard operating conditions, these lights have a working life of at least 50,000 hours.
