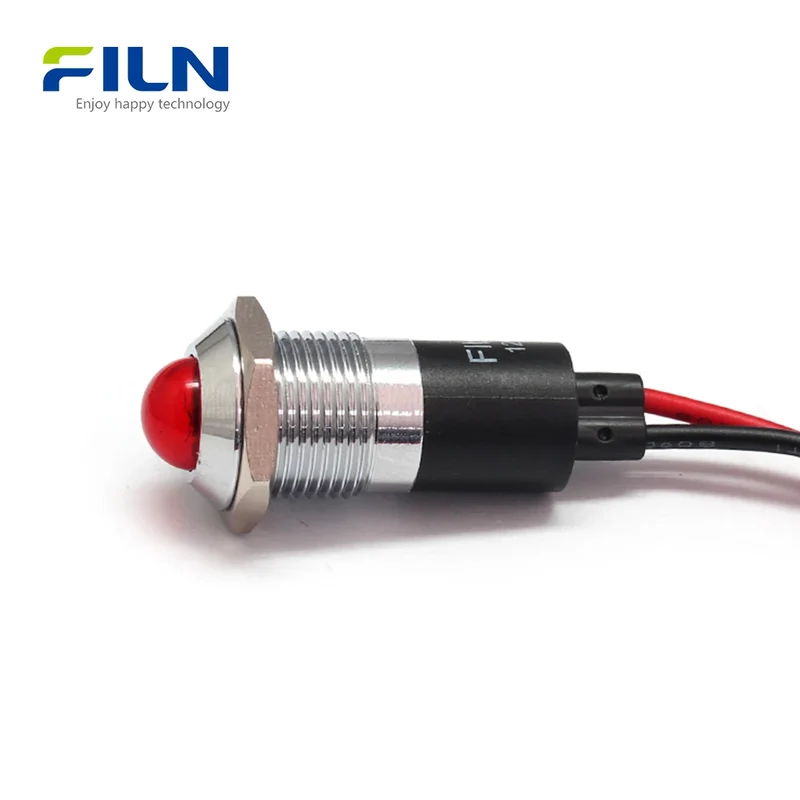

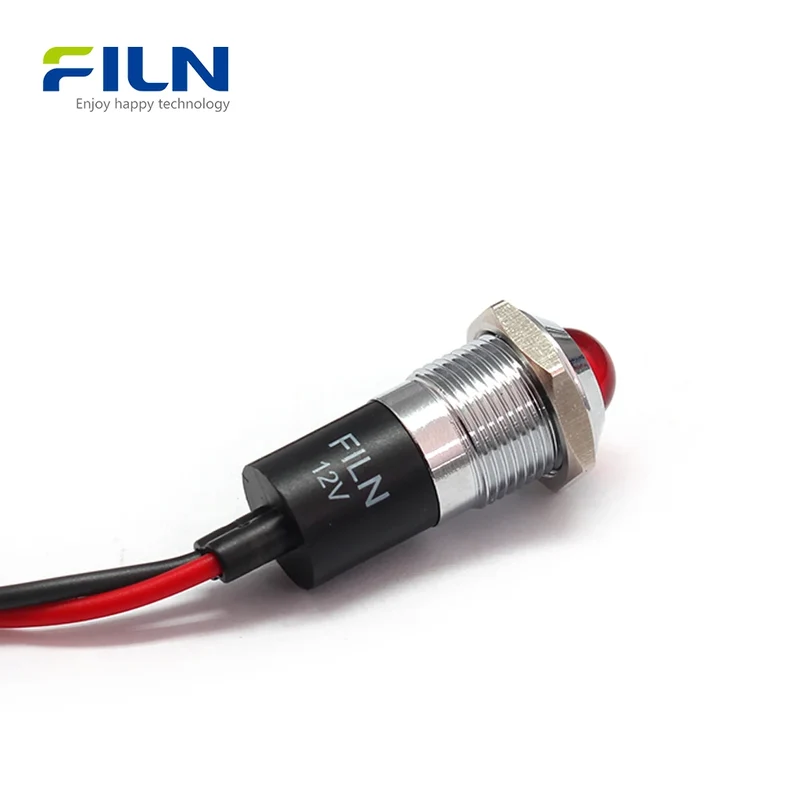

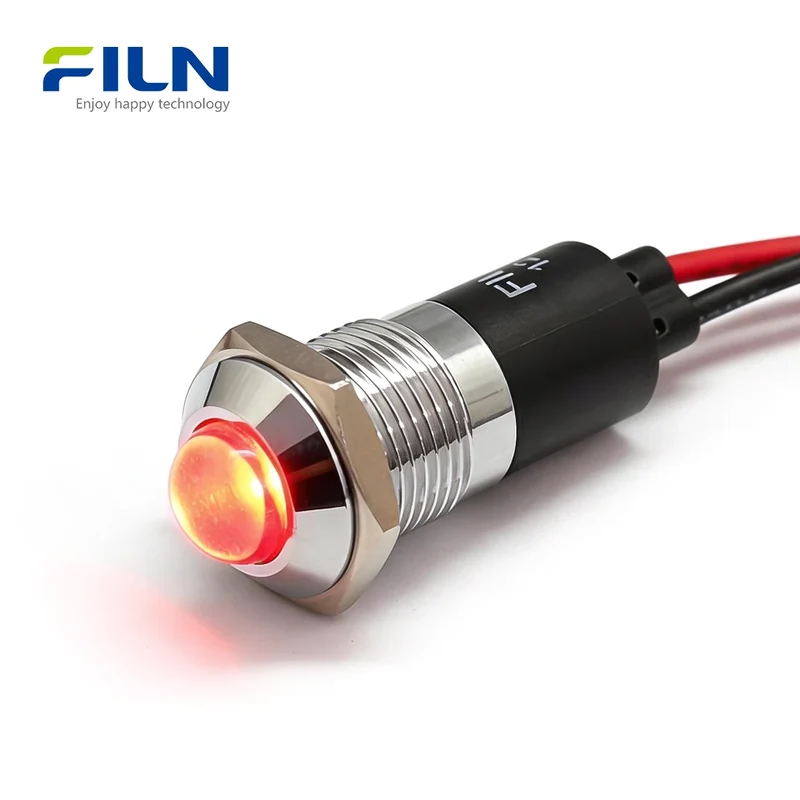

LED Indicator Light 120V 14mm Metal High Head Pre-wired for Panel Mount FILN

2,00 €1,31 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

The FL1M-14SW-1 LED indicator light 120V is a professional-grade signaling solution manufactured by FILN. Featuring a robust 14mm metal high-head design, this indicator is engineered for heavy-duty industrial applications requiring IP65/IP67 waterproof protection. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, it ensures global compliance and reliability. This 120V LED indicator is ideal for industrial control panels, CNC machines, and marine systems, offering high-visibility status monitoring. With factory-direct customization for voltage (12-24V, 110-220V) and wire lengths, FILN provides a versatile, long-lasting solution for modern automation and electrical cabinets.

Quick Specifications

Mounting Hole 14mm / 0.55 inch
Voltage 12V, 24V, 110V, 120V, 220V (Customizable)

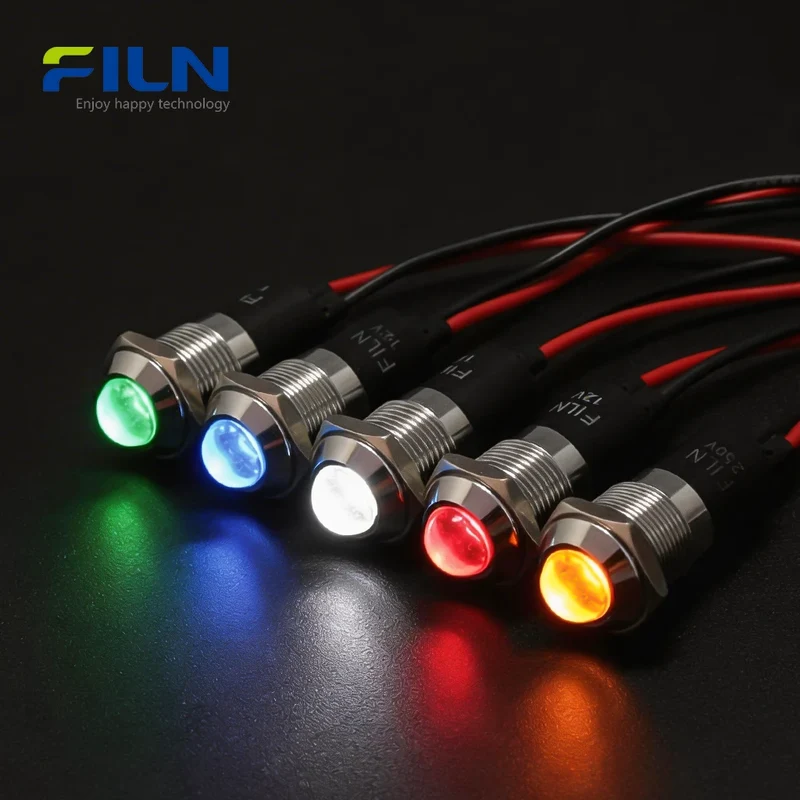

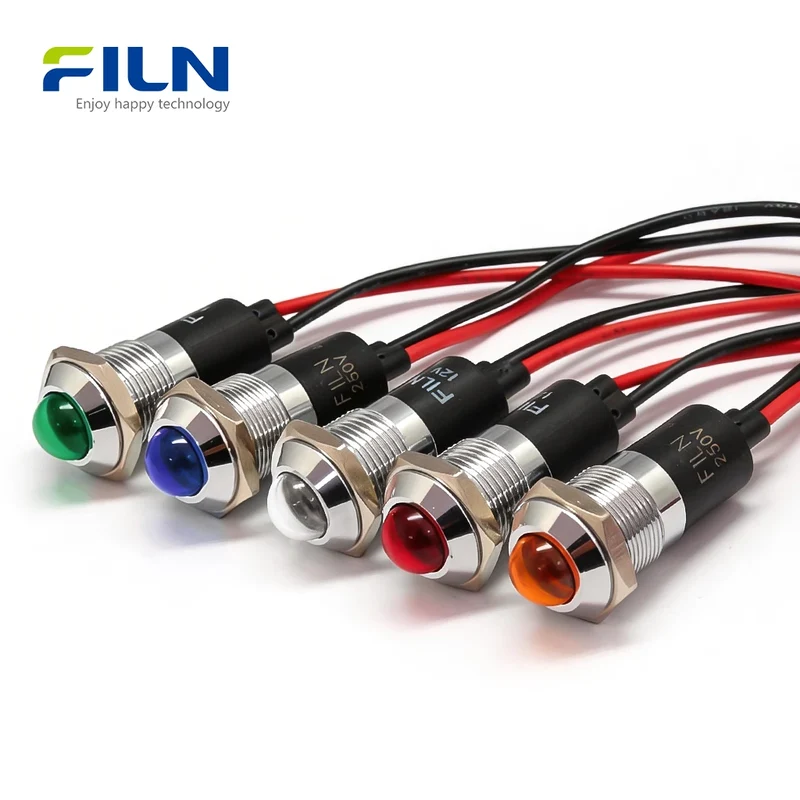

LED Color Red, Green (Yellow, Blue, White available)
Waterproof Rating IP65 / IP67
Wiring Type Wire Lead (15cm standard)

Rated Working Parameters

Rated Voltage Customized per order
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Nickel-plated Brass / Black Aluminum
Lens Polycarbonate (PC)
Seal Ring SIL Silica Gel
Wire Material PVC / Teflon UL Wire

General Characteristics

Part Name FL1M-14SW-1 Indicator
Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Key Features

  • LED high brightness: Clear visibility even in high-ambient light environments.
  • Long lifespan: Rated for over 50,000 hours of continuous operation.
  • IP67 waterproof: Fully protected against dust and temporary immersion in water.

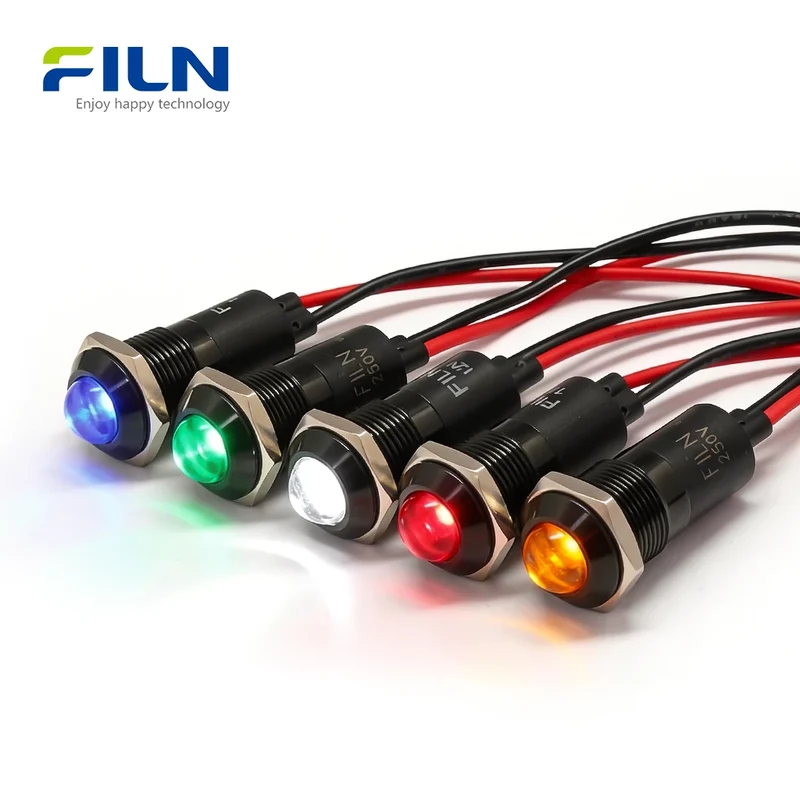

  • Durable Construction: Available in Silver Nickel-plated or Black Anodized finishes.
  • Easy installation: Comes with a pre-installed O-ring and M14 nut for smooth threading.

Applications

  • Industrial control panels and distribution boards
  • CNC precision machinery and automation tools
  • Marine systems and outdoor yachts
  • Medical testing and diagnostic equipment
  • New energy vehicle charging stations

Installation Guide

  1. Drill a 14mm hole in the mounting panel.
  2. Insert the indicator light (high head first) from the front of the panel.
  3. Slide the O-ring over the wires to the back of the panel.
  4. Thread the M14 nut onto the housing and tighten firmly to secure.
  5. Connect the 15cm wire leads to your 120V power source.

What Is an LED Indicator Light 120V?

An LED indicator light 120V is a critical visual signaling device used to communicate the status of electrical circuits. Unlike standard flat-head indicators, the High Head design of the FL1M-14SW-1 offers 180-degree visibility, making it easier for operators to see status alerts from the side. This specific model is pre-wired (wire lead type), which differs from the FLM1-14SJ-1 pin type. While pin types are better for PCB or terminal block connections, the pre-wired version is preferred for quick field installation in deep cabinets where soldering or crimping in tight spaces is difficult.

Factory Direct Supply & Customization

FILN is a specialized manufacturer offering direct-from-factory benefits[cite: 1, 4]:

  • ✅ Voltage Customization: 12V, 24V, 110V, 220V, 380V support.
  • ✅ Wire Length: Custom leads tailored to your machine layout[cite: 4].
  • ✅ Connectors: Pre-installed quick-connect terminals available.
  • ✅ Fast Shipping: Global logistics for B2B bulk orders.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: What is the difference between high head and flat head indicators?
A: High head designs protrude from the panel for better side visibility, while flat heads are flush for a sleek, anti-snag profile.

Q2: Can I use this 120V LED indicator light in a 110V system?
A: Yes, our 110V-220V wide-voltage design works perfectly on standard 120V US power lines.

Q3: Is the 14mm mounting hole standard?
A: Yes, 14mm (approx. 0.55") is a standard industrial cutout size.

Q4: Do you support custom wire colors?
A: Yes, we can customize wire colors and insulation materials for bulk B2B orders.

Q5: What certifications does the FL1M-14SW-1 have?
A: It carries UL, CE, VDE, RoHS, and ISO9001 certifications.

Q6: Can this be used on a yacht or marine vessel?
A: Absolutely, the IP67 rating makes it resistant to salt spray and water immersion.

Q7: How do I choose between pin type and wire lead?
A: Choose wire leads (FL1M-14SW-1) for fast installation and pin types (FL1M-14SJ-1) for compact spaces or PCB mounting.

Q8: Is the shell material corrosion-resistant?
A: Yes, the nickel-plated brass shell provides excellent resistance to oxidation.

Q9: What is the lead time for custom blue or white LEDs?
A: Standard colors are in stock; custom colors usually ship within 2 weeks.

Q10: Does it include mounting accessories?

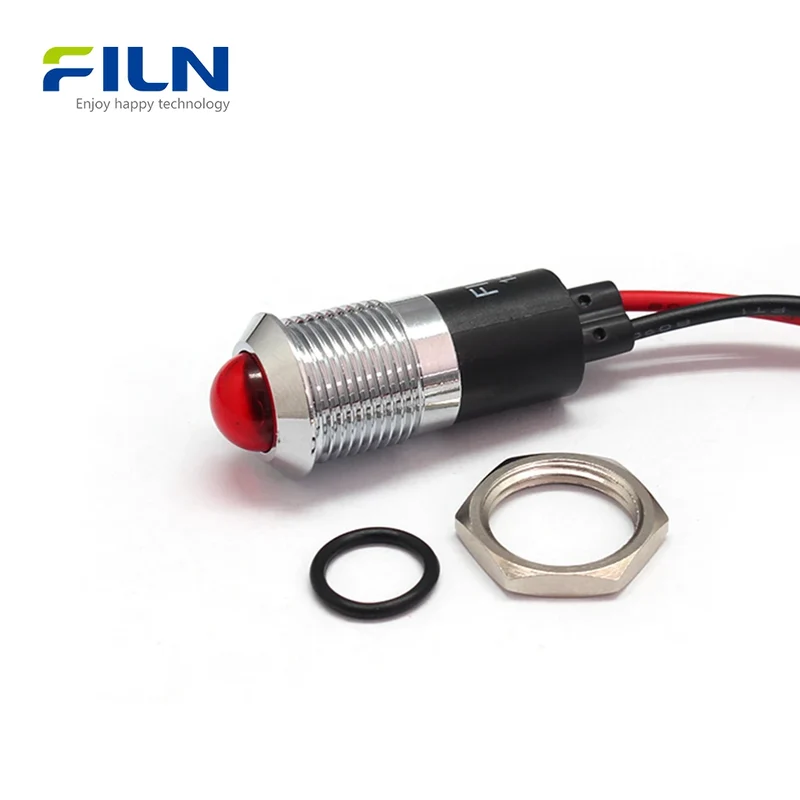

A: Yes, each unit includes a waterproof O-ring and a high-quality M14 hex nut.
