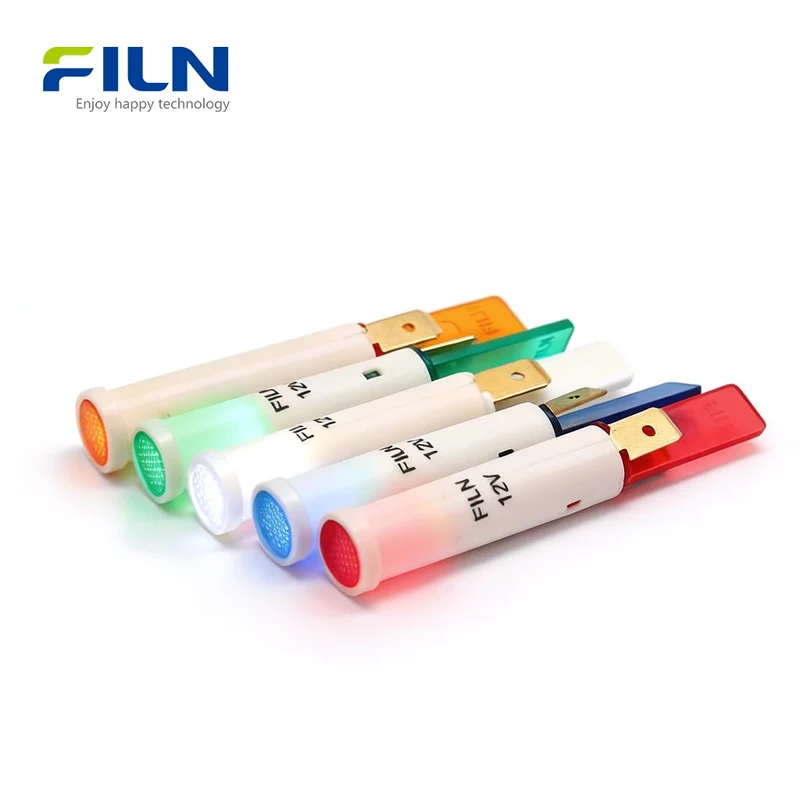

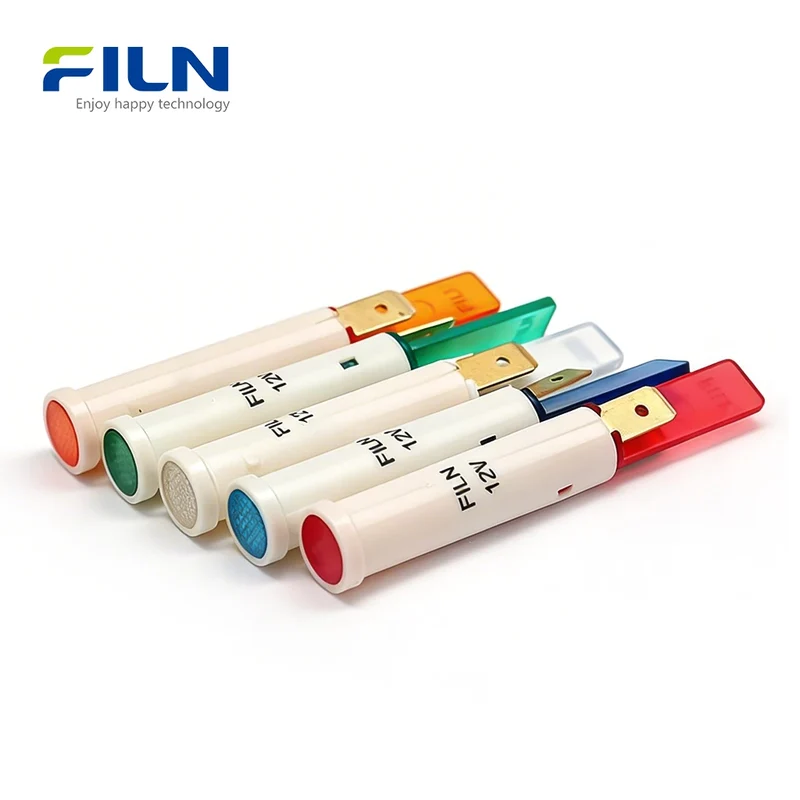

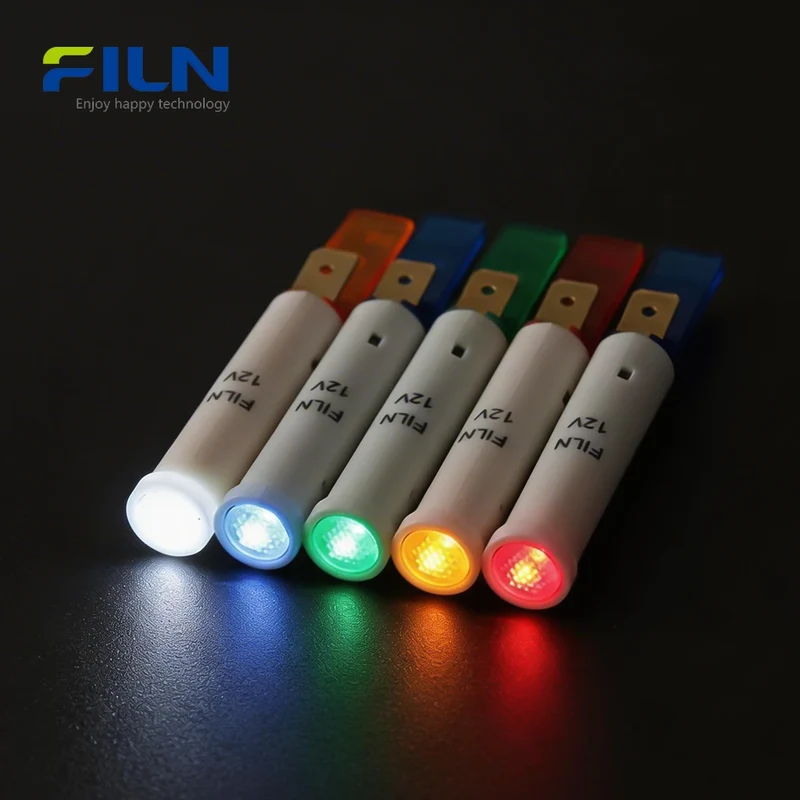

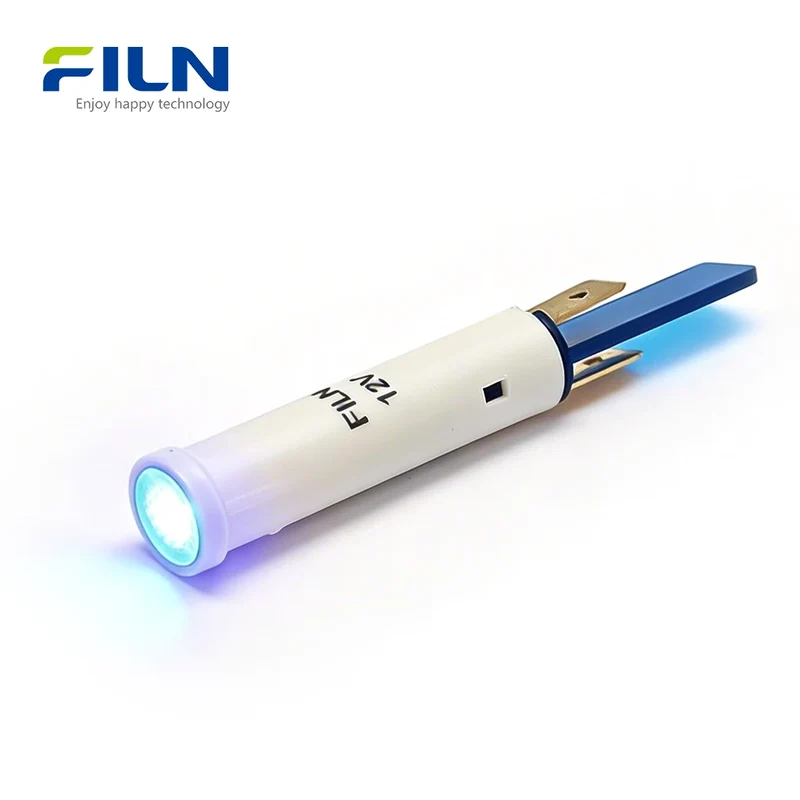

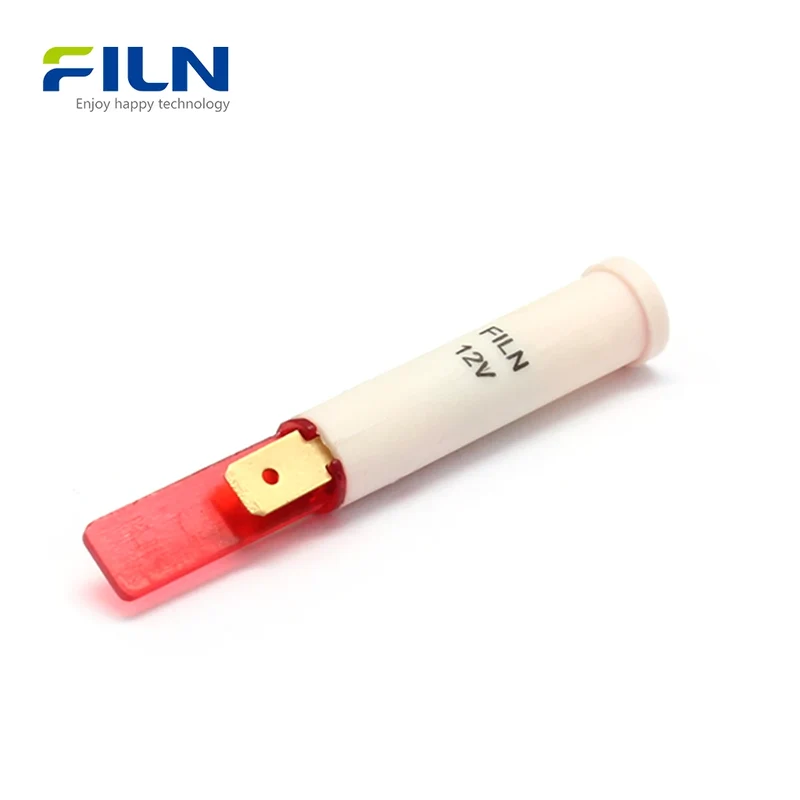

LED Indicator Light 12V 8mm Plastic PA66 Flat Top 2-Pin Snap-in Panel Mount FILN

~~0,56 €~~0,36 €Im Angebot

Beschreibung

Product Overview

FILN presents the FL1P-08QJ-1, a high-performance led indicator light 12v for sale designed for modern industrial applications. This 8mm plastic led indicator light 12v features a sleek flat-top round profile and is constructed from premium PA66 nylon for superior insulation. As a direct factory, FILN provides these led-indicator-light-12v-plastic-for-sale units with ISO9001, CE, UL, and RoHS certifications. The snap-in-panel-mount-indicator-12v design utilizes side-wing tension for a tool-free, secure fit. Whether you need 220v white led indicator light 8mm or standard 12V units, our 2-pin terminal design ensures rapid assembly. Plastic indicators offer a significant weight and cost advantage over metal alternatives while maintaining a 60,000-hour lifespan. Order directly online for fast global shipping and reliable factory support.

Quick Specifications

Mounting Hole	8mm (0.31 inch)
Voltage	12V-24V, 110V-220V (Customized available)
LED Color	Red, Green, Yellow, Blue, White
Head Style	Flat Top / Round Profile
Waterproof Rating	Non-waterproof (Snap-in Type)
Wiring Type	2-Pin / 2.8mm Terminal
Installation Method	Snap-in (Ear tension type)

Component Name	Material
Shell	PA66 Plastic
Lamp Holder	PA66 Plastic
Lampshade	PC (High-transparency)
Luminescent Source	High-intensity LED
Resistance	Carbon film resistance
2.8mm Terminal	H59 Brass

Rated Working Parameters

Rated Voltage	Customized 3V-440V
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	PA66 Industrial Plastic
Lens	PC Heat Resistant
Terminal	Brass with Silver Plating

General Characteristics

Items	Parameter
Insulation and voltage resistance	1800V/5s
Working Life	60,000h
Operating Temperature	-40℃ ～ +80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Insulation Resistance	DC500V 1 min	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability Characteristics

Continuous Working Life

50,000 hours (Tested at 30mA 1000h)

Resistant Performance

High Temperature	80℃ 96h
Moisture Resistance	40℃ 90-95%RH 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

LED high brightness: Optimized PC lens for 8mm-flat-top-led-signal-lamp visibility.
Long lifespan: Solid-state LED technology ensures over 60,000 hours of use.
Direct Plug-in Design: The fl1p-08qj-1-plastic-indicator-terminal enables rapid 2.8mm pin connections.
Snap-in Installation: Efficient snap-in-panel-mount-indicator-12v setup without nuts or washers.
Industrial Grade PA66: Superior heat resistance and non-conductive safety housing.

Applications

Consumer electronics and household appliance panels.
Automotive dash signaling (led-indicator-light-12v-panel).
Lightweight industrial machinery and test equipment.
Electrical switchgear and industrial-snap-in-warning-light systems.
Commercial equipment signaling for power or fault status.

Installation Guide

Drill a precise 8mm hole on the mounting panel.
Insert the 8mm-plastic-led-indicator-light-12v from the front side of the panel.
Press firmly; the "ears" on the side of the shell will compress and then lock the unit into place.
Connect the 2.8mm female terminals to the 2-pin terminals at the rear.

What Is an 8mm Snap-in LED Indicator?

The led-indicator-light-12v-plastic-for-sale is an essential signaling component.
Snap-in vs. Threaded: Snap-in models (like the FL1P-08QJ-1) are installed much faster than threaded versions because they don't require nuts. However, threaded versions are typically better for high-vibration or waterproof (IP67) needs.
Plastic vs. Metal: Plastic indicators are non-conductive, cheaper, and lighter, whereas metal indicators are built for extreme physical impacts.
Terminal vs. Wire Leads: Pin terminals allow for "plug-and-play" wiring using female connectors, which is ideal for mass production compared to manual soldering of wire leads.

Factory Direct Supply

FILN is a specialized manufacturer of led indicator light 12v solutions. Buy direct and save:

Direct Factory Pricing
Custom Voltage/Resistors
Large Stock Availability
Global express shipping

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: Is the snap-in model more expensive than the threaded one?
A: No, snap-in models are often more cost-effective due to simpler assembly and fewer parts (no nut/washer).

Q2: Can I use this for 24V applications?
A: Yes, our 12V indicators often support up to 24V, or we can customize the resistor specifically for 24V stability.

Q3: What colors are in stock?
A: We maintain a high stock of Red, Green, and Yellow. Blue and White are also readily available.

Q4: How do I remove a snap-in indicator?
A: You must compress the side ears from the back of the panel to push the unit forward.

Q5: Do you offer bulk B2B discounts?
A: Yes, please contact our sales team at [email protected] for wholesale pricing.
