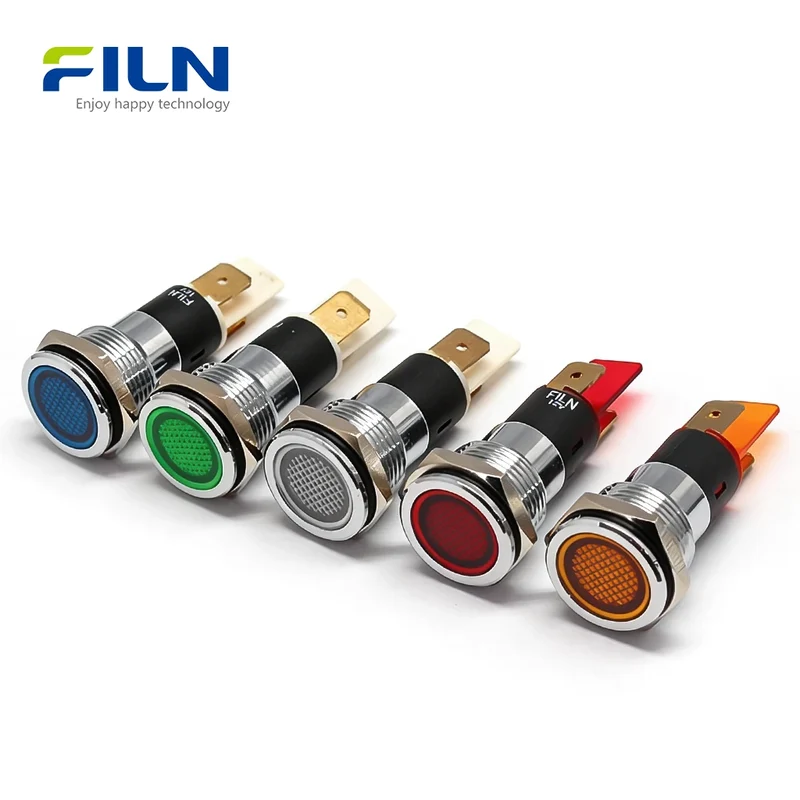

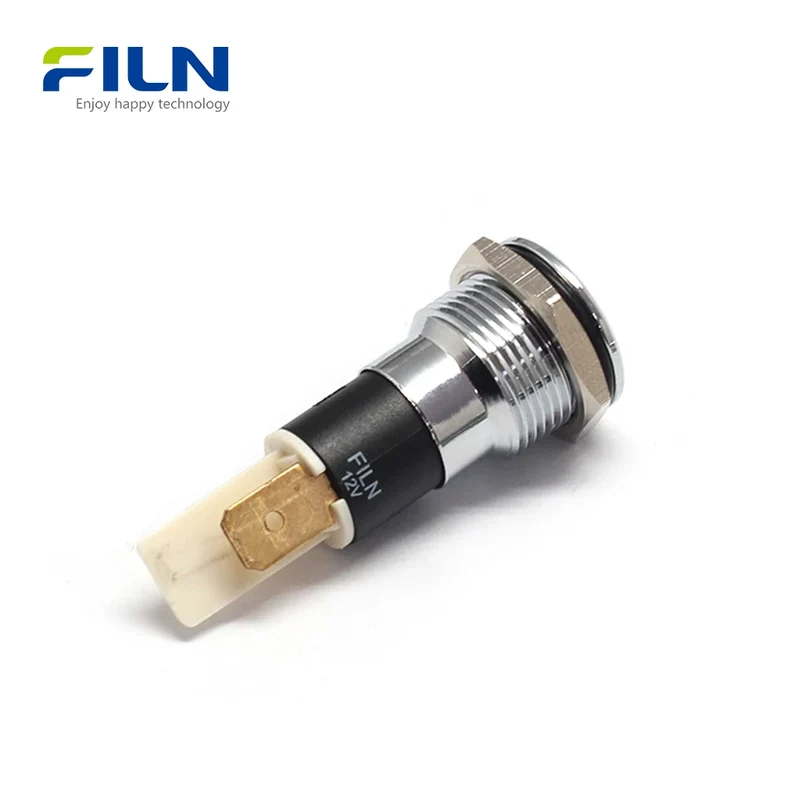

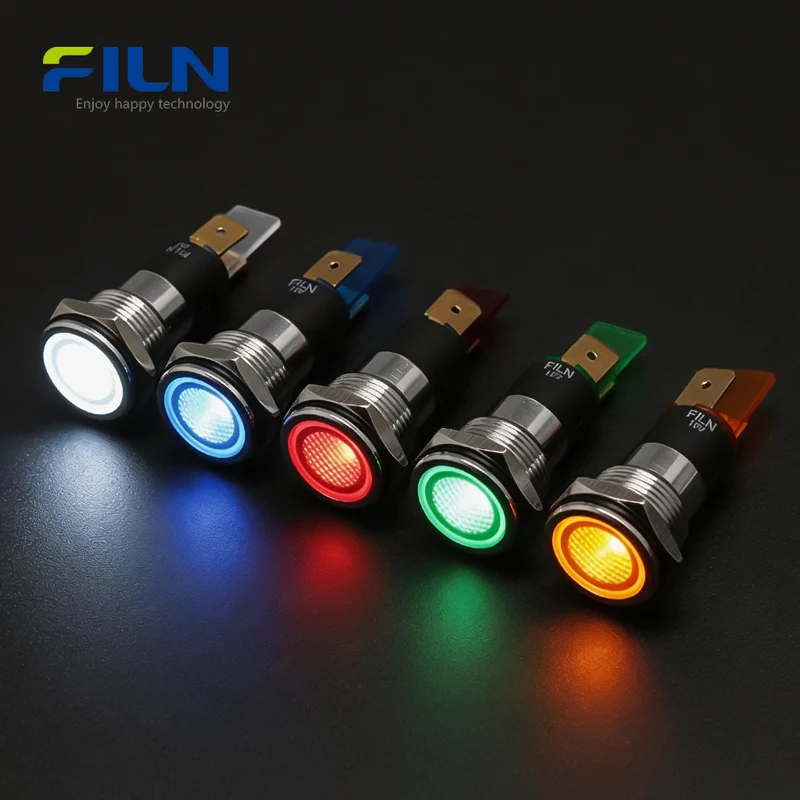

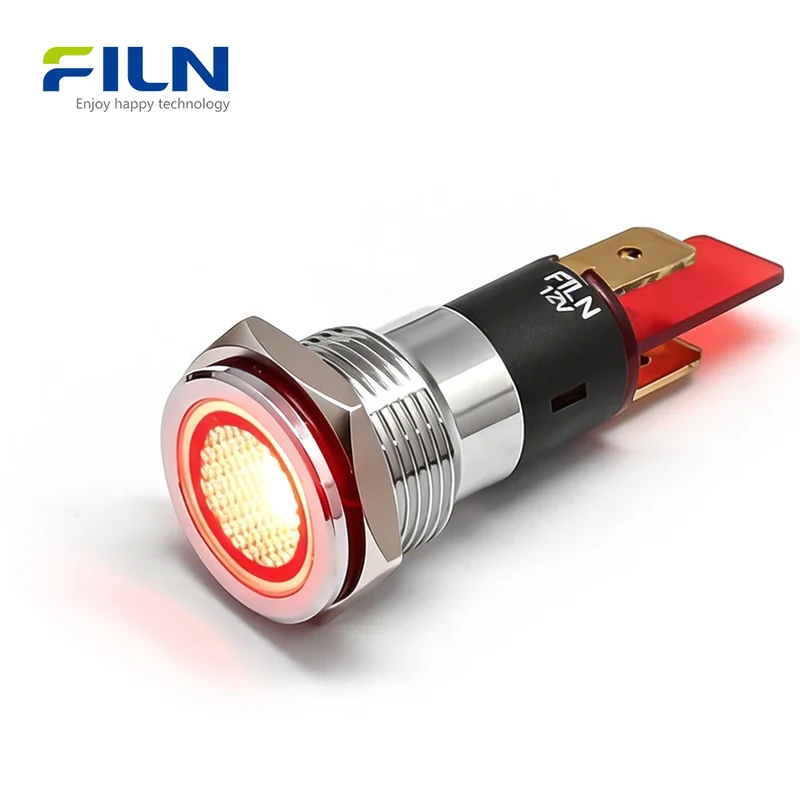

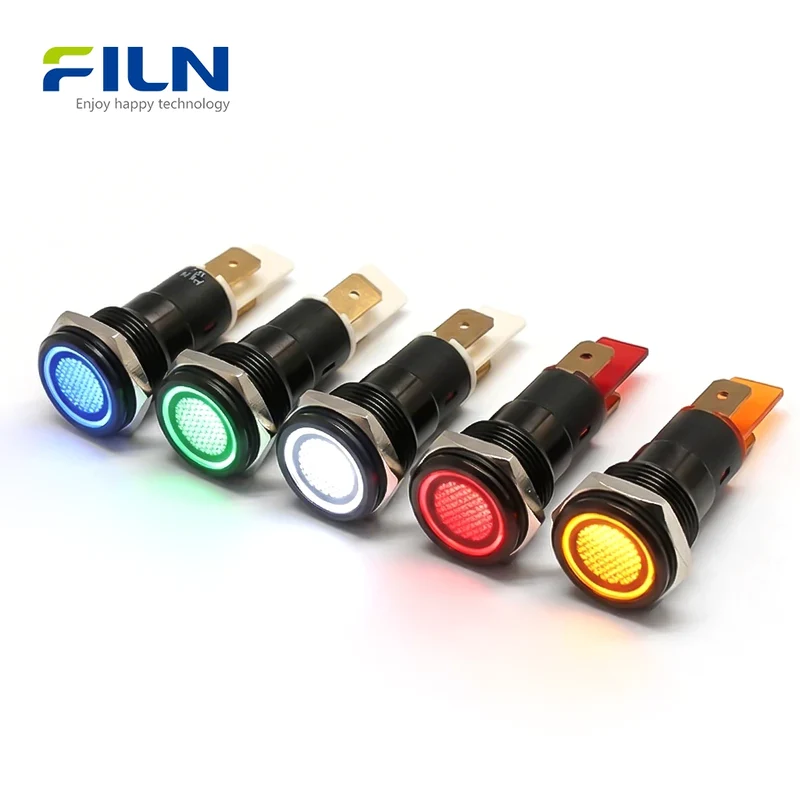

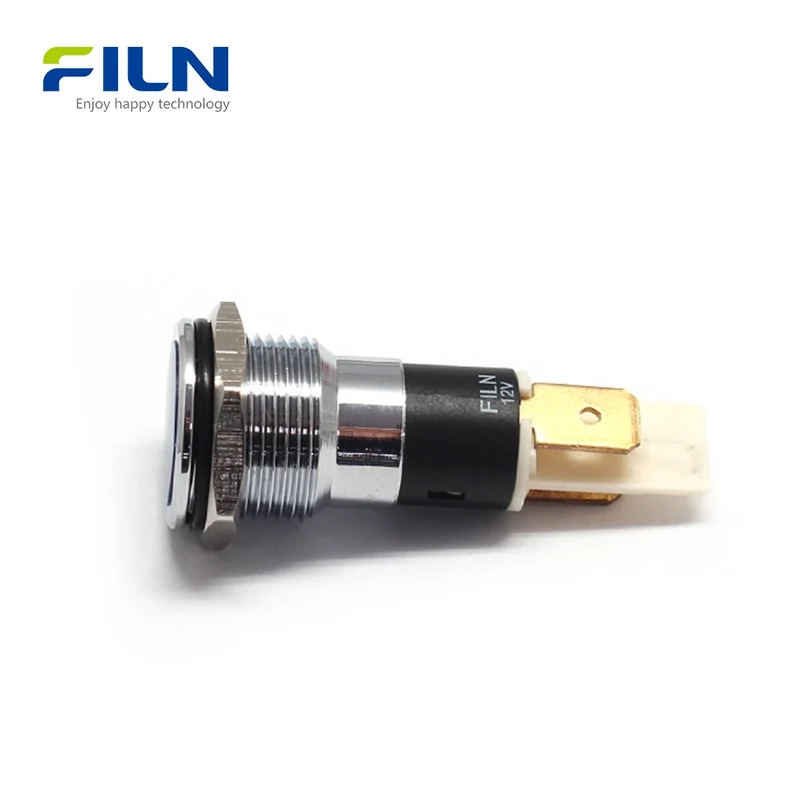

LED Indicator Light 12V Black 16mm Metal Indicator Light Flat Head 2Pin Terminal FILN

2,60 €1,77 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

The LED indicator light 12V black series by FILN is a high-performance industrial signaling solution designed for demanding environments. Featuring ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications, these 16mm metal flat head indicators ensure global compliance and safety. Primarily used in industrial control panels, automation equipment, and marine systems, our products offer long-life LED technology and superior corrosion resistance through their sleek black finish. These indicators are essential for real-time status monitoring in electrical cabinets and medical devices, providing reliable visual feedback with customized voltage options ranging from 12V to 220V.

Quick Specifications

Mounting Hole 16mm / 0.63 inch
Voltage 12V-24V / 110V-220V (Customized)
LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ ～ 80℃
Lifespan 50,000 Hours
Wiring Type 2-Pin Terminal Type
Certifications UL, CE, RoHS, VDE, ISO9001

Component Material List

Component Name Material Note
Shell (Housing) Copper Alloy / Black Aluminum Plated for corrosion resistance
Lampshade (Lens) PC Polycarbonate High light transmission & impact resistance
Light Source LED High brightness, low energy consumption
O-ring (Seal) Silica Gel IP67 waterproof protection
Pin (Terminal) Brass Excellent conductivity

Rated Working Parameters

Rated Voltage 12V / 24V / 110V / 220V (Customized)
Frequency (AC) 50 ～ 60Hz
Rated Current ≤ 20mA

General Characteristics

Operating Temperature -40℃ ～ 80℃
Relative Humidity ≤ 85% at +40℃
Air Pressure 86 ～ 106Kpa

Durability & Performance

Test Item Test Condition Requirement
Insulation Resistance DC500V for 1 min ≥ 100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown
Continuous Working Life 30mA 1000h 50,000 hours
High/Low Temp. Resistance 80℃ / -40℃ 96h [cite: 1, 4] Stable performance

Key Features

  • LED High Brightness: Provides clear signaling even in well-lit environments.
  • Premium Flat Head Design: Aesthetic and space-saving, minimizing accidental triggers.
  • IP67 Waterproof: Fully protected against dust and temporary immersion in water.
  • 2-Pin Terminal Efficiency: Unlike wire leads, pin terminals allow for quick soldering or plug-in connections.
  • Industrial Grade Reliability: Built with metal housing and smooth M16 threads for secure mounting.

Installation Guide

  1. Prepare a mounting hole on your panel with a 16mm diameter.
  2. Insert the LED indicator light into the hole from the front side of the panel.
  3. Place the O-ring between the indicator head and the panel to ensure an IP67 seal.
  4. Slide the M16 nut from the back and tighten it securely.
  5. Connect your 12V power supply to the 2-pin terminals via soldering or quick connectors.

What Is an LED Indicator Light 12V Black?

An LED indicator light 12V black is a specialized signaling component used to convey the operational status of machinery or circuits. The 16mm mounting size is an industry standard for compact panels. The flat head design is preferred in industrial settings because it is less prone to damage and easier to clean than protruding lenses. In 2026, the shift towards pin terminals (over wire leads) reflects a demand for modular assembly, allowing technicians to replace components without re-wiring the entire harness.

Factory Direct Supply

As a leading manufacturer, FILN offers direct wholesale and customization services:

  • Factory Direct Pricing
  • Voltage Customization (3V-380V)
  • Wire Length & Connector Options
  • Fast Global Shipping

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. What is the difference between pin terminals and wire leads?
Pin terminals allow for plug-in or quick-solder connections, making replacement faster and more organized in dense control panels.

2. Can I use the 12V black indicator with 24V power?
While this model is rated for 12V-24V, it is always best to confirm your specific current requirements or request a custom resistor for 24V stability.

3. Is the black housing scratch-resistant?
Yes, the black aluminum/copper alloy shell is treated with high-durability plating to resist wear and chemical corrosion.

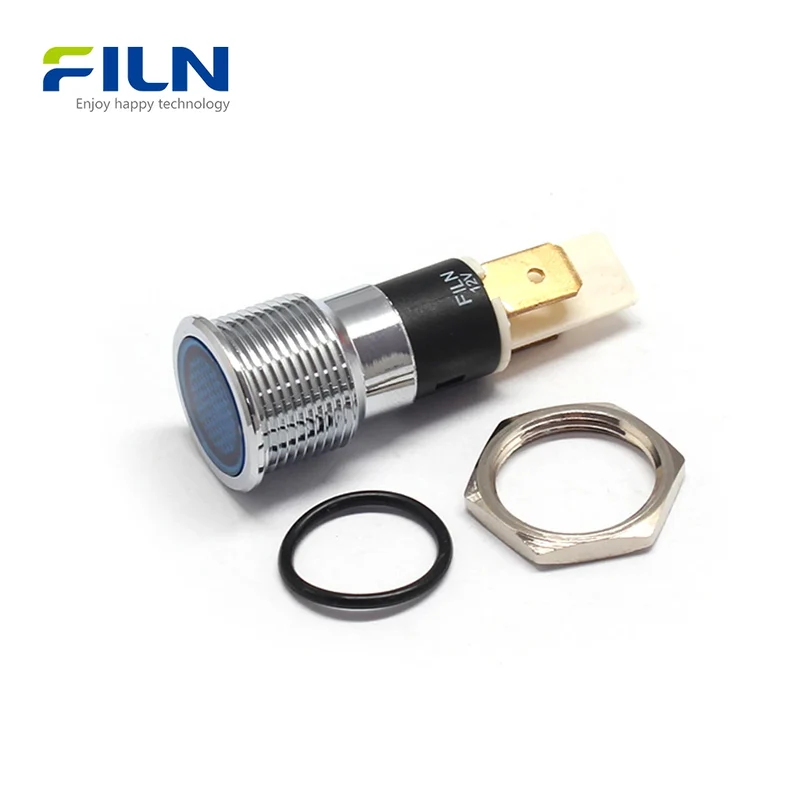

4. Does the 16mm indicator light come with mounting hardware?
Every unit includes a high-quality M16 nut and a silicone O-ring for waterproof sealing.

5. Is the 16mm size suitable for outdoor use?
With an IP67 rating, this indicator is fully protected against rain and dust, making it ideal for outdoor terminals or marine equipment.

6. Can FILN provide a different LED color?
Yes, we offer Red, Green, Yellow, Blue, and White as standard, with custom RGB options available upon request.

7. What certifications does this product hold?
Our indicators are certified by UL, CE, VDE, RoHS, and ISO9001, ensuring compliance for the US and European markets.

8. What is the lifespan of the LED?
The LED light source is rated for over 50,000 hours of continuous operation under standard conditions.

9. Are custom voltages available?
Yes, we can customize the internal resistors for any voltage from 3V up to 380V.
