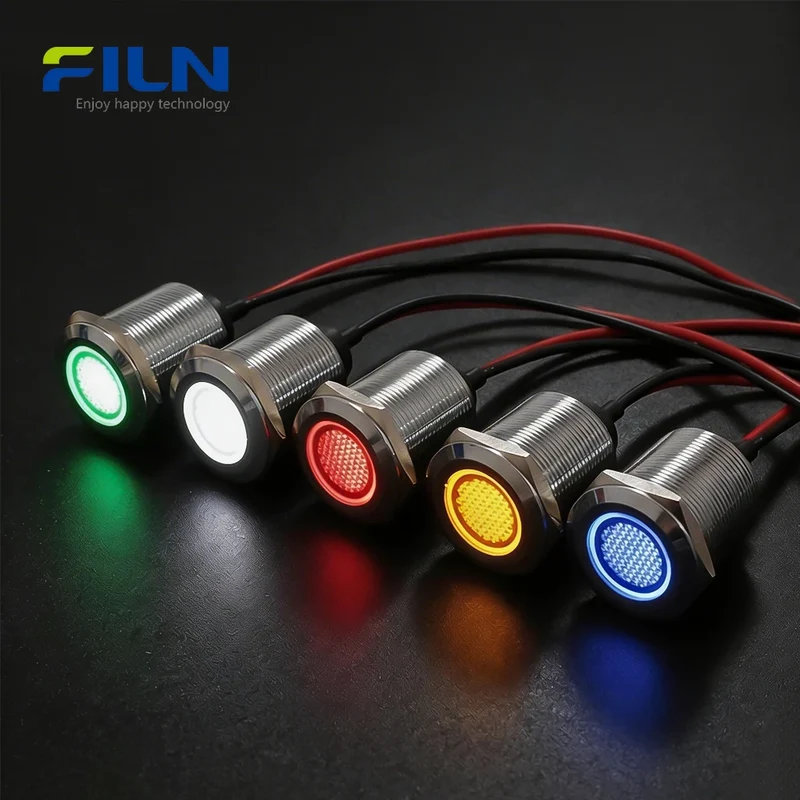

LED Indicator Light 22mm 24V IP67 Metal Flat Head Pre-wired for Panel Signal FILN

Beschreibung

Product Overview

This premium indicator light 22mm 24v (Model: FL1M-22FW-1) is now available for sale directly from the FILN factory. Designed for heavy-duty industrial applications, this 22mm metal signal lamp features a sleek flat head design and 15cm pre-wired leads for instant installation. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications, it ensures global compliance and safety. The flat head profile offers a modern aesthetic while preventing accidental damage in high-traffic control panels. Ideal for CNC machines, automation equipment, and power distribution cabinets, this indicator light provides reliable visual feedback with high-brightness LED technology. Order online today for professional-grade factory direct signal solutions.

Quick Specifications

Mounting Hole	22mm / 0.866 inch
Voltage	12V, 24V, 110V, 220V (Customizable)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 / IP67
Operating Temperature	-40℃ to +80℃
Lifespan	50,000 Hours
Wiring Type	Wire Lead (15cm Standard)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Material List

Component Name	Material	Note
Shell	Copper Alloy	Nickel or Chrome plated
Lamp Holder	PA66 Nylon	High temperature resistance
Lampshade	PC Polycarbonate	High light transmittance
Light Source	LED	Long life, low energy
O-ring	Silica Gel	IP67 Waterproof seal
Nut	Copper Alloy	For panel fixing

Rated Working Parameters

Rated Voltage	Customized (3V - 380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Brass with Nickel Plating / Black Anodized
Lens	Polycarbonate (PC)
Seal Ring	Silicone Rubber
Terminal	Pre-wired AWG Gauge
Wire Material	PVC / Teflon (Customizable)

General Characteristics

Operating Temperature	-40℃～80℃
Relative Humidity	≤85% at +40℃ (Non-condensing)
Ambient Temperature	5~35℃
Air Pressure	86~106Kpa
Waterproof Rating	IP67

Electric Property

Test Item	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability Characteristics

Continuous Working Life

Test Condition: 30mA 1000h

Result: 50,000 hours

Resistant Performance

High Temperature	80℃ for 96h (No deformation)
Low Temperature	-40℃ for 96h (Function remains normal)
Moisture Resistance	40℃, 90-95%RH for 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 rounds)

Key Features

LED High Brightness: Uses advanced LED chips for clear visibility even in high-ambient light environments.
Long Lifespan: Rated for over 50,000 hours of continuous operation, reducing maintenance costs.
IP67 Waterproof: Full protection against dust and water immersion, perfect for outdoor or washdown areas.
Easy Installation: Pre-wired with 15cm cables to save assembly time and reduce wiring errors.

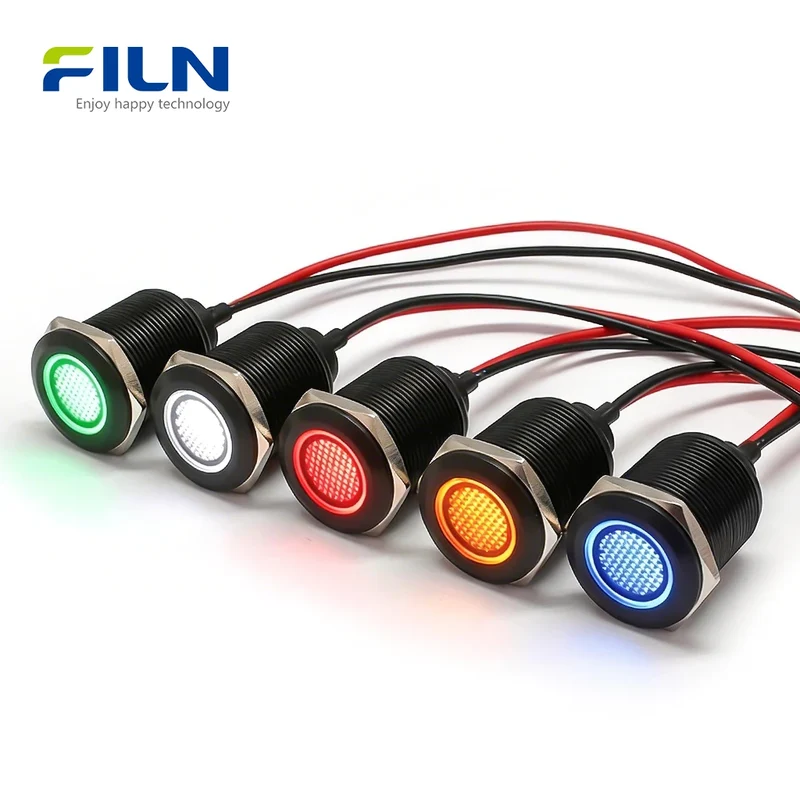

Industrial Grade Reliability: Metal shell construction (Available in Silver or Black) provides superior impact resistance.

Industrial Applications

Industrial control panels and distribution boards
CNC machines and heavy-duty manufacturing equipment
Automated assembly lines and robotics
Marine electronic systems and dashboards
Medical devices requiring precise signal feedback
Commercial kitchen and food processing machinery

Installation Guide

Drill a 22mm (7/8") diameter hole in the mounting panel.

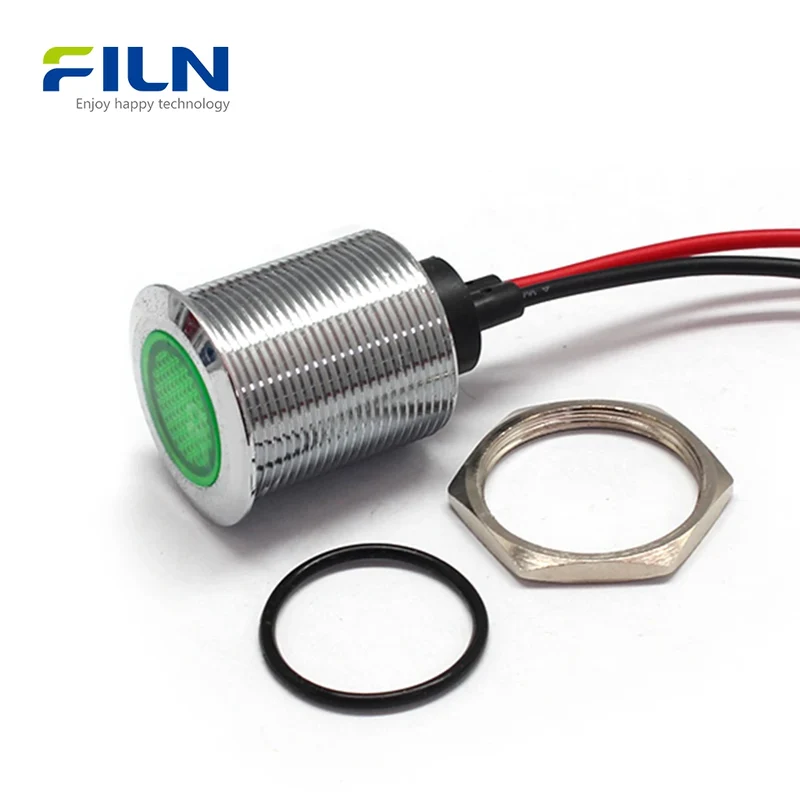

Insert the indicator light through the hole from the front of the panel. Ensure the O-ring waterproof gasket is seated between the head and the panel surface for a tight seal.
From the back of the panel, slide the M22 brass nut onto the threaded body.
Tighten the nut firmly to secure the indicator light. The smooth threads ensure easy fastening.
Connect the 15cm lead wires to your 24V power source (Red for positive, Black for negative).

What Is an Indicator Light 22mm 24v?

An indicator light 22mm 24v is a critical industrial signaling component used to communicate the status of electrical circuits or machinery. In industrial environments, the 22mm size is a global standard for panel-mount components, ensuring compatibility across different brands and regions. The "Flat Head" design is particularly valued for its low profile, which prevents accidental activation or breakage from falling objects or passing workers. Unlike pin-type terminals, the pre-wired lead design (direct wire out) offers superior vibration resistance and simplifies the wiring process in tight spaces. The inclusion of a silicone O-ring and a precision-machined M22 nut ensures that the installation remains airtight and vibration-proof, maintaining the integrity of the electrical cabinet.

FILN Factory Direct Supply

As a leading manufacturer, FILN provides comprehensive customization services for all indicator light orders:

Voltage Customization: 3V, 6V, 12V, 24V, 110V, 220V, 380V.
Wire Length: Standard 15cm or custom lengths to suit your application.
Connector Options: Terminal connectors can be added upon request.
Fast Global Shipping: Efficient logistics for B2B procurement.

Official Website: www.filn.com
Contact Email: [email protected]

Frequently Asked Questions (FAQ)

1. Can I use this 22mm indicator light for outdoor machinery?
Yes, with an IP67 rating, it is fully waterproof and dustproof.

2. What is the advantage of the flat head design?
The flat head is flush with the panel, making it more durable and aesthetically modern.

3. Does FILN support custom wire lengths for the 24v signal lamp?
Absolutely, we can customize the lead length beyond the standard 15cm.

4. Are these lights compatible with AC and DC?
We offer both AC and DC versions. Please specify your requirement when ordering.

5. What shell colors are available?
We offer Silver (Nickel-plated brass) and Black (Anodized) housings.

6. Is there a bulk discount for factory orders?
Yes, FILN offers tiered pricing for wholesale industrial procurement.

7. What certifications does the 22mm indicator light have?
It holds UL, CE, VDE, RoHS, and ISO9001 certifications.

8. What is the role of the O-ring?
The silicone O-ring provides an airtight seal to prevent water from entering the panel.

9. How do I install the indicator light?
Simply drill a 22mm hole, insert the light, and tighten the M22 nut from behind.

10. Can I get a sample before a large order?
Yes, contact our sales team at [email protected] for samples.
