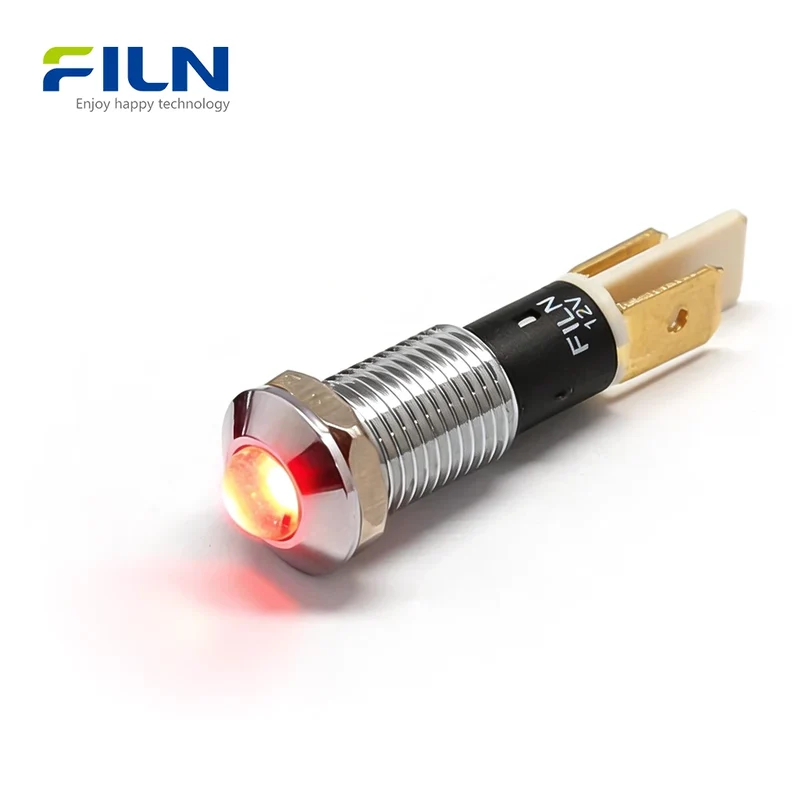

LED Indicator Light Red 10mm Waterproof 12V 24V 220V for Panel Mount FILN

1,38 €0,93 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

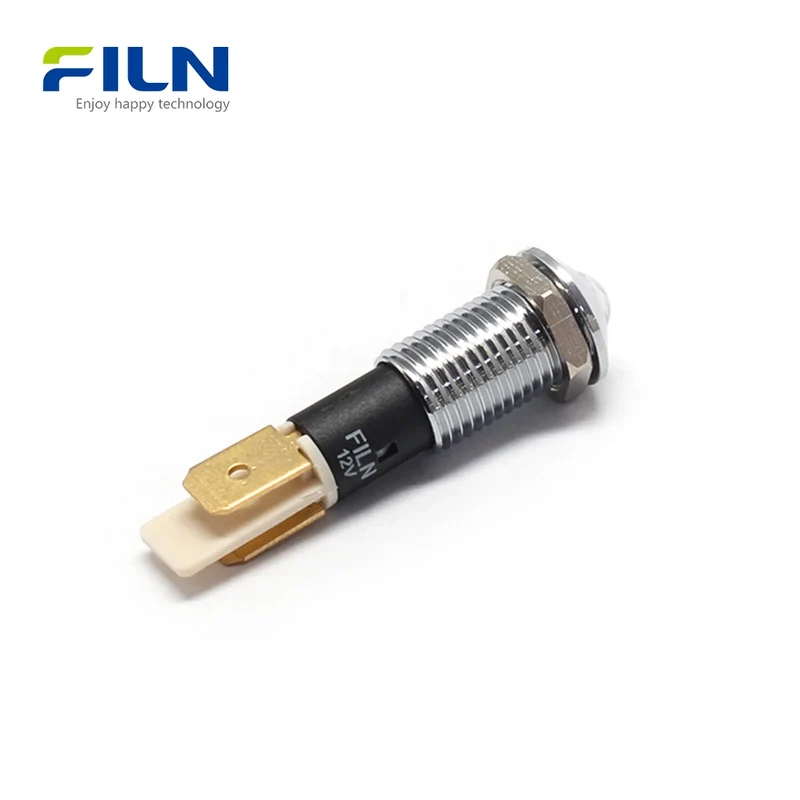

The FL1M-10SJ-1 LED indicator light red is a premium 10mm metal high-head signal lamp designed for demanding environments. Manufactured by FILN, this indicator features world-class certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67. With its robust metal housing available in silver chrome or black aluminum, it provides industrial-grade reliability for industrial control panels, CNC machinery, automation systems, and marine equipment. Its high-head design ensures 360-degree visibility, while the pin-terminal connection offers a secure, vibration-resistant interface compared to standard wire leads. This 12V-24V and 110V-220V compatible LED ensures a lifespan of over 50,000 hours.

Quick Specifications

Mounting Hole 10mm (0.39 inch)
Voltage 12V, 24V, 110V, 220V (Customizable)
LED Color Red (Green, Yellow, Blue, White available)
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan ≥50,000 Hours
Wiring Type Pin Type (Plug-in)

Rated Working Parameters

Rated Voltage Customized (AC/DC)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Chrome-plated Brass / Black Aluminum
Lens Polycarbonate (PC)
Seal Ring SIL Silica Gel
Terminal Silver-plated Brass Pin

General Characteristics

Operating Temperature: -40℃～80℃ Relative Humidity: ≤85% at +40℃
Ambient Temperature: 5~35℃ Air Pressure: 86~106Kpa
Waterproof Rating: IP67 Part Name: FL1M-10SJ-1

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Durability & Weather Resistance

Continuous Life 30mA 1000h Test 50,000 Hours Rated
High Temp 80℃ 96h Stable Performance
Moisture Resistance 40℃ 95%RH 96h No Corrosion

Key Features

  • LED High Brightness: Superior visibility even in brightly lit environments.

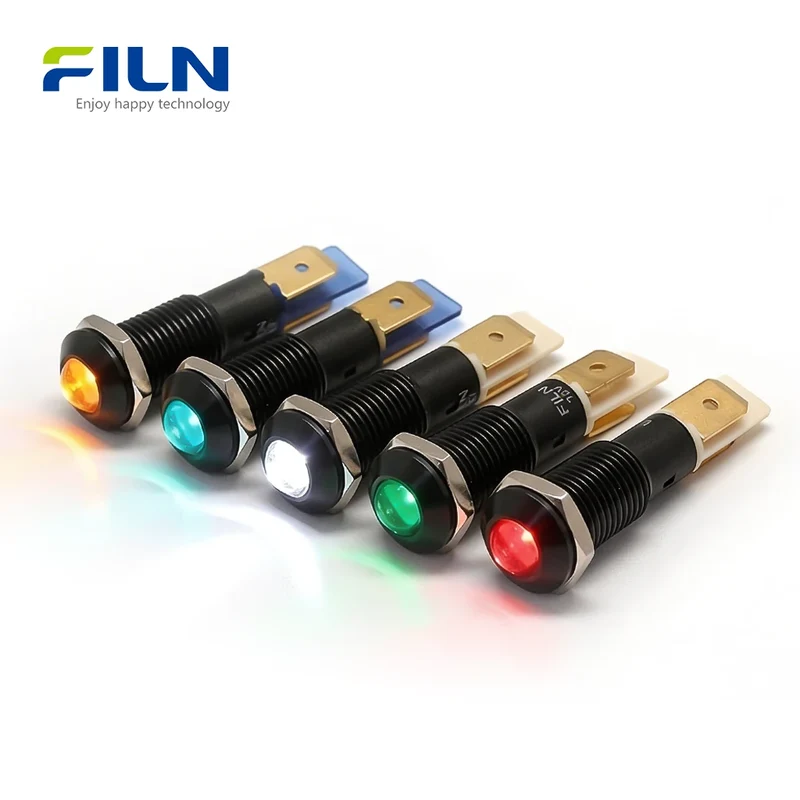

  • Industrial Metal Housing: Available in sleek silver or matte black finishes.
  • IP67 Waterproof: Fully protected against dust and temporary water immersion.
  • High-Head Design: Provides better viewing angles compared to flat-head indicators.
  • Precision Installation: Includes smooth M10 threading, a durable nut, and a premium O-ring.

Applications

  • Industrial control panels and electrical cabinets.
  • CNC machining centers and automation equipment.
  • Marine systems and outdoor power equipment.
  • Medical diagnostic devices and laboratory instruments.
  • Coffee machines, commercial appliances, and EV chargers.

Installation Guide

  1. Drill a 10mm (M10) hole in your application panel.
  2. Remove the M10 nut and ensure the O-ring is seated on the indicator head.
  3. Insert the indicator through the hole from the front side of the panel.
  4. From the rear, slide the M10 nut onto the threads and tighten securely.
  5. Connect the circuit to the pin terminals (soldering or quick-connect recommended).

What Is a 10mm LED Indicator Light Red?

A 10mm LED indicator light red is a critical visual signaling component used to relay machine status or warnings to operators. Unlike standard flat indicators, the high-head design protrudes from the panel, offering "side-view" visibility which is essential for safety in busy industrial plants.

The pin-terminal (plug-in) style provides a distinct advantage over wire-lead indicators by allowing for faster replacement and more rigid connections in high-vibration environments like CNC machines. Combined with an IP67 rating, these lights are indispensable for ensuring operational safety and system diagnostics across global manufacturing sectors.

FILN Factory Direct Supply

  • ✅ Global Certifications: UL, CE, RoHS, VDE, ISO9001
  • ✅ Full Customization: Custom Voltage (3V-380V), Wire Length & Connectors
  • ✅ Durable Construction: High-quality M10 smooth threading and O-ring seals
  • ✅ Fast Shipping: Global logistics for B2B procurement

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: What is the advantage of a high-head LED indicator?
A: High-head indicators protrude from the panel, providing better visibility from the side compared to flush-mounted flat-head types.

Q2: Can I get this 10mm indicator in 220V?
A: Yes, we support 12V, 24V, 110V, and 220V as standard, and custom voltages upon request.

Q3: Is the housing made of plastic or metal?
A: This model uses a premium metal housing (Chrome-plated brass or Black Aluminum) for industrial durability.

Q4: What is the difference between pin terminals and wire leads?
A: Pin terminals allow for quick-connect or soldering directly to the base, making them more compact and easier to replace in modular systems.

Q5: Is this indicator suitable for marine use?
A: Yes, the IP67 rating and metal construction make it resistant to moisture and salt spray.

Q6: Does it come with mounting accessories?

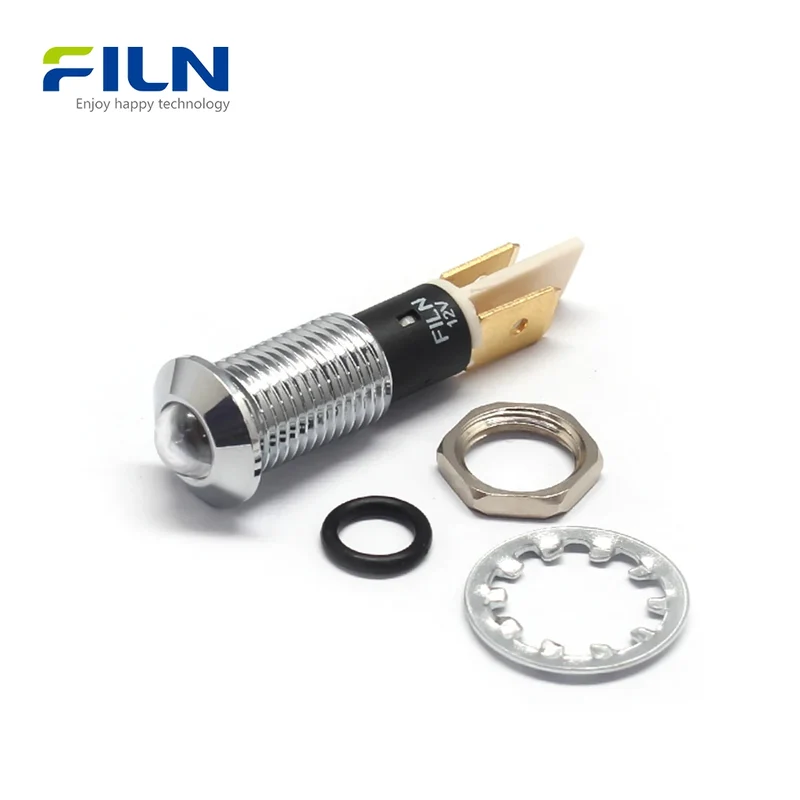

A: Yes, each indicator includes one M10 nut and one waterproof O-ring.

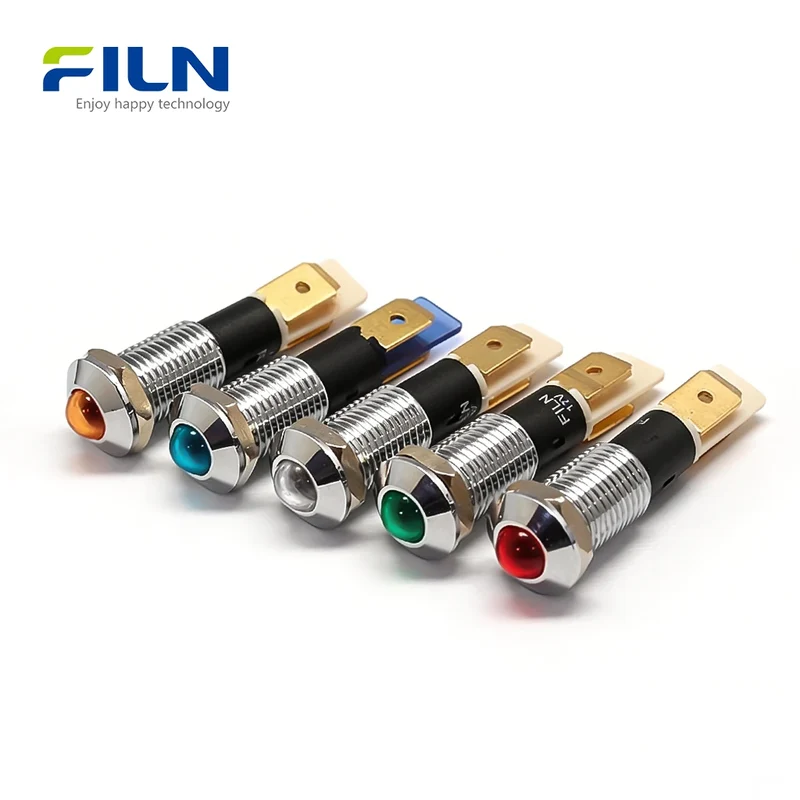

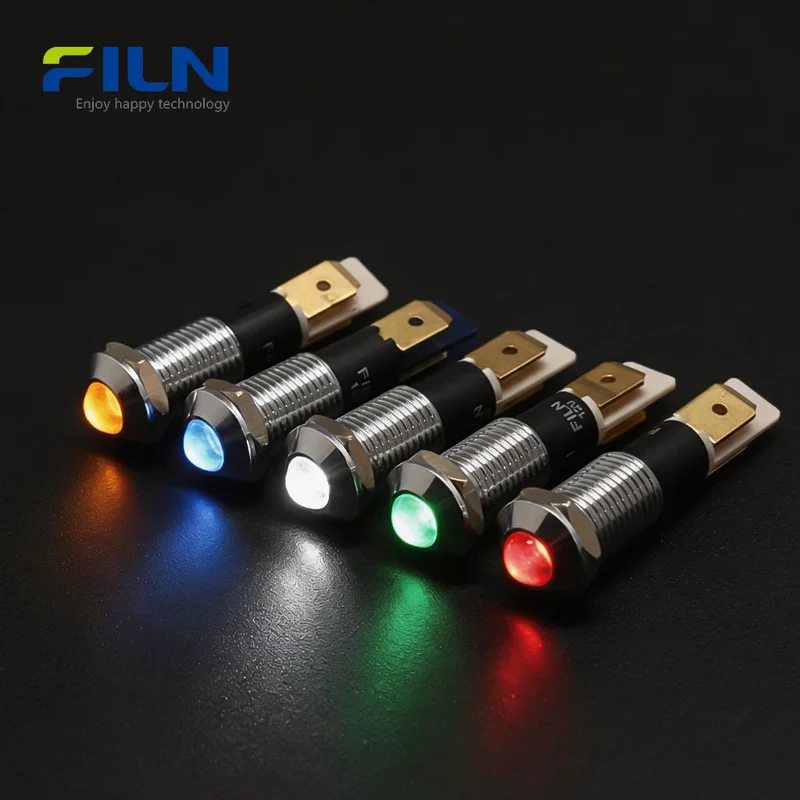

Q7: What colors are available for the 10mm series?
A: We offer Red, Green, Yellow, Blue, and White LEDs.

Q8: Is it UL certified?
A: Yes, FILN indicators carry UL, CE, and RoHS certifications for international compliance.

Q9: How long is the lifespan of the LED?
A: Our industrial LEDs are rated for over 50,000 hours of continuous use.

Q10: Can I customize the wire length if I don't want pin terminals?
A: Absolutely, FILN specializes in customization; we can provide pre-soldered wires with any length or connector type.
