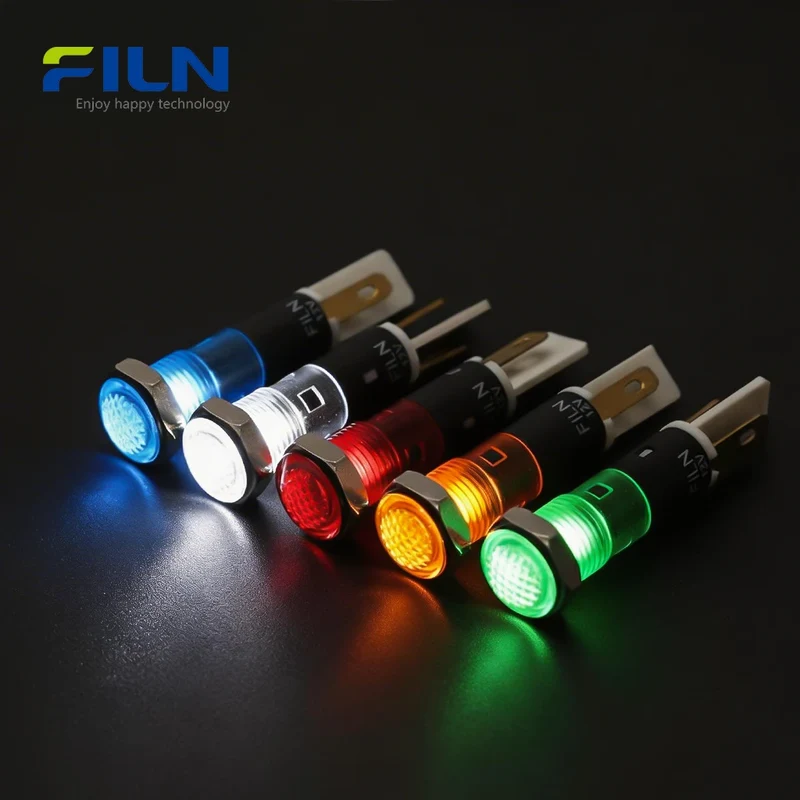

Lighting Indicators 8mm 12V 220V 2-Pin Terminal Snap-in Panel Mount for Industrial Control FILN

Product Overview

FILN offers high-quality lighting indicators for sale, specifically the FL1P-08NJ-1 model. This 8mm plastic indicator light for sale features a robust PA66 shell and high-brightness LED, making it ideal for industrial control panels and automation equipment. As a leading manufacturer, FILN ensures all 12v green lighting indicators and 220v red pilot lamp terminal products meet global standards including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Our 8mm-plastic-indicator-light-for-sale is designed for durability and ease of use, providing a cost-effective solution compared to metal variants. Whether you need a blue lighting indicators 8mm or a white led dash indicator, our products are available for direct online purchase with global shipping.

Quick Specifications

Mounting Hole	8mm (approx. 0.31 inch)
Voltage	12V, 24V, 110V, 220V (Customized available)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 (Head for thread mount) / Non-waterproof (Snap-in)
Operating Temperature	-40℃ to +80℃
Lifespan	60,000 Hours
Wiring Type	2.8mm Pin Terminal (2-Pin)
Certification	ISO9001, CE, VDE, RoHS, SGS, UL

Component Name	Material
Shell	PA66 Nylon
Lamp Holder	PA66 Nylon
Lampshade	PC (Polycarbonate)
Luminescent Source	High-brightness LED
Resistance	Carbon film resistance
2.8mm Terminal	H59 Copper (Brass)
Wire (if applicable)	PVC

Rated Working Parameters

Rated Voltage	Customized (3V - 440V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	PA66 Industrial Plastic
Lens	PC Transparent/Colored
Seal Ring	Silicone/Rubber
Terminal	Brass with Silver Plating
Wire Material	UL standard PVC (for wire lead type)

General Characteristics

Items	Parameter
Voltage	3V～250V
Insulation and Voltage Resistance	1800V/5s
Working Life	60,000h
Cold/Heat Resistant	-40℃ / +80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Property	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability Characteristics

Continuous Working Life

Test Condition: 30mA 1000h Requirement: 50,000 hours

Resistant Performance

High Temperature	80℃ 96h
Low Temperature	-40℃ 96h
Moisture Resistance	40℃ 90-95%RH 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

• LED high brightness: Ensures visibility even in well-lit factory environments.
• Long lifespan: Maintenance-free operation for over 60,000 hours.
• IP65/IP67 waterproof: The waterproof ip65 signal light option is perfect for wet conditions.
• Easy installation: Features a simple snap-in panel mount indicator or nut-fixed design.
• Industrial grade reliability: Using premium PA66 and PC materials for heat resistance.

Applications

• Industrial control panels and CNC machines.
• Automation equipment and industrial led warning light systems.
• Electrical cabinets and power distribution units.
• Marine systems and amber lighting indicators panel mount for boat consoles.
• Medical devices and commercial kitchen appliances.

Installation Guide

1. Determine the panel thickness and drill an 8mm hole.
2. Insert the 8mm-plastic-indicator-light-for-sale from the front of the panel.
3. From the rear, slide the washer and screw the nut tightly onto the thread to secure the unit.
4. Connect the 2.8mm pin terminals using compatible female connectors or direct soldering.

What Is an 8mm Plastic Lighting Indicator?

An 8mm-plastic-indicator-light-for-sale is a compact signaling device used to provide visual status feedback on machinery. Unlike metal indicators, plastic versions offer superior insulation and are lighter in weight. The 2-pin plastic indicator lamp design allows for rapid wiring in mass production. While metal indicators offer higher impact resistance, plastic lighting indicators are corrosion-resistant and cost-effective for indoor electronic equipment. They are essential for safety, indicating "Power On," "Fault," or "Operation Cycle" in modern industrial ecosystems.

Factory Direct Supply

FILN is a professional manufacturer offering lighting indicators with full customization options:

• Factory Direct Sale
• Voltage Customization
• Wire Length Customization
• Connector Customization
• Fast Global Shipping

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: Are these lighting indicators available for direct sale?
A: Yes, you can purchase them directly from our Shopify store or contact our factory for bulk custom orders.

Q2: What is the difference between plastic and metal indicators?
A: Plastic indicators (PA66) offer excellent insulation and lower cost, while metal indicators are better for high-impact outdoor environments.

Q3: Can I get a 110V or 220V version?
A: Yes, our 8mm lighting indicators support a wide range of voltages from 3V to 250V AC/DC.

Q4: Is the LED replaceable?
A: The LED is integrated for maximum lifespan and waterproofing, so the whole unit is typically replaced if needed, though they last over 60,000 hours.

Q5: Do you support custom terminal types?
A: Yes, we can provide 2.8mm pins, soldering lugs, or pre-wired leads based on your project requirements.
