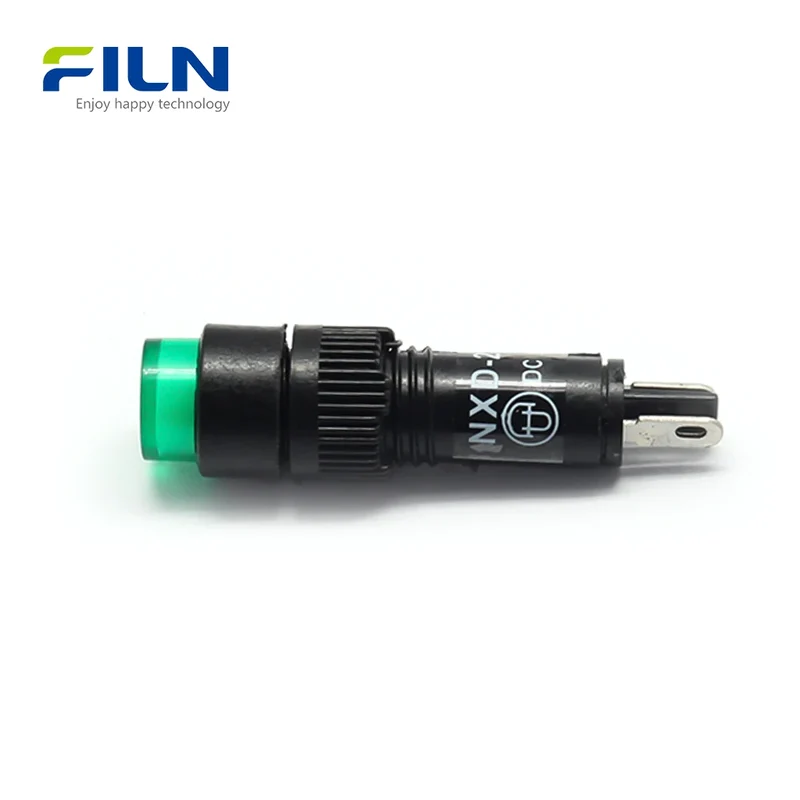

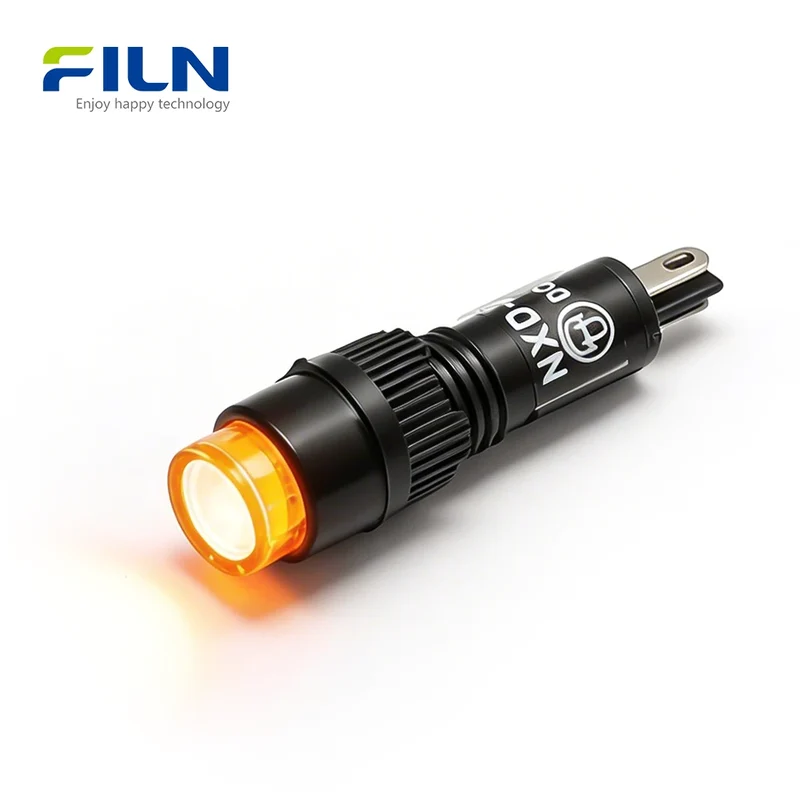

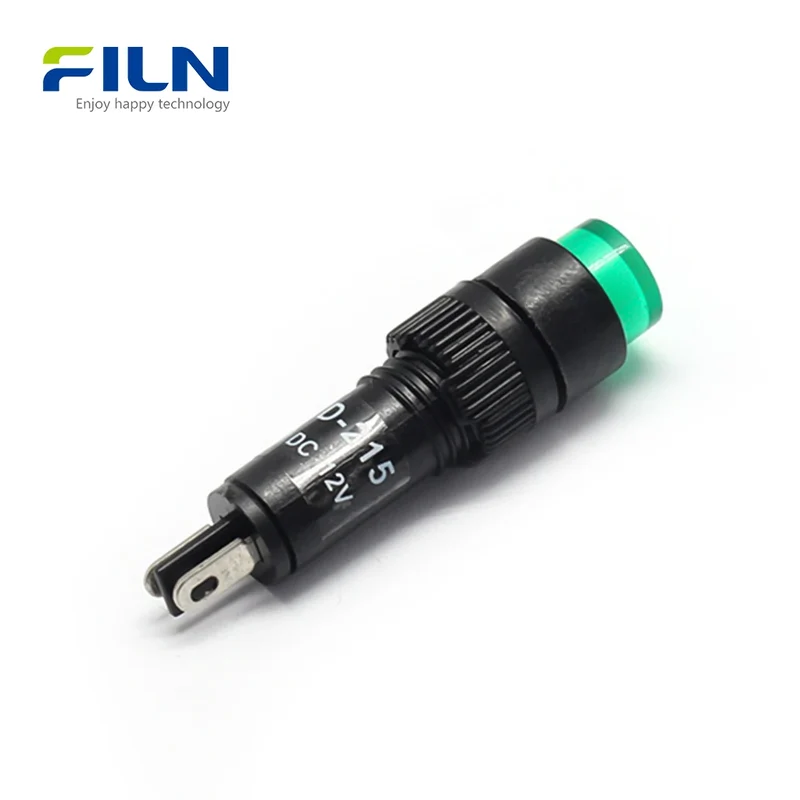

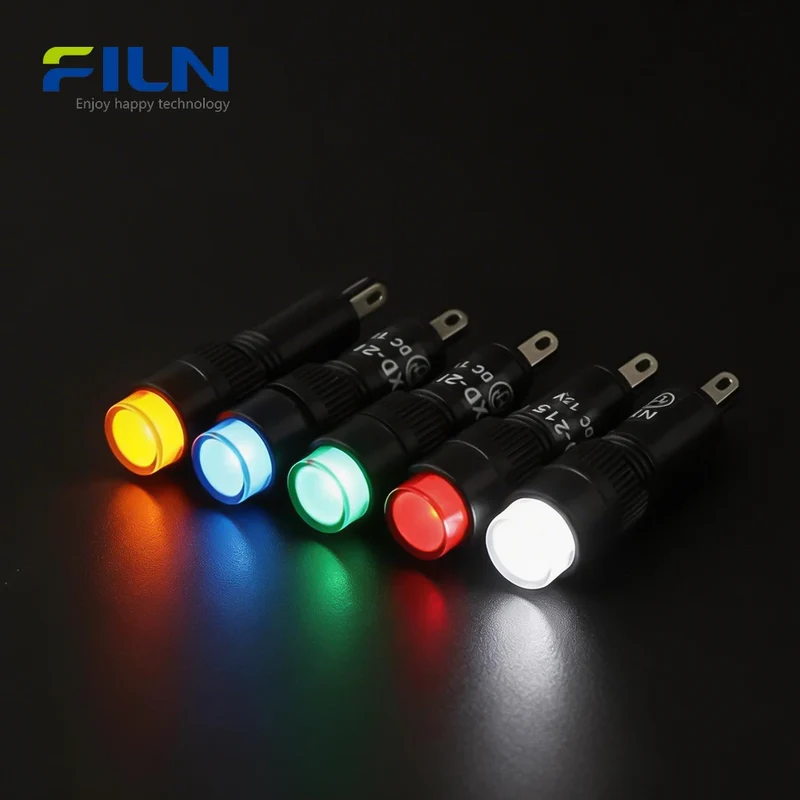

Lights Indicator 8mm 220V 12V 2-Pin Terminal Snap-in Round Top Panel Mount FILN

~~0,59 €~~0,41 €Im Angebot

Beschreibung

Product Overview

The FILN FL1P-08NJ-2 is a professional-grade 8mm plastic lights indicator for sale, featuring a distinctive high-head round design for maximum visibility. This 8mm-plastic-lights-indicator-for-sale is engineered with a durable PA66 body and a high-transparency PC lens. As an original manufacturer, FILN ensures all 12v red lights indicator panel mount and 220v green lights indicator terminal units meet ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 standards. Compared to metal versions, our plastic indicators offer superior electrical insulation and corrosion resistance. Featuring a 2-pin terminal design, these lights indicator units are perfect for industrial control cabinets and automation. You can buy directly from our factory with custom voltage and color options.

Quick Specifications

Mounting Hole	8mm (5/16 inch)
Voltage	12V, 24V, 110V, 220V (Supports Customization)

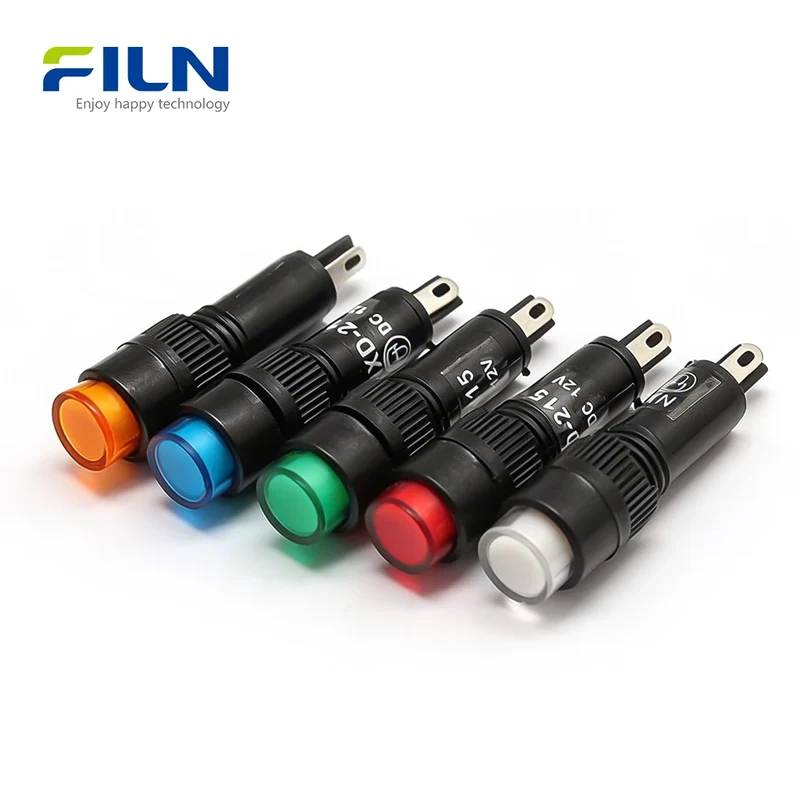

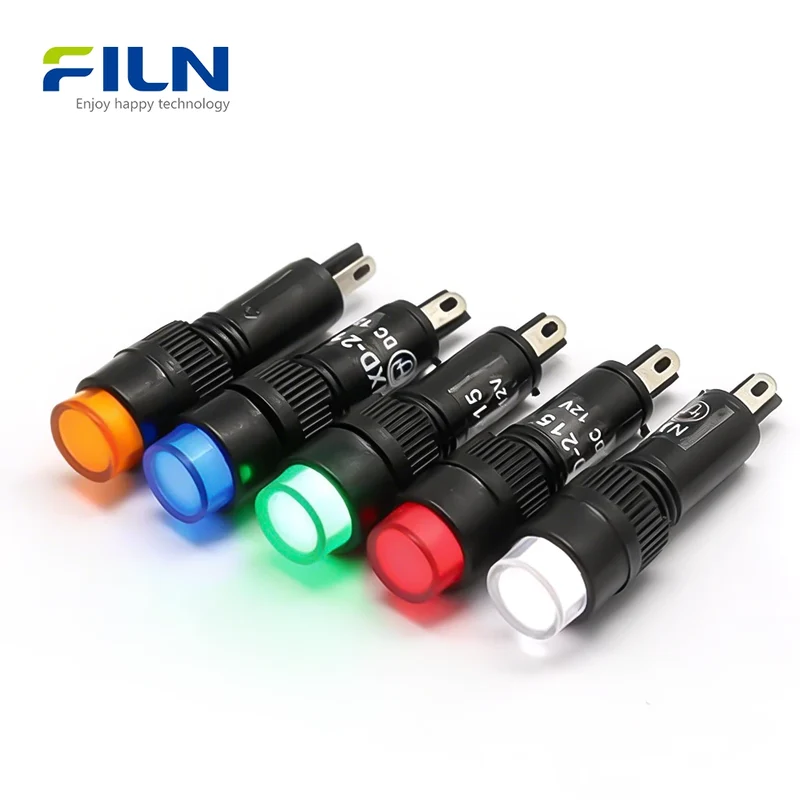

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 (Head Part)
Operating Temperature	-40℃ to +80℃
Wiring Type	2-Pin / 2.8mm Pin Terminal
Installation Method	Plastic Nut Mounting

Component Name	Material
Shell (High Head)	PA66
Lamp Holder	PA66
Lampshade (Round)	PC
Luminescent Source	LED
Resistance	Carbon film resistance
2.8mm Terminal	H59 Brass

Rated Working Parameters

Rated Voltage	Customized
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	PA66 Industrial Grade
Lens	PC Heat Resistant
Seal Ring	NBR / Silicone
Terminal	Silver-plated Brass
Wire Material	PVC (For wire lead versions)

General Characteristics

Items	Parameter
Insulation Resistance	1800V/5s
Working Life	60,000h
Operating Temp	-40℃ ～ +80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Insulation Resistance	DC500V 1 min	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No flashover

Durability Characteristics

Continuous Working Life

50,000 hours (Tested at 30mA 1000h)

Resistant Performance

High Temperature	80℃ 96h
Moisture Resistance	40℃ 90-95%RH 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

LED high brightness: Clear indication from long distances with our high-head-round-led-indicator.
Long lifespan: Maintenance-free for over 60,000 hours of operation.
Industrial 2-pin lights indicator: Robust 2.8mm plug-in design for fast and secure connection.
Plastic Nut Mounting: Simplifies installation on panel boards without specialized tools.
Versatile Voltage: Available in 12v-red-lights-indicator-panel-mount and 220v-green-lights-indicator-terminal configurations.

Applications

Industrial control panels and power distribution cabinets.
CNC machinery and automated production lines.
Automotive dash indicators and marine control boards.
Small appliances and communication equipment.
Blue-led-lights-indicator-8mm used for medical diagnostic equipment.

Installation Guide

Drill an 8mm diameter hole on your control panel.
Clean the hole surface to ensure the IP65 seal seats properly.
Insert the 8mm-plastic-lights-indicator-for-sale from the front (top) of the panel.
From the back, slide on the plastic nut and tighten it manually or with a small wrench.
Connect the wires using 2.8mm female terminals onto the 2-pin pins.

What Is an 8mm High-Head Lights Indicator?

An 8mm-high-head-plastic-lights-indicator is a signaling component designed for industrial panels. The "high-head" design refers to the protruding round lens which offers wider viewing angles compared to flat indicators.
Plastic vs. Metal: Plastic indicators are lighter, non-conductive (safer for high voltage), and corrosion-resistant, while metal ones offer higher impact resistance.
Pin vs. Wire Leads: Pin terminals (like the 2-pin FL1P-08NJ-2) allow for modular assembly using quick-connect terminals, which is faster and cleaner than soldering long wire leads in complex cabinets.

Factory Direct Supply

FILN is a global leader in lights indicator manufacturing. Buy directly for factory prices:

OEM/ODM Support
Custom Pin/Wire Types
Fast Lead Times
Worldwide Shipping

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: Is this lights indicator suitable for outdoor use?
A: It has an IP65 head rating, making it splash-proof. For full exposure, we recommend our specialized outdoor range.

Q2: Can I get a sample before bulk ordering?
A: Yes, FILN provides samples for industrial testing. Please contact our sales email.

Q3: Does the plastic nut strip easily?
A: No, our PA66 nuts are designed with deep threads for a secure, industrial-grade fit.

Q4: Do you offer bulk discounts?
A: Yes, as a factory direct supplier, we offer tiered pricing for large B2B orders.

Q5: What certifications come with these indicators?
A: They are UL, CE, and RoHS compliant, ensuring they meet global safety standards.
