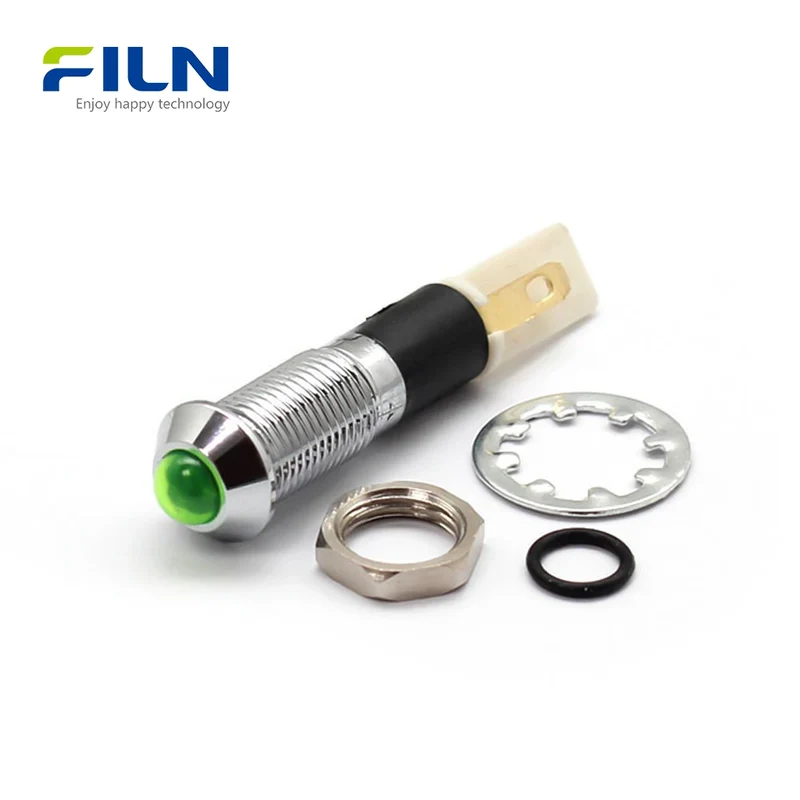

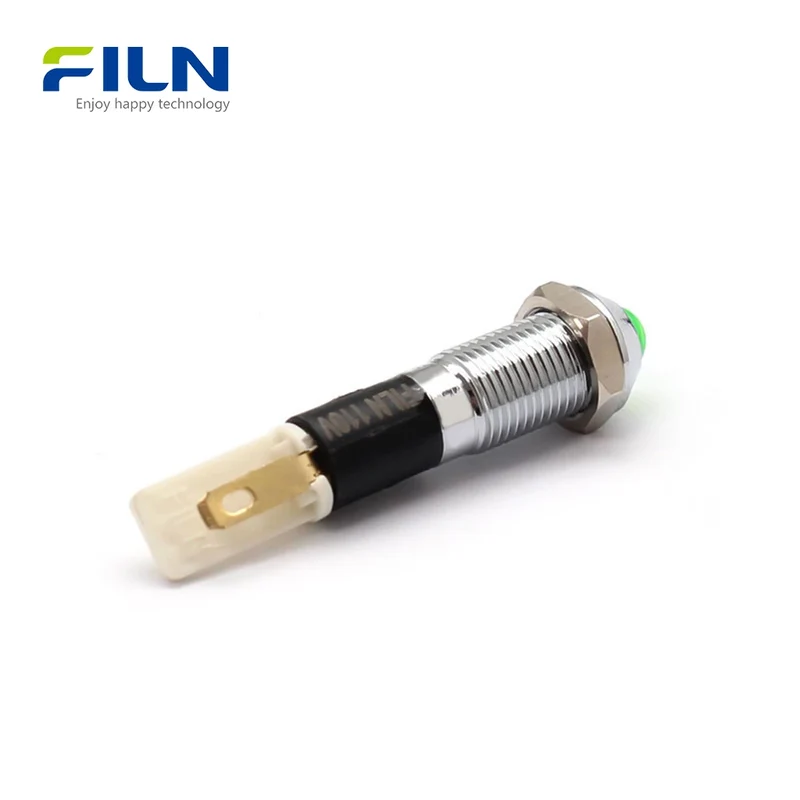

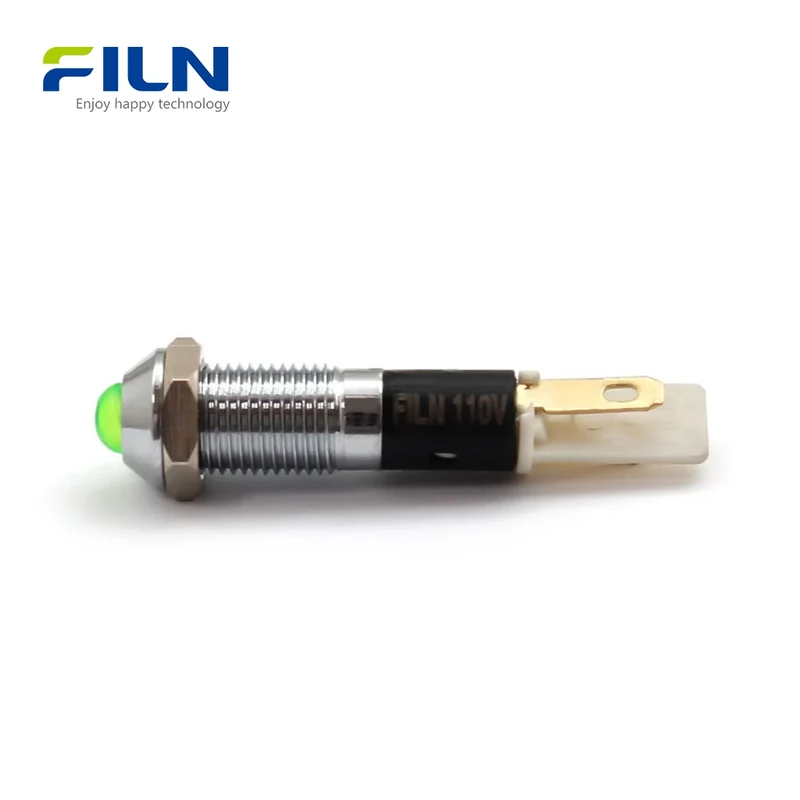

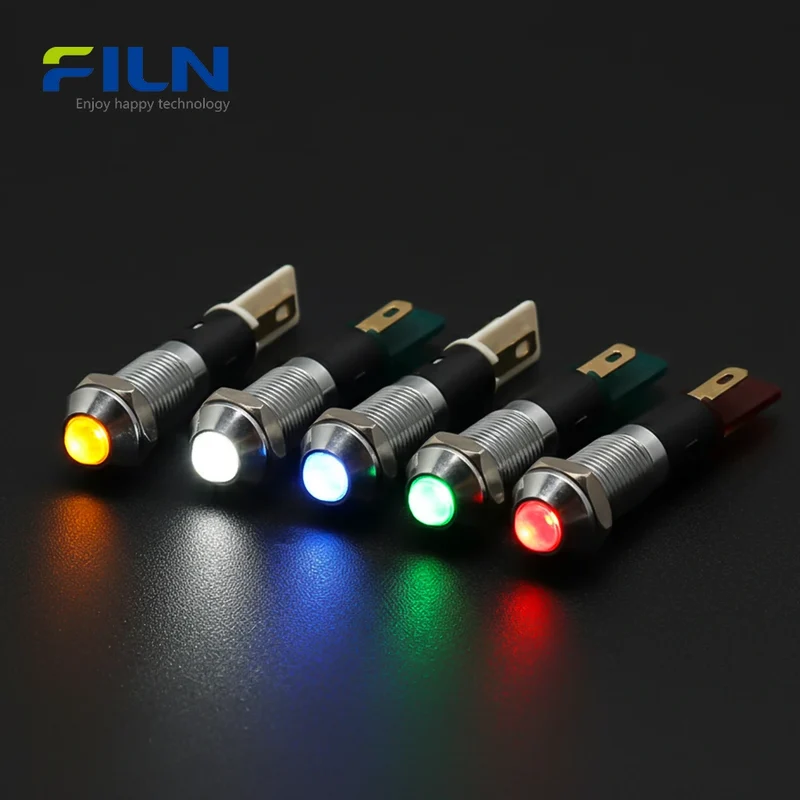

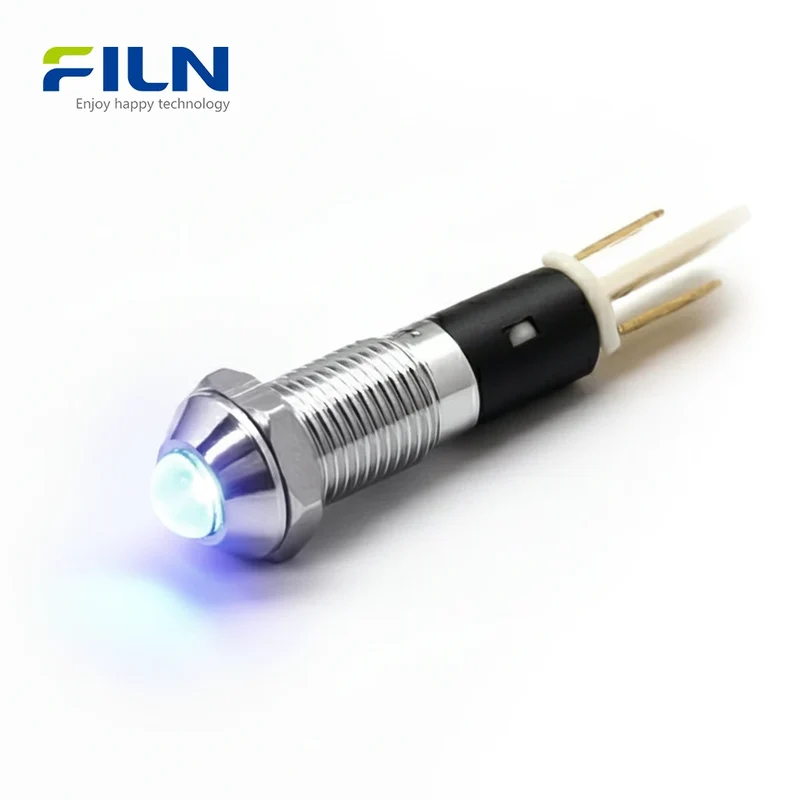

Machine Indicator Lights 8mm Metal IP67 Panel Mount 12-380V FILN

1,57 €1,10 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

The Machine Indicator Lights (Model: FL1M-08SJ-1) represent a high-performance 8mm metal signal lamp solution engineered for modern manufacturing excellence. Designed specifically for CNC machines, industrial control panels, and automated systems, these 24V indicator lights feature a rugged metal housing available in silver or black finishes and carry a superior IP67 waterproof rating. The flat-head design and pin-type terminals ensure easy installation and secure electrical connections. Utilizing advanced bi-polar LED technology, these lights function without polarity restrictions, offering an exceptional long lifespan of 50,000 hours and industrial-grade reliability in the most demanding environments.

Quick Specifications

Mounting Hole 8mm (0.31 inch)
Voltage 12V-24V / 110V-220V (Customizable)

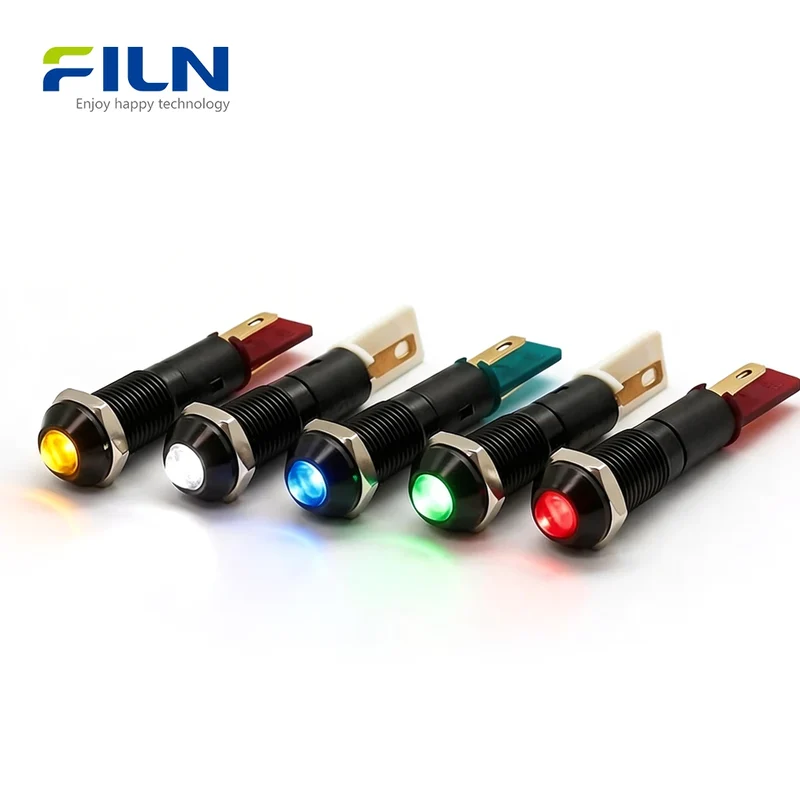

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours
Wiring Type Pin Type (Terminal Leads)

Rated Working Parameters

Rated Voltage Customized
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Material Chrome-plated Brass (Silver) / Black Aluminum
Lens Polycarbonate (PC)
Seal Ring Silicone O-ring
Terminal Material Copper with Silver Plating

General Characteristics

Application Scope Industrial Control / CNC Machines
Part Name Machine Indicator Lights
Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Ambient Temperature 5~35℃
Air Pressure 86~106Kpa
Waterproof Rating IP67

Key Features

  • LED High Brightness: Utilizes premium light beads to provide superior visibility even in high-glare industrial environments.
  • Extended Lifespan: Engineered for durability with a rated 50,000-hour continuous working life.
  • Advanced Waterproofing: IP67 rated to ensure total protection against dust and temporary water immersion.
  • Easy Installation: Features a flat-head metal design with pin terminals for efficient panel mounting.
  • Industrial Grade Reliability: Built with high-strength metal to withstand vibration, impact, and chemical exposure.

Applications

  • Industrial control panels and monitoring stations
  • Precision CNC machines, lathes, and milling centers
  • Automated robotic cells and assembly equipment
  • Electrical distribution cabinets and server racks [cite: 3]
  • Marine navigation systems and shipboard control consoles
  • Medical diagnostic devices and laboratory apparatus

Installation Guide

  1. Panel Preparation: Drill a precise 8mm diameter hole in the target mounting panel.
  2. Positioning: Place the provided O-type waterproof silicone ring onto the indicator body.
  3. Insertion: Insert the indicator through the prepared hole from the front side of the panel.
  4. Securing: Fasten the unit securely from the rear using the provided M8 hex nut.
  5. Wiring: Connect your power source to the pin terminals; the bi-polar design means no polarity orientation is required.

FILN Factory Direct Supply

Maximize your project efficiency by partnering directly with the manufacturer:

  • Factory Direct: Eliminate middleman costs with direct-from-factory pricing.
  • Voltage Customization: We support a wide range of voltages from 3V up to 380V.
  • Lead Length Customization: Tailored wire lengths to meet your specific internal cabinet layouts.
  • Connector Integration: Custom plug-and-play connectors available upon request.
  • Global Logistics: Fast international shipping to keep your production lines running.

    FILN Official Website: www.filn.com

    Contact Us: [email protected]

Frequently Asked Questions

Q: What is the mounting size for these machine indicator lights?
A: The mounting hole size required for this model is 8mm.

Q: Are the 24V indicator lights waterproof?
A: Yes, these lights carry an IP67 rating for superior environmental protection.

Q: Do I need to worry about positive and negative polarity?
A: No, the LED beads are non-polarized for easier wiring.

Q: Can I use these lights on a 220V circuit?
A: Yes, we support custom voltage requests including 110V and 220V.

Q: What housing colors are available?
A: You can choose between silver chrome-plated brass or black aluminum.
