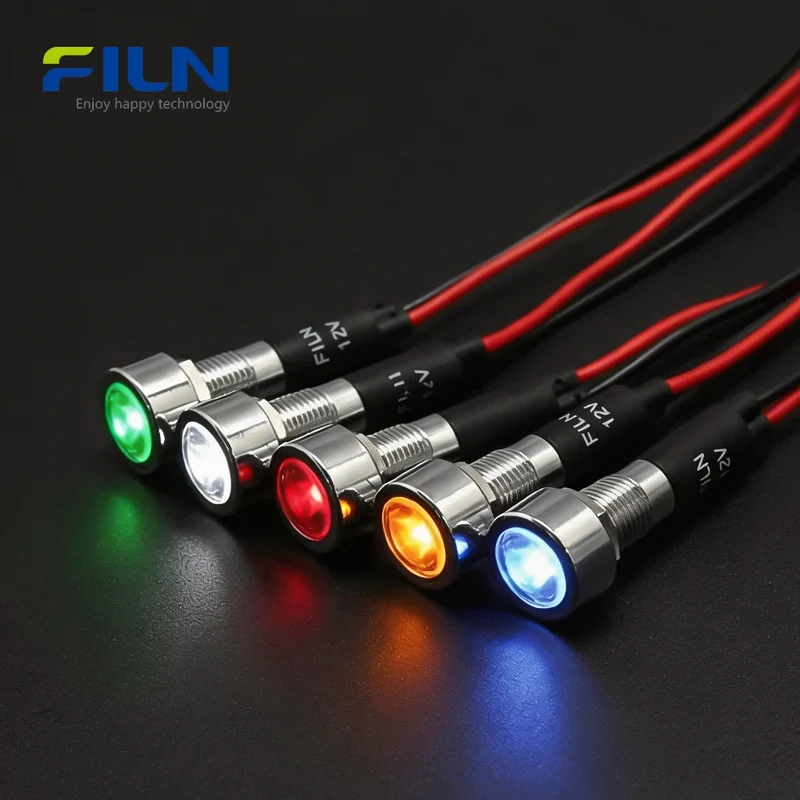

Machine Panel Indicator Light 12-24V 220V 8mm IP67 for CNC FILN

1,40 €0,81 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

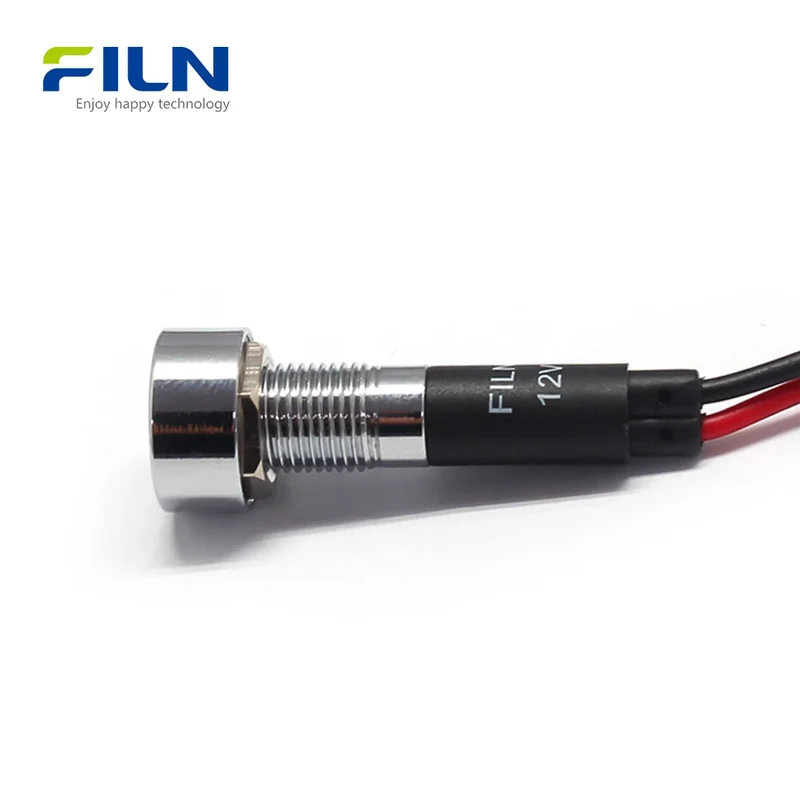

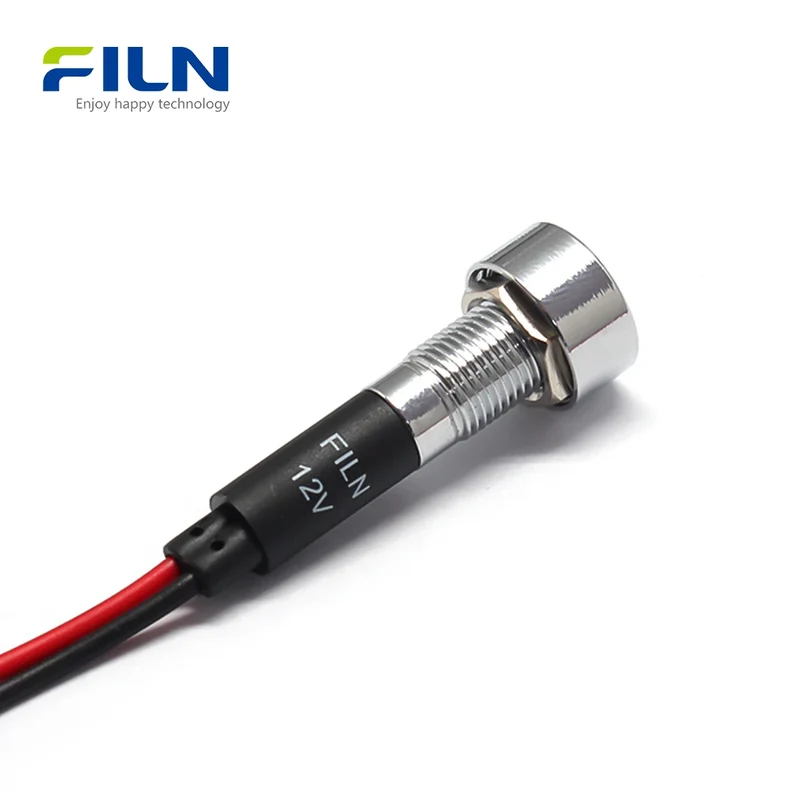

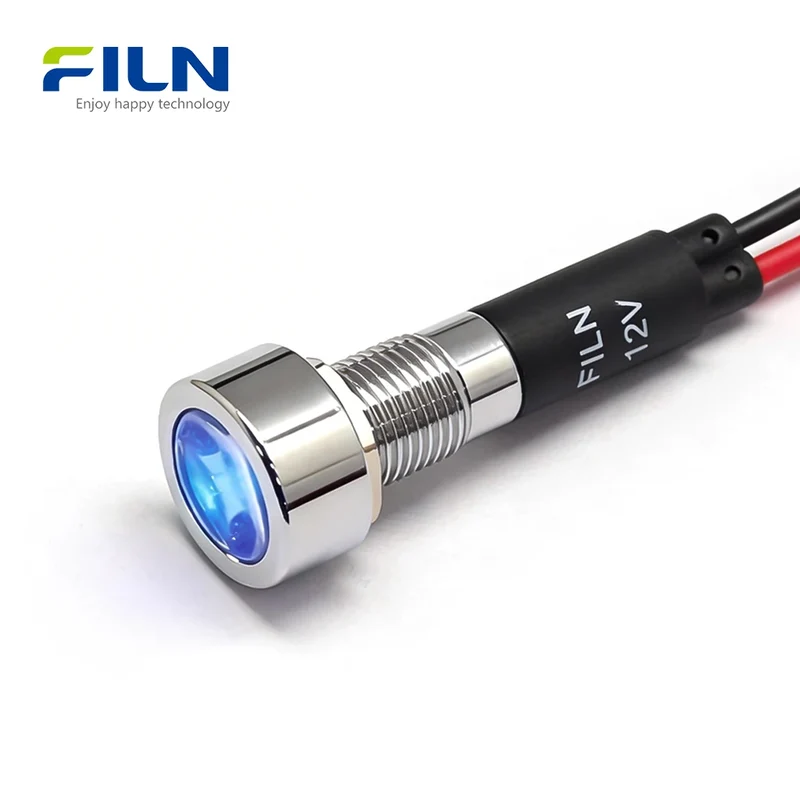

The FL1M-08SW-5 Machine Panel Indicator Light is a high-performance 8mm industrial LED signal lamp designed for precision monitoring in CNC machinery, automation equipment, and control panels. Featuring a silver metal housing and a unique high-head convex design, this indicator provides superior visibility with a 13mm head diameter despite its compact 8mm mounting size. Engineered for industrial reliability, it offers IP67 waterproof protection and a non-polar LED bead for versatile 12V-24V or 110V-220V wiring. The pre-wired lead design ensures a significantly faster installation compared to standard pin-type terminals, making it the ideal choice for heavy-duty electrical environments.

Quick Specifications

Mounting Hole 8mm (0.315 inch)
Voltage 12-24V / 110-220V

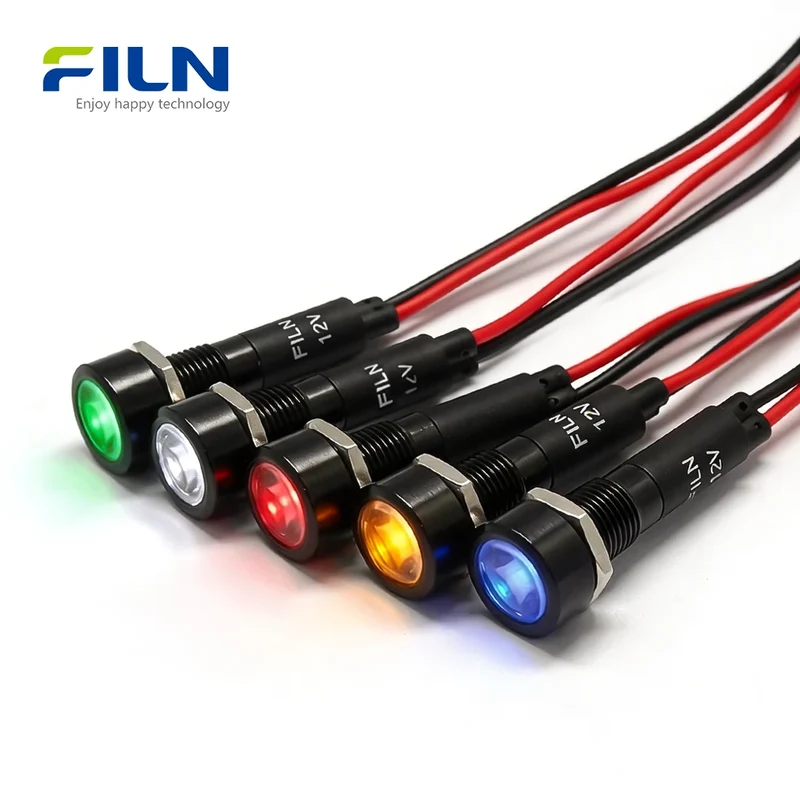

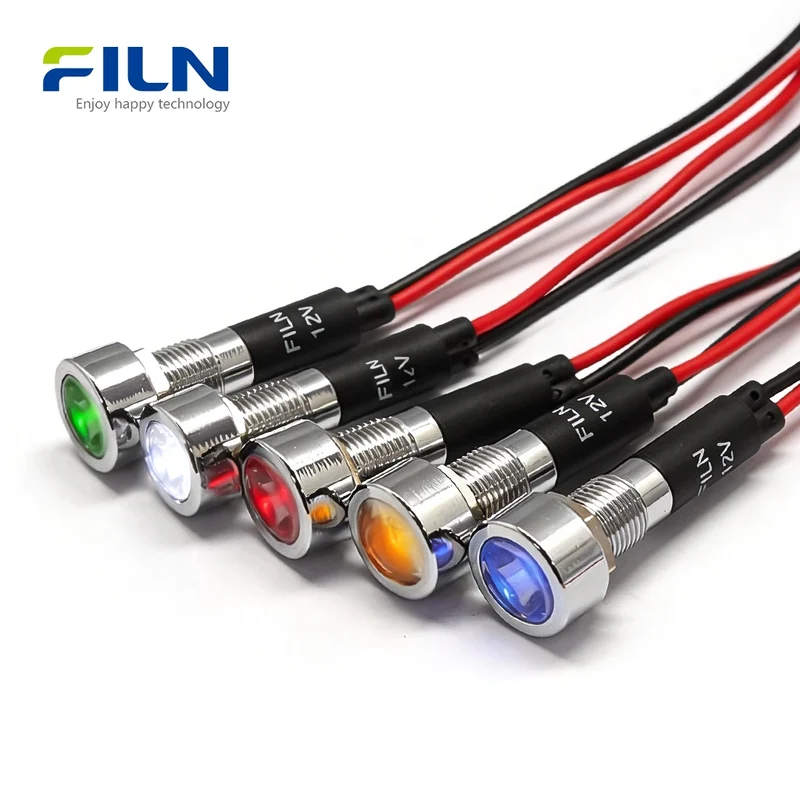

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Wiring Type Wire Lead Type

Rated Working Parameters

Rated Voltage Customized
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Silver Plated Brass
Lens PC (Polycarbonate)
Seal Ring Silicone O-ring
Wire Material PVC Copper Wire

General Characteristics

Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V 1 min ≥100MΩ
Dielectric Strength 1500VAC / 60s No breakdown

Reliability Data

Working Life 50,000 hours (Test: 30mA 1000h)
Heat/Cold Resistance 80℃ / -40℃ (96h)
Cycle Test -40℃ to 85℃ (5 rounds)

Key Features

  • LED high brightness: Premium beads for clear signaling.
  • Long lifespan: Rated for over 50,000 hours of continuous use.
  • IP67 waterproof: Dust-tight and protected against water immersion.
  • Easy installation: Direct pre-wired tail for rapid mounting.
  • Industrial grade: Rugged silver metal housing with anti-vibration M8 nut.

Applications

  • Industrial control panels
  • CNC machines & Lathes
  • Automation equipment lines
  • Electrical cabinets & Switchgear
  • Marine & Medical devices

Installation Guide

  1. Drill an 8mm diameter mounting hole in your panel.
  2. Slide the indicator light through the hole from the top side.
  3. Ensure the O-ring gasket is flush against the panel surface.
  4. Tighten the M8 nut from the rear to secure the housing.
  5. Connect the lead wires to your power source (non-polar LED).

What Is a Machine Panel Indicator Light?

A Machine Panel Indicator Light is a critical visual component for monitoring industrial equipment status. Unlike standard pin-type indicators that require soldering or connectors, our pre-wired (wire lead) model offers a direct-out tail design for easier management in tight electrical cabinets. The convex "high head" style ensures the signal is visible from 180 degrees, while the IP67-rated metal housing protects against oil and coolant spray in CNC environments.

Factory Direct Supply - FILN

Leverage our expertise as a leading manufacturer with over 180 employees.

  • ✓ Factory Direct Pricing
  • ✓ Voltage Customization
  • ✓ Wire Length Custom
  • ✓ Fast Global Shipping

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. What is the difference between pre-wired and pin types?
Pre-wired leads allow for direct connection without soldering, saving time in CNC assembly. 2. Can I use this for 220V applications?
Yes, we support 110V-220V and 12V-24V configurations. 3. Is the LED polarity sensitive?
No, our non-polar design works regardless of how you connect the leads. 4. What is the maximum panel thickness?
The M8 thread accommodates standard industrial panel thicknesses up to 6mm. 5. Is the housing rust-proof?
Yes, the silver metal housing is corrosion-resistant for marine and industrial use. 6. Can you customize the wire length?
Yes, as a factory, we offer wire length and connector customization. 7. What colors are in stock?
Red, Green, Yellow, Blue, and White are standard stock colors. 8. Is the O-ring included?

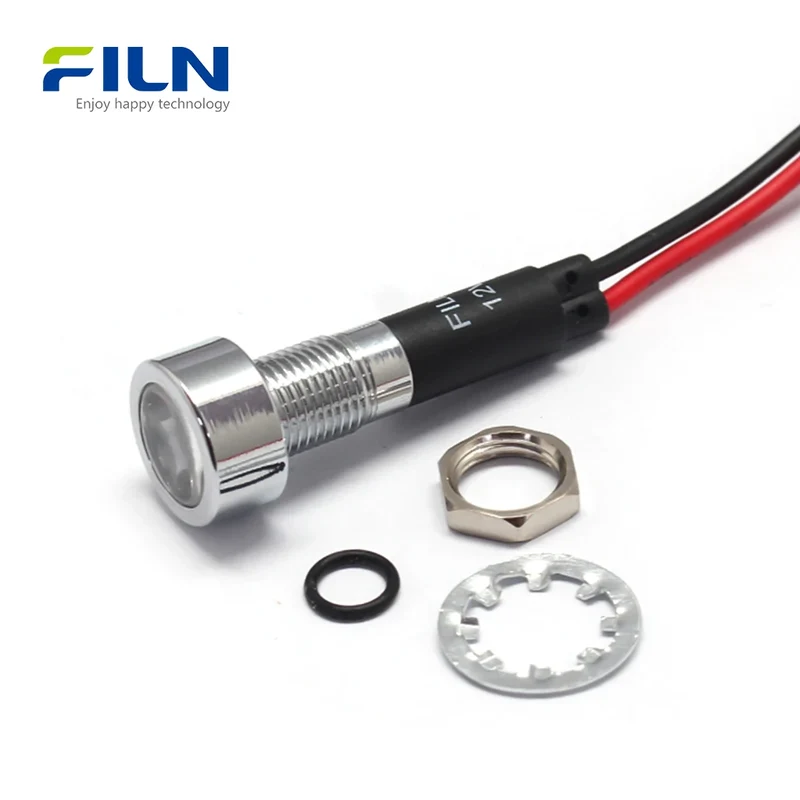

Yes, each light comes with an O-ring and a mounting nut. 9. What is the head diameter?
While the mounting hole is 8mm, the visible high-head diameter is 13mm. 10. Does this meet IP67 standards?
Yes, it is fully sealed for protection against heavy water spray and dust.
