Panel Mount RGB Pilot Light | 8mm IP67 Waterproof LED Indicator for CNC & Marine FILN

Note: The default wiring for the dual-color indicator lights is Common Cathode. If you require Common Anode, please leave a note or contact us.

Product Overview: Panel Mount RGB Pilot Light

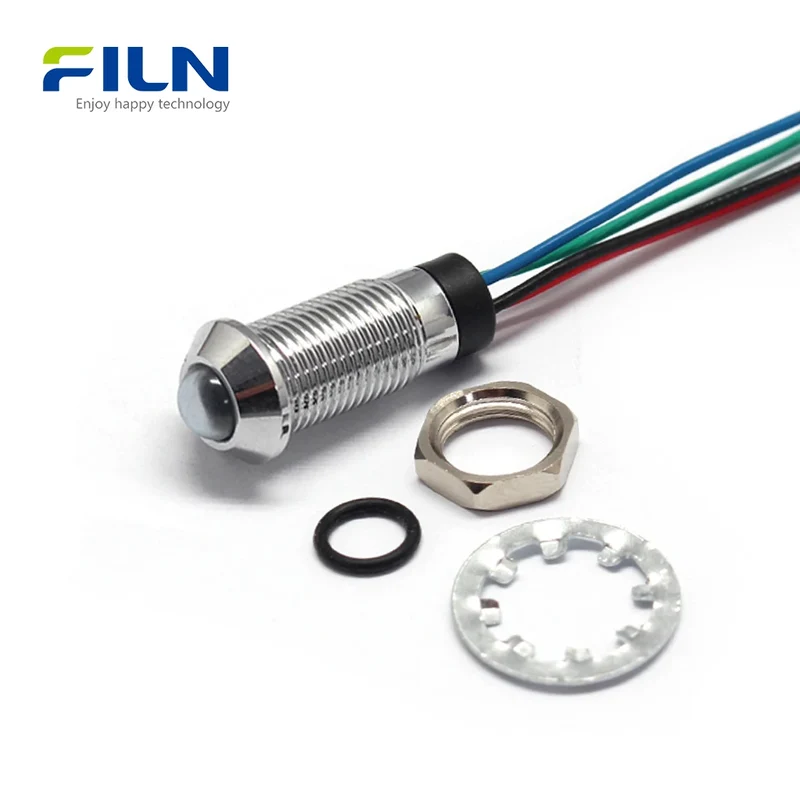

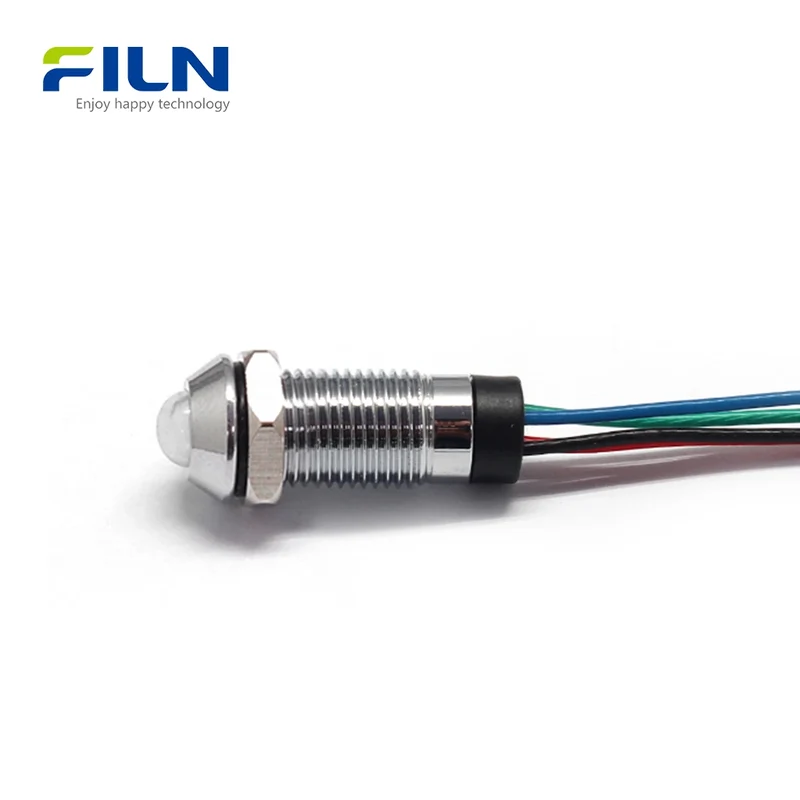

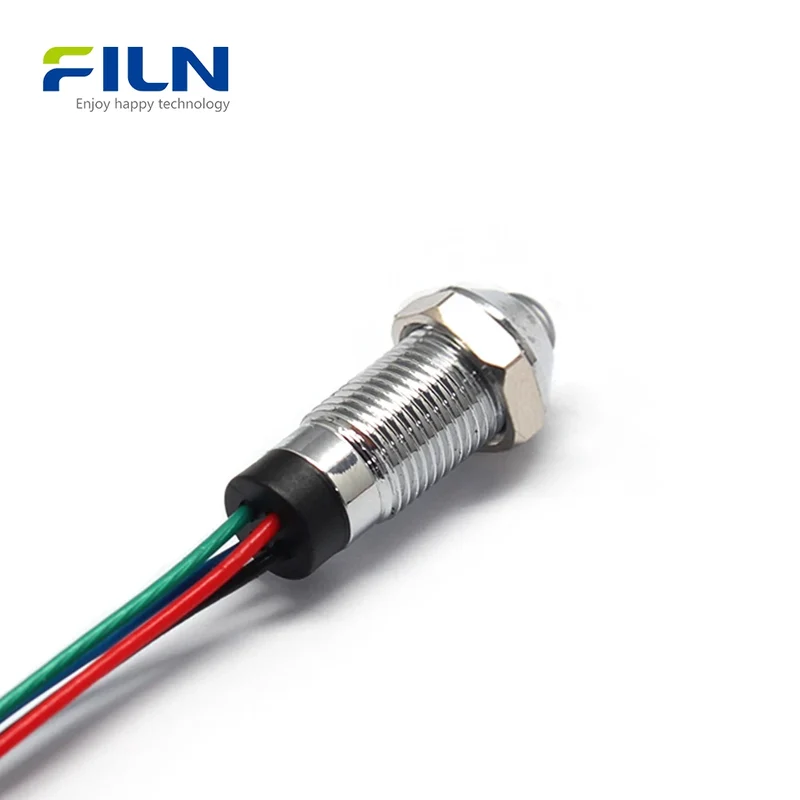

The Panel Mount RGB Pilot Light (Model: FL1M-08SW-T-1) is a high-performance 8mm metal indicator designed for precision status signaling. Featuring a high-head design and a robust IP67 waterproof rating, this multi-color LED is available in Common Anode (CA) or Common Cathode (CC) configurations, allowing for RGB or RGY color mixing. Built with a durable silver or black chrome shell, it comes pre-wired with 20cm leads for rapid deployment. Perfect for industrial control panels, marine systems, and automation equipment, this indicator ensures long-term reliability with a 50,000-hour lifespan.

Quick Specifications

Mounting Hole	8mm (0.31 inch)
Voltage	12-24V / 110-220V (Customizable)

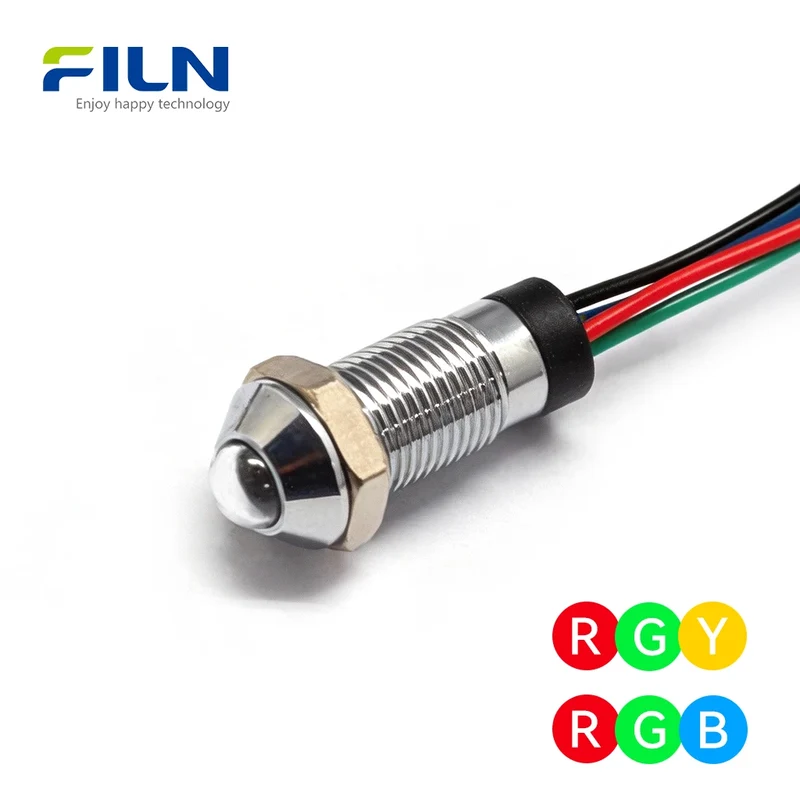

LED Color	RGB / RGY (Tri-color)
Wiring Method	Common cathode by default. Please leave a note or contact us if common anode is required
Waterproof Rating	IP65 / IP67
Wiring Type	20cm Wire Lead Type
Lifespan	50,000 Hours

Rated Working Parameters

Rated Voltage	Customizable (AC/DC)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

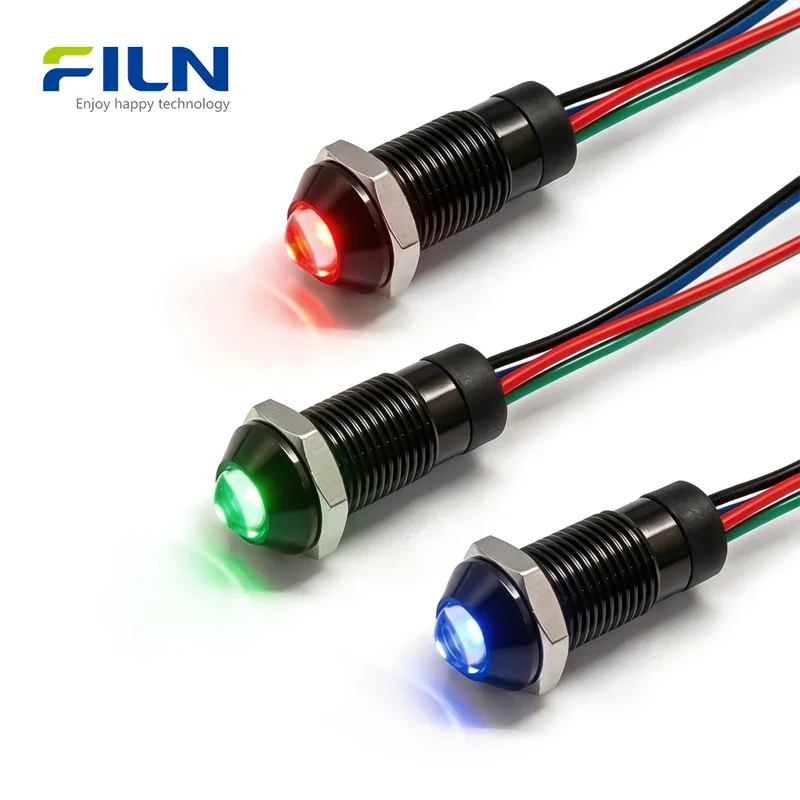

Housing	Brass with Chrome (Silver/Black)
Lens	Polycarbonate (PC)
Seal Ring	Silicone Rubber O-ring
Wire Material	UL Standard PVC/Teflon Lead

General Characteristics

Operating Temperature	-40℃～80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Item	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Key Features

• LED High Brightness: Exceptional visibility even in high-ambient light environments.
• Long Lifespan: Rated for over 50,000 hours of continuous operation.
• IP67 Waterproof: Includes an M8 O-ring and nut for a vacuum-tight seal.
• Easy Installation: Pre-wired 20cm leads and smooth M8 threading for fast setup.
• Industrial Grade: Solid metal construction available in silver or black chrome finish.

Applications

• Industrial control panels & CNC machinery
• Marine dashboard systems & Boat electronics
• Automation equipment and robotics
• Custom PC builds and gaming peripherals
• Medical diagnostic devices
• Electrical power distribution cabinets

Installation Guide

1. Drill an 8mm (M8) hole into your desired panel.
2. Insert the RGB pilot light through the top of the panel.
3. Place the provided silicone O-ring between the light head and the panel for waterproofing.
4. Secure the light from the back using the provided M8 nut.
5. Connect the 20cm leads to your power source (Common Anode or Cathode).

What Is an RGB Pilot Light?

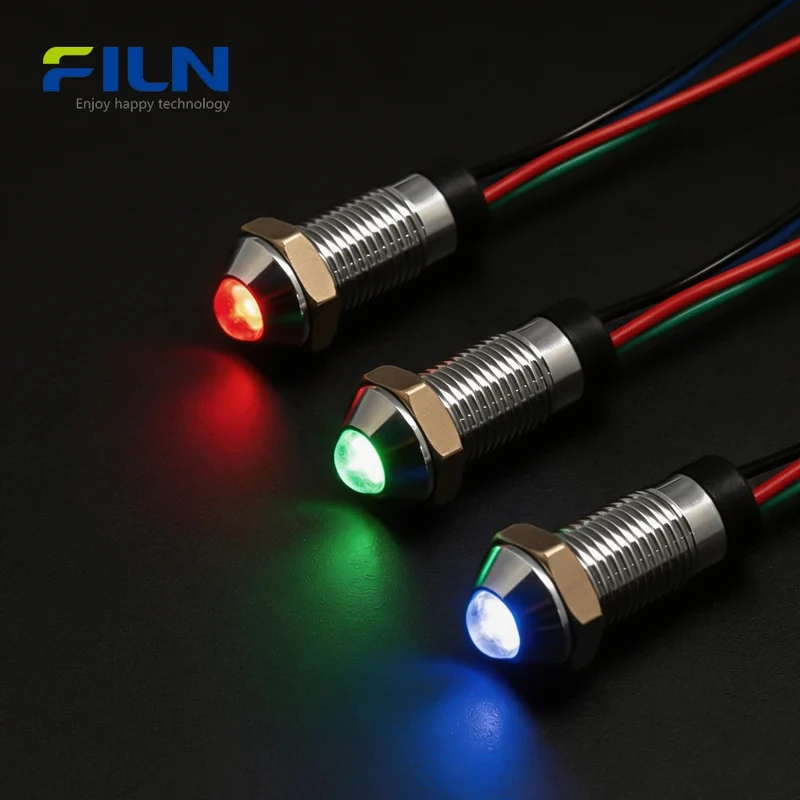

An RGB Pilot Light is a multi-color signaling device that uses Red, Green, and Blue LED chips within a single 8mm housing. Unlike standard single-color indicators, RGB versions allow for complex status reporting. For instance, a CNC machine can show Green for "Running," Red for "Emergency Stop," and Blue for "Maintenance Required." The use of pre-wired leads versus traditional pin terminals significantly reduces installation time and prevents loose connections in high-vibration environments like marine or heavy industrial applications.

FILN Factory Direct Supply

• Customization: Voltage (3V-220V), Wire Length, and Connectors.
• Direct Pricing: No middlemen, ensuring the best B2B value.
• Fast Shipping: Global logistics for urgent project timelines.

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. What is the difference between Common Anode and Common Cathode RGB?
Common Anode shares a positive wire (+), while Common Cathode shares a negative wire (-). Your choice depends on your controller's circuit design.

2. Can I use this 8mm RGB indicator for marine use?
Yes, with its IP67 rating and chrome-plated brass body, it is highly resistant to salt spray and water ingress.

3. Are the wires customizable?
Absolutely. While the standard length is 20cm, FILN can customize wire length and add specific connectors upon request.

4. Does it come with mounting hardware?
Yes, each unit includes a high-quality M8 nut and a waterproof O-ring.

5. Can I get a black shell instead of silver?
Yes, we offer both silver chrome and black anodized finishes for the housing.

6. What is the benefit of the "High Head" design?
The high-head design provides better side-angle visibility compared to flat-head indicators.

7. How do I wire an RGB indicator?
The 4-wire system includes one common wire and three wires for Red, Green, and Blue respectively.

8. Is the LED replaceable?
No, the LED is integrated and sealed to ensure the IP67 waterproof rating.

9. Can this run on 220V AC?
Yes, we offer 110-220V versions with built-in resistors for direct mains connection.

10. Is the thread smooth for manual installation?
Yes, our precision-machined M8 threads ensure the nut can be easily tightened by hand or tool.
