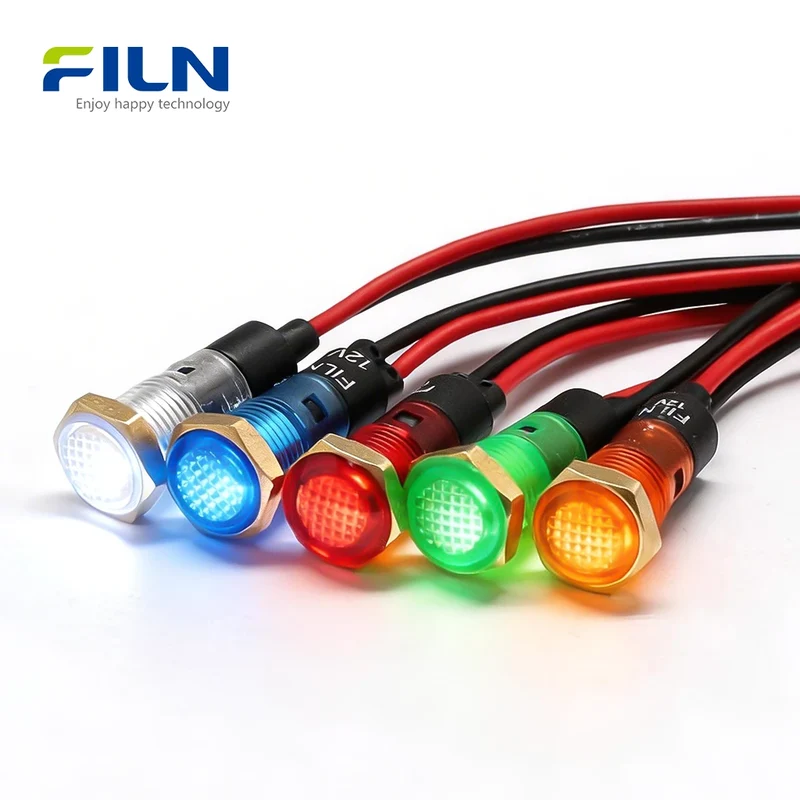

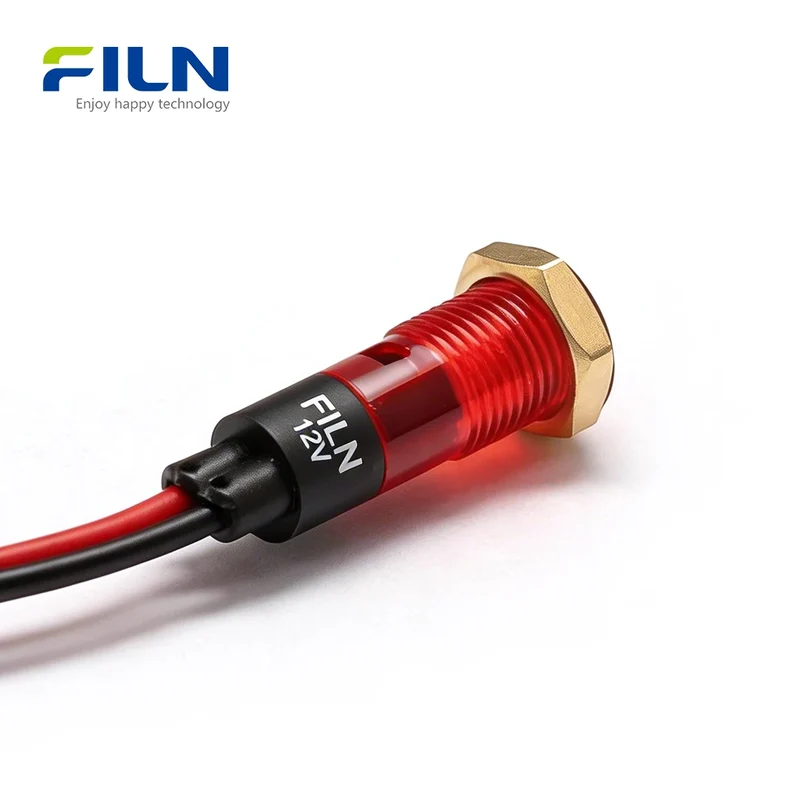

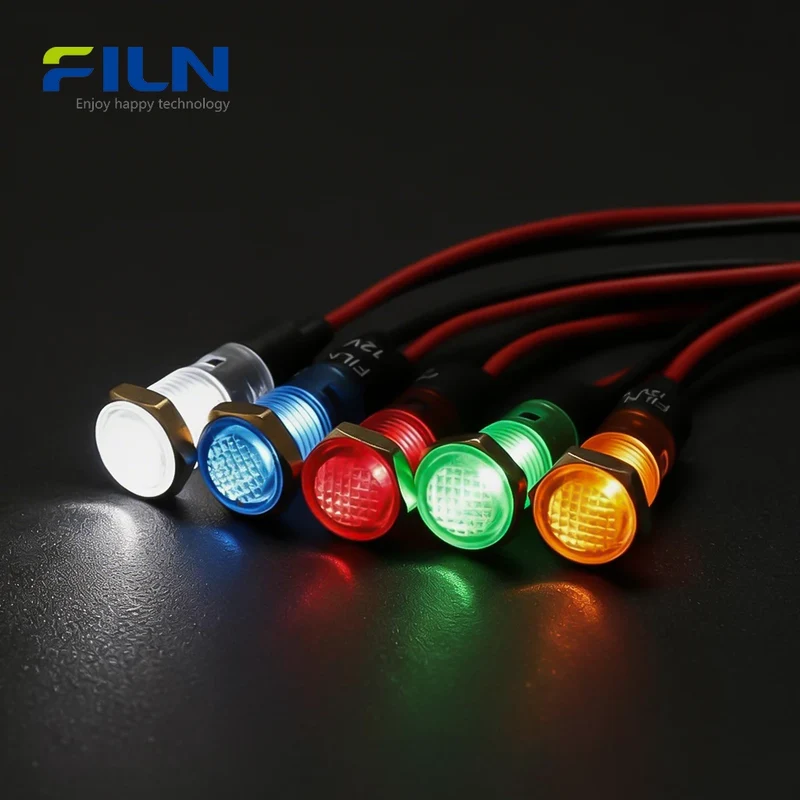

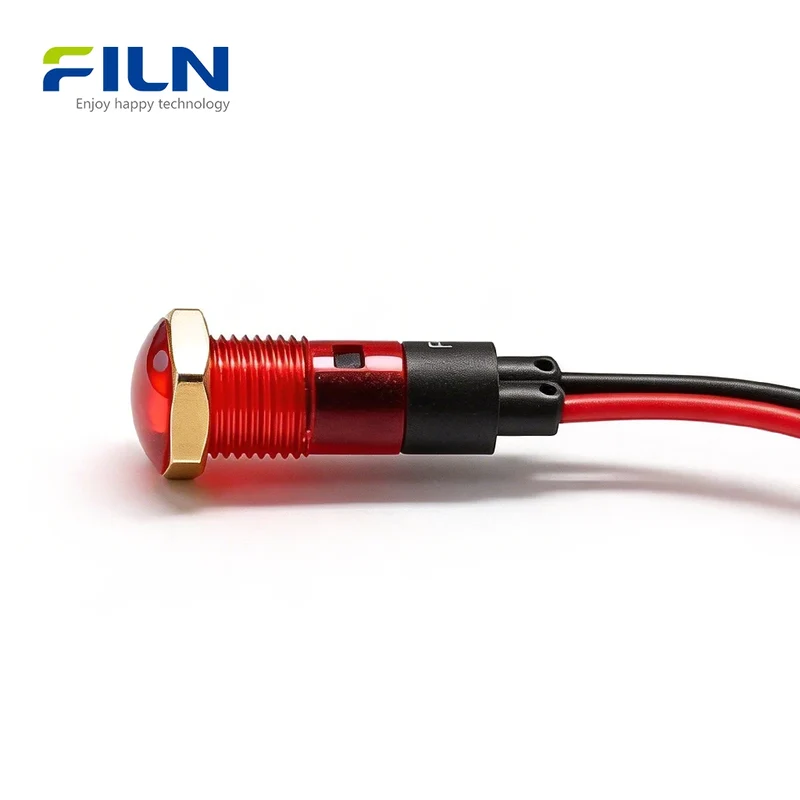

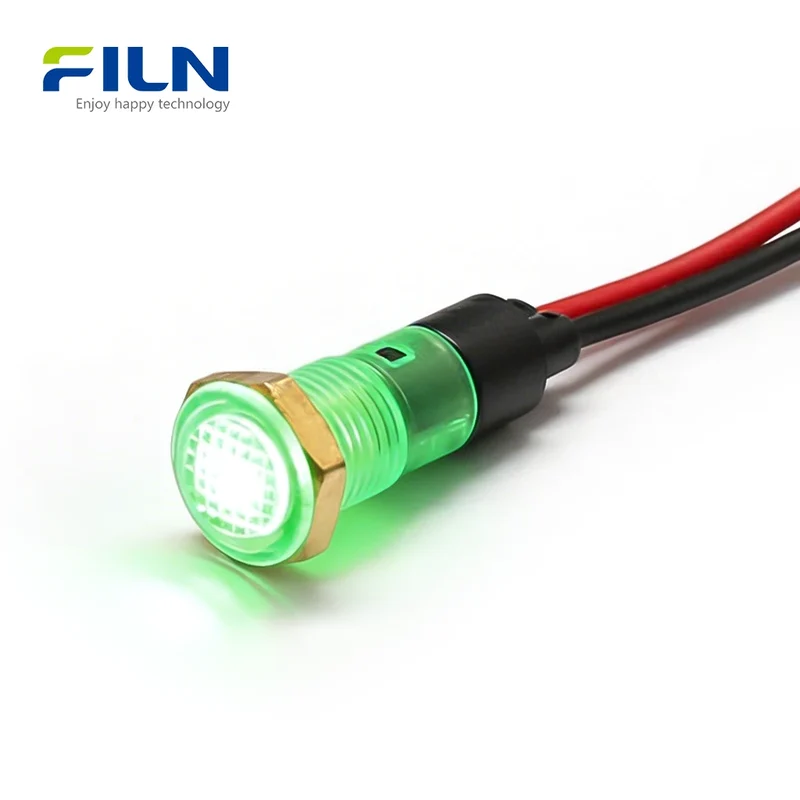

Pilot Indicator LED 8mm Plastic PA66 220V 12V Pre-wired 15cm Lead Threaded Panel Mount FILN

Product Overview

The FILN FL1P-08NW-1 is a high-reliability pilot indicator led for sale, featuring an 8mm mounting diameter and a durable PA66 plastic body. This 8mm-plastic-pilot-indicator-led-for-sale comes with a convenient 15cm pre-wired lead design, eliminating the need for manual soldering and speeding up your assembly process. As a direct factory, FILN ensures every 12v red pilot indicator led panel mount and 220v green pilot indicator led wire unit is certified by ISO9001, CE, UL, VDE, and RoHS. Plastic indicators are highly valued for their excellent electrical insulation and lightweight nature compared to metal versions. With a 60,000-hour lifespan and a secure threaded metal nut installation, these pilot indicator led units are perfect for industrial control panels, CNC machines, and automotive dashboards. Direct factory stock is available for purchase now.

Quick Specifications

Mounting Hole	8mm (0.31 inch)
Voltage	12V-24V, 110V-220V (Supports Customization)

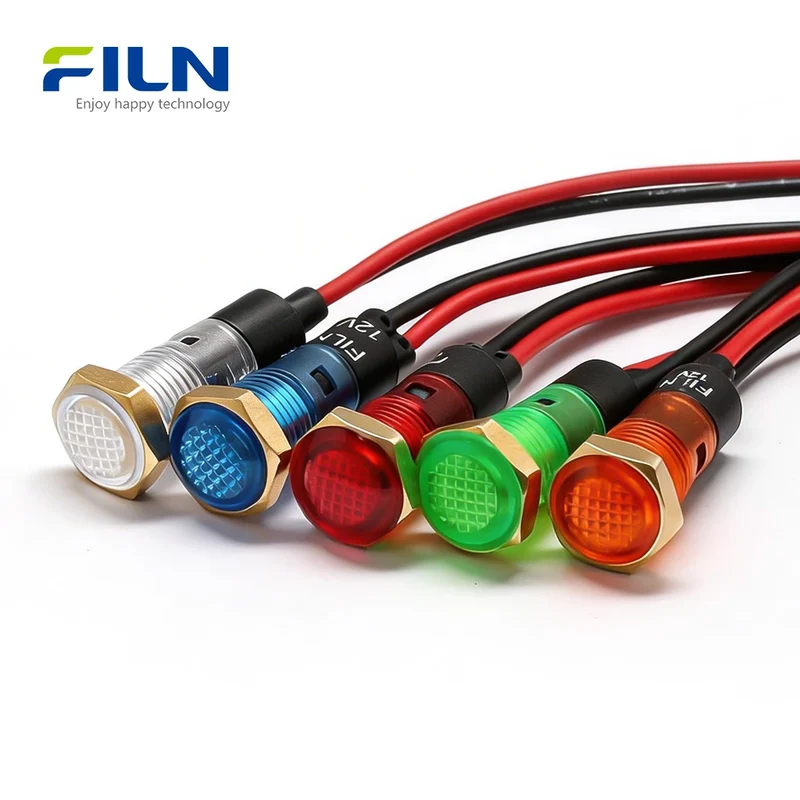

LED Color	Red, Green, Yellow, Blue, White
Wire Length	150mm (15cm) / Custom Length Available
Waterproof Rating	IP65 (Threaded Head)
Wiring Type	Pre-wired Lead Type (PVC Wire)

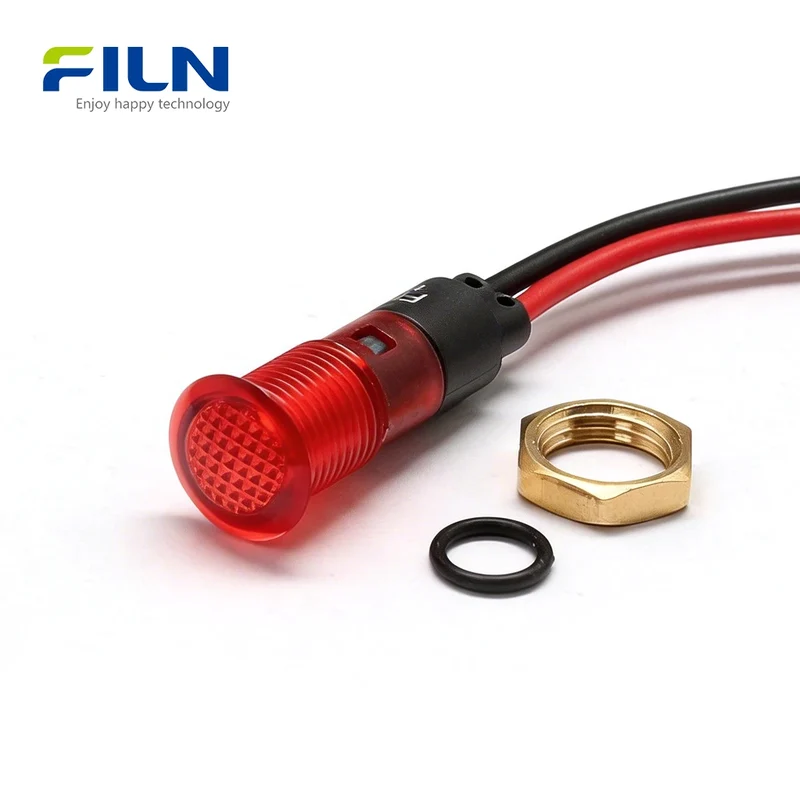

Installation Method	Threaded Mount with Metal Nut

Component Name	Material
Shell	PA66 Plastic
Lamp Holder	PA66 Plastic
Lampshade	PC
Luminescent Source	High-bright LED
Nut	Metal (Zinc Alloy / Brass)
Wire Specification	PVC (15cm)

Rated Working Parameters

Rated Voltage	Customized 3V-440V
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Industrial PA66 Nylon
Lens	Heat-resistant PC
O-ring	Silicone (IP65 Seal)
Wire Material	Standard PVC / UL wire

General Characteristics

Items	Parameter
Voltage Resistance	1800V/5s
Working Life	60,000h
Operating Temp	-40℃ ～ +80℃
Relative Humidity	≤85% at +40℃

Electric Property

Insulation Resistance	DC500V 1 min	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability Characteristics

Continuous Working Life

50,000 hours (Long-term stability)

Resistant Performance

High Temperature	80℃ 96h
Moisture Resistance	40℃ 90-95%RH 96h

Key Features

• LED high brightness: Superior optics for 8mm-pre-wired-led-indicator-light visibility.
• Long lifespan: Maintenance-free operation exceeding 60,000 hours.
• Pre-wired Design: 15cm PVC leads for "out-of-the-box" wiring convenience.
• IP65 Waterproof: Sealed head ensures reliability in industrial pilot-indicator-led-8mm-plastic-for-sale environments.
• Secure Threaded Mount: Metal nut provides a vibration-resistant grip on the panel.

Applications

• Industrial machinery control panels and CNC workstations.
• Power distribution cabinets and battery chargers.
• White-led-dash-pilot-indicator-8mm for vehicle and boat consoles.
• Automation systems and industrial-8mm-led-pilot-lamp-for-sale setups.
• Kitchen equipment and commercial appliances.

Installation Guide

1. Drill an 8mm hole in your panel material.
2. Remove the metal nut from the pilot indicator led housing.
3. Insert the wires and the LED body through the front of the panel.
4. From the rear, slide the metal nut over the wires and screw it onto the threaded mount body.
5. Tighten the nut to secure the indicator firmly.
6. Connect the 15cm wires to your power source.

What Is an 8mm Pre-wired Pilot Indicator LED?

An 8mm-plastic-pilot-indicator-led-for-sale is a compact status lamp used in industrial and automotive fields.
Pre-wired vs. Terminal Pin: Pre-wired models (FL1P-08NW-1) come with 15cm leads, making them ideal for deep cabinets where hand-wiring is difficult. Pin terminals, on the other hand, are better for PCB mounting or quick-connect connectors.
Plastic vs. Metal: Plastic indicators using PA66 provide better electrical safety through insulation and are resistant to rust. Metal indicators offer higher physical impact resistance for heavy machinery.
Threaded vs. Snap-in: Threaded mounts with a metal nut are preferred for panels that experience vibration, ensuring the light never comes loose.

Factory Direct Supply

FILN is a premier factory specializing in pilot indicator led production. Purchase direct for factory benefits:

• OEM/ODM Support
• Wire Length Customization
• Custom Connector Fitting
• Fast Global Logistics

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: Are the wires easy to pull out?
A: No, the wires are potted or securely anchored within the PA66 housing to prevent detachment during installation.

Q2: Can I get these with custom connectors?
A: Yes, we can add terminals like spade or JST connectors to the ends of the 15cm wires at the factory.

Q3: How does the LED perform in sunlight?
A: We use high-intensity LEDs to ensure signaling is visible even in bright industrial conditions.

Q4: Is there a bulk price for industrial distributors?
A: Yes, FILN offers tiered wholesale pricing for large volume B2B orders.

Q5: Can you provide a 24V version?
A: Yes, 24V is one of our standard voltage options along with 12V and 220V.
