Pilot Light Indicator 220v 10mm Plastic Indicator Light Snap-in Panel Mount for FILN

Product Overview

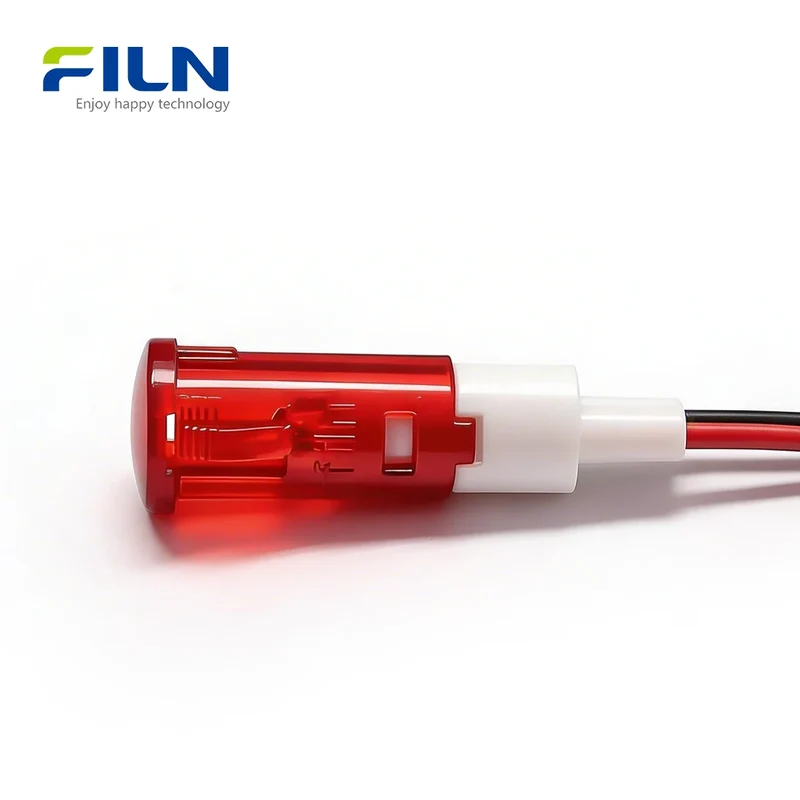

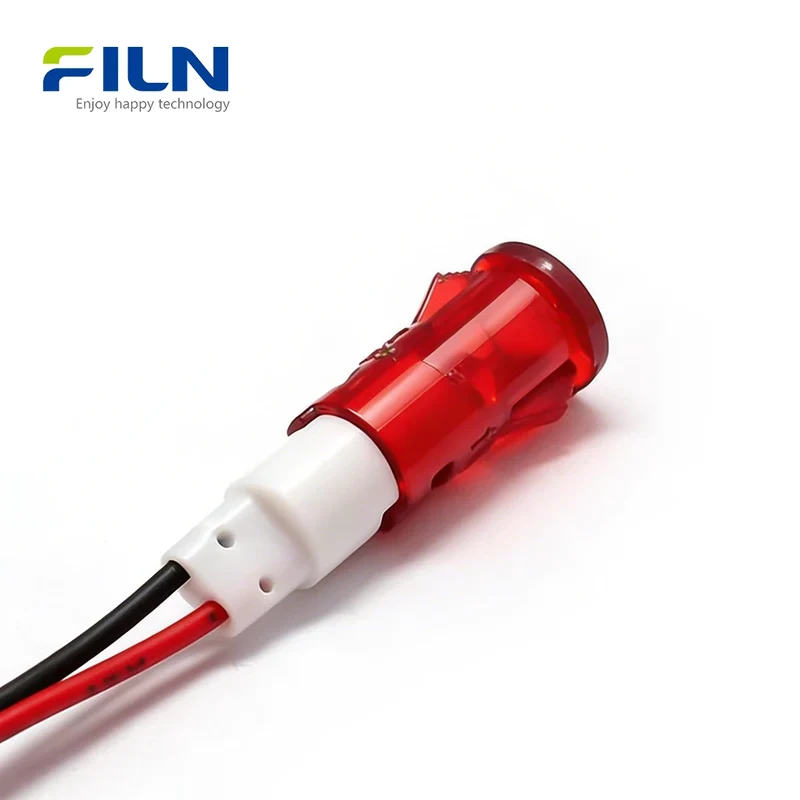

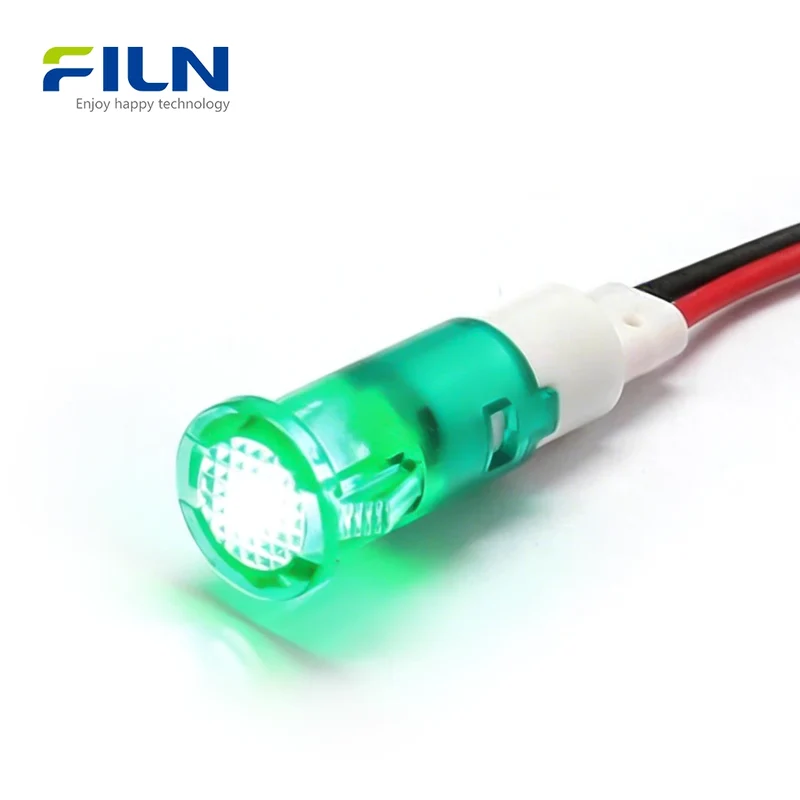

This premium pilot light indicator 220v (Model: FL1P-10QW-1) is now available for sale directly from the FILN factory. Designed with a sleek 10mm plastic body, this 10mm-plastic-indicator-light-with-wire offers a modern, high-end aesthetic for industrial interfaces. As a leading manufacturer, FILN ensures all products meet ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications. These lights are essential for industrial control panels, automation equipment, and electrical cabinets. The snap-in-panel-mount-indicator-220v design provides a secure fit and "atmospheric" visual effect. Whether you need a waterproof-plastic-signal-lamp-12v or a high-voltage 220V version, our filn-brand-plastic-indicator-wholesale service supports full customization to meet your specific project needs. Buy online today for reliable, long-lasting performance.

Quick Specifications

Mounting Hole	10mm (0.39 inch)
Voltage	12-24V, 110-220V (Customizable)
LED Color	Red, Green, Yellow, Blue
Waterproof Rating	Snap-in types are Non-waterproof (Standard)
Operating Temperature	-40℃ to +80℃
Lifespan	60,000 Hours
Installation Method	Snap-in Mount
Wiring Type	Wire Lead (15cm Standard PVC)
Certifications	UL, CE, RoHS, VDE, ISO9001, SGS

Component Materials

Component Name	Material
Shell (Housing)	High-grade PA66 Nylon
Lamp Holder	PA66 Nylon
Lampshade (Lens)	Transparent PC (Polycarbonate)
Luminescent Source	High-Brightness LED
Resistance	Carbon Film Resistance
Wire Specification	15cm PVC Insulated Wire

Technical Parameters

Rated Power	0.2W	Frequency (AC)	50～60Hz
Insulation Resistance	1800V / 5s	Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa	Rated Current	≤20mA

Quality & Testing

Test Item	Test Condition	Requirement
Insulation Resistance	DC500V / 1 min	≥100MΩ
Dielectric Strength	1500VAC / 60s	No Breakdown
Continuous Life	30mA / 1000h	50,000+ Hours
Thermal Resistance	80℃ for 96h	Stable Performance

Key Features

• LED high brightness: Clear visibility even in well-lit industrial environments.
• Long lifespan: Maintenance-free operation for over 60,000 hours.
• Snap-in Design: Fast, tool-free installation for 10mm panel holes.
• Pre-wired Convenience: Comes with 15cm wire leads for immediate connection.
• Industrial grade reliability: Durable PA66 shell and PC lens for heat resistance.

Applications & Color Meanings

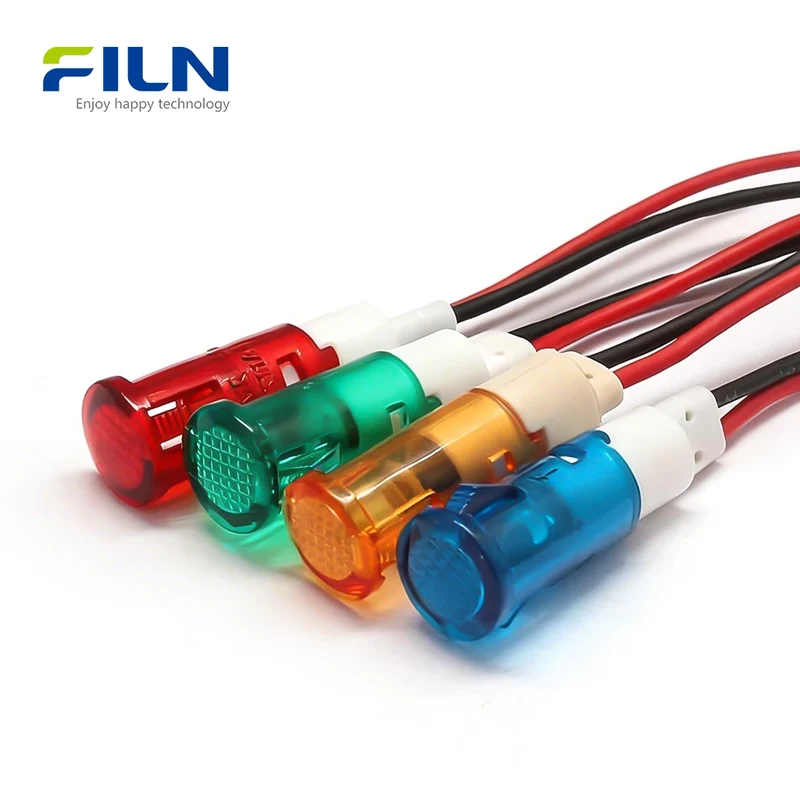

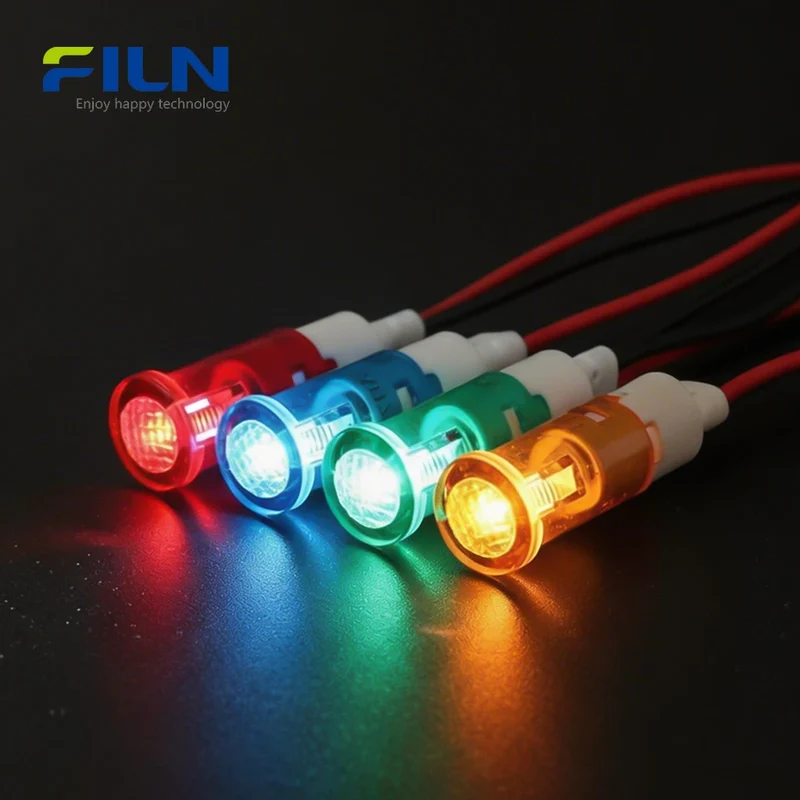

Our red-green-yellow-blue-white-pilot-light options serve specific safety functions:

• Red: Emergency stop or danger warning.
• Green: Normal operation or system ready.
• Yellow: Caution or standby mode.
• Blue: Specific mandatory actions or remote reset.
• White: Power supply indication or general illumination.

Installation Guide (Snap-in)

1. Drill a 10mm diameter hole in the target industrial-control-panel-indicator-light surface.
2. Clean the area to ensure the small-diameter-plastic-pilot-lamp sits flush.
3. Insert the indicator light from the top of the panel.
4. Press down firmly until the side "ears" (latches) snap and lock into place securely.
5. Connect the 15cm wire leads to your power source (e.g., 220V).

What Is a Pilot Light Indicator 220V?

A pilot light indicator 220v is a critical signaling device used in circuitry to provide visual feedback on machine status. Unlike metal indicator lights, plastic versions are cost-effective, lightweight, and offer excellent electrical insulation. While metal lights provide superior impact resistance, our custom-wire-lead-plastic-indicator focuses on ease of installation and high visibility. The wire lead type provides a more secure, vibration-resistant connection compared to pin-type terminals, making it ideal for moving machinery like CNC machines or automation equipment.

Factory Direct Supply from FILN

• ✅ Direct Factory Pricing: No middlemen.
• ✅ Voltage Customization: 3V to 380V support.
• ✅ Wire Length & Connector: Tailored to your project.
• ✅ Fast Global Shipping: Reliable logistics for B2B.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can I buy this 10mm plastic indicator light for sale online?
Yes, FILN offers direct online purchasing for standard models with worldwide shipping.

2. What are the advantages of a 220v-neon-indicator-light-replacement-led?
LEDs offer much longer life (60,000h) and lower power consumption compared to traditional neon bulbs.

3. Is the wire length customizable for the custom-wire-lead-plastic-indicator?
Absolutely. While 15cm is standard, we can customize lengths up to several meters.

4. Does this indicator fit a standard dash mount?
Yes, it is a perfect dash-mount-plastic-warning-light for 10mm holes.

5. What is the difference between snap-in and screw mounting?
Snap-in is faster for mass assembly, while screw mounting (IP67) offers better waterproofing.

6. Are these lights suitable for 24V automation?
Yes, we provide 12V and 24V versions as part of our waterproof-plastic-signal-lamp-12v series.

7. Why use PA66 for the shell?
PA66 Nylon provides excellent heat resistance and durability for industrial environments.

8. Can I get a sample of the filn-brand-plastic-indicator-wholesale?
Yes, contact our sales team for industrial samples.

9. Do the LEDs maintain brightness over time?
Our high-quality LEDs are rated for 50,000 hours with minimal lumen depreciation.

10. What does a green light signify on a CNC machine?
Usually, it indicates the machine is in a safe, operational state.
