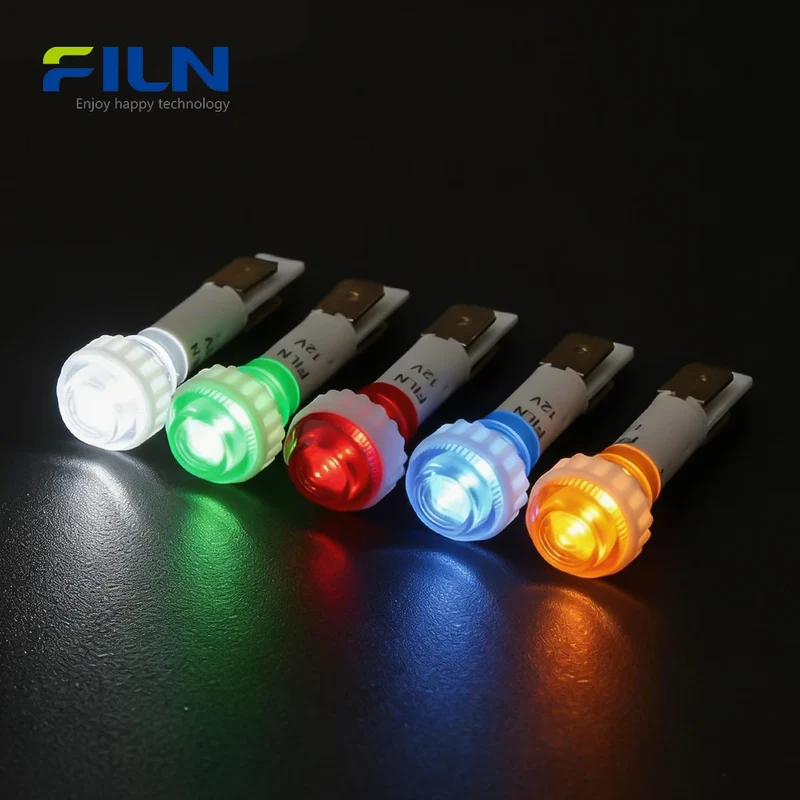

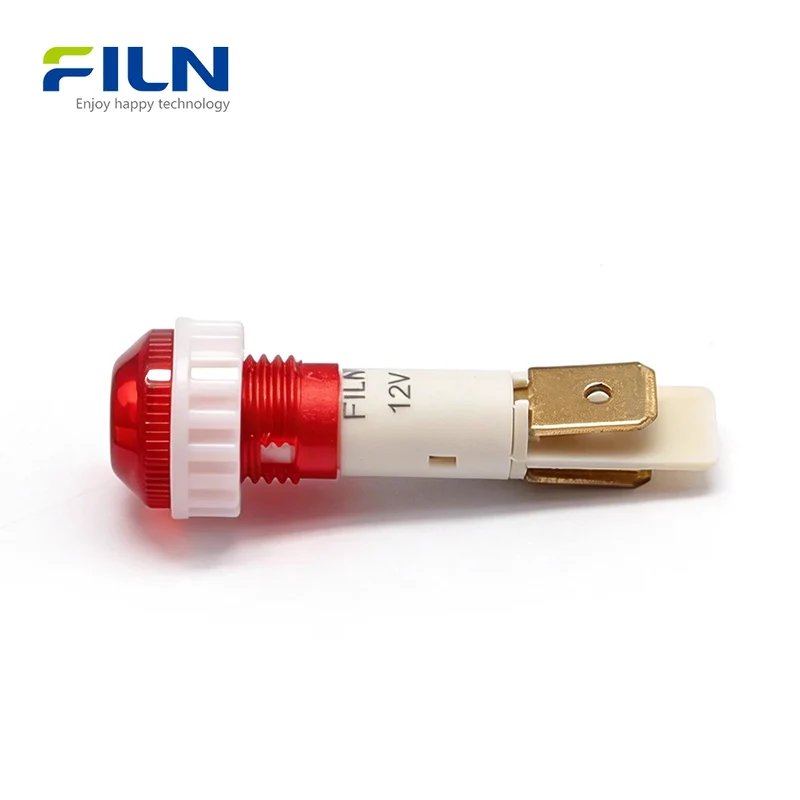

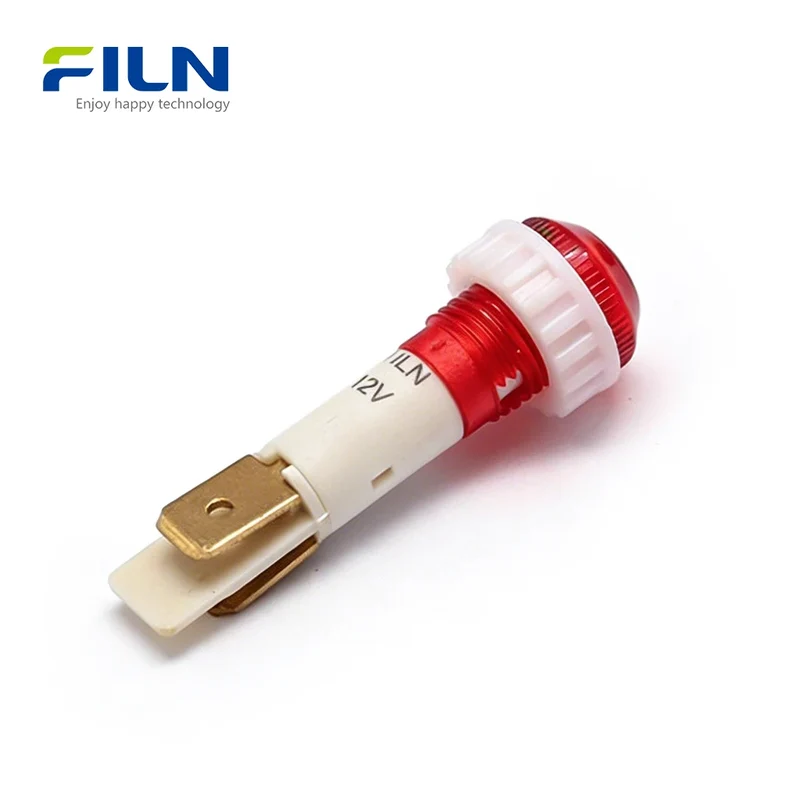

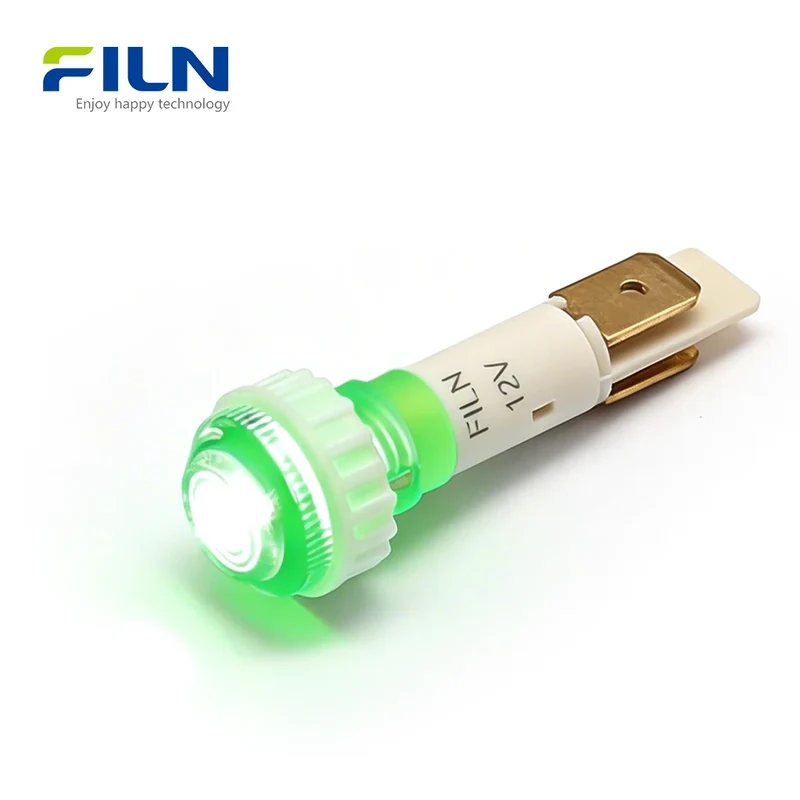

Plastic 10mm 220v Indicator Lights 2-Pin Terminal Screw Mount for Kitchen Equipment FILN

Product Overview

The 10mm 220v indicator lights (Model: FL1P-10NJ-2) are professional 10mm plastic indicator light factory solutions specifically designed for commercial and industrial panels. Manufactured from durable pa66 plastic indicator lamp material, these lights feature an exceptionally bright LED output and an atmospheric circular aesthetic. These 2-pin terminal signal lamp units are widely used as a kitchen equipment status indicator due to their excellent heat resistance and electrical insulation. This product is currently available for sale and supports custom voltage plastic warning light requirements. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, FILN ensures world-class quality for your high-voltage signaling needs.

Quick Specifications

Mounting Hole Size	10mm (0.39 inch)
Standard Voltage	110V-220V AC (12V-24V Support)

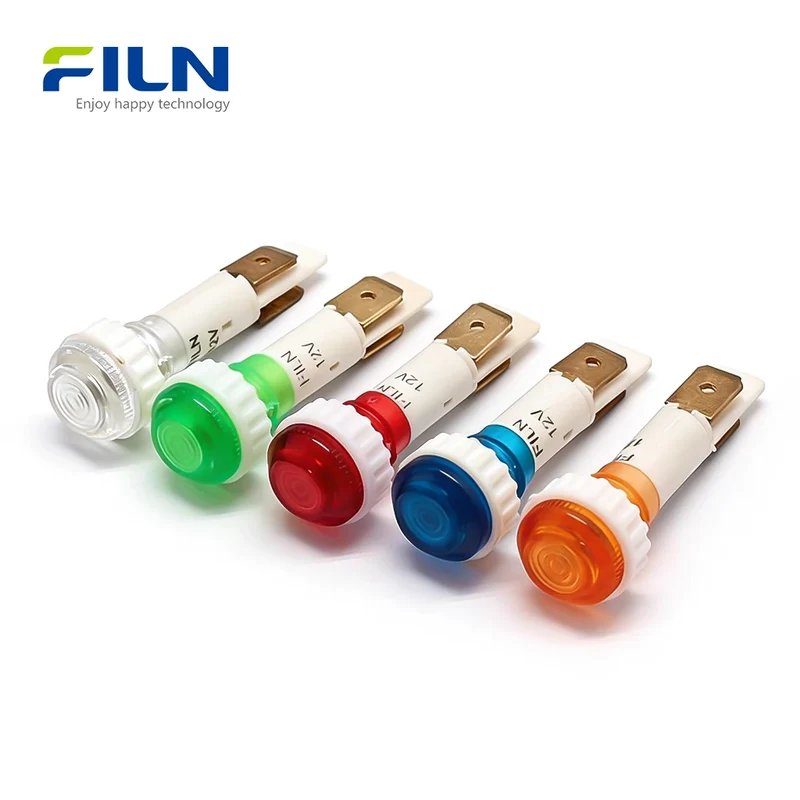

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	Head IP65 (Screw Mount)
Wiring Type	2.8mm Pin Terminal (2-Pin)
Installation Method	Plastic Nut Fixation
Product Certification	ISO9001, CE, VDE, RoHS, SGS, UL

Component Name	Material
Shell / Lamp holder	PA66 Nylon
Lampshade	PC (Polycarbonate)
Luminescent Source	LED
Resistance	Carbon film resistance
2.8mm Terminal	H59 Brass (2-Pin)
Nut	Plastic

Rated Working Parameters

Rated Voltage	Customized (Default 220V)
Frequency(AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	PA66 High Temp Resistance
Lens	Flame Retardant PC
Seal Ring	SIL Silicone
Terminal	Brass H59
Wire Material	PVC (for custom wire orders)

General Characteristics

Insulation and Voltage resistance	1800V/5s
Working Life	60,000h
Cold-Resistant	-40℃
Heat-Resistant	+80℃
Relative Humidity	≤85% at +40℃

Electric Property

Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability Characteristics

Continuous Working Life

50,000+ hours (at 30mA)

Resistant Performance

High Temperature	80℃ for 96h
Moisture Resistance	40℃ 90-95%RH 96h

Key Features

• Ultra-Bright LED: High-efficiency luminescent source for clear visibility in bright kitchens.
• Industrial PA66 Plastic: Superior insulation and flame retardancy compared to standard plastics.
• Fast Pin Termination: 2.8mm pin design (2PIN) for rapid assembly and lower labor costs.
• Circular Aesthetic: Modern round head design that fits perfectly into professional equipment.
• Global Compliance: Factory-direct product with UL, CE, and RoHS certifications.

LED Color Indicators & Their Meanings

In industrial and kitchen environments, color coding is essential for operator safety:

• Red: Danger/Stop - Indicates a failure, emergency stop, or high-temperature danger.
• Green: Normal/Safe - Indicates the machine is running correctly or power is safely connected.
• Yellow: Caution/Warning - Indicates a pending issue or that a specific process is in standby.
• Blue: Mandatory Action - Often used for status resets or specialized cycle indicators.
• White: Power/Monitor - General status indicator showing that the system is energized.

Applications

• Kitchen Equipment: Ovens, commercial fryers, and dishwashers.
• Industrial Cabinets: Power distribution and signal monitoring.
• Automation: CNC machines and PLC status display.
• Small Appliances: Coffee machines and industrial heaters.

Installation Guide

1. Drill a 10mm hole on the mounting panel.
2. Insert the 10mm 220v indicator lights from the top of the panel.
3. Position the plastic nut from the back of the panel.
4. Tighten the nut to secure the indicator against the panel.
5. Connect your 220V power leads to the 2.8mm pin terminals.

Technical Knowledge: Plastic vs. Metal Indicators

Choosing between metal indicators and durable pa66 plastic indicator lamps depends on the environment. Plastic indicators are non-conductive, making them safer for 220V high-voltage applications in damp environments like kitchens. They are also cost-effective for mass production.

The 2-pin terminal signal lamp (pin type) is preferred for modern assembly lines over traditional wire-lead types because it allows for fast "plug-and-play" connections with female terminals, reducing assembly time by up to 40%. The PA66 material used in our 10mm plastic indicator light factory ensures the device remains stable even under high ambient temperatures.

Factory Direct Supply

FILN is a premier 10mm plastic indicator light factory. All 10mm 220v indicator lights are available for sale directly with full B2B support.

• ✅ Wholesale Pricing - Buying direct from the source.
• ✅ Customization - Specialized voltages (3V-380V) and lead lengths.
• ✅ Fast Shipping - Worldwide delivery from our manufacturing hub.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can I buy these 10mm 220v indicator lights for sale directly?
Yes, you can purchase them directly through our Shopify store or contact our B2B team for bulk factory orders.

2. What is the benefit of the pin terminal over wire leads?
Pin terminals allow for faster assembly using female connectors, whereas wire leads require soldering or wire nuts.

3. Is PA66 plastic safe for high-temperature ovens?
Yes, PA66 is an industrial-grade nylon that resists high heat, making it perfect for kitchen equipment status indicators.

4. Are these lights suitable for 110V systems?
Absolutely. We provide versions that support 110V to 220V AC interchangeably.

5. What does a flashing red indicator light mean?
Generally, red signifies an emergency or failure that requires immediate attention.

6. Can the filn 10mm led indicator lamp be customized for 24V?
Yes, we are a factory and can customize any voltage from 3V to 380V.

7. How do I secure the lamp to the panel?
This model uses a plastic nut that screws onto the threaded body from the back of the panel.

8. Is this 10mm plastic indicator light factory certified for US markets?
Yes, our products carry UL and CE certifications, meeting international safety standards.

9. Is the LED brightness sufficient for daylight?
Yes, our high-brightness LEDs are designed to be clearly visible even in well-lit factory or kitchen environments.

10. Can I get a custom wire length?
Yes, although this is a pin type, we can manufacture a wire-lead version with custom lengths upon request.
