Plastic 10mm LED Indicator Lamp for Panels 12V 220V 2-Pin Snap-in FILN

Product Overview

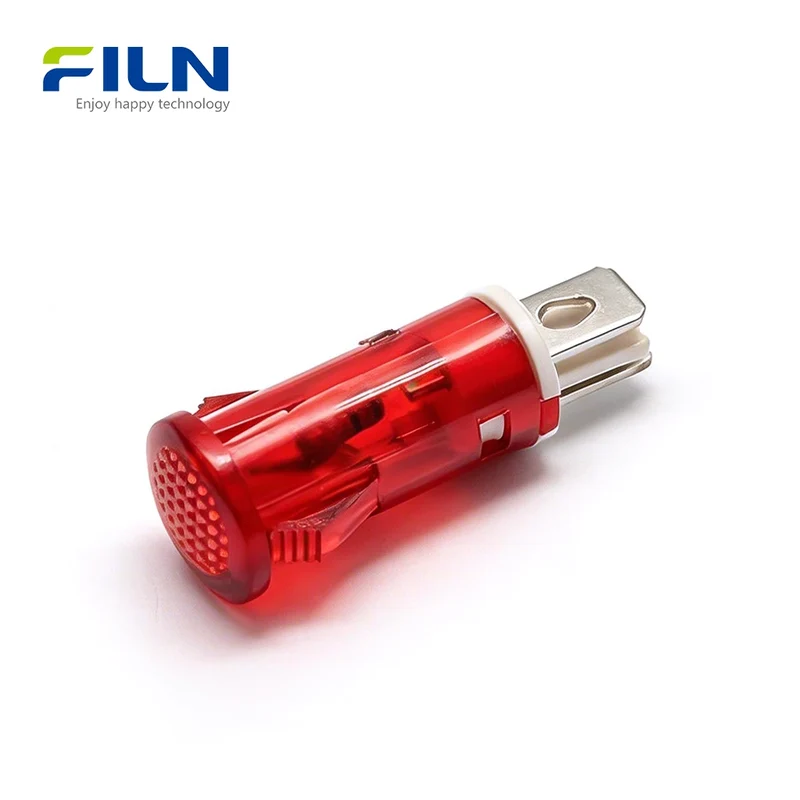

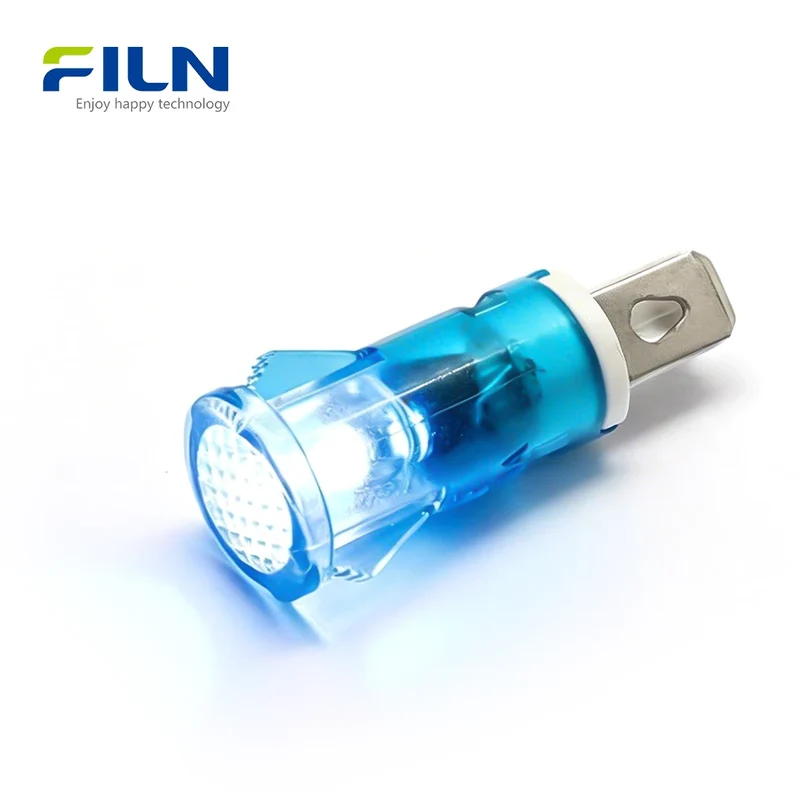

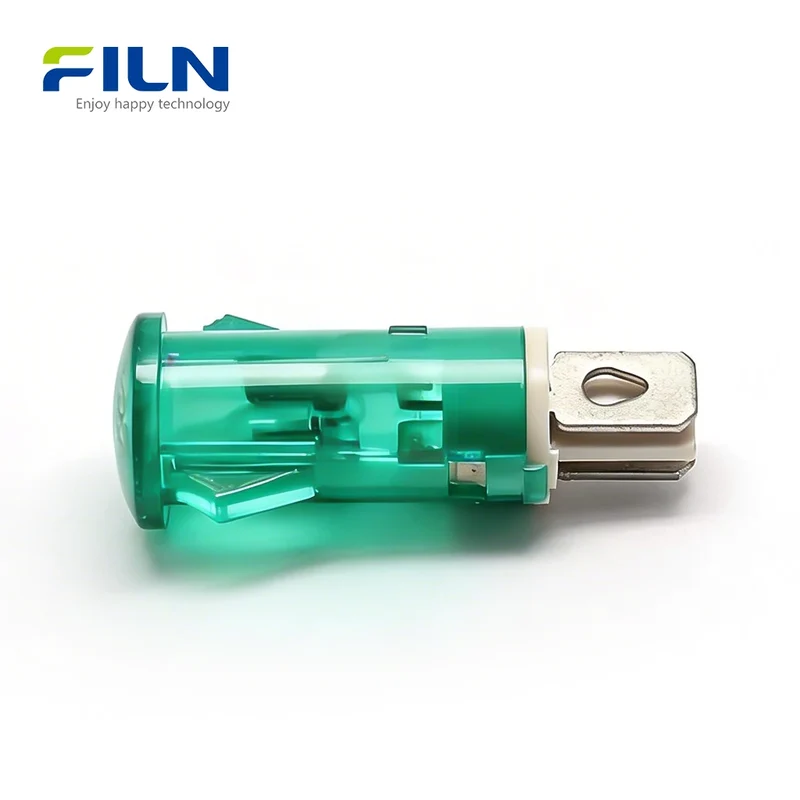

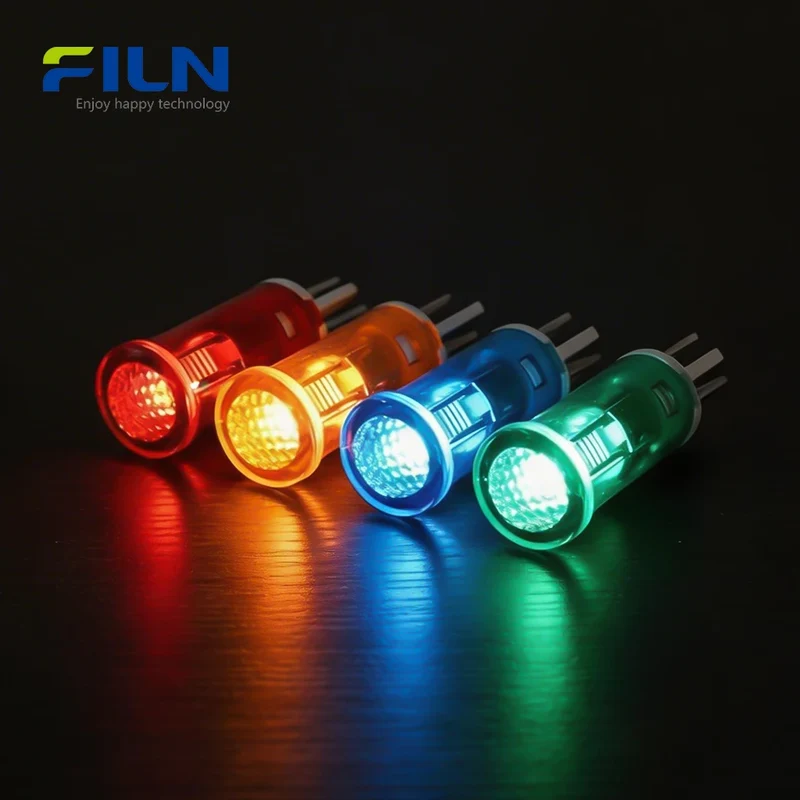

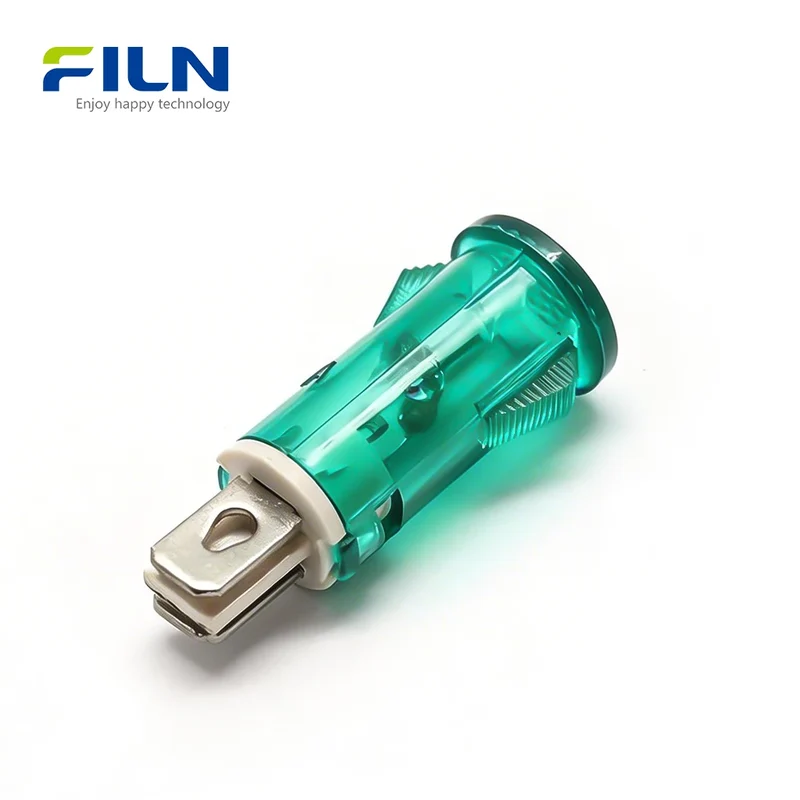

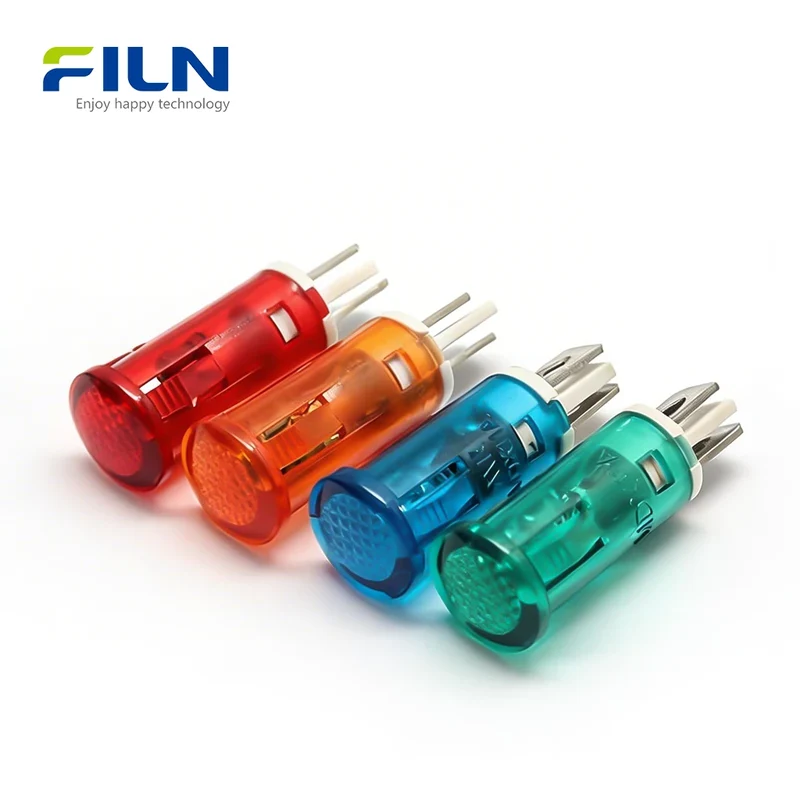

The FILN indicator lamp for panels (Model: FL1P-10QJ-1) is a high-quality 10mm plastic indicator light designed for reliability and ease of use. These plastic-led-pilot-light-10mm units are now available for sale directly from our factory, providing an affordable yet durable solution for kitchen equipment and laboratory instruments. Featuring a 2-pin terminal design, they ensure long lifespan and convenient wiring. Our products carry prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. The round plastic housing offers excellent insulation and chemical resistance, making it superior for specific industrial environments. You can buy these indicator lamps online with customized voltage options ranging from 12V to 220V.

Quick Specifications

Mounting Hole Size	10mm (0.39 inch)
Rated Voltage	12V, 24V, 110V, 220V (Support Customization)
LED Color Available	Red, Green, Yellow, Blue
Waterproof Rating	IP65 (Head Part Only for Threaded) / Snap-in (Non-waterproof)
Wiring Type	2-Pin (2.8mm x 0.5mm Terminal)
Mounting Method	Snap-in Mounting
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Rated Working Parameters

Rated Voltage	Customized AC/DC
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Component Name	Material
Shell (Housing)	Flame Retardant PA66
Lamp Holder	PA66
Lampshade (Lens)	PC (Polycarbonate)
Luminescent Source	High-bright LED
Resistance	Carbon Film Resistance
2.8mm Terminal	H59 Copper (Brass)

General Characteristics

Item	Parameter
Insulation Resistance	1800V / 5s
Working Life	60,000 Hours
Operating Temperature	-40℃～80℃
Storage Temperature	-40℃～+85℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Test Item	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability & Performance

Continuous Working Life	50,000 hours (Test: 30mA 1000h)
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 rounds)
Moisture Resistance	40℃ 90-95%RH for 96h

Key Features

• LED High Brightness: Utilizes high-intensity red-green-blue-yellow-white-indicator chips for clear visibility.
• Superior Insulation: Plastic body prevents electrical leakage and is ideal for humid environments like kitchens.
• Long Lifespan: Engineered for over 60,000 hours of continuous operation.
• Snap-in Mounting: Fast installation without screws, reducing labor costs in mass production.
• 2-Pin Terminal Design: Offers easy plug-and-play wiring compared to fixed-wire models.

Applications & Indicator Meanings

Commonly used in industrial control panels, CNC machines, and laboratory-instrument-led-indicator setups. Below is the standard meaning of different light colors:

• Red: Danger or Emergency stop; indicates immediate attention is required.
• Green: Normal operation or Safe status; machine is running correctly.
• Yellow/Amber: Warning or Standby; alerts the operator to a potential issue.
• Blue: Special Action required; often used for maintenance signals or manual overrides.

Installation Guide

1. Prepare the panel by drilling a hole with a diameter of 10mm.
2. Insert the round-plastic-signal-lamp-10mm through the hole from the front side of the panel.
3. Apply gentle pressure until the dual snap-in clips on the sides lock into place behind the panel.
4. Attach the wires to the 2-pin terminal at the rear of the lamp using female spade connectors or soldering.

What Is an Indicator Lamp for Panels?

An indicator lamp for panels is a visual signal device used to communicate the status of a machine or system. Plastic vs. Metal: Plastic indicators are lightweight, non-corrosive, and provide superior electrical insulation, making them the preferred choice for kitchen-equipment-signal-lamp applications where steam and cleaning agents are present. Metal indicators are better for high-impact industrial settings. Pin vs. Wire Type: Pin terminals (like the 2-pin-terminal-indicator-light) allow for faster replacement and custom wiring lengths, whereas pre-wired models are better for fixed-length assemblies.

Factory Direct Supply - Buy Now

FILN is a specialized manufacturer of indicator lamp for panels. We offer direct wholesale pricing and fast global shipping. You can buy directly from our factory online.

• Factory Direct Price & Custom Voltage
• Wire Length and Connector Customization
• Fast Global Shipping (DHL/FedEx/UPS)

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can I purchase these snap-in-led-indicator-lamps online directly?
Yes, we have stock available for sale on our Shopify store. Simply select your voltage and color.

2. What are the advantages of the 2-pin terminal design?
The 2-pin design allows for flexible wiring. You can use female terminals for a secure, non-solder connection, making maintenance easy.

3. Why is plastic better for kitchen equipment?
Plastic doesn't rust and resists the chemical cleaners often used in kitchens, providing a clean and safe interface.

4. Do these indicator lamps for panels support 220V?
Yes, we support a wide range of voltages including 12V, 24V, 110V, and 220V.

5. Is the snap-in mount secure for vibrating machinery?
The snap-in clips are high-tension PA66, providing a firm grip suitable for most industrial vibrations.

6. Can I get a sample of the laboratory-instrument-led-indicator?
Yes, FILN provides samples for engineering testing before bulk purchase.

7. Do you provide UL certification documents?
Yes, all our 10mm plastic indicators are UL certified for global compliance.

8. What is the difference between this and a metal indicator?
Metal is for impact resistance; plastic is for cost-efficiency and superior electrical insulation.

9. How long is the lead time for custom voltage orders?
Usually, custom production takes 3-7 business days depending on the quantity.

10. Does FILN offer worldwide shipping?
Yes, we ship from our factory to any global location via express air freight.
