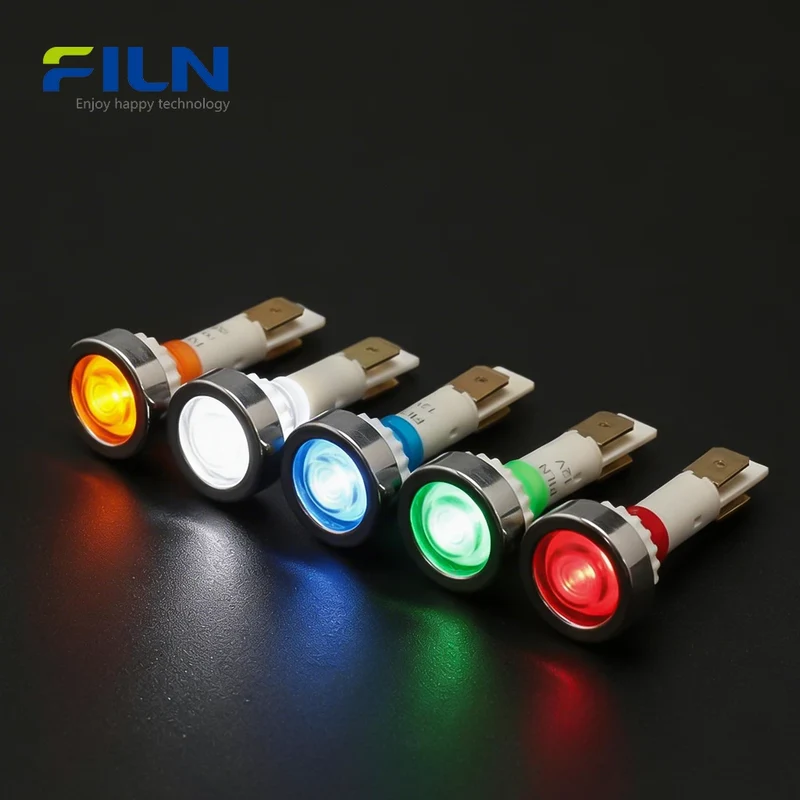

Plastic 12V Indicator Lamp 10mm PA66 Pin Terminal Screw Mount for Kitchen Equipment FILN

Product Overview

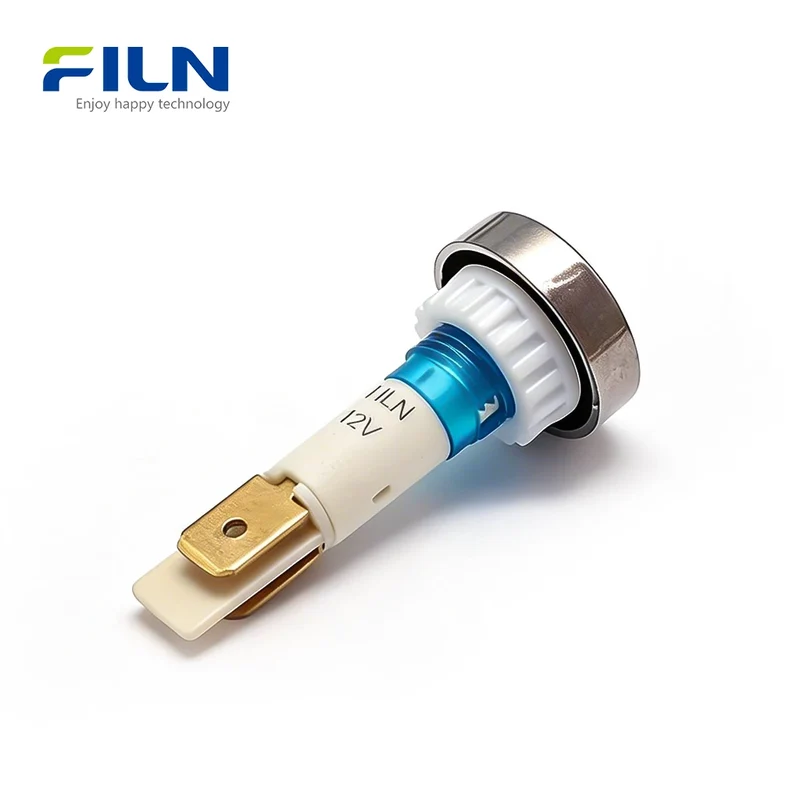

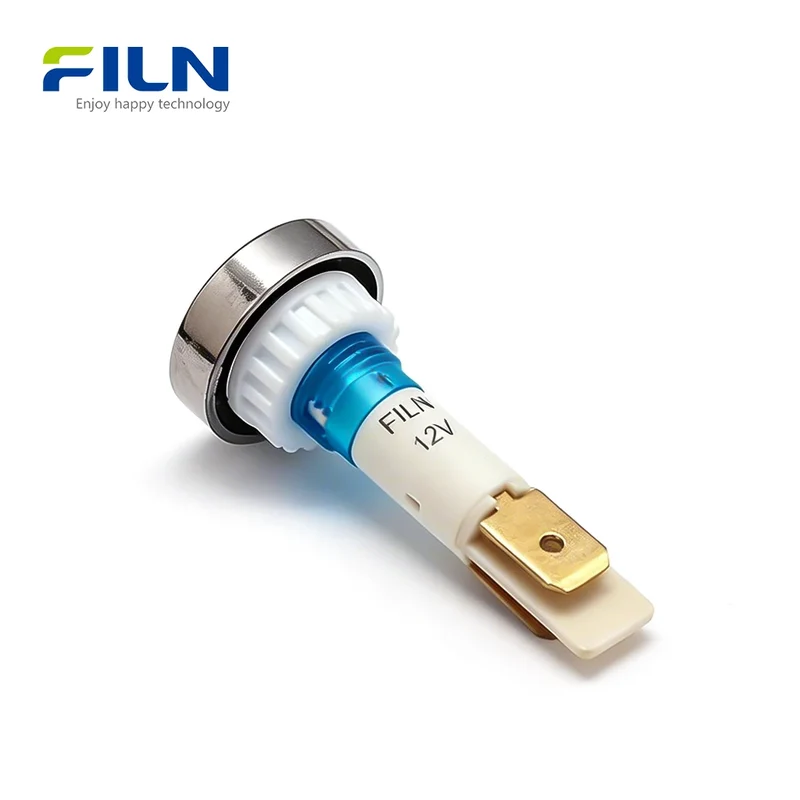

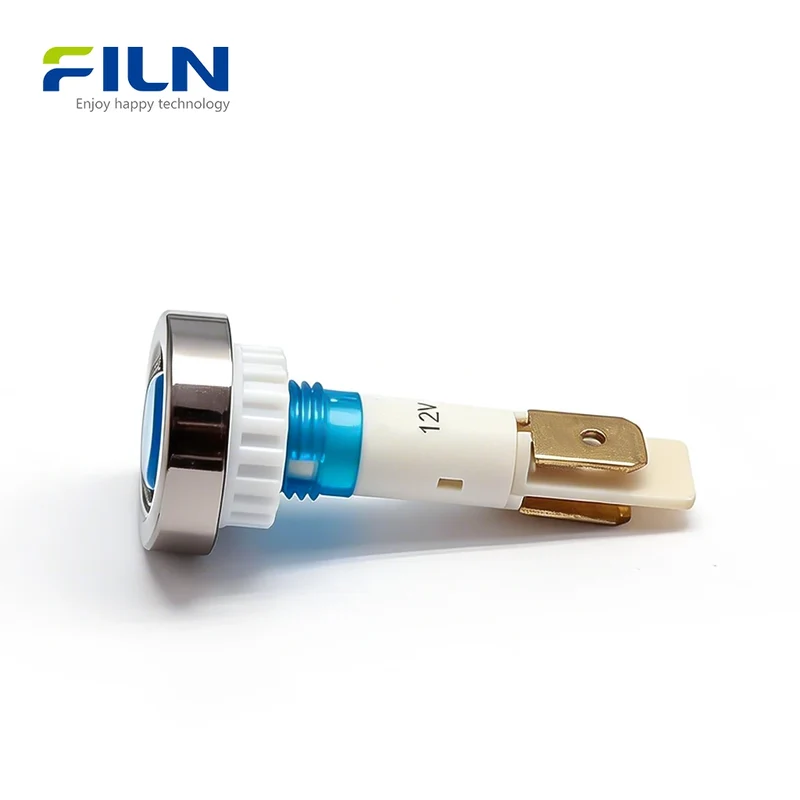

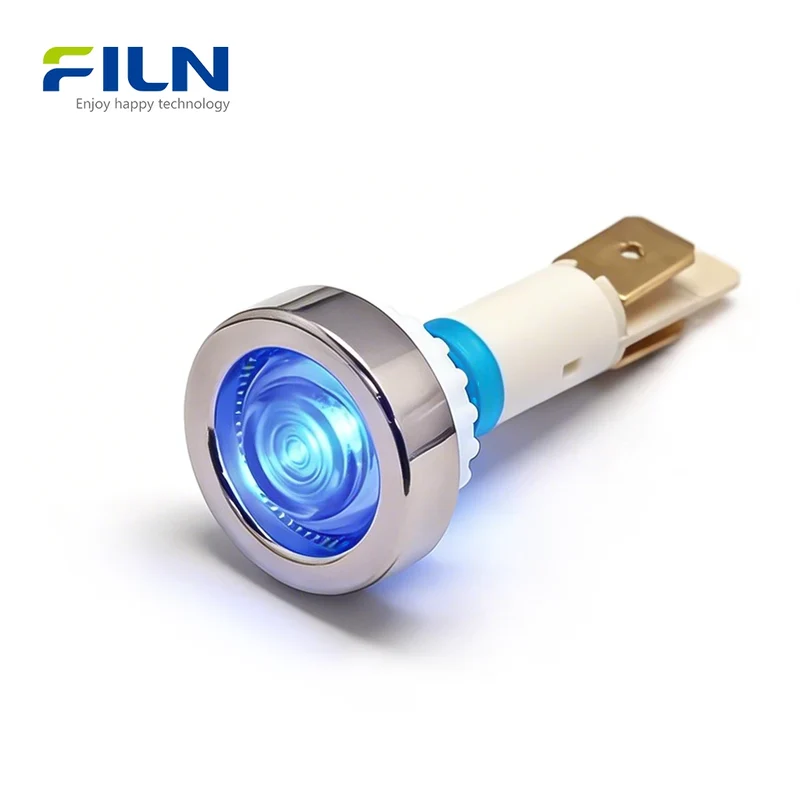

The 12v indicator lamp (Model: FL1P-10NJ-1) is a premium 10mm plastic indicator light factory solution designed for industrial and commercial applications. This high-brightness red green 12v indicator lamp led features a distinctive silver plated ring around the head, providing an elegant and professional aesthetic. As a specialized 12v indicator lamp for sale, it is widely utilized in kitchen equipment status indicator panels and automation systems. FILN ensures top-tier quality with certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Whether you need a custom voltage plastic warning light or a standard 2-pin terminal version, this durable pa66 plastic indicator lamp is available for direct purchase online.

Quick Specifications

Mounting Hole Size	10mm (0.39 inch)
Rated Voltage	12V-24V, 110V-220V (Customizable)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	Head IP65 (Screw Mount)
Operating Temperature	-40℃ to +80℃
Lifespan	60,000 Hours
Installation Type	Screw Mount with Nut
Wiring Type	2.8mm Pin Terminal (2-Pin)
Product Certification	ISO9001, CE, VDE, RoHS, SGS, UL

Component Name	Material
Shell (Outer Case)	PA66 Nylon
Lamp Holder	PA66 Nylon
Lampshade	PC (Polycarbonate)
Luminescent Source	LED
Resistance	Carbon Film Resistance
2.8mm Terminal	H59 Copper (Brass)

Rated Working Parameters

Rated Voltage	Customized (Default 12V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	PA66
Lens	High Transparency PC
Seal Ring	SIL Silicone
Terminal	Brass with Silver Plating
Wire Material (For Wire Lead Version)	UL1007 / PVC

General Characteristics

Insulation and Voltage Resistance	1800V/5s
Working Life	60,000h
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

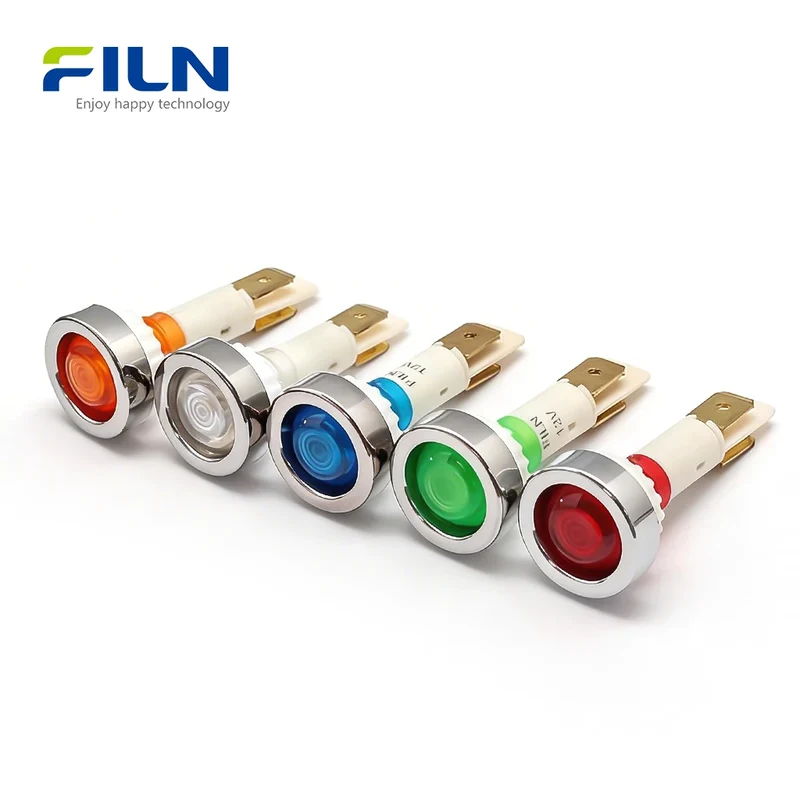

Available Colors	Red, Green, Blue, Yellow, White

Electric Property

Item	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability Characteristics

Continuous Working Life

50,000 - 60,000 hours (Tested at 30mA 1000h)

Resistant Performance

High Temperature Resistance	80℃ for 96h
Low Temperature Resistance	-40℃ for 96h
Moisture Resistance	40℃, 90-95%RH for 96h

Key Features

• LED High Brightness: Equipped with a silver plating ring for enhanced luminosity and a premium appearance.
• Long Lifespan: Rated for up to 60,000 hours of continuous operation.
• Industrial Grade Material: Made of high-quality PA66, offering better heat resistance than standard plastic.
• 2-Pin Terminal Design: Easy connection using 2.8mm terminals, saving assembly time.
• IP65 Waterproof: The ip65 waterproof plastic pilot light head is ideal for humid environments like kitchens.

Applications

• Kitchen Equipment: Ideal for ovens, dishwashers, and food warmers.
• Industrial Control Panels: Power status monitoring.
• Automation Machinery: CNC machines and electrical cabinets.
• Marine & Medical: Reliable signal feedback for critical systems.

Installation Guide

1. Drill a 10mm hole in the mounting panel.
2. Insert the screw mount 12v indicator lamp through the front of the panel.
3. Slide the plastic nut from the back and tighten it to secure the lamp.
4. Connect the circuit using 2.8mm female terminals to the 2-pin pins.

What Is a 12V Indicator Lamp?

A 12v indicator lamp is a specialized signaling device used to visually communicate the operational status of a circuit. In industrial settings, these lamps are critical for safety and efficiency. Unlike metal indicators, a plastic indicator light factory product like the FL1P-10NJ-1 offers superior insulation and cost-effectiveness while remaining resistant to corrosion. The 2-pin terminal signal lamp design provides a more stable and faster connection compared to traditional wire leads. Plastic indicators are lightweight and ideal for mass-produced equipment where durability and visual clarity are paramount.

Factory Direct Supply

FILN is a leading manufacturer specializing in industrial signal solutions. Our filn 10mm led indicator lamp products are available for direct purchase with the following benefits:

• ✅ Factory Direct Pricing - No middleman.
• ✅ Full Customization - Voltage, wire length, and connectors.
• ✅ Global Shipping - Fast delivery for B2B orders.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can I buy this 12v indicator lamp for sale directly?
Yes, we offer direct factory sales for both small and large bulk orders online.

2. What is the difference between pin terminal and wire lead types?
The 2-pin terminal allows for quick-connect plug-ins, while wire leads are better for permanent soldering or long-distance wiring.

3. Is the 10mm plastic indicator light factory certified?
Absolutely. Our products hold UL, CE, and ISO9001 certifications.

4. Can you customize the voltage for this 10mm lamp?
Yes, we support 3V to 380V customization beyond the standard 12V-220V range.

5. Is this lamp suitable for kitchen ovens?
Yes, the PA66 material is heat-resistant, making it a perfect kitchen equipment status indicator.

6. What are the advantages of plastic over metal indicators?
Plastic indicators are non-conductive (safer), cost-effective, and resistant to chemical corrosion.

7. How do I install this screw mount 12v indicator lamp?
Simply drill a 10mm hole, insert the lamp, and tighten the plastic nut from behind.

8. Does the silver ring affect the brightness?
The silver plating reflects light, making the signal appear brighter and more premium.

9. What is the waterproof rating?
The head is rated IP65, suitable for splashes and high humidity.

10. How long is the lifespan of the LED?
The LED source is rated for over 60,000 hours of continuous use.
