Plastic Green LED Pilot Light 220V 16mm Rectangular High Head Pin Terminal FILN

Product Overview

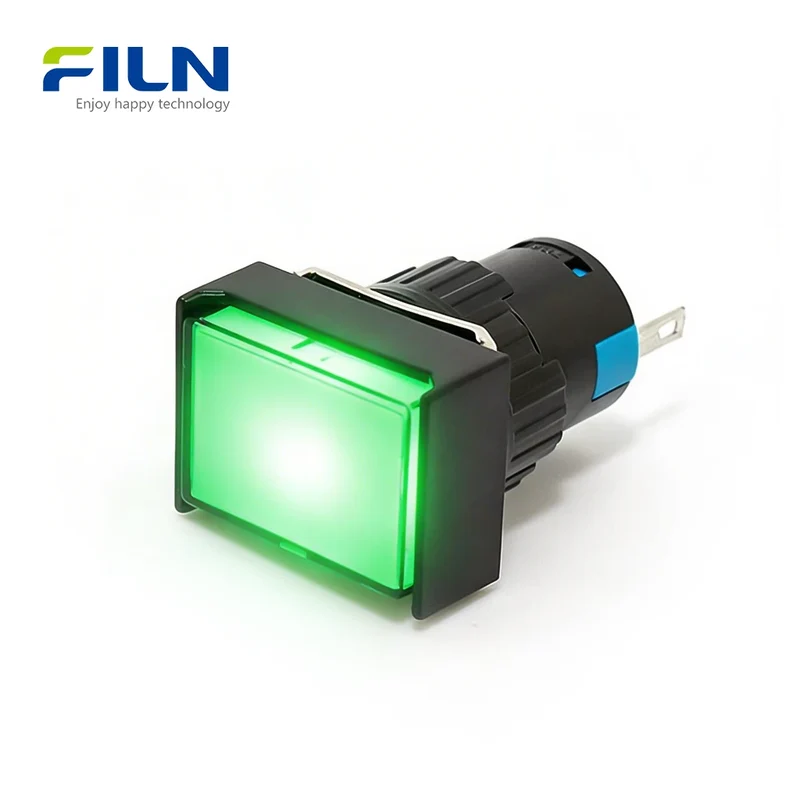

The green led pilot light 220v (Model: FL1P-16NJ-5) is a premium industrial signaling component designed for high-visibility panel monitoring. Featuring a unique rectangular high head signal lamp design, it offers a larger luminous area compared to standard round lights. This 16mm plastic indicator light rectangular model is manufactured using high-grade PA66 nylon, providing superior electrical insulation and heat resistance. Equipped with a 2-pin terminal led indicator 220v base, it ensures a secure and stable connection for industrial machinery. This product is available for purchase directly from the FILN factory, certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Ideal for CNC machines and automation cabinets, it combines long service life with easy installation.

Quick Specifications

Mounting Hole	16mm (0.63 inch)
Voltage	12V, 24V, 110V, 220V

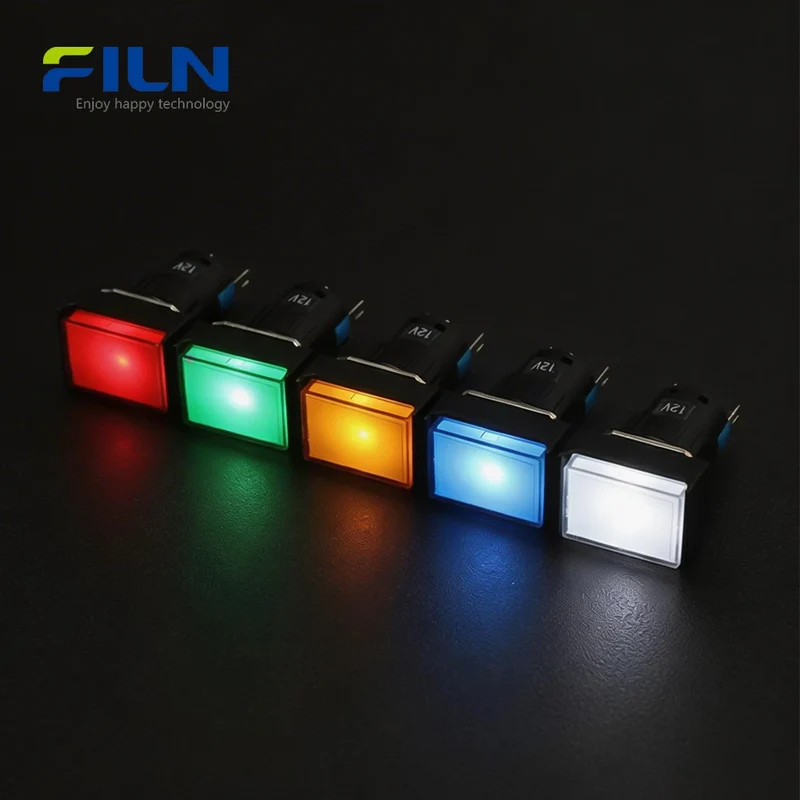

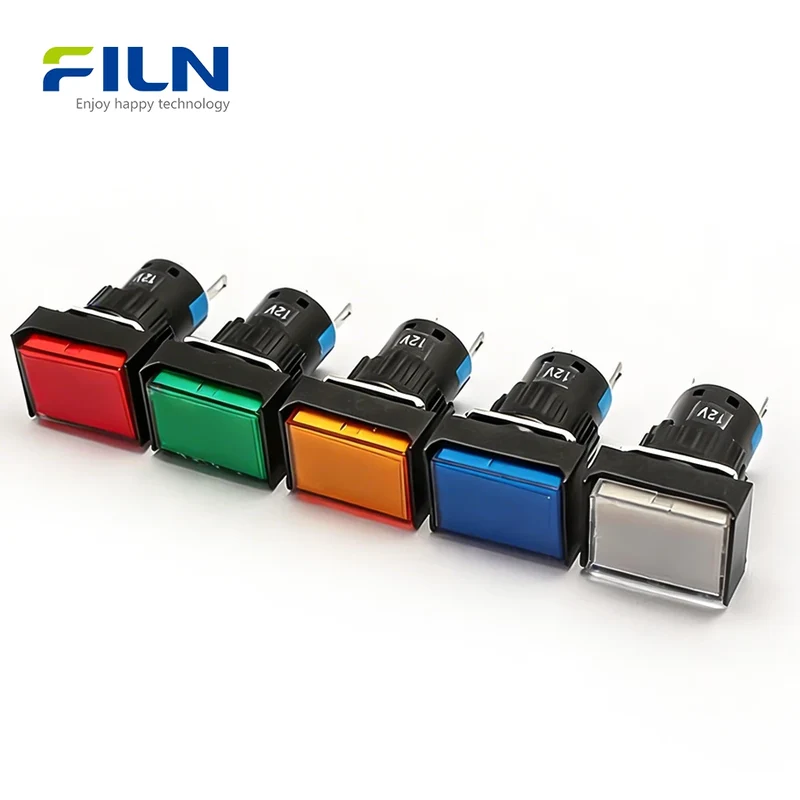

LED Color	Green (Red, Yellow, Blue, White Available)
Waterproof Rating	Head IP65
Operating Temperature	-40℃ ～ +80℃
Wiring Type	2-Pin Terminal (2.8mm)
Installation	Screw Nut Mounting

Material Construction

Component Name	Material
Shell (Housing)	PA66 Nylon
Lamp Holder	PA66 Nylon
Lampshade	PC (Polycarbonate)
Luminescent Source	High-Brightness LED
Resistance	Carbon Film Resistance
2.8mm Terminal	Brass H59

Rated Working Parameters

Rated Voltage	Customized (Standard 220V)
Frequency(AC)	50～60Hz
Rated Current	≤20mA

General Characteristics

Item	Parameter
Insulation Resistance	1800V/5s
Working Life	60,000h
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa
Storage Temperature	-40℃ ～ +80℃

Technical Performance

Test Type	Condition	Result
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown
Insulation Resistance	DC500V / 1 minute	≥100MΩ
Durability	30mA / 1000h	50,000h stable

Key Features

• Rectangular High Head: Provides a distinct visual profile and larger signal surface for modern panel designs.
• PA66 Nylon Advantage: Lightweight yet durable, offering superior insulation compared to metal indicators.

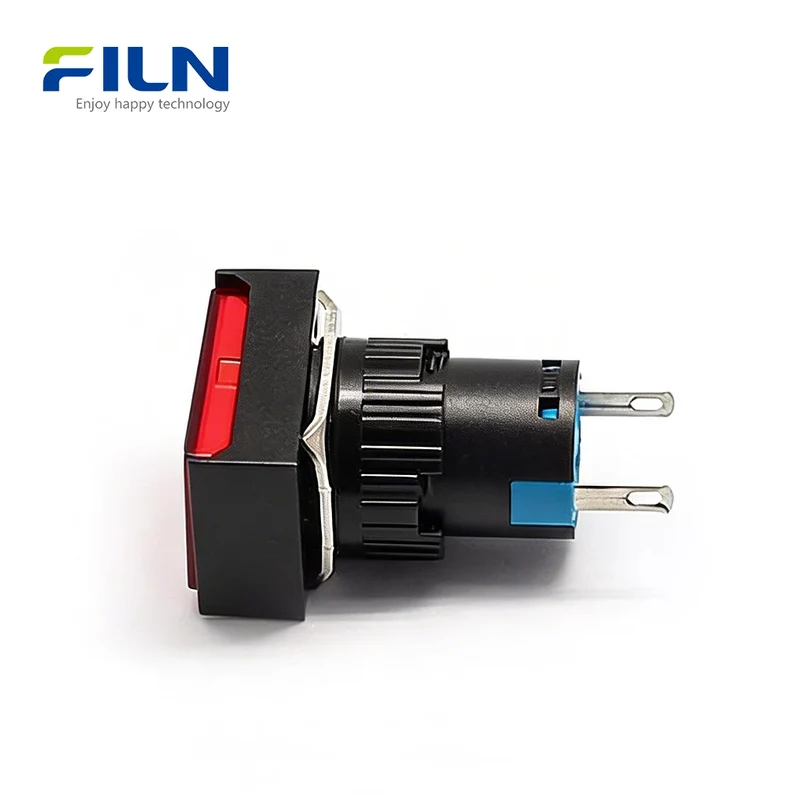

• Pin Terminal Connection: The 2.8mm 2-pin terminal led indicator 220v allows for quick disconnect and cleaner wiring management than fixed wire leads.
• IP65 Protection: The head is fully sealed to prevent ingress of dust and moisture in harsh workshop environments.
• Efficient LED Source: Features 60,000 hours of service life with ultra-low power consumption.

Signal Color Standard Meanings

• Green: Indicates "Ready," "Normal Operation," or "Safe to Proceed."
• Red: Emergency stop, danger alerts, or critical system failures.
• Yellow: Caution, process transitions, or non-critical warnings.
• Blue: Mandatory maintenance actions or remote system status.
• White: Power supply verification or neutral monitoring status.

Installation Guide

1. Prepare the panel by drilling a 16mm (0.63") diameter hole.
2. Insert the rectangular high head signal lamp through the hole from the front of the panel.
3. Secure the lamp by threading the plastic nut from the back of the panel.
4. Tighten the nut until the lamp is firmly fixed against the panel surface.
5. Connect your electrical circuit to the 2.8mm pin terminals at the rear.

What Is a Green LED Pilot Light 220V?

A green led pilot light 220v is an essential visual interface used to confirm that industrial equipment is running safely. The 16mm plastic indicator light rectangular design is particularly popular in modular control systems. The primary advantage of a pin terminal design over a wire lead is the flexibility; it allows engineers to use crimped connectors for rapid maintenance and prevents the mess of tangled wires during complex cabinet builds. Made from PA66 nylon, these indicators provide the necessary chemical resistance and durability required for 2026 industrial standards.

FILN Factory Direct Advantage

As a specialized green-led-pilot-light-220v-factory, FILN provides complete customization services:

• Voltage options from 3V to 380V
• Custom terminal and connector styles
• Custom wire lengths for pre-wired models
• Fast global shipping for B2B procurement

Official Website: www.filn.com
Inquiry Email: [email protected]

Frequently Asked Questions

1. What is the benefit of the rectangular high head design?
The rectangular head provides a larger surface area for light diffusion, making it easier to identify the status from a distance compared to small round heads.

2. Why use PA66 plastic instead of metal for a 220V indicator?
PA66 provides excellent electrical insulation, reducing the risk of short circuits in high-voltage 220V applications, and it is resistant to corrosion.

3. Can I replace a wire lead light with this pin terminal version?
Yes, provided your panel has 16mm holes. You will just need to use 2.8mm female spade connectors for the wiring.

4. Is the green color specific for "Power On"?
Usually, yes. In industrial standards, green signifies a safe or operational state.

5. Does FILN provide other voltages for this rectangular model?
Yes, we can customize the internal resistance for 12V, 24V, 110V, or 220V based on your needs.

6. What is the waterproof level of the FL1P-16NJ-5?
The front-facing part of the indicator is IP65 rated, meaning it is dust-tight and protected against water jets.

7. How do I secure the indicator to the panel?
The 16mm body is threaded; you simply tighten the included plastic hexagonal nut from the back of the panel.

8. Are these LEDs compatible with AC and DC?
Most of our 220V models are designed for AC, but we can provide AC/DC universal models upon request.

9. What is the maximum thickness of the panel it can mount on?
This model typically accommodates panels up to 8mm thick.

10. Can I order these in bulk for OEM manufacturing?
Yes, FILN specializes in B2B supply and offers significant discounts for factory-direct bulk orders.
