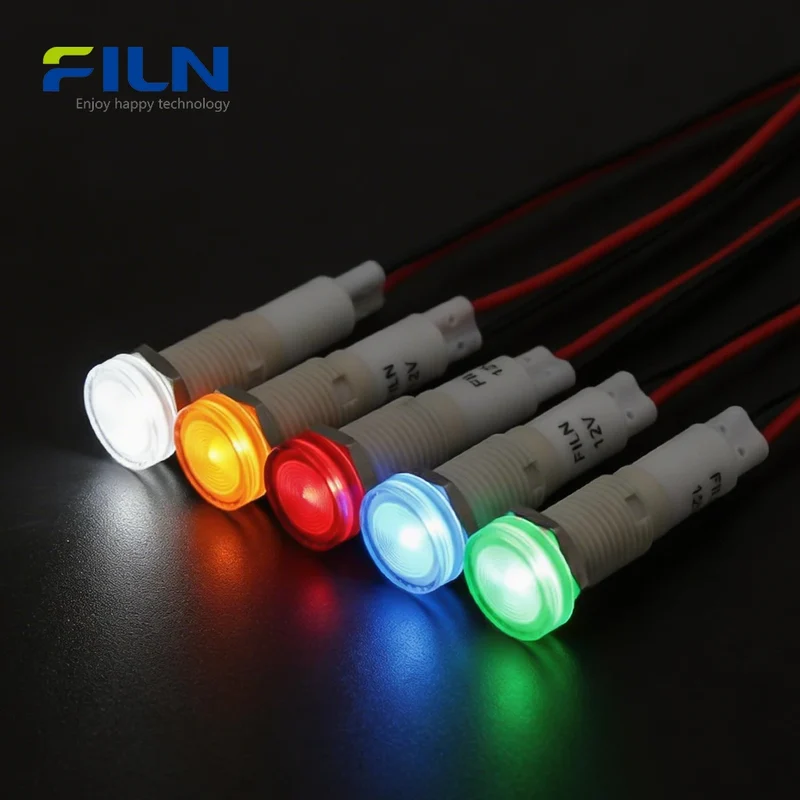

Plastic Indicator Lamps 10MM 6-220V LED Metal Nut High Head Wire Lead 15CM FILN

Product Overview

The 10mm plastic indicator lamps (Model: FL1P-10NW-5) represent a high-tier industrial led signal indicator lamps 10mm solution for modern panel displays. Featuring a "High Head" circular aesthetic, these high-head plastic indicator lamps 220v offer an atmospheric and professional look for industrial machinery. This specific 10mm plastic indicator lamps for sale series is manufactured by FILN, a leading factory holding ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications. Built with a durable PA66 body and a reinforced metal nut plastic indicator lamps 10mm mounting system, these lamps support 12V to 220V ranges. These products are available for direct online purchase, providing a high-brightness led indicator lamps waterproof solution for heavy-duty kitchen equipment and automation lines.

Quick Specifications

Mounting Hole	10mm / 0.39 inch	Voltage	12-24V / 110-220V (Customized)
LED Color	Red, Green, Yellow, Blue, White	Lifespan	60,000 Hours
Waterproof Rating	IP65 (Head Part)	Wire Length	15cm PVC Wire
Mounting Type	Metal Nut Fixation	Wiring Type	Wire Lead / 2.8mm Pin

Component Name	Material
Shell / Lamp holder	PA66 High-strength Nylon
Lampshade (Lens)	PC (High Transparency)
Luminescent Source	LED
Resistance	Carbon film resistance
Nut	High-quality Metal Nut
2.8mm Terminal	H59 Brass
Wire specification	15cm PVC Wire

Rated Working Parameters

Rated Voltage	Customized (3V-380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

General Technical Characteristics

Insulation and voltage resistance	1800V/5s	Working Life	60,000h
Operating Temperature	-40℃～80℃	Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa	Rated Power	0.2W

Reliability & Resistant Performance

Test Category	Condition	Requirement
Insulation Resistance	DC500V / 1 min	≥100MΩ
High Temperature	80℃ 96h	Stable Light
Moisture Resistance	40℃ 90-95%RH 96h	No Corrosion

Key Features & Industrial Applications

• High Head Spherical Lens: Atmospheric design provides maximum visibility from all angles.
• Metal Nut Mounting: Enhanced structural integrity compared to plastic nuts, ensuring a vibration-proof fit.
• Industrial PA66 Shell: Superior electrical insulation and chemical resistance for kitchen equipment indicator lamps plastic.
• Easy Wiring: Tailored with 15cm leads or 2.8mm terminal plastic indicator lamps for rapid connection.
• Longevity: Advanced LED technology ensures a lifespan of over 60,000 working hours.

Applications: Factory automation, CNC machinery, electrical distribution cabinets, commercial kitchen appliances, and marine control panels.

Installation Guide (Metal Nut Type)

1. Drill a 10mm hole in your panel surface.
2. Insert the metal nut plastic indicator lamps 10mm through the hole from the front side.
3. Place the metal nut onto the threaded body from behind the panel.
4. Tighten the metal nut securely to lock the lamp in place.
5. Connect the 15cm wire leads or attach terminals to the 2.8mm pin connectors.

What Are 10mm Plastic Indicator Lamps?

The 10mm plastic indicator lamps are essential signaling devices used to display the status of electrical circuits.

Metal vs. Plastic Indicators:
Plastic shell indicators (PA66) are preferred for their excellent electrical insulation and resistance to chemical corrosion (rust-proof), making them ideal for food-grade environments. Metal indicators offer slightly higher impact resistance but can conduct electricity if damaged. Our FL1P-10NW-5 combines both worlds by using a plastic body for safety and a metal nut for mechanical strength.

Wiring vs. Pin Design:
Pre-wired leads (15cm) allow for quick splicing in field installations. Pin terminals (2.8mm terminal plastic indicator lamps) are designed for factory production lines where female connectors are used for "plug-and-play" speed.

LED Color Signal Meanings:
• Red: Emergency Stop, Danger, or System Failure.
• Green: Ready for Operation, Power On, or Safety.
• Yellow: Caution, Abnormal Status, or Maintenance Warning.
• Blue: Mandatory Action Required or Information.
• White: Power active or Neutral monitoring.

FILN Factory Direct Supply

As a global filn factory custom indicator lamps specialist, we ensure you can buy high-quality lamps directly with professional support.

• ✅ Ready for Sale: Immediate online ordering for standard 12V/24V/110V/220V models.
• ✅ Full Customization: Custom wire lengths, terminal types, and specific voltages.
• ✅ B2B Excellence: Trusted by industrial engineers for over 20 years.

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Are the 10mm plastic indicator lamps for sale available for custom voltage?
Yes, we can customize voltages from 3V to 380V to suit your specific industrial power requirements.

2. What is the benefit of the metal nut in a plastic indicator lamp?
The metal nut provides a more secure, permanent lock compared to plastic nuts, especially in high-vibration environments like CNC machines.

3. Can I use these as kitchen equipment indicator lamps plastic?
Yes, the PA66 nylon material is heat-resistant and chemically stable, making it perfect for ovens, fryers, and other food service machinery.

4. How do I decide between wire leads and 2.8mm terminals?
Choose wire leads (15cm) for direct wiring; choose 2.8mm terminal plastic indicator lamps for quick-connect assembly line production.

5. Is the high-head plastic indicator lamps 220v visible from the side?
Yes, the spherical high-head design ensures nearly 180° light diffusion, making it highly visible from any angle.

6. What certifications does FILN provide for these lamps?
Our lamps are UL, CE, RoHS, VDE, and ISO9001 certified, ensuring global industrial compliance.

7. What is the standard lifespan of the LED?
Our high-brightness led indicator lamps waterproof models are rated for over 60,000 hours of continuous operation.

8. Is the red light color always for emergencies?
In industrial standards, red almost always signifies a stop, error, or danger condition that requires immediate attention.

9. Can I request a custom wire length longer than 15cm?
Yes, as a filn factory custom indicator lamps provider, we can manufacture leads to any specific length you require.

10. How quickly can FILN ship orders?
We maintain a large stock for standard voltages and can ship internationally via express carriers within days.
