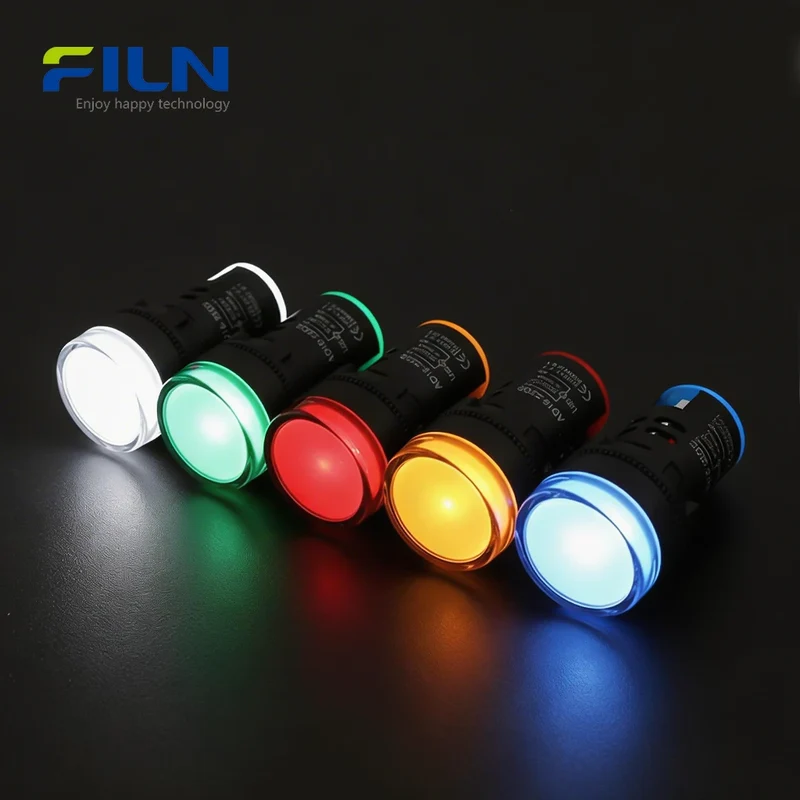

Plastic LED Indicator Panel 22mm 110V 220V Screw Terminal Mount for Control Cabinet FILN

Product Overview

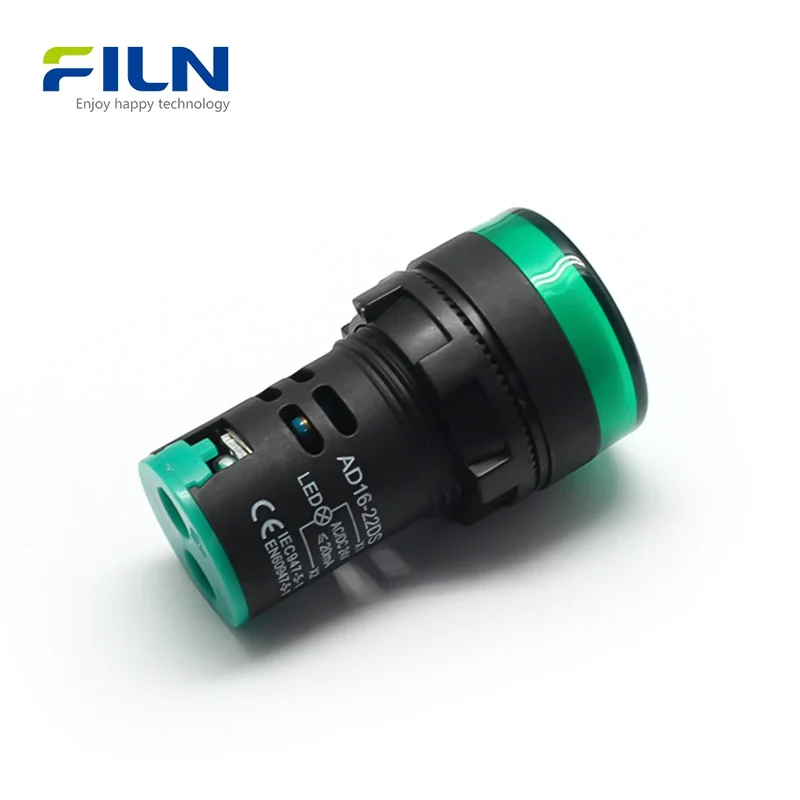

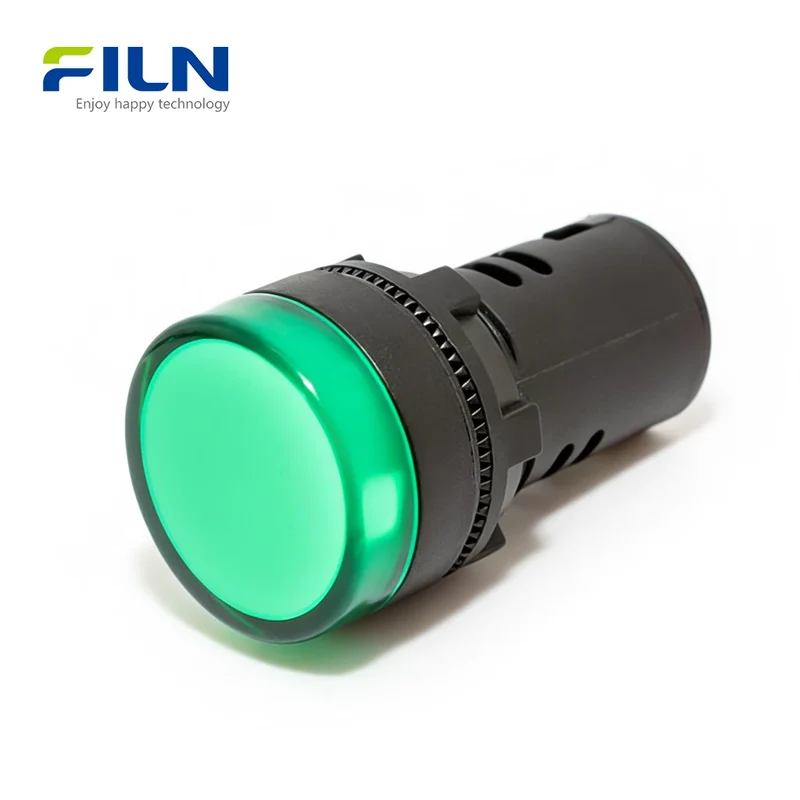

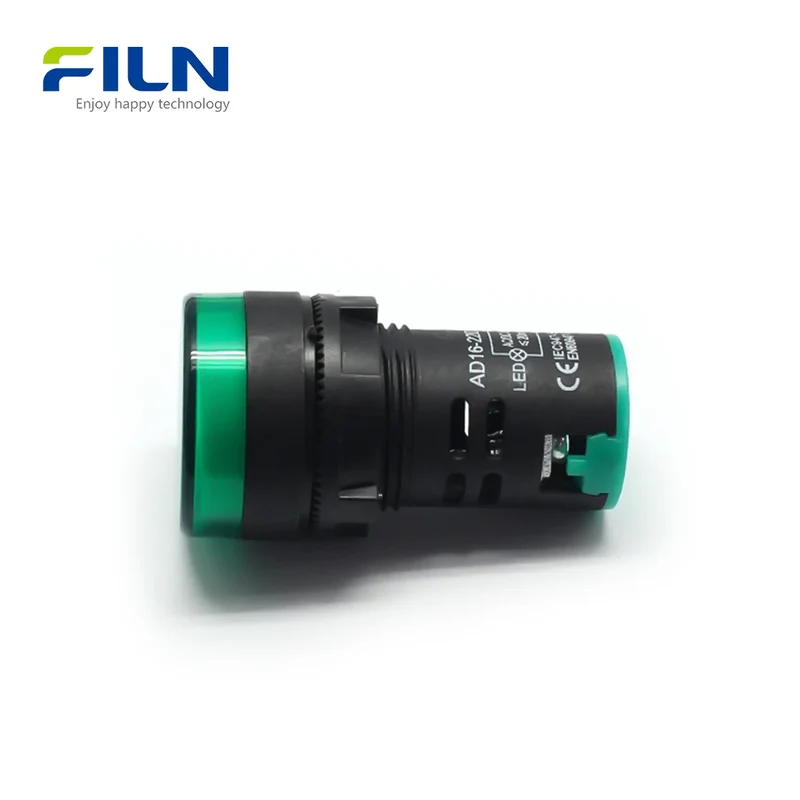

This premium led indicator panel (Model: FL1P-22NA-1) is a versatile industrial signaling solution now available for sale directly from our factory. Designed as a high-performance alternative to the standard AD16-22 series, this 22mm plastic indicator light features a circular high-head design for maximum visibility. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it ensures safety and reliability in demanding environments. Whether you are looking for a red green yellow blue white pilot lamp for power distribution or automation, FILN provides professional-grade 110v 220v ac led indicator light options. Its durable PA66 shell and high-brightness led pilot light 22mm construction make it the preferred choice for industrial control cabinets worldwide.

Quick Specifications

Mounting Hole	22mm (0.866 inch)
Voltage	12V, 24V, 110V, 220V (Customizable)

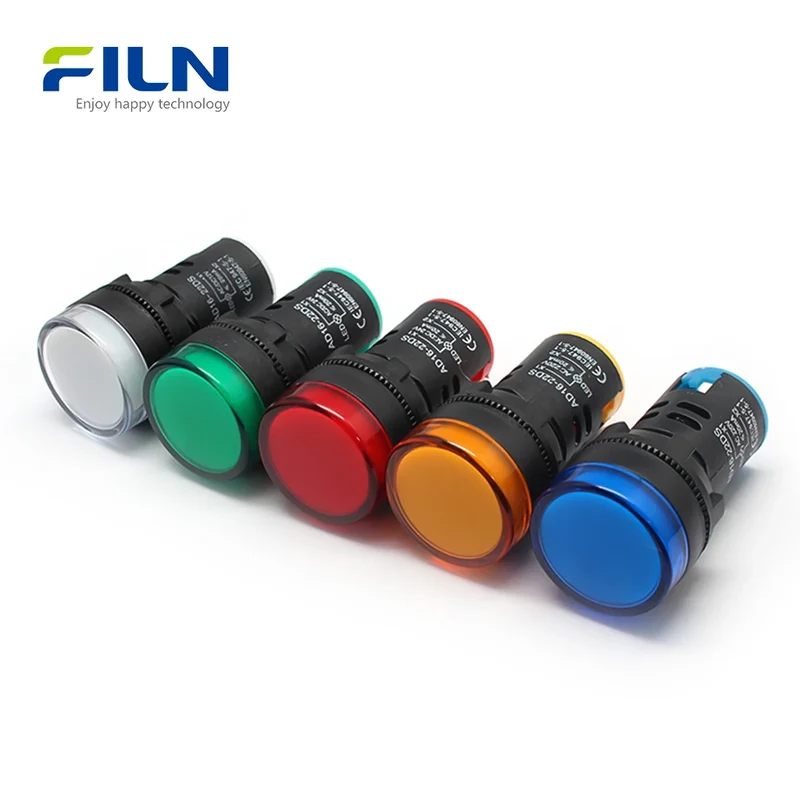

LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	IP65 (Head Part)
Operating Temperature	-40℃ to +80℃
Lifespan	≥60,000 Hours
Wiring Type	Screw Terminal (2-Pin)
Certifications	UL, CE, RoHS, VDE, SGS, ISO9001

Component Materials

Component Name	Material
Shell / Lamp Holder	PA66 Nylon
Lampshade (Lens)	High-transparency PC
Luminescent Source	LED
Resistance	Carbon Film Resistance
Terminal	H59 Brass Screw Pin

Rated Working Parameters

Rated Voltage	3V - 250V AC/DC (Customized)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

General Characteristics

Items	Parameter
Insulation and Voltage Resistance	1800V/5s
Working Power	0.2W
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Property	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Durability & Resistant Performance

Test Type	Condition	Requirement
Working Life	30mA @ 1000h	50,000+ hours
Temperature Cycle	-40℃ → 25℃ → 85℃	5 rounds stable
High/Low Temp	80℃ / -40℃	96 hours continuous

Key Features

• LED High Brightness: Uses premium LED chips for clear visibility in all lighting conditions.
• Industrial Grade Reliability: Built with flame-retardant PA66 material, replacing standard AD16-22 lamps.
• IP65 Waterproof: The ip65 waterproof plastic signal light head protects against dust and moisture.
• Easy Installation: Features a secure screw terminal led indicator wiring system for fast maintenance.
• Multi-Voltage Support: Available in 12V, 24V, 110V, and 220V for global industrial applications.

Industrial Applications

Our industrial control cabinet indicator lamp is widely utilized in:

• Power Distribution Cabinets & Electrical Panels
• CNC Machinery & Industrial Automation Lines
• HVAC Systems & Commercial Appliances
• Telecommunications Equipment
• Marine Control Desks & Medical Devices

Installation Guide

1. Drill a 22mm panel mount hole in the control panel.
2. Remove the plastic nut from the indicator light body.
3. Insert the 22mm-panel-mount-led-warning-light through the hole from the front side.
4. Tighten the plastic nut from the back to secure the unit firmly.
5. Connect the wires to the screw-terminal-led-indicator-wiring and tighten the screws.

What Is an LED Indicator Panel?

An led indicator panel is a crucial visual feedback component in industrial systems. Unlike standard incandescent bulbs, these plastic LED indicators offer superior durability and lower power consumption. In a busy workshop, the 22mm plastic indicator light for sale acts as a safety sentinel:
• RED: Emergency or system failure warning.
• GREEN: System operating normally or ready.
• YELLOW/AMBER: Caution or pending status changes.
• BLUE: Specific mandatory action required.
• WHITE: Power status or monitoring. The screw-foot design (screw terminal) provides a more robust connection than pin-type terminals, making them ideal for high-vibration environments like CNC machines.

FILN Factory Direct Supply

As a leading filn plastic indicator light manufacturer, we offer direct factory pricing and unmatched customization:

• Custom Voltages: 3V to 380V support.
• Cable Customization: Custom wire lengths and connectors upon request.
• Fast Shipping: Global logistics for B2B bulk orders.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions (FAQ)

1. Can I use these for a 220V power cabinet?
Yes, we specialize in 110v 220v ac led indicator light models specifically for industrial power distribution.

2. What is the difference between screw terminals and pin terminals?
Screw terminals allow for easy field wiring with a screwdriver, whereas pin terminals usually require soldering or quick-connect female terminals.

3. Are these lights compatible with the AD16-22 standard?
Yes, our 22mm models are perfect drop-in replacements for the ad16-22 led indicator panel mount series.

4. Is the 22mm mounting hole standard?
Yes, 22mm is the international standard for industrial panel components.

5. What is the waterproof rating?
The head is rated IP65, making it resistant to water splashes and dust.

6. Do you offer custom colors?
We provide red green yellow blue white pilot lamp options as standard, and can customize specific hues if needed.

7. How long is the lifespan?
The high-brightness led pilot light 22mm lasts over 60,000 hours.

8. Is FILN a trading company or a factory?
FILN is a professional manufacturer with ISO9001 and UL certifications.

9. Can I buy these for sale online?
Yes, these products are available for sale directly through our Shopify store with global shipping.

10. What material is the housing made of?
We use high-grade flame-retardant PA66 nylon for the shell and PC for the lens.
