Plastic Panel Mount Indicator Lamps 10mm Pin Terminal 12V 220V for Kitchen Equipment FILN

Product Overview

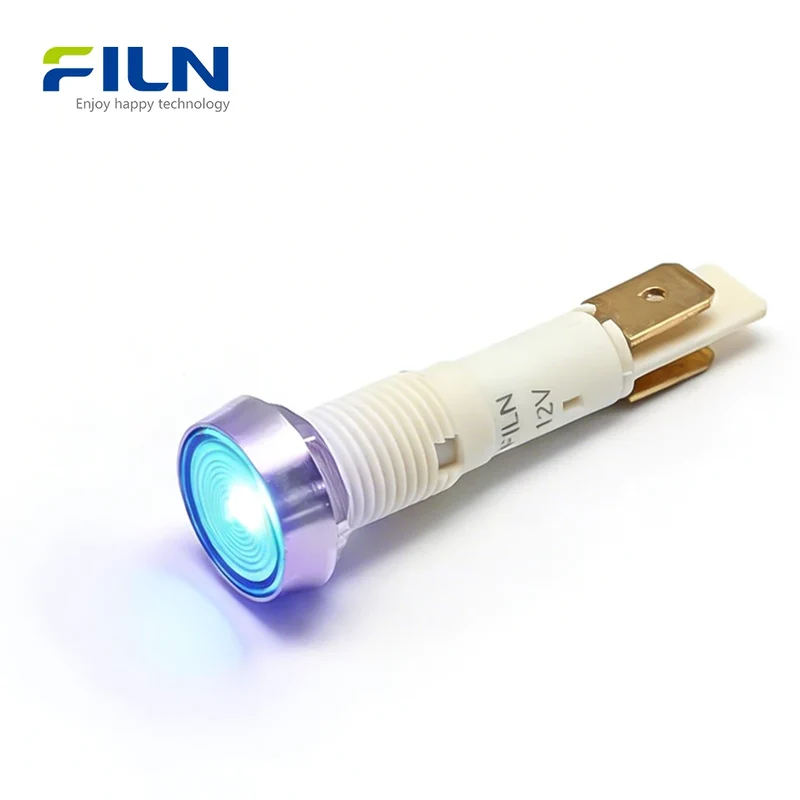

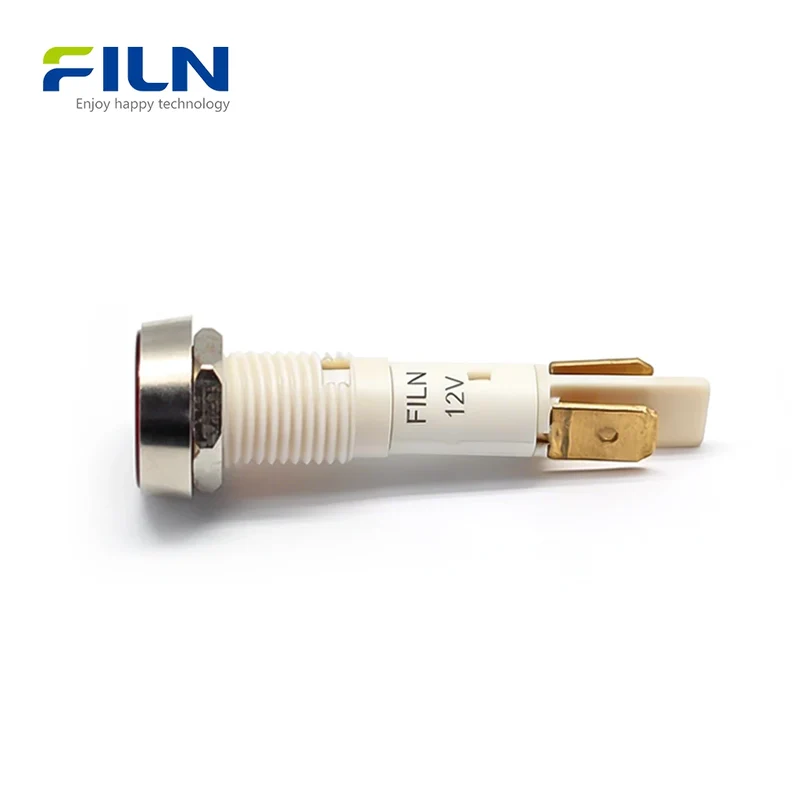

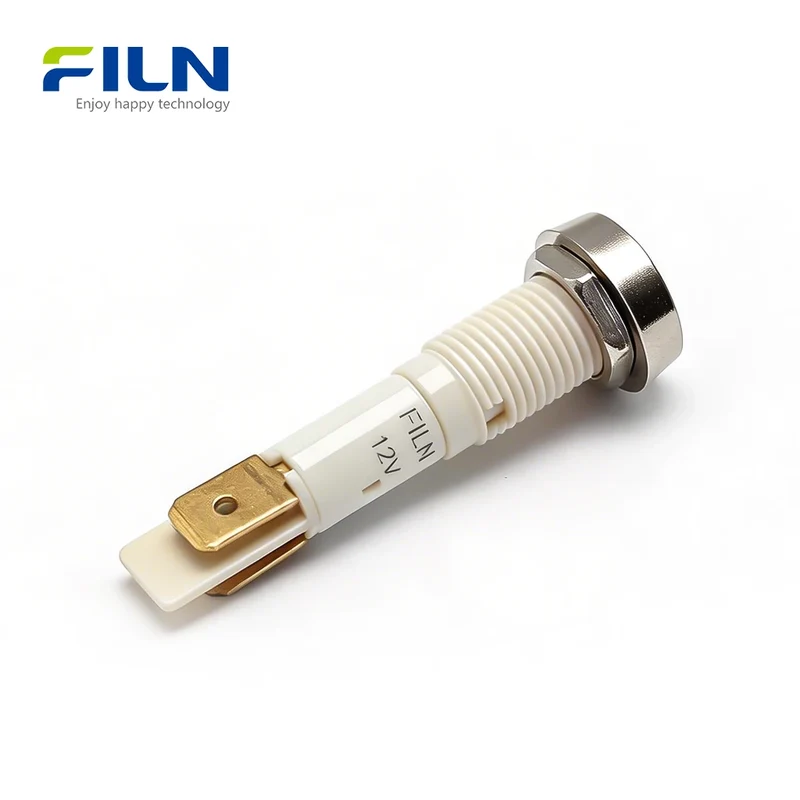

The panel mount indicator lamps (Model: FL1P-10NJ-4) are high-quality 10mm plastic indicator light factory solutions designed for sleek integration into industrial control panels. Built from durable pa66 plastic indicator lamp material, these units offer exceptional insulation and heat resistance, making them a preferred choice as a kitchen equipment status indicator. Featuring a bright LED output and a professional circular aesthetic, this 2-pin terminal signal lamp is now available for sale directly from the FILN factory. With global certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, these lamps provide reliable signaling for any custom voltage plastic warning light requirement.

Quick Specifications

Mounting Hole Size	10mm (0.39 inch)
Rated Voltage	12V-24V, 110V-220V (Customizable)

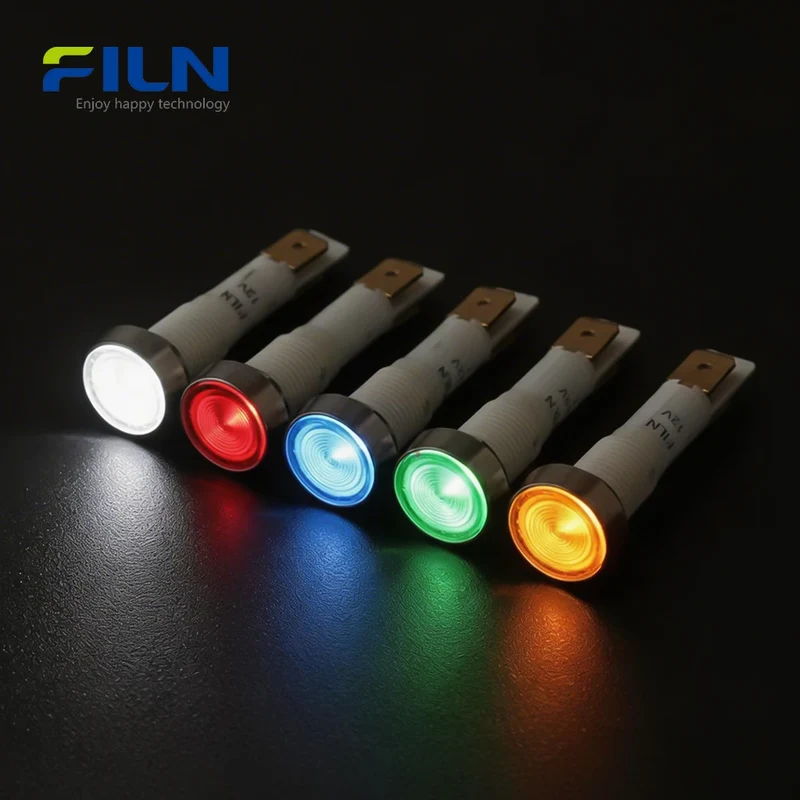

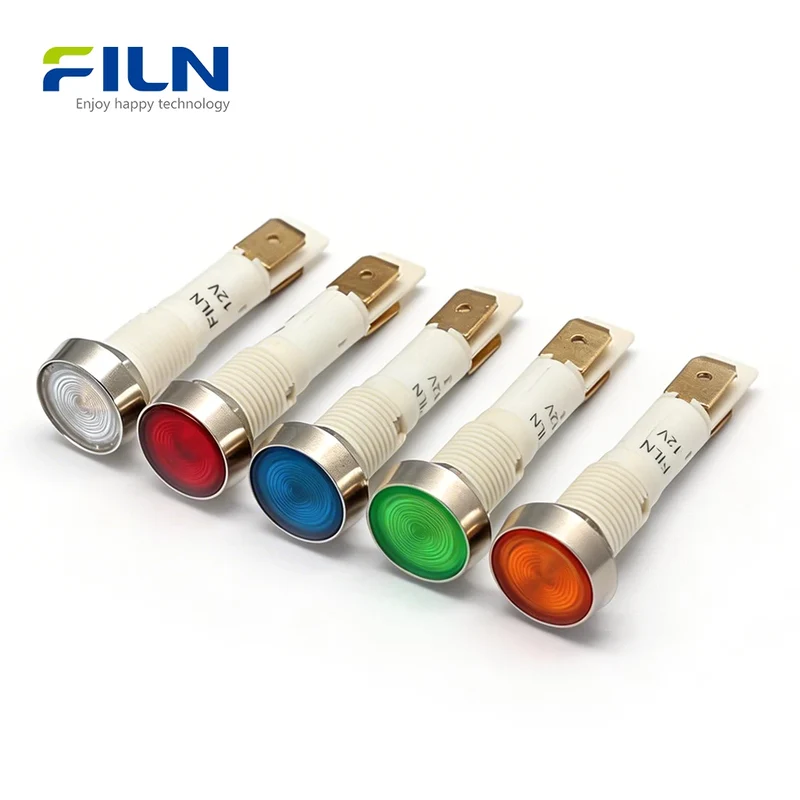

LED Color Available	Red, Green, Yellow, Blue, White
Waterproof Rating	Head IP65 (Screw Mount)
Wiring type	2.8mm Pin Terminal (2-Pin)
Lifespan	60,000 Hours
Product Certification	ISO9001, CE, VDE, RoHS, SGS, UL

Component Name	Material
Shell (Outer Case)	PA66 Nylon
Lamp holder	PA66 Nylon
Lampshade	PC (Polycarbonate)
Luminescent Source	LED
Nut	Metal (Zinc Alloy)
2.8mm Terminal	H59 Copper (2PIN)

Rated Working Parameters

Rated Voltage	Customized (12V-380V)
Frequency(AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	PA66
Lens	High Transparency PC
Seal Ring	Silicone O-ring
Terminal	Brass with Nickel Plating
Wire Material	PVC (for lead wire version)

General Characteristics

Insulation and Voltage resistance	1800V/5s
Working Life	60,000h
Operating Temperature	-40℃～80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No flashover

Durability Characteristics

Continuous Working Life

50,000 hours (Tested at 30mA 1000h)

Resistant Performance

High Temperature	80℃ 96h
Low Temperature	-40℃ 96h
Moisture Resistance	40℃ 90-95%RH 96h

Key Features

• Industrial Grade PA66: Heat-resistant plastic housing perfect for high-temperature kitchen environments.
• Sleek Circular Design: Atmospheric and modern appearance that elevates equipment panel aesthetics.
• Long Lifespan LED: Durable luminescent source with over 60,000 hours of continuous operation.
• Stable Terminal Connection: 2.8mm pin terminals (2PIN) ensure secure and rapid wiring.
• Secure Metal Mounting: Utilizes a high-strength metal nut for a rock-solid installation.

Color Meanings & Applications

In industrial systems like CNC machines and kitchen equipment, LED colors convey critical information:

• Red: Danger/Emergency - Indicates a failure or critical stop.
• Green: Safe/Ready - Indicates normal operation or machine start.
• Yellow/Amber: Warning - Indicates an abnormal condition or caution.
• Blue: Required Action - Often used for status resets or specific operator instructions.
• White: Neutral Status - Indicates power on or a generic monitoring state.

Installation Guide

1. Drill a precise 10mm hole in the control panel.
2. Insert the screw mount 10mm indicator lamp from the top (front) of the panel.
3. Thread the metal nut onto the lamp body from the back of the panel.
4. Tighten the metal nut firmly to ensure the circular head sits flush against the panel.
5. Plug female 2.8mm terminals into the 2-pin tail for final connection.

What Are Panel Mount Indicator Lamps?

Panel mount indicator lamps are essential visual signaling components for equipment monitoring. Choosing the right material is vital for durability.

Plastic vs. Metal: Durable pa66 plastic indicator lamps are preferred for kitchen and food-grade machinery because plastic is immune to chemical corrosion and provides superior electrical insulation. While metal indicators offer high impact resistance, PA66 nylon provides a better balance of cost and weight for mass-produced appliances.

Pin vs. Wire-Lead: The 2-pin terminal signal lamp (pin type) allows for quick disconnection and service, whereas wire-lead indicators are often preferred for sealed, vibration-prone environments. For the FL1P-10NJ-4, the 2.8mm pins offer the fastest and most convenient assembly process.

Factory Direct Supply

FILN is an industry-leading 10mm plastic indicator light factory. All panel mount indicator lamps are available for direct purchase with the following services:

• ✅ Competitive Factory Pricing - Bulk discounts for industrial buyers.
• ✅ Fast Global Logistics - Shipping directly from our manufacturing base.
• ✅ Customization - Tailored wire lengths, connectors, and voltages.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can I buy these panel mount indicator lamps for sale now?
Yes! We offer panel mount indicator lamps for sale directly from the factory with stock ready for immediate shipping.

2. Why is PA66 plastic used for kitchen equipment?
PA66 Nylon is flame-retardant and oil-resistant, which is crucial for safety in high-heat commercial kitchens.

3. What terminal size is used for the 2-pin connection?
This model uses a standard 2.8mm pin terminal, compatible with common industrial female connectors.

4. Is the filn 10mm led indicator lamp waterproof?
Yes, the front head is rated IP65, making it resistant to water spray and steam.

5. Can you provide a custom voltage plastic warning light (e.g., 380V)?
Absolutely. We specialize in custom voltages ranging from 3V up to 380V for all industrial project needs.

6. Does the metal nut provide a better lock than plastic?
Yes, the metal nut allows for higher torque tightening, ensuring the lamp doesn't loosen under vibration.

7. What are the advantages of the 10mm plastic indicator light factory direct purchase?
Direct purchase ensures the lowest price, factory-verified quality, and technical support from the engineers.

8. Can I get these in Blue for my medical device?
Yes, we offer Red, Green, Yellow, Blue, and White LEDs to suit all application standards.

9. How long does the LED last?
Our high-quality LEDs are rated for 60,000 hours, significantly longer than traditional incandescent bulbs.

10. Is the circular design suitable for flush mounting?
Yes, the circular head provides a clean, atmospheric look that sits flush on any flat panel surface.
