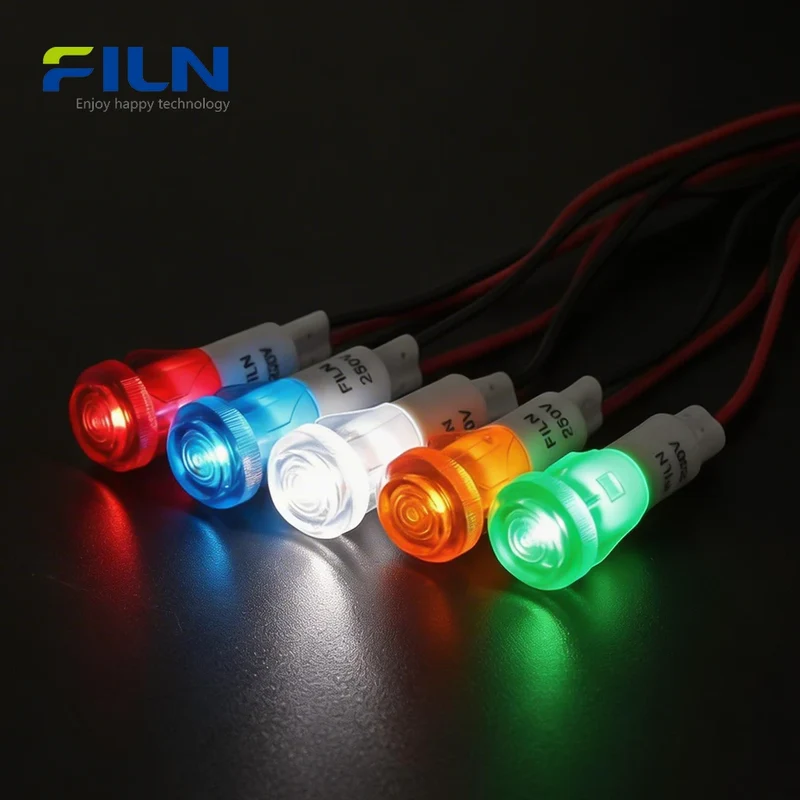

Plastic Pilot Lights LED 10mm 12V 24V 110V 220V Snap-in Wire Lead Mount For FILN

Product Overview

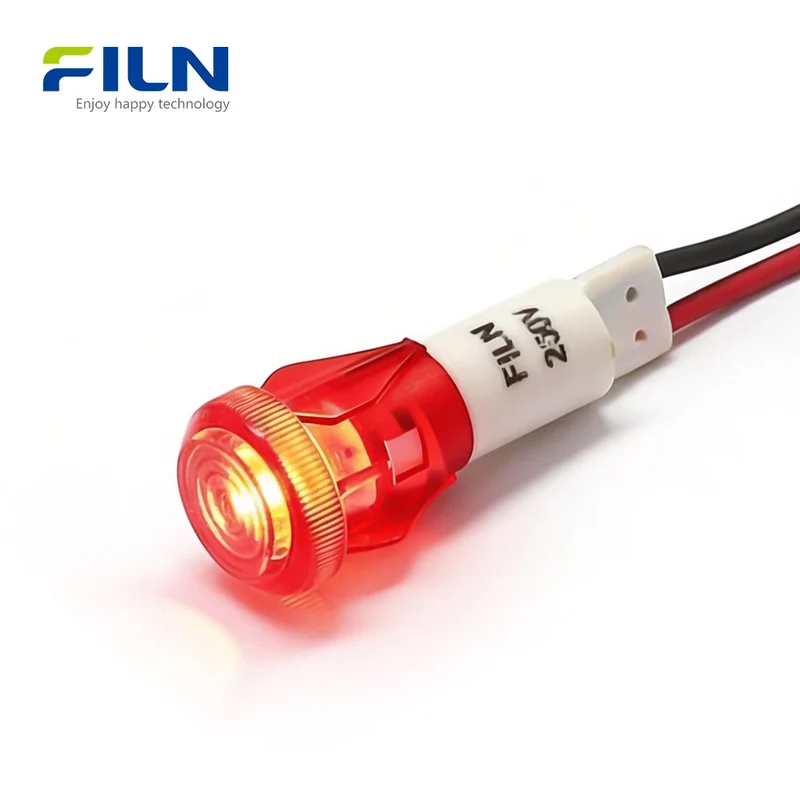

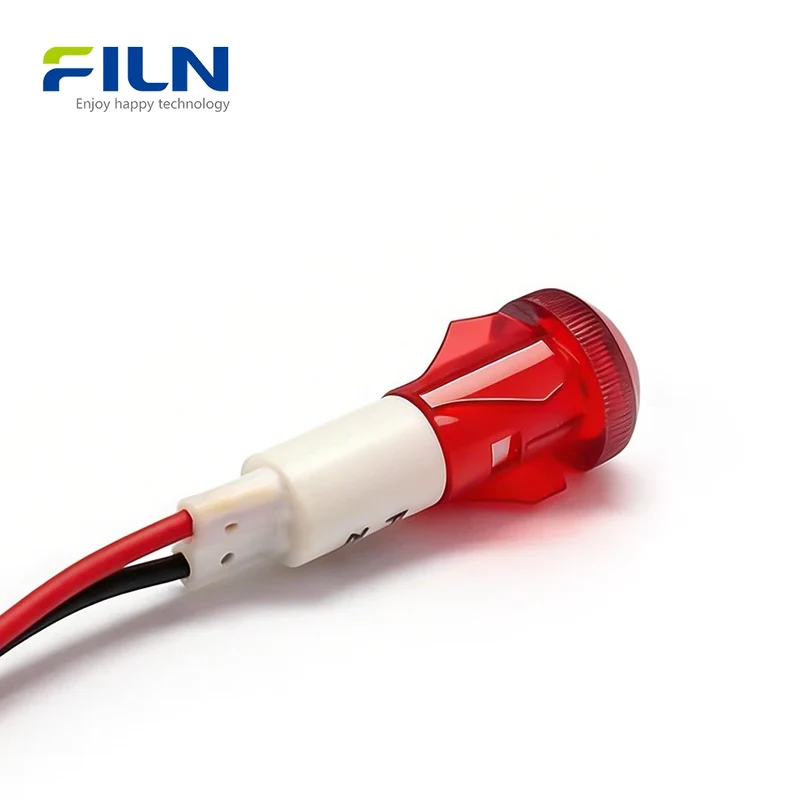

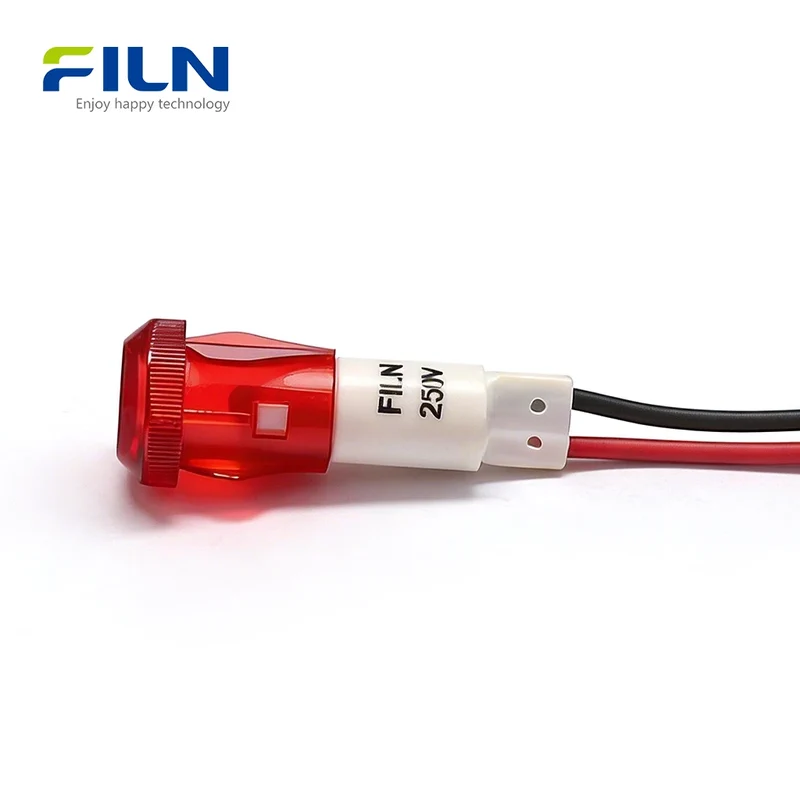

Discover our high-quality 10mm plastic pilot lights LED, now available for sale directly from the FILN factory. These FL1P-10QW-2 models feature a high-head round design, providing a modern and professional aesthetic for any industrial panel. As a leading manufacturer, FILN ensures world-class quality with certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. These indicators are specifically engineered for industrial control panels, CNC machines, and automation equipment. Whether you need 12V, 24V, 110V, or 220V, we offer direct online purchasing and customization to meet your exact specifications. The pre-wired 15cm design ensures quick and reliable installation for demanding B2B applications.

Quick Specifications

Mounting Hole Size	10mm (0.39 inch)
Rated Voltage	12V, 24V, 110V, 220V (Customizable)

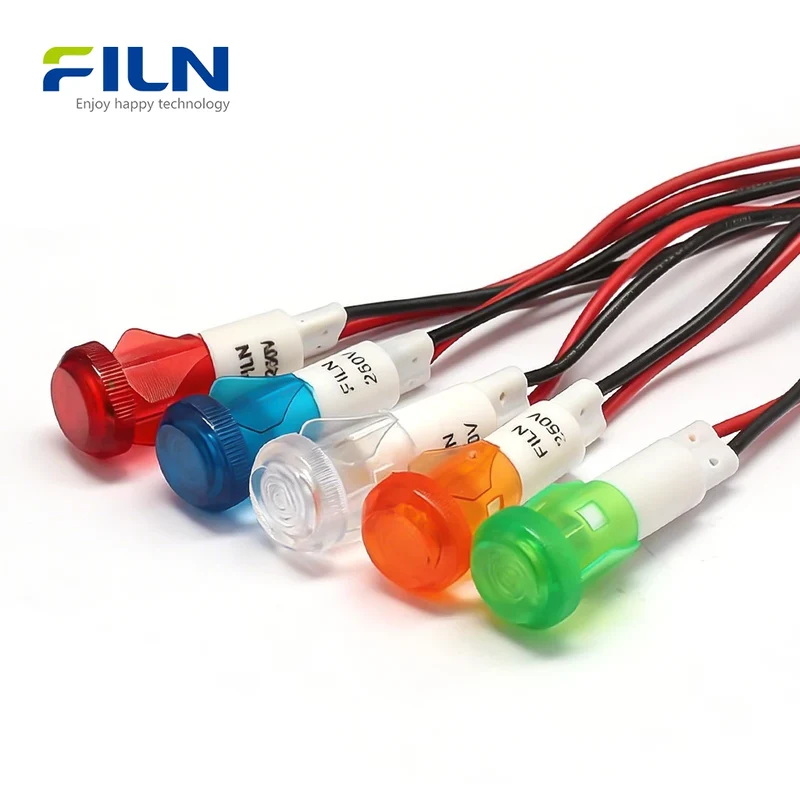

LED Colors	Red, Green, Yellow, Blue, White
Waterproof Rating	Snap-in (Non-waterproof) / Threaded (IP65)
Operating Temperature	-40℃ to +80℃
Lifespan	60,000 Hours
Mounting Type	Snap-in Mounting
Wiring Type	Wire Lead Type (15cm PVC Cable)
Certifications	UL, CE, RoHS, VDE, ISO9001, SGS

Rated Working Parameters

Rated Voltage	Customized (3V to 380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Shell (Housing)	PA66 Nylon
Lamp Holder	PA66 Nylon
Lampshade (Lens)	PC (Polycarbonate)
Luminescent Source	High-Intensity LED
Resistance	Carbon Film Resistance
Wire Specification	PVC Insulation Wire (15cm Standard)

General Characteristics

Insulation and Voltage Resistance	1800V / 5s
Working Life	60,000 Hours
Cold-Resistant	-40℃
Heat-Resistant	+80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Property	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown or flashover

Durability Characteristics

Test Item	Test Condition	Requirement
Continuous Working Life	30mA 1000h	50,000 hours performance stability

Resistant Performance

Condition	Test Parameters
High Temperature Resistance	80℃ for 96h
Low Temperature Resistance	-40℃ for 96h
Moisture Resistance	40℃ 90-95%RH for 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

• LED high brightness: Clear visibility even in high-ambient light environments.
• Long lifespan: Maintenance-free operation for up to 60,000 hours.
• Modern Aesthetic: High-head round plastic design provides a professional look to equipment.
• Easy Snap-in Installation: Fast assembly without the need for additional mounting nuts.
• Industrial-grade reliability: Robust PA66 housing and PVC wiring for extreme conditions.

Applications

• Industrial control panels and electrical cabinets.
• CNC machines and heavy-duty manufacturing equipment.
• Automation systems and conveyor control stations.
• Marine electronic systems and dashboards.
• Medical devices and laboratory equipment.

Installation Guide

1. Drill a 10mm (0.39 inch) diameter hole in your panel.
2. Clean the surface around the hole to ensure a secure fit.
3. Insert the 10mm plastic indicator light into the hole from the front side of the panel.
4. The snap-in "ears" on the side of the housing will lock automatically once pushed through.
5. Connect the 15cm PVC wire leads to your power source (12V, 24V, 110V, or 220V).

What Is a Pilot Light LED?

A pilot light LED (also known as an indicator lamp) is a signaling device used to indicate the operating status of a machine or electrical circuit. Unlike traditional incandescent lamps, plastic LED indicators offer superior vibration resistance, lower power consumption, and significantly longer life.

Plastic vs. Metal Indicators: Plastic indicators are lightweight, cost-effective, and provide excellent insulation, making them ideal for high-density control panels.

Pre-wired vs. Pin Terminals: This model uses 15cm wire leads, which simplifies installation in tight spaces where soldering or crimping terminals is difficult.

Color Meanings:
• Red: Danger or Emergency stop needed.
• Green: Normal operation or Safe start.
• Yellow/Amber: Warning or abnormal condition.
• Blue: Specific mandatory action required.
• White: Power indicator or neutral status.

Factory Direct Supply

FILN is a professional manufacturer of industrial indicators. We provide factory-direct pricing for bulk B2B orders and individual units available for direct purchase online.

• Voltage Customization: 3V - 380V available.
• Wire Length Customization: Standard 15cm or any custom length.
• Connector Customization: We can pre-install terminals for your specific application.
• Fast Global Shipping: Direct from our ISO9001 certified factory.

FILN Official Website: www.filn.com

Contact Us: [email protected]

Frequently Asked Questions

1. Can I buy these pilot lights led for sale online directly?
Yes, FILN offers factory-direct online sales for both standard and customized 10mm plastic indicator lights.

2. What is the difference between snap-in and threaded mounting?
Snap-in mounting is faster for quick assembly, while threaded mounting usually provides a higher waterproof rating like IP65.

3. Can FILN customize the wire length for the 10mm plastic indicator lamp?
Absolutely. While 15cm is standard, we can customize any length to suit your industrial automation project.

4. Are these 12V-24V LED pilot lights compatible with 220V AC?
We manufacture specific models for 12V, 24V, 110V, and 220V. Please select the correct voltage when ordering.

5. What certifications do your plastic signal lamps have?
Our products are UL, CE, RoHS, VDE, and ISO9001 certified, ensuring global industrial compliance.

6. Is the LED light visible in bright sunlight?
Yes, we use high-intensity LEDs to ensure our 10mm indicators remain clear in all lighting conditions.

7. What material is used for the shell of the indicator?
We use high-grade PA66 nylon, which offers excellent heat resistance and durability.

8. How does the snap-in mechanism work?
The indicator features plastic "ears" that compress during insertion and spring out to lock the unit against the panel.

9. Do you offer different colors for different signals?
Yes, we provide Red, Green, Yellow, Blue, and White LEDs to meet international signaling standards.

10. Can I get a sample of the high-head round plastic LED indicator?
Yes, please contact our sales team at [email protected] for sample requests.
