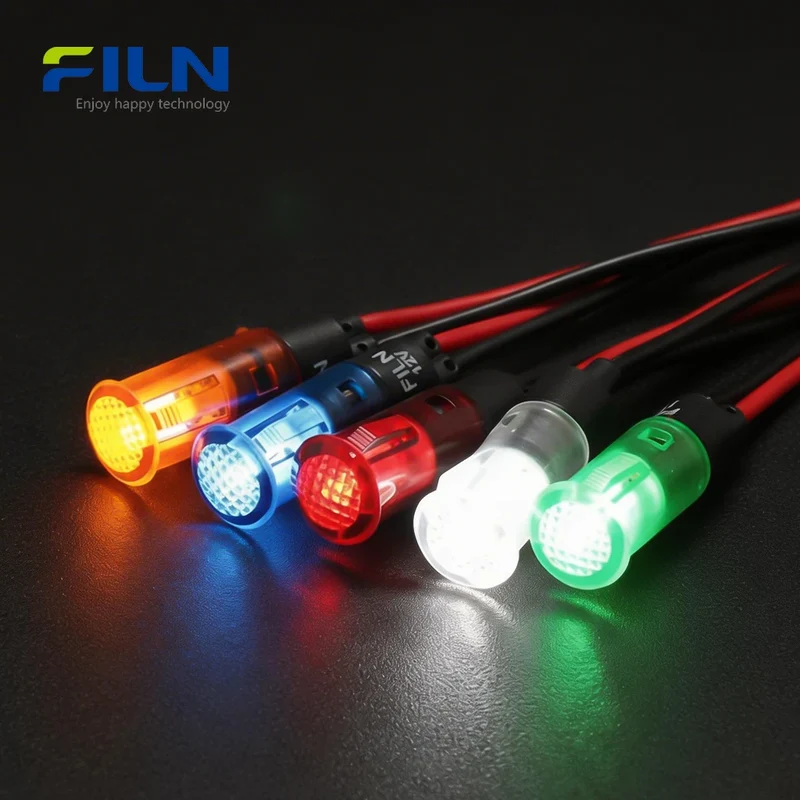

Plastic Signal Light 8mm 12V 220V Wire Lead Snap-in Panel Mount FILN

Product Overview

The FL1P-08QW-2 8mm plastic signal light for sale is a high-performance industrial signaling solution designed by FILN. This plastic indicator light features a durable PA66 shell and a high-visibility PC lampshade, ensuring clarity in demanding environments. Available in 12V, 24V, 110V, and 220V (with support for custom voltage), these lights are perfect for industrial control panels and automation equipment. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 (head only), you are guaranteed industrial-grade reliability. Whether you need a red, green, yellow, blue, or white signal light, our factory-direct supply allows for direct online purchase with fast global shipping.

Quick Specifications

Mounting Hole	8mm (0.315 inch)
Voltage	12V, 24V, 110V, 220V (Customizable)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	Head IP65 (Snap-in type not fully waterproof)
Operating Temperature	-40℃ to +80℃
Lifespan	60,000 Hours
Installation Type	Snap-in Panel Mount
Wiring Type	Wire Lead Type (15cm Standard)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Materials

Component Name	Material
Shell	PA66 Nylon
Lamp holder	PA66 Nylon
Lampshade	PC (Polycarbonate)
Luminescent Source	High Brightness LED
Resistance	Carbon film resistance
Wire specification	15cm PVC Wire

Rated Working Parameters

Rated Voltage	Customized (3V - 380V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

General Characteristics

Items	Parameter
Insulation Resistance	1800V/5s
Working Life	60,000h
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa
Cold/Heat Resistant	-40℃ / +80℃

Technical & Durability Performance

Insulation Resistance (DC500V)	≥100MΩ
Dielectric Strength (1500VAC)	No breakdown / 60s
Continuous Working Life	50,000+ Hours
Moisture Resistance	40℃ 90-95%RH 96h

Key Features

• LED high brightness: Clear visibility even in bright environments.
• Long lifespan: Maintenance-free operation for over 60,000 hours.
• IP65 waterproof head: Durable against moisture and dust from the front.
• Easy installation: Snap-in design with side "ears" for quick panel fixing.
• Industrial grade reliability: High-temperature resistant PA66 materials.

Applications

• Industrial control panels and distribution boards.
• CNC machines and precision automation tools.
• Marine systems and outdoor electrical cabinets.
• Medical monitoring and diagnostic equipment.
• Commercial appliances and coffee machines.

Installation Guide

1. Drill a hole in the panel with a diameter of 8mm.
2. Pass the wire lead plastic pilot light cables through the hole.
3. Push the indicator light from the top of the panel down.
4. The snap-in side "ears" will automatically lock onto the panel.
5. Connect the 15cm PVC wires to your power source.

What Is an 8mm Plastic Signal Light?

An 8mm plastic signal light is a compact status indicator used to communicate machine states (running, fault, standby) to operators. Unlike metal indicators, plastic versions offer superior insulation and cost-efficiency. The FL1P-08QW-2 model utilizes a snap-in mounting method, which is much faster than traditional screw-nut fixing. The wire lead type provides a direct connection, reducing the need for soldering terminals, making it a preferred choice for high-volume industrial panel mount indicator light applications.

Factory Direct Supply

As a leading 12V LED indicator light manufacturer, FILN offers:

• Factory Direct: No middlemen, ensuring the best price for sale.
• Customization: Tailored voltage, wire length, and connectors.
• Global Shipping: Fast delivery to all major industrial hubs.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can I buy this 8mm plastic signal light directly?
Yes, our 8mm plastic signal light for sale is available for direct factory purchase online.

2. What is the benefit of the snap-in mount?
The snap-in design allows for rapid tool-less installation, saving time on assembly lines.

3. Is this indicator waterproof?
The head is rated IP65, protecting it from front-side splashes, though the snap-in body is not fully sealed.

4. Does FILN provide custom wire lengths?
Yes, as a custom voltage signal light factory, we can adjust wire length and add connectors.

5. What is the difference between plastic and metal indicators?
Plastic is lightweight and offers better electrical insulation; metal is more impact-resistant.

6. Are these LEDs replaceable?
The high brightness LED is integrated for maximum lifespan and is not intended for replacement.

7. What colors are available?
We offer Red, Green, Yellow, Blue, and White variations.

8. Can I use the 220V model for 110V?
We recommend using the voltage specific to your needs to ensure optimal LED high brightness.

9. Is the wire lead type better than pin type?
Wire leads are easier for direct wiring; pin types are better for PCB or quick-disconnect terminals.

10. Does the product have international certifications?
Yes, it is certified by UL, CE, VDE, and RoHS.
