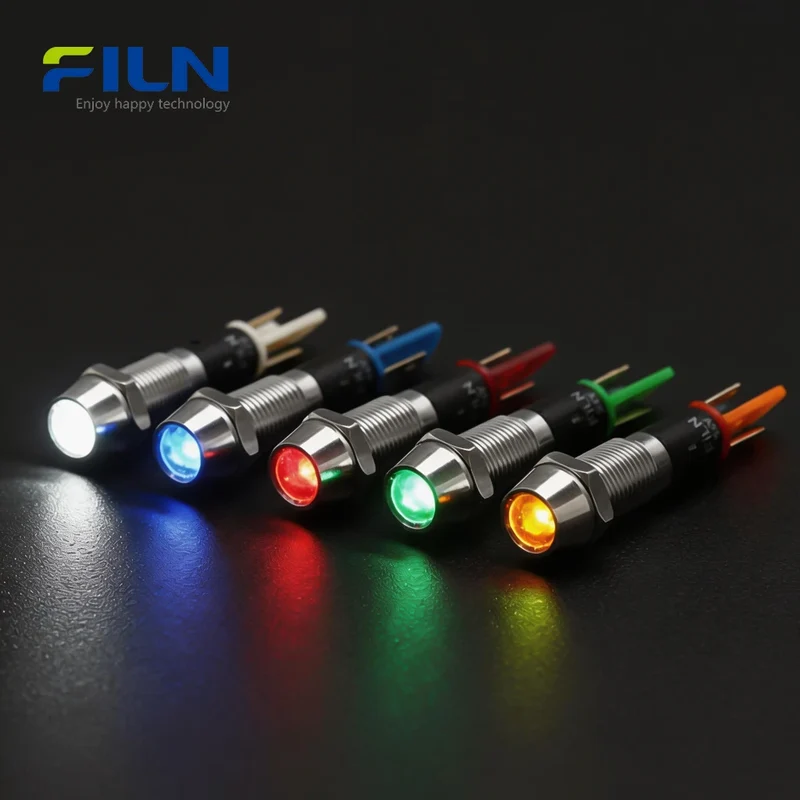

Power Indicator Light 3-380V 8mm IP67 Waterproof Panel Mount FILN

1,02 €0,56 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

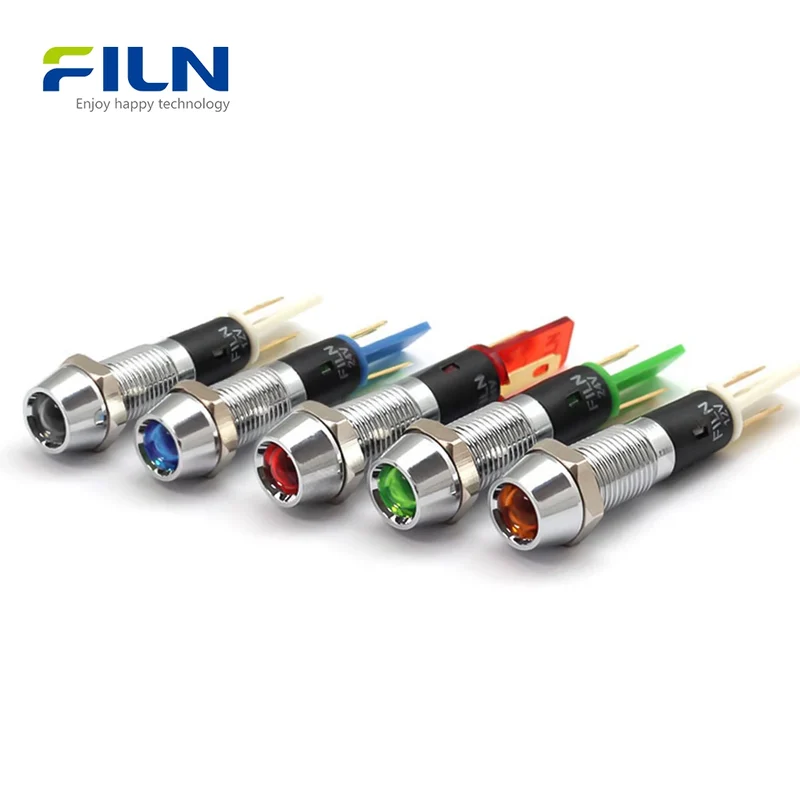

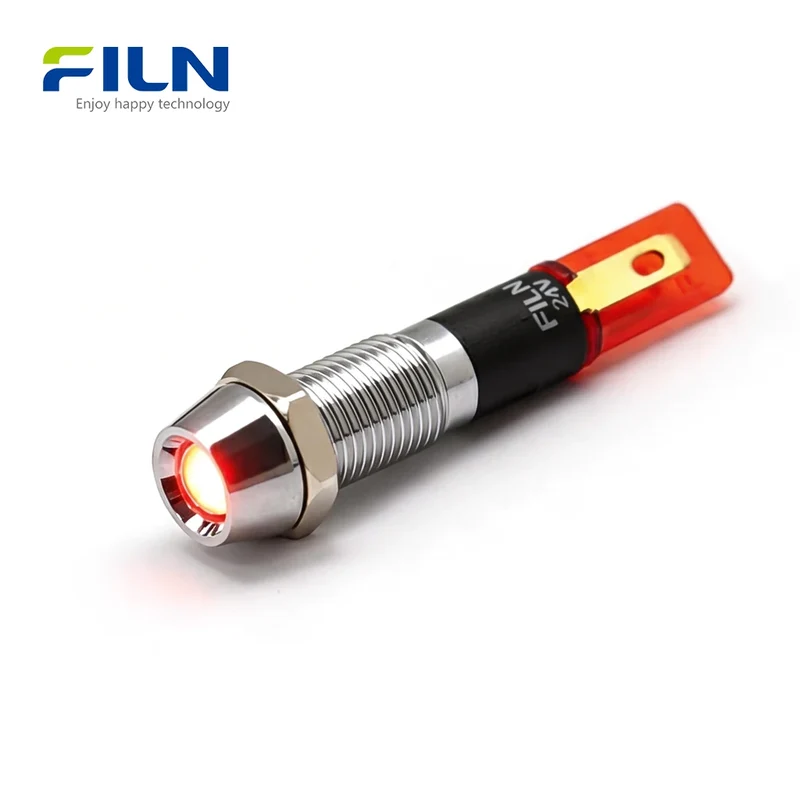

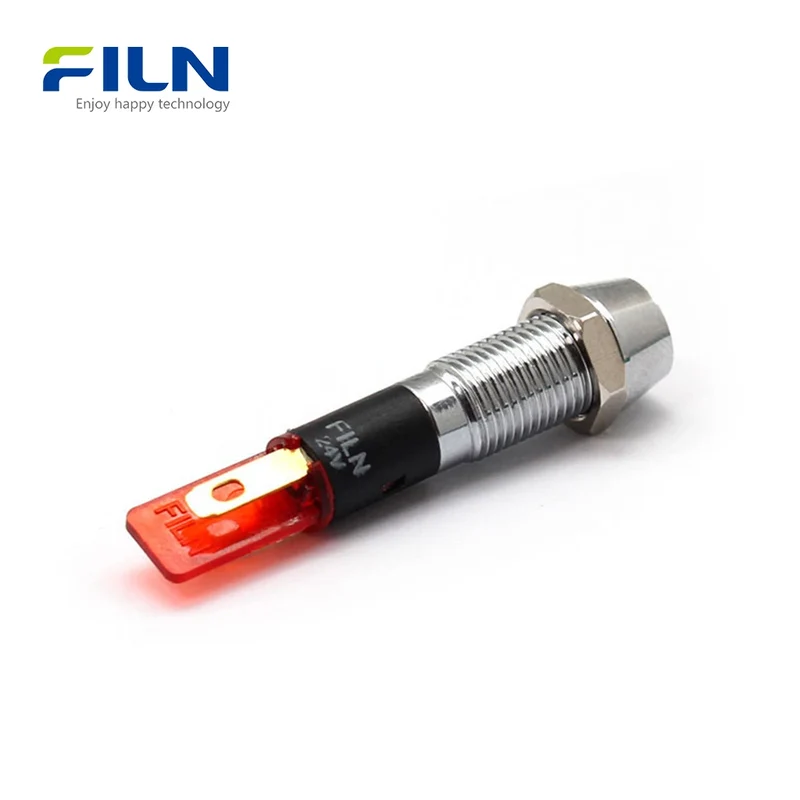

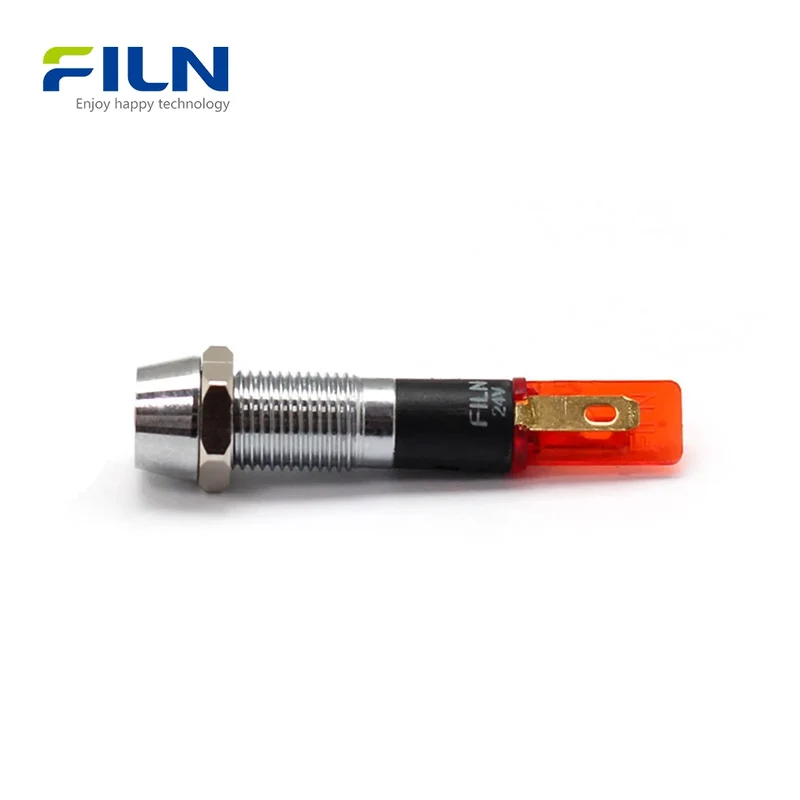

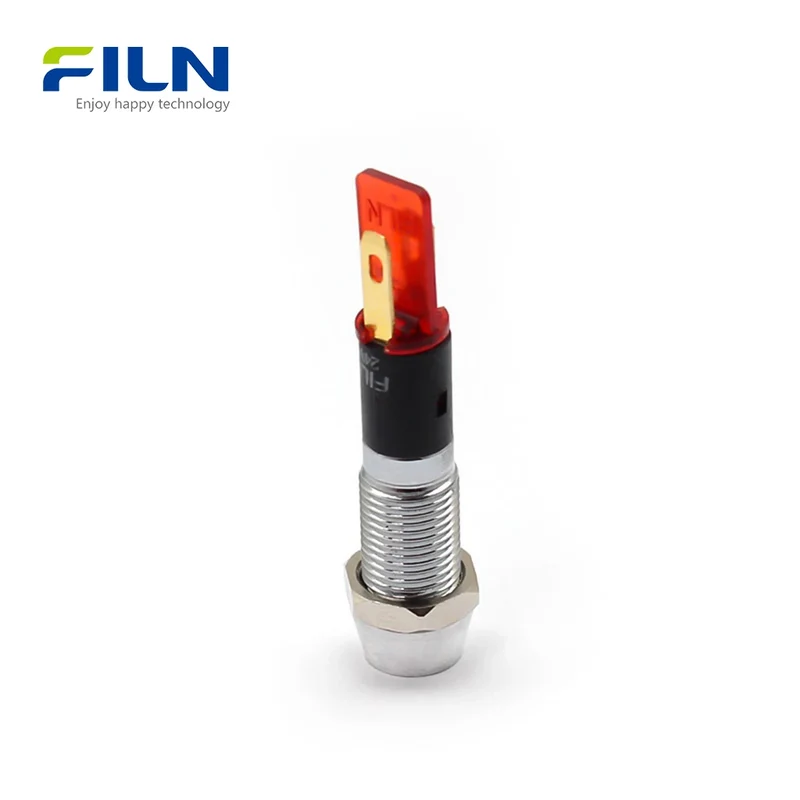

The 8mm Power Indicator Light (Model: FL1M-08CJ-2) is a high-performance industrial signaling solution designed for precision and durability. This metal concave head indicator features a robust IP67 waterproof rating, making it ideal for harsh environments. Supporting a wide voltage range from 12V, 24V to 110V and 220V, these lights are essential for industrial control panels, automation machinery, and electrical cabinets. With its non-polar LED beads and easy-to-install pin terminals, it ensures reliable status monitoring across various global industrial applications.

Quick Specifications

Mounting Hole 8mm (0.315 inch)
Voltage 12-24V / 110-220V (Customizable)
LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours
Wiring Type Pin Type (Terminal)

Rated Working Parameters

Rated Voltage Customized (3V-380V support)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

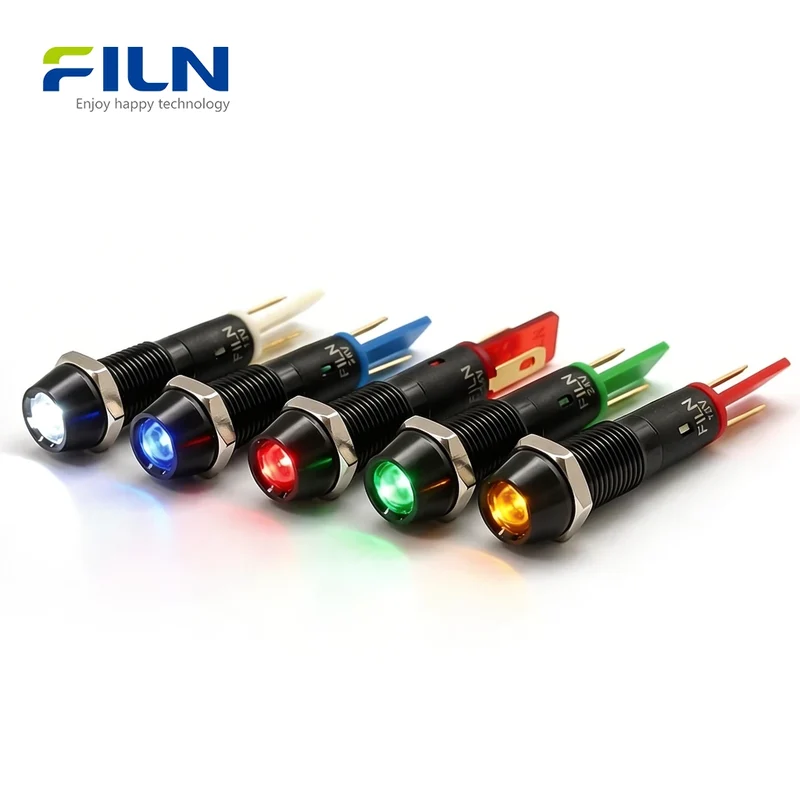

Housing Nickel-plated Brass / Stainless Steel (Silver/Black)
Lens Polycarbonate (PC)
Seal Ring O-type Silicone/Rubber Waterproof Ring
Terminal Solder Pin / Faston Terminal

General Characteristics

Application Industrial Power Indication
Operating Temperature -40℃ ～ +80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Parameter Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Key Features

  • LED High Brightness: Clear visibility even in high-ambient light environments.
  • Long Lifespan: Rated for over 50,000 hours of continuous operation.
  • IP67 Waterproof: Full protection against dust and temporary immersion in water.
  • Non-Polar Circuit: LED beads work regardless of positive/negative wiring.
  • Industrial Durability: Metal housing with smooth threads and included M8 nut.

Applications

  • Industrial control panels and monitoring systems
  • CNC machines and precision engineering tools
  • Electrical distribution cabinets and power supplies
  • Marine equipment and outdoor waterproof systems
  • Medical diagnostic devices and lab instruments

Installation Guide

  1. Drill an 8mm diameter hole in the mounting panel.

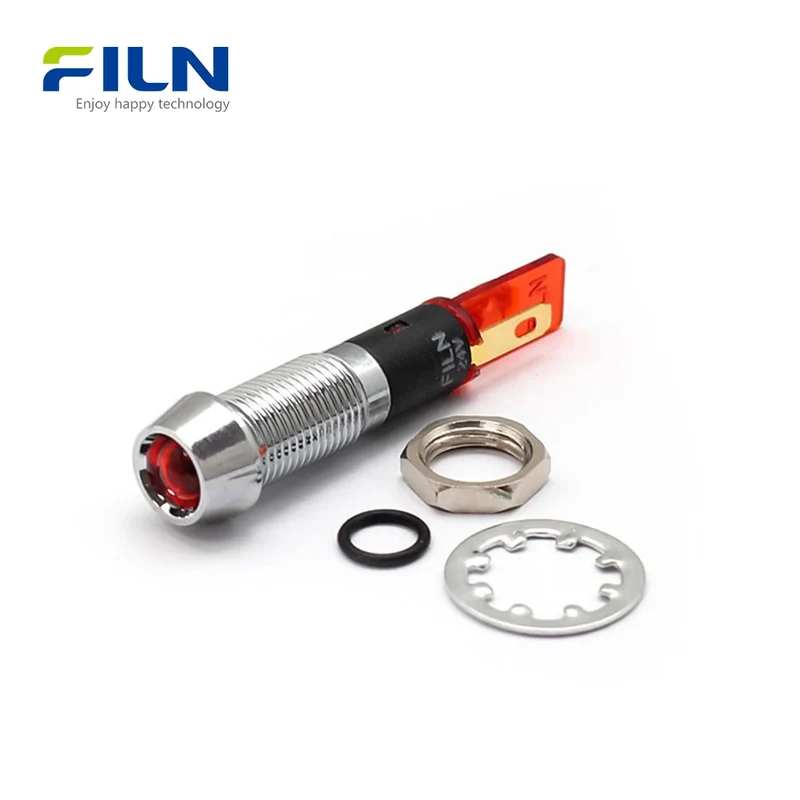

  2. Place the O-type waterproof ring onto the indicator light housing.
  3. Insert the indicator light through the hole from the front of the panel.
  4. Secure the light from the back using the provided M8 nut.
  5. Solder or connect wires to the pin terminals.

What Is an 8mm Power Indicator Light?

An 8mm Power Indicator Light is a compact visual signaling component used to convey the operational status of a circuit or machine. In industrial settings, these lights act as the primary interface between the machine's internal logic and the operator. Because they are IP67 rated, they prevent moisture and dust from entering the internal electronics, ensuring that critical status alerts—such as "Power On," "System Ready," or "Fault Detected"—are always visible, even in demanding factory floor conditions.

FILN Factory Direct Advantage

  • ✅ Professional Manufacturer: Direct from FILN factory.
  • ✅ Customization: Specialized voltage, wire length, and connector options.
  • ✅ Global Logistics: Fast worldwide shipping for B2B orders.
  • ✅ Certified Quality: Compliance with UL, CE, and RoHS standards.

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q: Is the 8mm indicator light waterproof?
A: Yes, it features an IP67 rating with an O-ring for full waterproof protection.

Q: Does the LED have a positive and negative pole?
A: No, our LED beads are non-polar, making wiring much easier.

Q: Can I get a specific voltage like 110V AC?
A: Absolutely, we support 12V, 24V, 110V, 220V, and other custom voltages.
