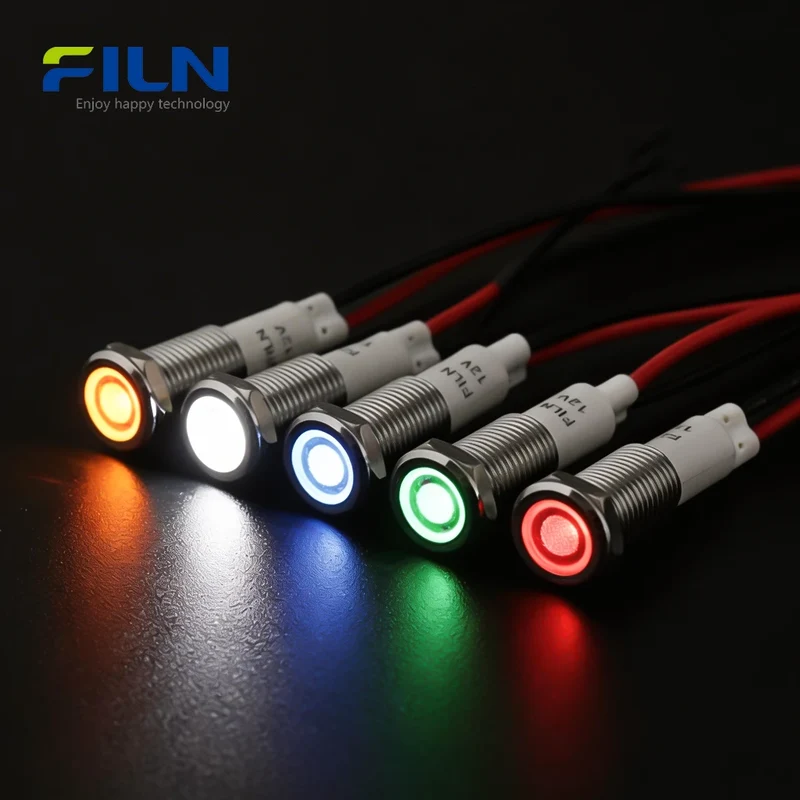

Red LED Indicator Light 10mm IP67 Waterproof 12V 24V 220V for Panel Mount FILN

1,73 €1,11 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

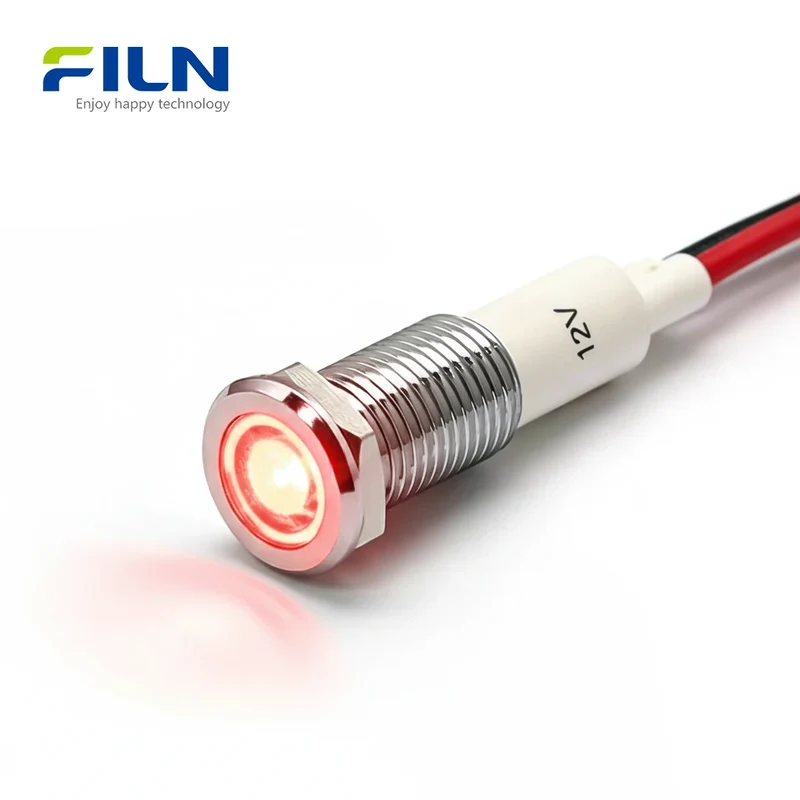

The Red LED Indicator Light (FL1M-10FW-1) is a premium 10mm panel-mount signal lamp designed for high-performance industrial and commercial signaling. Featuring ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/IP67 certifications, this indicator ensures global compliance and safety. Engineered by FILN, it utilizes a high-brightness Red LED housed in a durable metal flat-head shell (available in silver or black). It supports versatile voltages from 12V, 24V to 220V, with full customization options for wire length and connectors. Ideal for industrial control panels, CNC machinery, marine systems, and automation equipment, it offers superior visibility and long-term reliability in harsh environments.

Quick Specifications

Mounting Hole 10mm / 0.39 inch
Voltage 12V, 24V, 110V, 220V (Customizable)

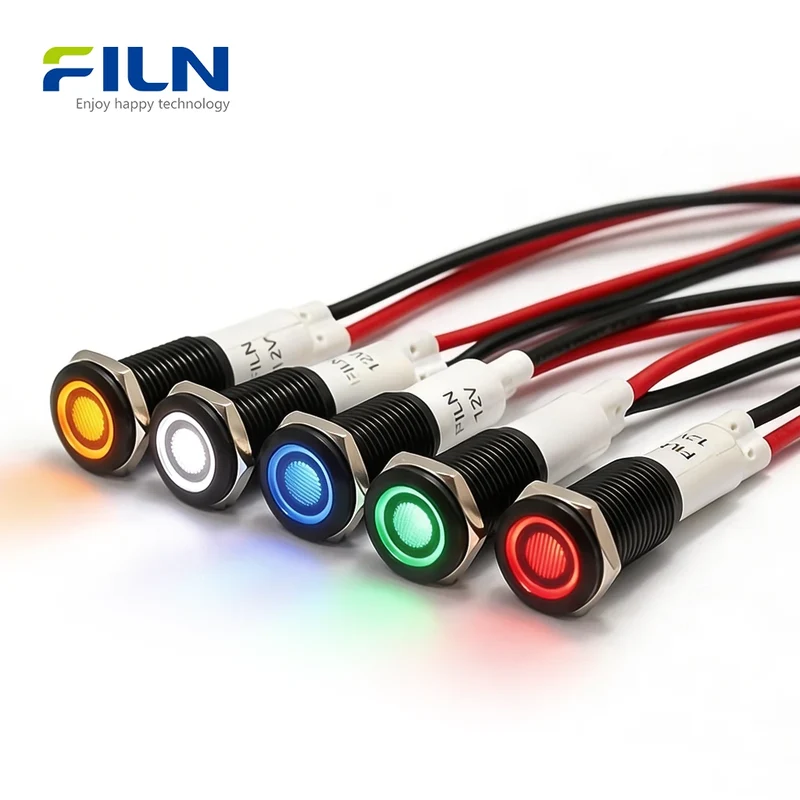

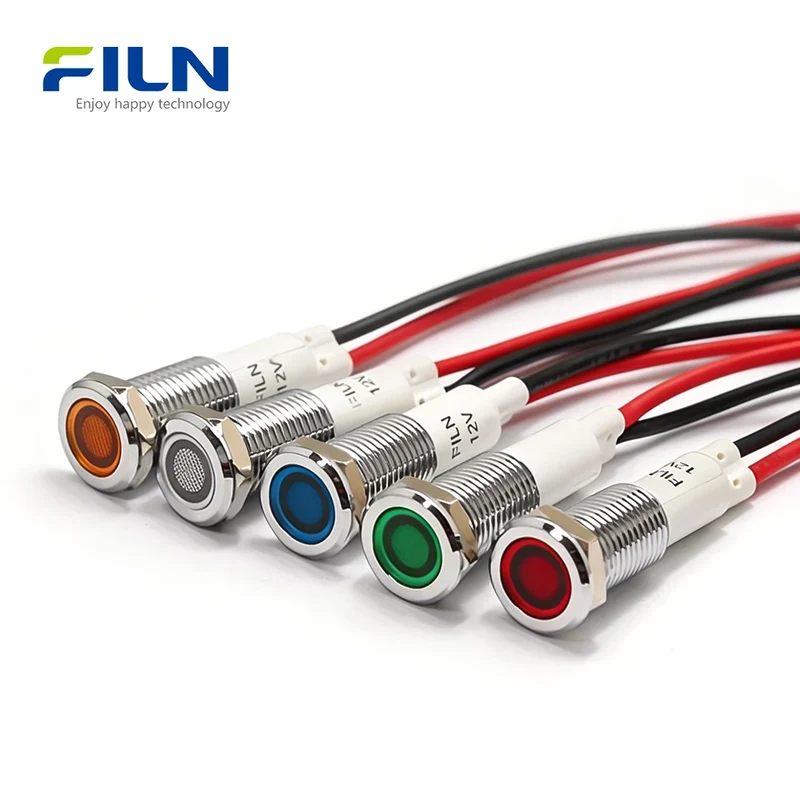

LED Color Red (Green, Yellow, Blue, White available)
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours
Wiring Type Wire Lead Type (Pre-wired)

Rated Working Parameters

Rated Voltage Customized (3V-380V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Brass with Nickel Plated / Black Aluminum
Lens Polycarbonate (PC)
Seal Ring Silica Gel / Nitrile Rubber
Terminal Pre-wired Lead
Wire Material UL1007 / UL1569 Standard Wire

General Characteristics

Part Name FL1M-10FW-1 Indicator Light
Operating Temp -40℃～80℃
Storage Temp -40℃～85℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa

Electric Property

Test Item Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Reliability Performance

High Temperature 80℃ for 96h (Function normal)
Low Temperature -40℃ for 96h (Function normal)
Temperature Cycling -40℃ → 25℃ → 85℃ (5 rounds)

Key Features

  • High-Brightness Red LED: Ensures clear visibility even in high-ambient light environments.
  • Flat Head Design: Aesthetic low-profile look, easy to clean, and prevents accidental damage.
  • Pre-Wired Advantage: Direct wire leads save installation time compared to traditional pin terminals.
  • Industrial Durability: Metal shell provides excellent anti-vandal and anti-corrosion properties.
  • IP67 Waterproof: Complete protection against dust and water immersion.

Wide Applications

  • Industrial Equipment: Control panels, CNC machines, and factory automation.
  • Automotive & Marine: Dashboard warning lights and ship navigation consoles.
  • Power Systems: Electrical cabinets, UPS systems, and distribution boxes.
  • Commercial Appliances: Coffee machines, vending machines, and medical devices.

Installation Guide

  1. Drill a 10mm (M10) hole in your mounting panel.
  2. Insert the LED indicator light into the hole from the front side of the panel.
  3. Place the O-ring seal between the head of the indicator and the panel for waterproof protection.
  4. Secure the unit by tightening the M10 hexagonal nut from the back of the panel.
  5. Connect the wire leads to your power source (Red for positive, Black for negative).

What Is a Red LED Indicator Light?

A red LED indicator light is a critical visual signaling component used to convey the operational status of machinery or circuits. In industrial settings, the color red typically signifies a "Stop," "Danger," or "Error" state, though it is also widely used for general power-on indication. Unlike traditional incandescent lamps, LED versions offer a lifespan of over 50,000 hours and consume minimal power. The flat-head design is particularly favored in modern panel design because it sits flush against the surface, reducing the risk of being snagged or broken by moving parts or operators.

FILN Factory Direct Supply

  • ✅ Global Manufacturing: Direct from FILN factory with over 20 years of expertise.
  • ✅ Full Customization: Custom wire length, connectors, and voltage (3V-380V).
  • ✅ Fast Shipping: Global logistics with rapid lead times.
  • 🔗 Official Website: www.filn.com
  • 📧 Contact Us: [email protected]

Frequently Asked Questions

Q1: What is the benefit of a flat head indicator?
A: Flat heads are more durable, easier to clean, and provide a sleek, modern aesthetic for control panels.

Q2: Can I use this 10mm indicator for outdoor equipment?
A: Yes, the IP67 rating makes it fully waterproof and dustproof for outdoor use.

Q3: Does it come with mounting accessories?

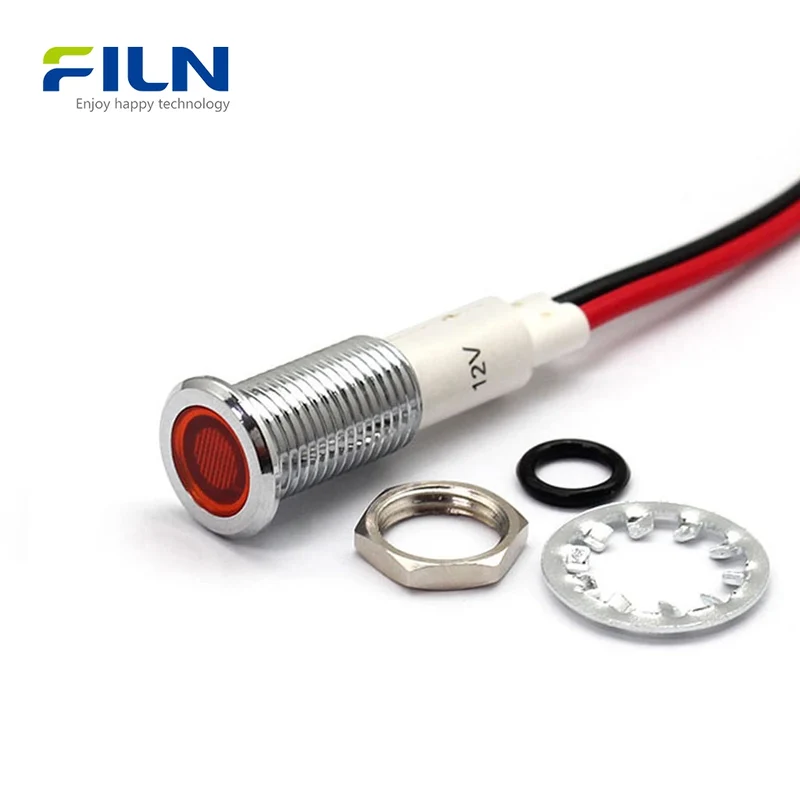

A: Yes, each light includes a high-quality M10 nut and a waterproof O-ring.

Q4: What is the difference between wire leads and pin terminals?
A: Wire leads are pre-connected, making installation faster and safer in vibrating environments.

Q5: Can I request a 120V AC version?
A: Absolutely, we support custom voltages from 3V up to 380V.

Q6: Is the metal shell resistant to salt spray?
A: Yes, our nickel-plated brass and black aluminum shells are designed for corrosive environments.

Q7: What is the total length of the wire?
A: The standard length is 200mm, but this can be customized to your requirements.

Q8: Does it support both AC and DC?
A: Most our LED indicators are bi-polar or designed for specific AC/DC ranges; please specify during order.

Q9: Are these UL certified?
A: Yes, FILN indicator lights carry UL, CE, and RoHS certifications.

Q10: Can I get other colors like Blue or White?
A: Yes, we offer Red, Green, Yellow, Blue, and White LEDs.
