Red/Blue Dual-color LED Indicator 8mm IP67 Waterproof 12V-220V Signal Light FILN

1,56 €1,06 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Note: The default wiring for the dual-color indicator lights is Common Cathode. If you require Common Anode, please leave a note or contact us.

Product Overview

The Red/Blue Dual-color LED Indicator (Model: FL1M-08CW-D) is a high-precision 8mm industrial signaling solution designed for compact spaces. This recessed head metal indicator features a unique dual-color capability, allowing it to emit two distinct signals from a single white transparent lens when powered. Engineered for versatility, it supports 12V, 24V, 110V, and 220V configurations with IP67 waterproof protection. Whether utilized in automation or marine systems, this dual-color LED provides clear visual feedback with common cathode or common anode options, ensuring seamless integration into complex electrical circuits.

Quick Specifications

Mounting Hole 8mm (0.31 inch)
Voltage 12-24V / 110-220V (Customizable)
LED Color Dual-color (Red/Blue, etc.)
Wiring Method Common cathode by default. Please leave a note or contact us if common anode is required.
Waterproof Rating IP65 / IP67

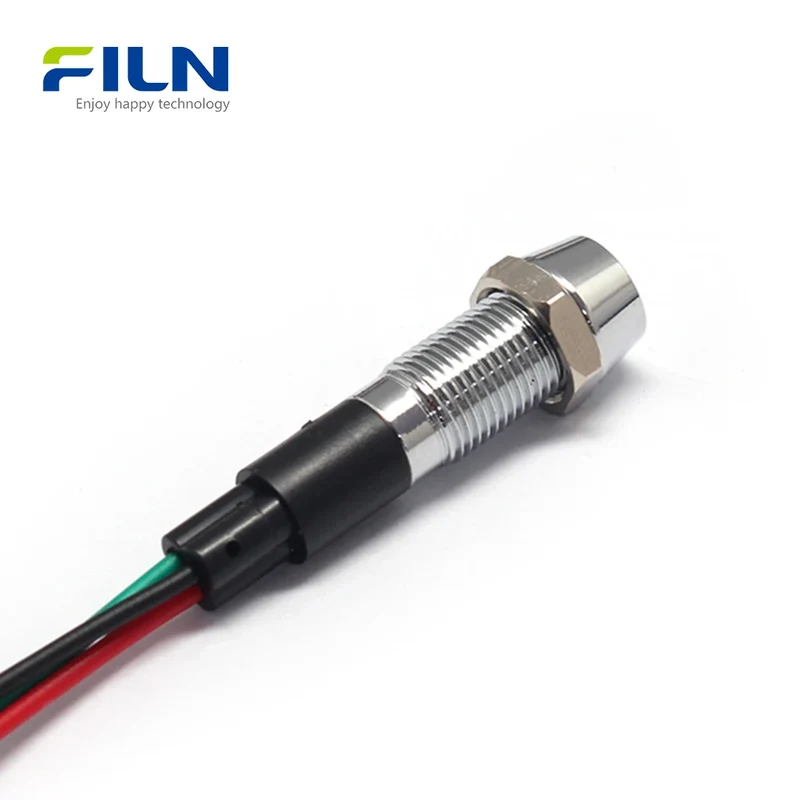

Wiring Type Wire Lead (20cm standard)

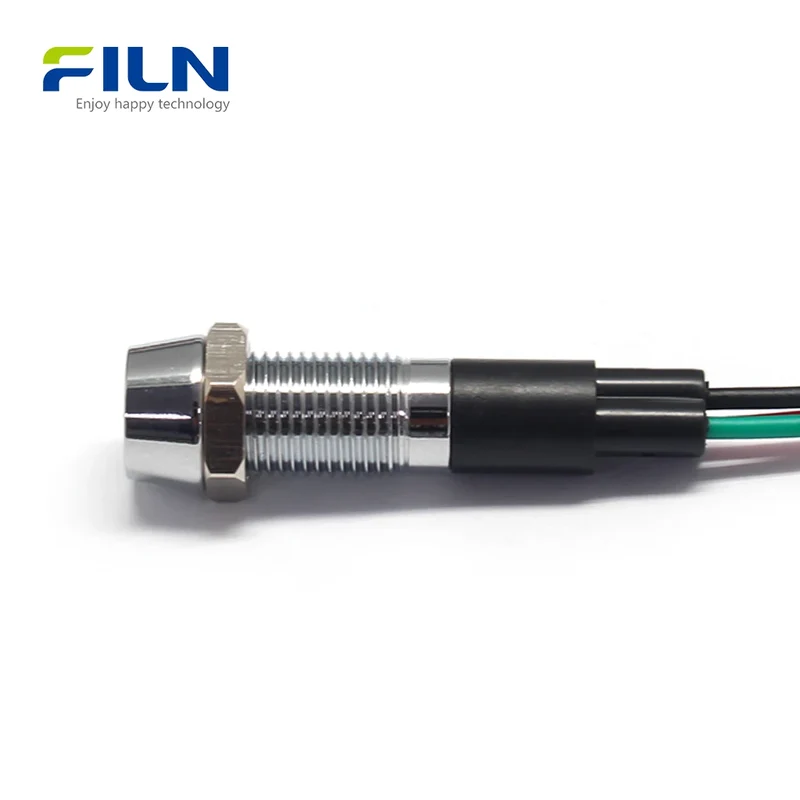

Head Type Recessed Head (Metal)

Rated Working Parameters

Rated Voltage Customized (3V to 380V)
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Nickel-plated Brass / Black Anodized Aluminum
Lens PC Plastic (Transparent)
Seal Ring Silicone (8mm O-ring included)
Wire Material UL1007 PVC Copper Wire (20cm)

General Characteristics

Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa
Waterproof Rating IP67

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Key Features

  • LED High Brightness: Superior visibility even in well-lit industrial environments.
  • Long Lifespan: Rated for 50,000 hours of continuous operation.
  • IP67 Waterproof: Full protection against dust and temporary water immersion.
  • Compact Recessed Head: Specifically designed for low-profile panels and small spaces.
  • Dual-color Versatility: Supports Common Cathode/Anode for multi-status signaling.

Applications

  • Industrial control panels and CNC machinery.
  • Automated manufacturing and robotics systems.
  • Marine dashboards and waterproof electrical cabinets.
  • Medical equipment and laboratory instrumentation.

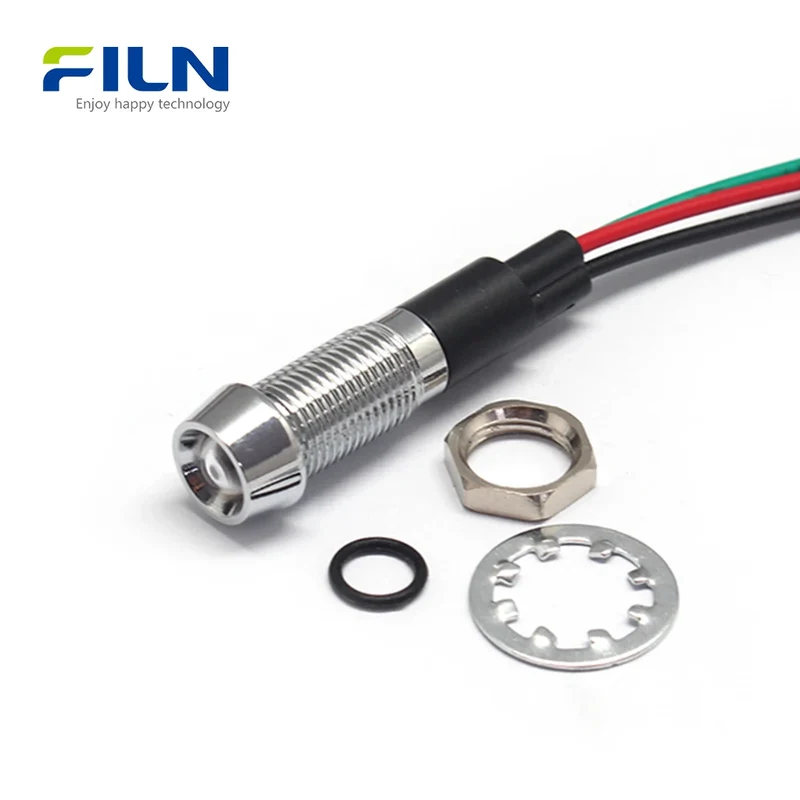

Installation Guide

  1. Drill an 8mm (M8) mounting hole in your equipment panel.
  2. Insert the LED indicator through the front of the panel.
  3. Place the provided 8mm O-ring seal between the head and panel for waterproofing.
  4. From the rear, secure the indicator by tightening the M8 hex nut on the smooth threads.
  5. Connect the 20cm wire leads to your power source (Red/Blue/Common wires).

What Is a Red/Blue Dual-color LED Indicator?

A Red/Blue Dual-color LED Indicator is an advanced signaling component that integrates two different colored LED chips within a single housing. In industrial settings, these are used to represent two different states (e.g., Red for "Error" and Blue for "Standby") without requiring two separate holes on a control panel.

Common Cathode vs. Common Anode: A Common Cathode setup shares a single negative wire (ground) for both colors, while a Common Anode shares a single positive wire. Choosing the right one depends on your controller's output signal. Compared to pin-type terminals, our pre-wired leads (20cm) offer faster installation and better protection against vibration in tight spaces.

FILN Factory Direct Advantage

  • Direct Manufacturer Pricing: No middleman costs.
  • Complete Customization: Voltage, wire length, and connectors tailored to your needs.
  • Global Logistics: Fast international shipping for B2B bulk orders.

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q: Is the 8mm dual-color LED waterproof?
A: Yes, it is rated IP67, making it suitable for marine and outdoor use.

Q: What is the benefit of the recessed head?
A: It prevents accidental contact and provides a sleek, low-profile look on control panels.

Q: Can I get a 110V version?
A: Yes, we support 12V, 24V, 110V, and 220V customized voltages.
