Red/Green Bi-color LED Indicator Light 8mm IP67 Waterproof for CNC FILN

1,56 €0,85 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Note: The default wiring for the dual-color indicator lights is Common Cathode. If you require Common Anode, please leave a note or contact us.

Product Overview

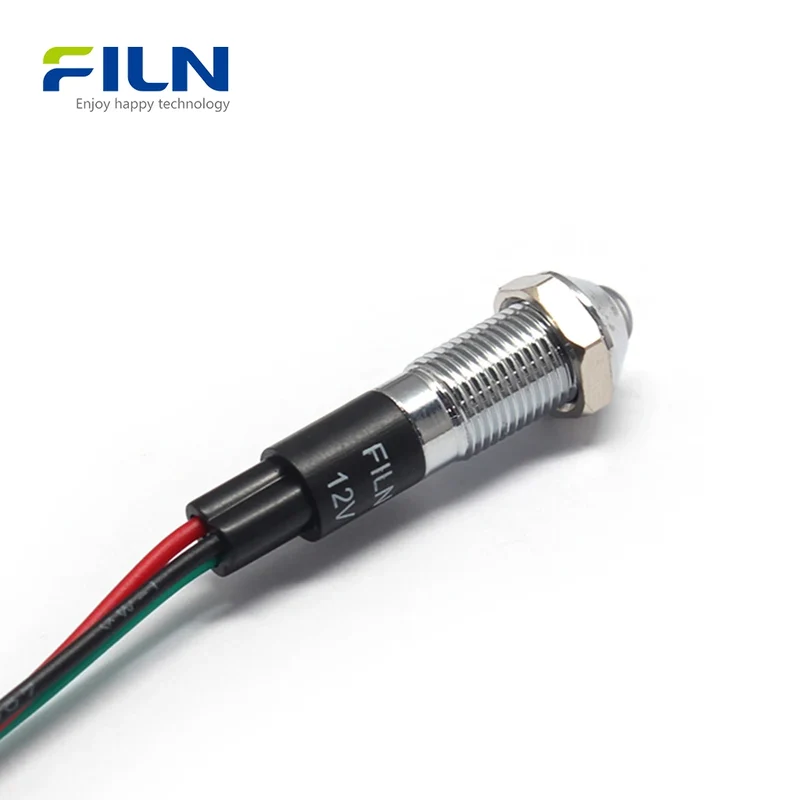

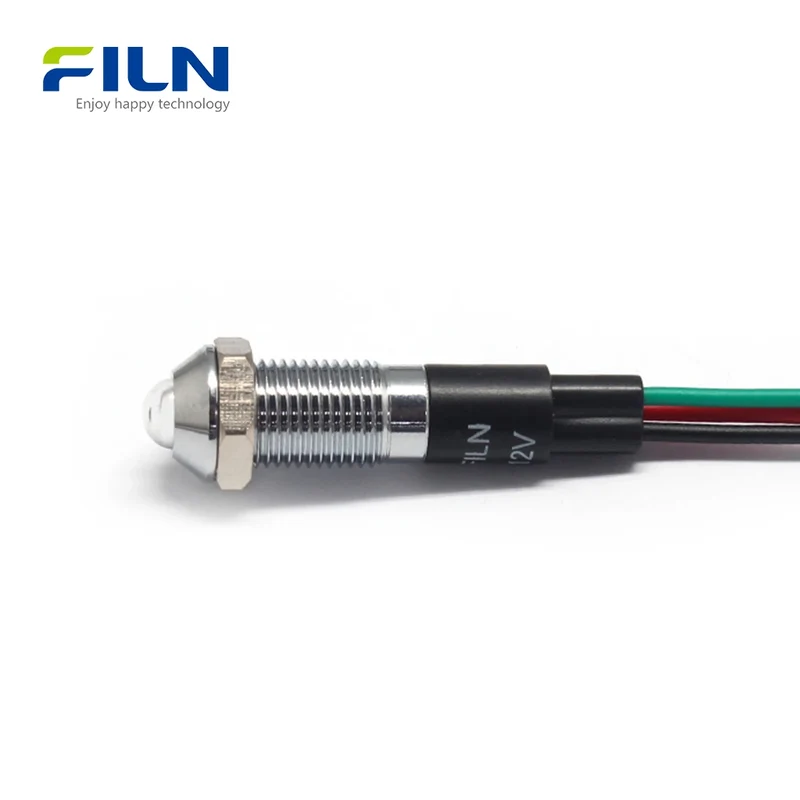

The Red/Green Bi-color Indicator (Model: FL1M-08SW-D) is a high-performance 8mm metal indicator light designed for critical status signaling in industrial environments. Featuring a high head design and robust IP67 waterproof rating, this dual-color LED provides clear visual feedback—appearing as a white transparent lens when powered off. This industrial-grade indicator is ideal for CNC machines, automation equipment, and electrical cabinets where space-saving 8mm mounting and multi-state signaling (Red/Green) are essential for operator safety and system monitoring.

Quick Specifications

Mounting Hole 8mm / 0.315 inch
Voltage 12V-24V / 110V-220V (Customizable)

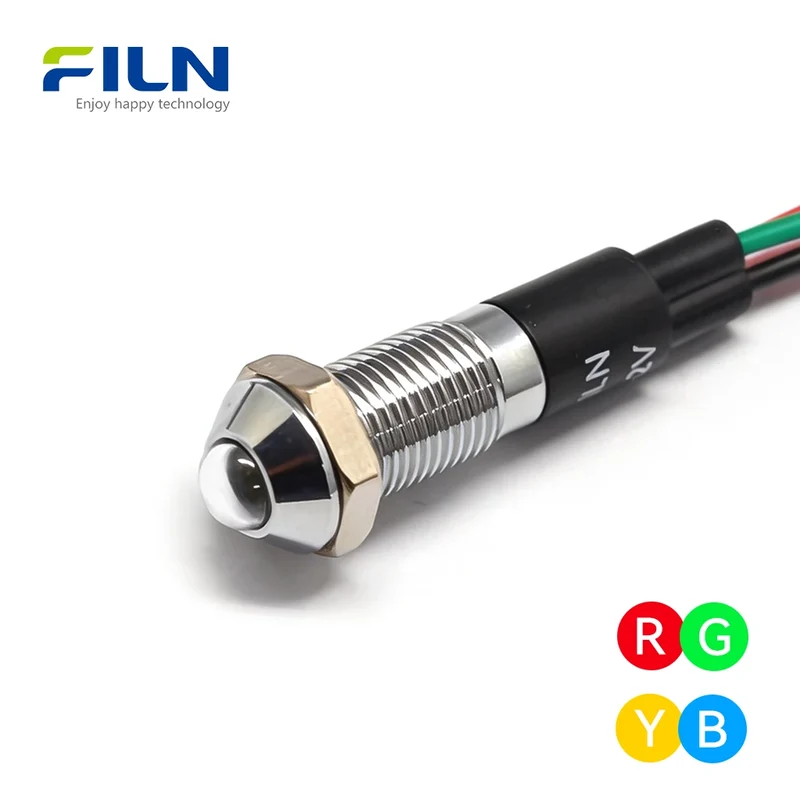

LED Color Red&Green/Yellow&Blue (Bi-color)
Wiring Method Common cathode by default. Please leave a note or contact us if common anode is required.
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours
Wiring Type Wire Lead (20cm Pre-wired)

Rated Working Parameters

Rated Voltage Customized per Order
Frequency (AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Nickel-plated Brass / Stainless Steel (Silver/Black)
Lens Polycarbonate (PC) - Transparent White
Seal Ring Silicone (O-ring included)
Terminal Pre-wired Lead
Wire Material UL Standard Copper Wire (20cm)

Key Features

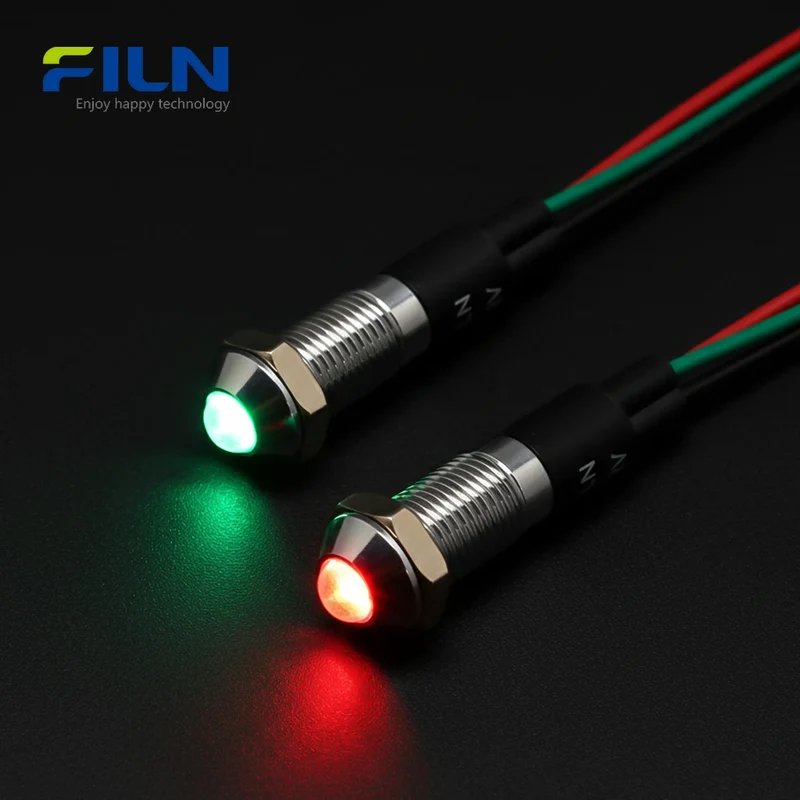

  • Dual-Color Functionality: Switches between Red and Green in one compact 8mm housing.
  • Robust Metal Construction: High head design available in Silver or Black finish.
  • Industrial Durability: IP67 waterproof rating with high-quality M8 hex nut and O-ring.
  • Flexible Circuitry: Available in Common Cathode or Common Anode configurations.
  • Space-Efficient: Pre-wired 20cm leads for easy installation in tight control panels.

Installation Guide

  1. Drill an 8mm diameter hole in the mounting panel.
  2. Place the silicone O-ring onto the indicator body.
  3. Insert the indicator through the hole from the front of the panel.
  4. From the rear, slide the M8 nut over the wires and tighten securely onto the threads.
  5. Connect the 20cm wire leads to your power source based on the common anode/cathode configuration.

What Is a Red/Green Bi-color Indicator?

A Red/Green Bi-color Indicator is a specialized LED signal light that houses two different color chips within a single 8mm unit. In industrial settings, these are essential for "Status vs. Fault" monitoring.

Wiring Definitions:
• Common Cathode: Both LEDs share a negative (-) terminal. Providing positive power to the separate leads activates the specific color.
• Common Anode: Both LEDs share a positive (+) terminal. Connecting the separate leads to the negative side completes the circuit for each color.

Wire Lead vs. Pin Type: Pre-wired indicators are preferred for small-space applications and fast assembly, as they eliminate the need for manual soldering onto pins at the mounting site, significantly reducing installation time in complex CNC or medical device panels.

FILN Factory Direct Supply

  • ✅ Manufacturer Direct: Skip the middleman for competitive pricing.
  • ✅ Voltage Customization: 12V, 24V, 110V, 220V, or custom requirements.
  • ✅ OEM Services: Custom wire lengths and specialized connectors.
  • ✅ Global Logistics: Fast international shipping for industrial projects.

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q: Is the 8mm bi-color indicator waterproof?
A: Yes, it features an IP67 rating, making it resistant to water and dust.

Q: What is the difference between Common Anode and Common Cathode?
A: Common Cathode shares a negative ground, while Common Anode shares a positive power line.

Q: Can I customize the wire length?
A: Yes, FILN offers customization for wire lengths beyond the standard 20cm.

Q: What voltage does this support?
A: It supports 12-24V and 110-220V, with customization available for other ranges.

Q: Does it include mounting accessories?

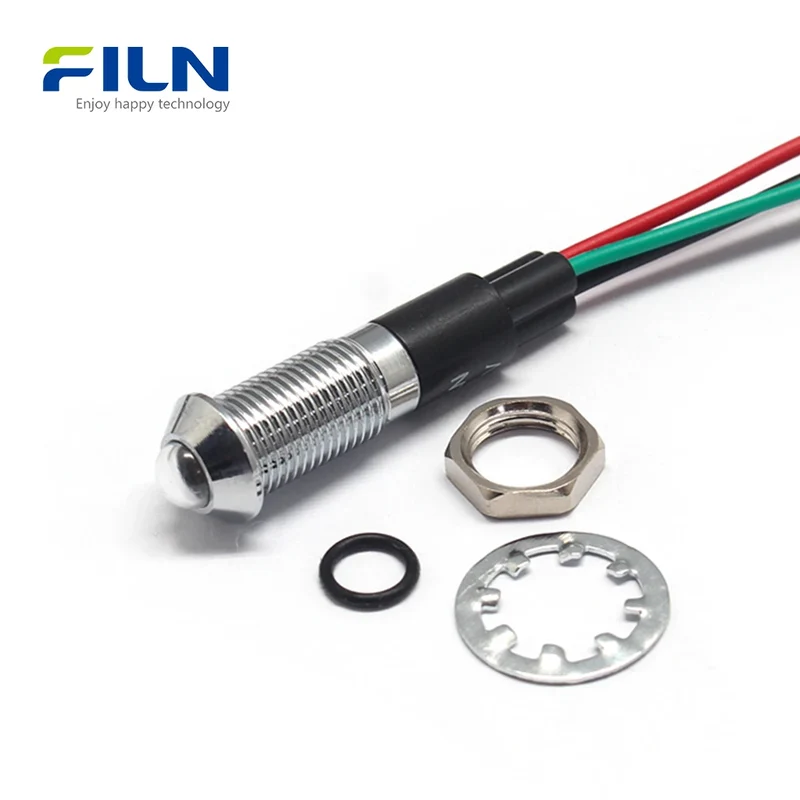

A: Yes, each indicator comes with an M8 nut and a silicone O-ring.

Q: What does the lens look like when off?
A: The lens is white and transparent when no power is applied.

Q: Are black housings available?

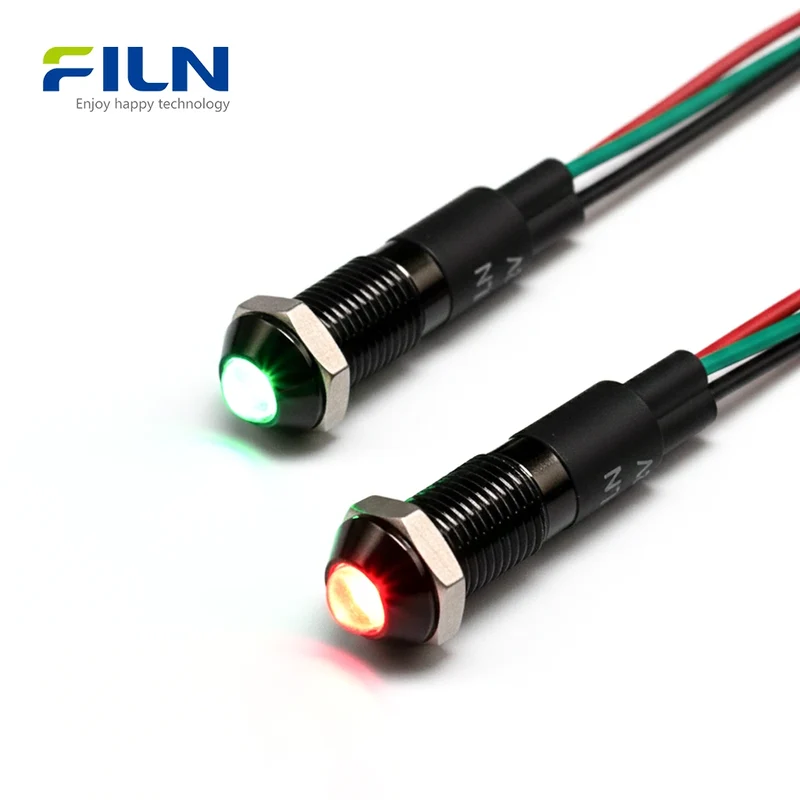

A: Yes, we offer both silver (nickel-plated) and black housing options.

Q: Is it suitable for CNC machines?
A: Absolutely, the 8mm compact size and metal durability are perfect for CNC panels.

Q: What is the lifespan of the LED?
A: The LED is rated for over 50,000 hours of continuous use.

Q: Can I get this with a plug connector?
A: Yes, we can customize wire lead ends with various industrial connectors.
