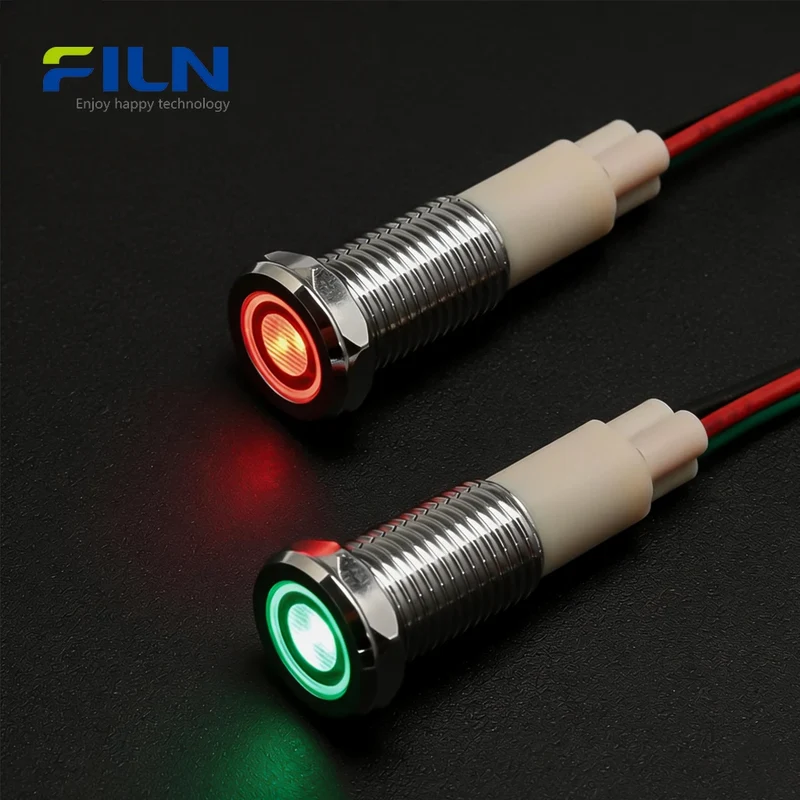

RG Indicator Light Dual Color Red Green LED IP67 Waterproof Metal Pilot Lamp for Industrial & Commercial Panels

Product Overview

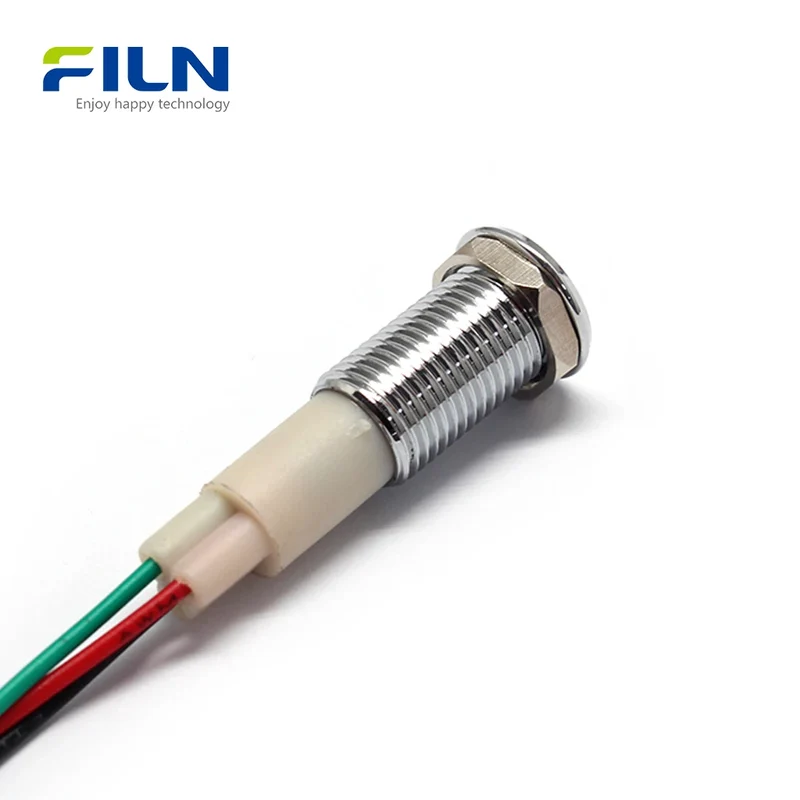

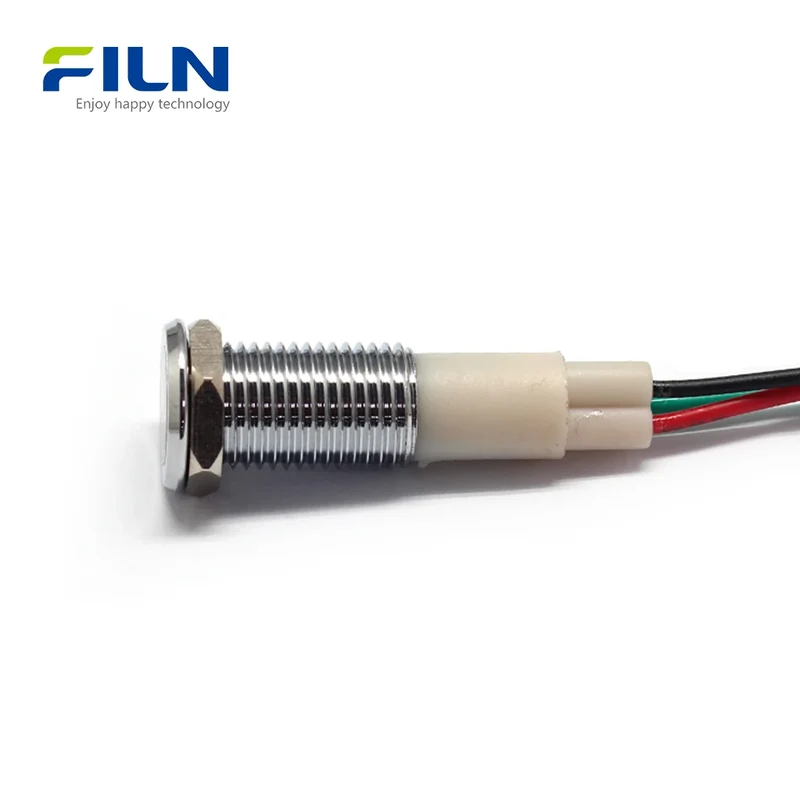

The RG indicator light (Red/Green dual-color) is a premium 10mm metal signal lamp designed for high-reliability status monitoring. Manufactured by FILN, these indicators carry prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/IP67 protection[cite: 1]. Available in Flat, High-dome, and Concave head styles, these units are ideal for industrial control panels, CNC machinery, marine systems, and medical devices. The dual-color LED integration allows for space-saving multi-status signaling (e.g., Go/Stop) within a single M10 mounting hole, featuring pre-wired leads for rapid installation and extreme industrial-grade durability.

Quick Specifications

Mounting Hole	10mm / 0.39 inch
Voltage	12-24V, 110-220V (Customizable)
LED Color	Red / Green Dual Color (RG)
Waterproof Rating	IP65 / IP67
Operating Temperature	-40℃ to +80℃
Lifespan	50,000 Hours
Wiring Type	Pre-wired Lead Type

Rated Working Parameters

Rated Voltage	Customized (AC/DC)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Stainless Steel / Nickel-plated Brass (Silver or Black)
Lens	Polycarbonate (PC)
Seal Ring	SIL Silicone (10mm O-ring included)
Terminal	Pre-wired copper leads
Wire Material	UL1007 / High-temperature PVC

General Characteristics

Application	Signal Indication
Operating Temp	-40℃～80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa
Waterproof Rating	IP67

Electric Property

Item	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown

Key Features

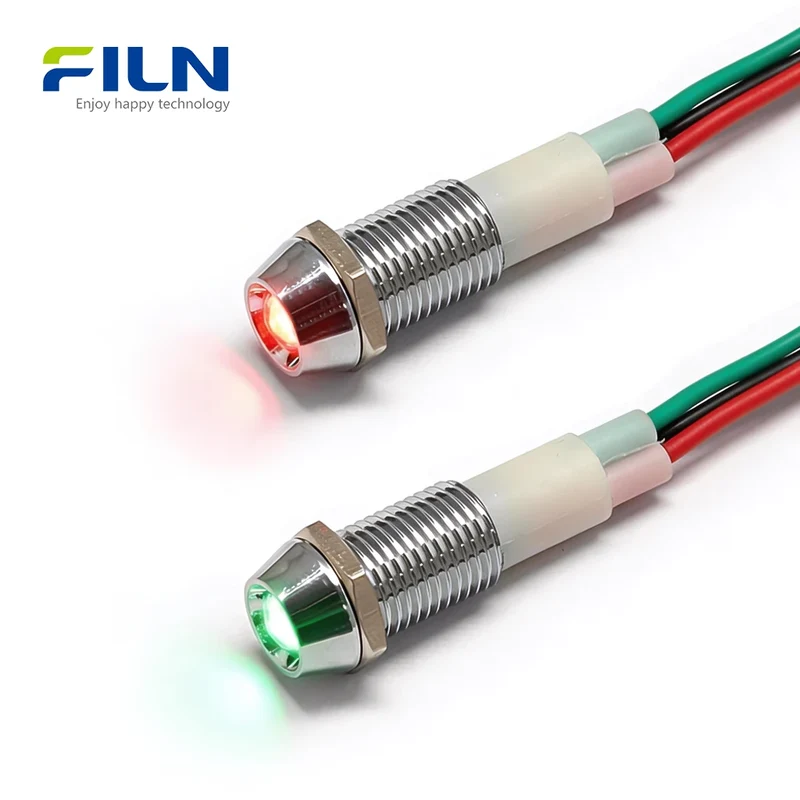

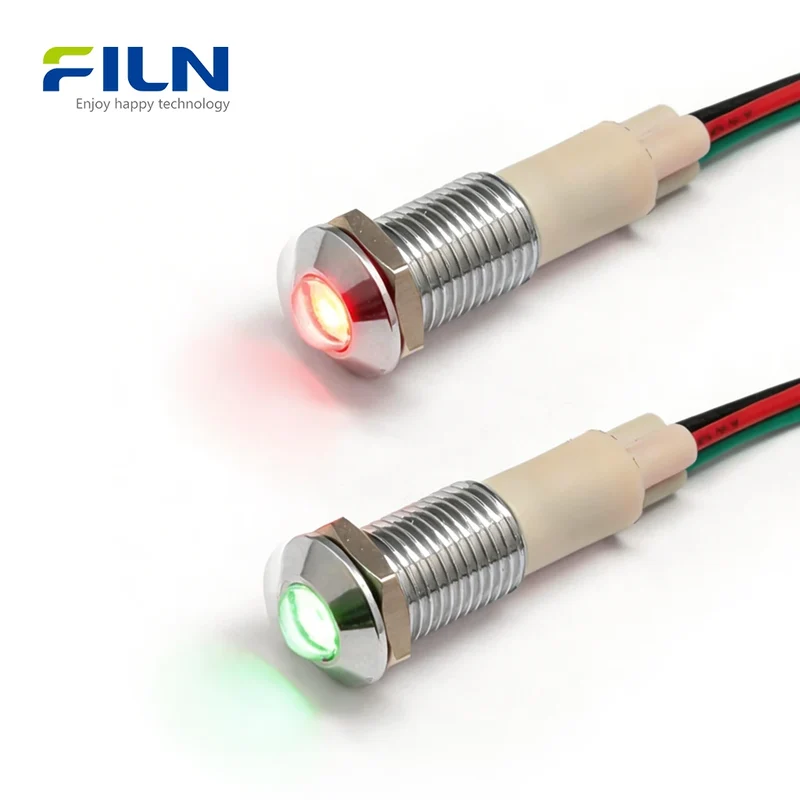

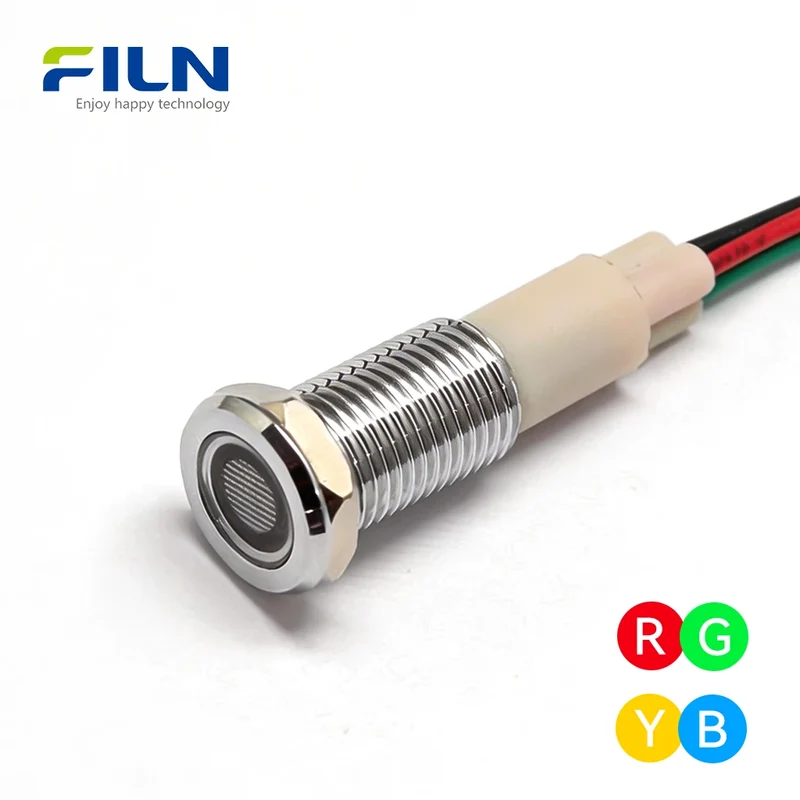

• Triple Head Designs: Available in Flat (FL1M-10FW-D), High-dome (FL1M-10SW-D), and Concave (FL1M-10CW-D) to suit diverse aesthetic and tactile requirements.
• Dual-Color Efficiency: Integrated Red/Green LED in a single housing saves panel space while providing clear bi-status signals.

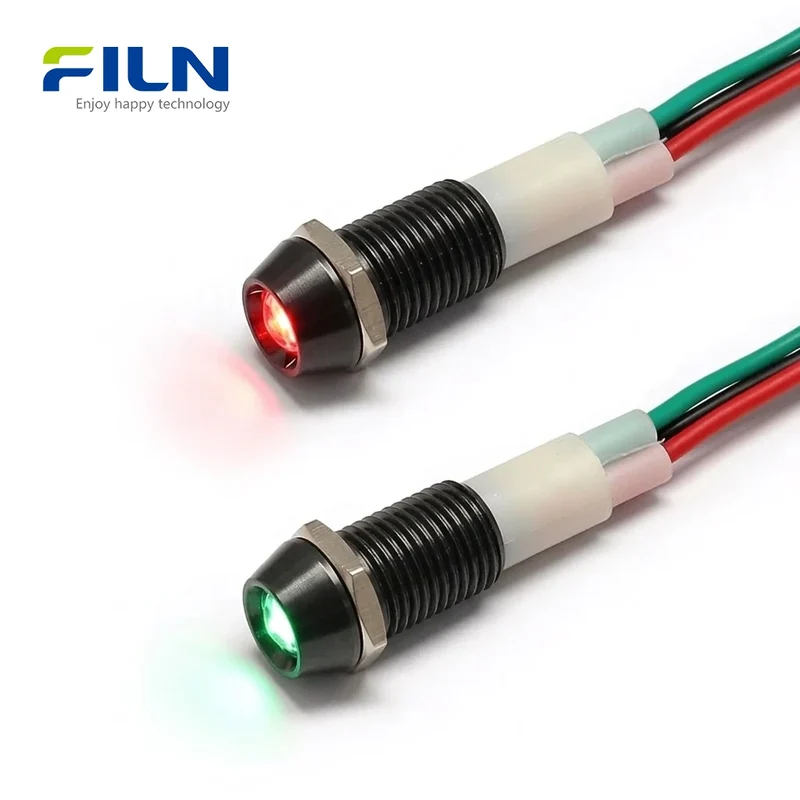

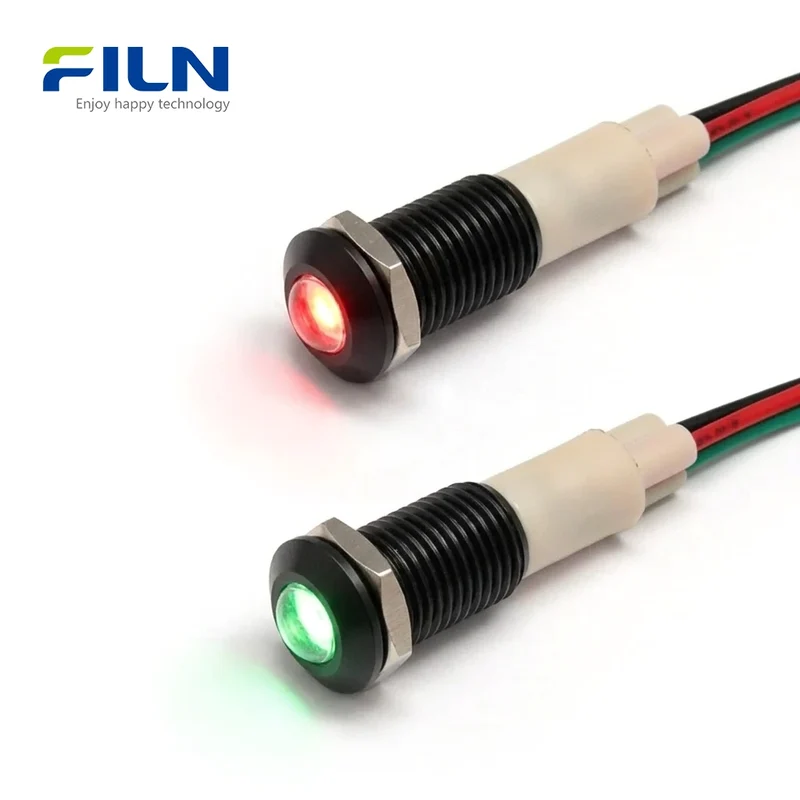

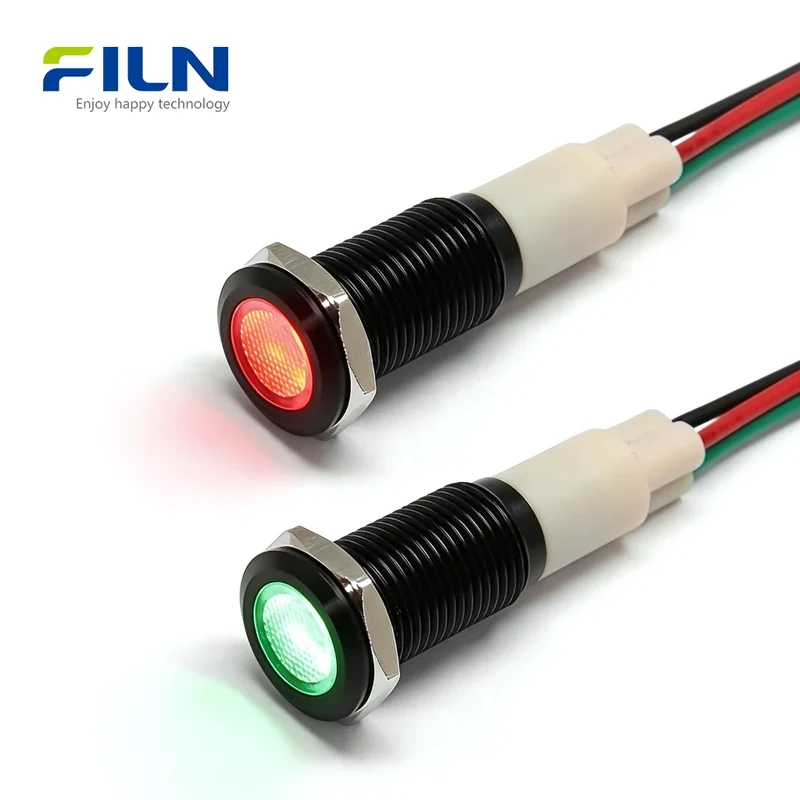

• Industrial Metal Housing: Choose between polished silver or sleek black finishes for extreme durability and corrosion resistance.

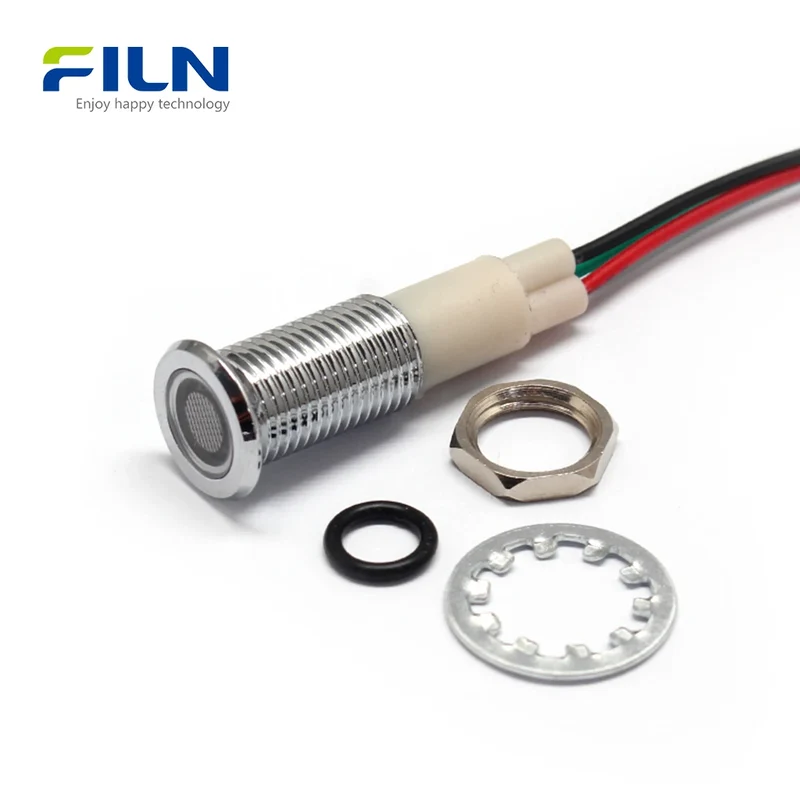

• Simplified Installation: Pre-wired tail design eliminates soldering, paired with a smooth M10 thread and waterproof O-ring for a perfect seal.
• Full Certification: Complying with UL, CE, and RoHS standards ensures safety for global market exports[cite: 1].

Applications

• Industrial Control & PLC Panels
• CNC Machines and Tooling Centers
• Commercial Coffee Machines & Kitchen Equipment
• Marine Dashboard & Ship Systems
• Automated Vending Solutions
• Medical Monitoring Devices
• EV Charging Stations

Installation Guide

1. Drill a 10mm (M10) diameter hole on the desired control panel surface.
2. Place the included silicone O-ring onto the indicator light body.
3. Insert the indicator light from the top/front of the panel.
4. Secure the unit from the back using the provided M10 hex nut; tighten until the O-ring compresses for an IP67 seal.
5. Connect the pre-wired leads to your 12V-24V or 110V-220V power source.

What Is an RG Indicator Light?

An RG indicator light is a specialized dual-color signal lamp that integrates two distinct LED chips (Red and Green) within a single 10mm housing. In industrial environments, these are essential for "Status Signaling." For example, a Green light indicates "System Normal" or "Ready," while a Red light signals "Error" or "Stop." Unlike standard pin-terminal lights, pre-wired lead indicators provide superior vibration resistance and faster assembly times, making them the preferred choice for high-intensity machinery and portable commercial equipment.

FILN Factory Direct Advantage

• ✅ Direct Manufacturing: Competitive B2B pricing and bulk availability.
• ✅ Full Customization: Tailored voltage, wire lengths, and specialized connectors[cite: 4].
• ✅ Global Shipping: Fast logistics support for international projects.

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: What head styles are available?
We offer Flat (flush mount), High-dome (maximum visibility), and Concave (lens protection).

Q2: Is custom voltage available?
Yes, we support everything from 3V to 380V customization[cite: 4].

Q3: How do I wire a dual-color RG light?
Our RG lights typically feature three wires (common cathode or anode) to switch between red and green states.

Q4: Can these withstand outdoor rain?
Yes, with an IP67 rating and the included O-ring, they are fully protected against heavy rain and dust.

Q5: What finishes are available?
Standard silver (nickel-plated) and professional black (electrophoresis) housings.

Q6: Are samples available for B2B clients?
Yes, contact our sales team at [email protected] for testing samples.

Q7: What is the screw thread pitch?
It uses a standard M10 fine thread for smooth installation.

Q8: Does the color fade over time?
No, we use high-quality PC lenses that are UV-resistant and won't yellow.

Q9: Is the wiring heat resistant?
Yes, we use UL-standard high-temperature resistant copper wires.

Q10: Are these suitable for marine use?
Yes, the stainless steel option is highly resistant to salt spray and corrosion.
