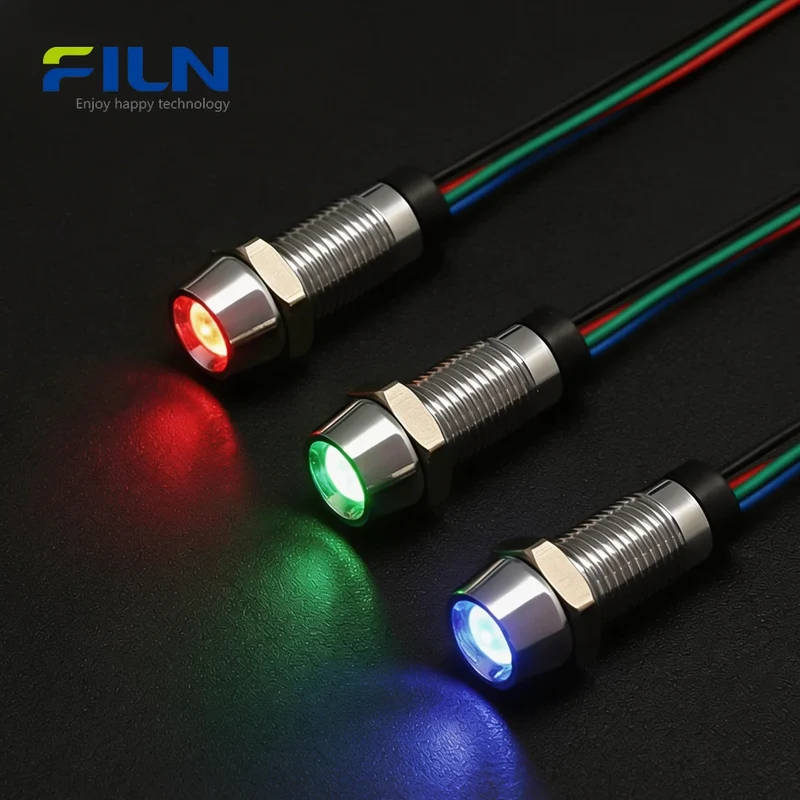

RGB LED Indicator Light 8mm IP67 Waterproof Concave Metal Pilot Lamp FILN

Note: The default wiring for the dual-color indicator lights is Common Cathode. If you require Common Anode, please leave a note or contact us.

Product Overview: 8mm RGB LED Indicator Light

The RGB LED Indicator Light (Model: FL1M-08CW-T-1) is a high-precision 8mm metal signaling solution designed for versatility and durability. Featuring a unique concave head type and a robust IP67 waterproof rating, this indicator is engineered for both industrial control panels and creative consumer electronics. With 12-24V and 110-220V support, it offers tri-color RGB and RGY functionality in Common Anode or Common Cathode configurations. The 20cm wire lead design ensures easy installation compared to traditional pin types, providing a secure, vibration-resistant connection in any environment.

Quick Specifications

Mounting Hole	8mm (0.315")
Voltage	12-24V, 110-220V (Customizable)

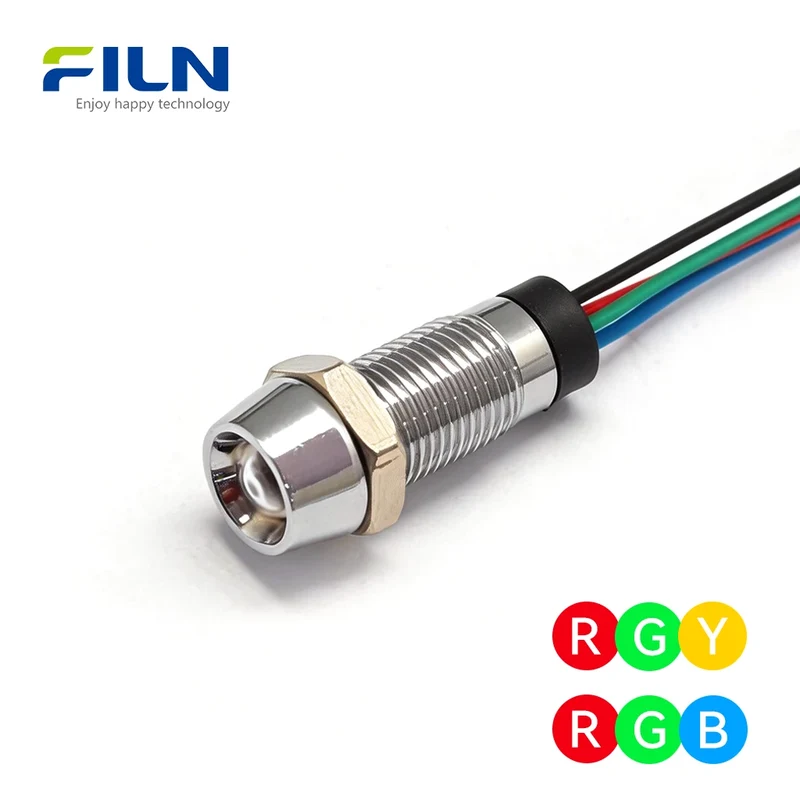

LED Color	RGB, RGY (Red, Green, Yellow, Blue, White)
Wiring Method	Common cathode by default. Please leave a note or contact us if common anode is required
Waterproof Rating	IP65 / IP67
Operating Temperature	-40℃～80℃
Lifespan	50,000 Hours
Wiring Type	Wire Lead (20cm Standard)

Rated Working Parameters

Rated Voltage	Customized (AC/DC)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Housing	Brass with Silver/Black Chrome
Lens	Polycarbonate (PC)
Seal Ring	Silicone O-ring
Terminal	Direct Wire Output
Wire Material	UL standard PVC wire

General Characteristics

Application	Universal Status Indicator
Part Name	FL1M-08CW-T-1
Operating Temperature	-40℃～80℃
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Property	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown/flashover

Durability Characteristics

Test	Condition	Requirement
Continuous Working Life	30mA 1000h	50,000 hours

Resistant Performance

Test Type	Condition & Requirement
High Temperature	80℃ for 96h
Low Temperature	-40℃ for 96h
Moisture Resistance	40℃, 90-95%RH for 96h
Temperature Cycling	-40℃ → 25℃ → 85℃ (5 Cycles)

Key Features

• LED high brightness: Clear visibility for tri-color RGB/RGY status indication.
• Long lifespan: Reliable performance exceeding 50,000 operating hours.
• IP67 waterproof: Fully sealed concave head with silicone O-ring protection.
• Easy installation: Direct 20cm wire leads eliminate complex soldering.
• Industrial grade reliability: Robust metal housing in silver or black chrome finish.

Applications

• Industrial control panels & CNC machinery
• Automation equipment & Electrical cabinets
• Marine dashboard systems & Automotive modifications
• Commercial kitchen equipment & Medical devices
• Smart home displays & DIY electronics projects

Installation Guide

1. Drill an 8mm diameter hole in the mounting panel.
2. Insert the RGB LED indicator light from the front side of the panel.
3. Ensure the O-ring is positioned between the indicator head and the panel surface.
4. Slide the M8 nut onto the wire leads from the back of the panel.
5. Tighten the nut onto the smooth metal threads until the indicator is securely fixed.

What Is an RGB LED Indicator Light?

An RGB LED Indicator Light is a multi-color signal lamp that combines Red, Green, and Blue diodes into a single 8mm housing. In industrial and consumer equipment, it acts as a space-saving status messenger. Unlike standard single-color lamps, a tri-color indicator can represent multiple system states (e.g., Green for 'Ready', Red for 'Error', and Blue for 'Processing') using one mounting hole. The choice between wire lead and pin type is crucial; pre-wired leads offer faster installation and better protection against moisture ingress, whereas pins are better suited for PCB mounting.

FILN Factory Direct Supply

Take advantage of direct manufacturer pricing and customization from FILN.

• Factory Direct Pricing
• Voltage & Wire Length Customization
• Connector & Shell Finish Options
• Fast Global Shipping

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. Can I use this RGB LED Indicator Light in outdoor equipment?
Yes, with its IP67 rating and metal housing, it is built to withstand rain and dust.

2. What is the benefit of the concave head design?
The concave head helps focus the light and provides a sleek, low-profile look on the panel.

3. Can I choose between a silver or black shell?
Yes, we offer both silver chrome and black anodized metal housings.

4. What is the wire length of this indicator?
The standard wire length is 20cm, but we can customize this for your specific project.

5. Is it easier to use wire leads or pin terminals?
Wire leads are generally preferred for panel mounting as they are easier to connect to power sources without soldering on the panel.

6. Does it come with mounting accessories?

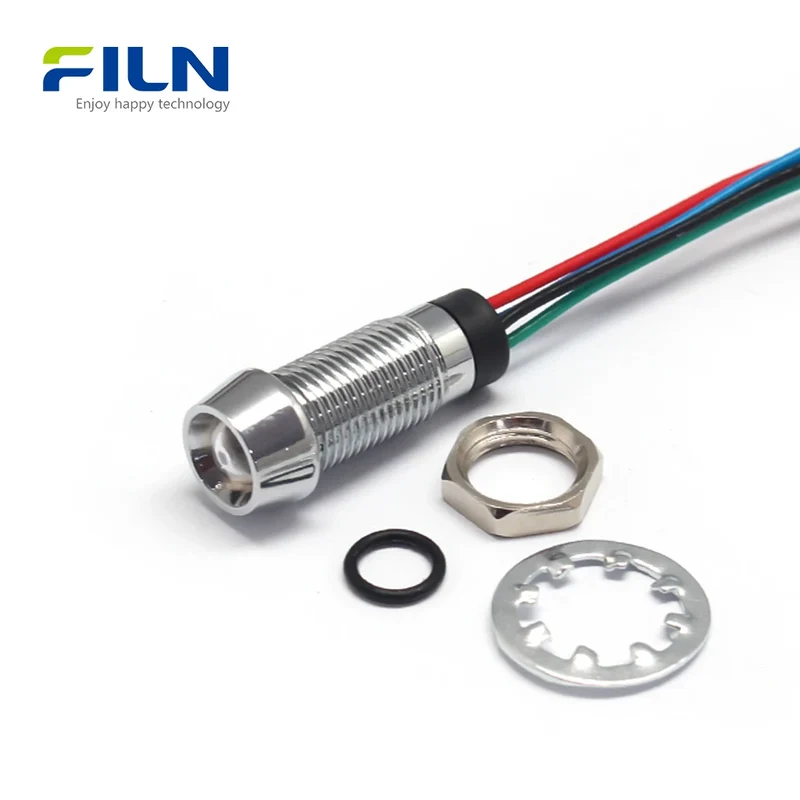

Yes, every unit includes a waterproof O-ring and a high-quality M8 nut.

7. Is the thread quality smooth for installation?
Yes, our M8 threads are precision-machined for smooth, effortless nut installation.

8. Can I request a 110V version for home applications?
Absolutely. We support customization for 12V, 24V, 110V, and 220V.

9. What colors can the RGB version produce?
By combining the R, G, and B leads, you can produce various mixed colors including White, Cyan, and Magenta.

10. Does this indicator support Common Anode or Common Cathode?
We offer both options to ensure compatibility with your specific circuit logic.
