Anbieter: 14MM Metal Indicator Light

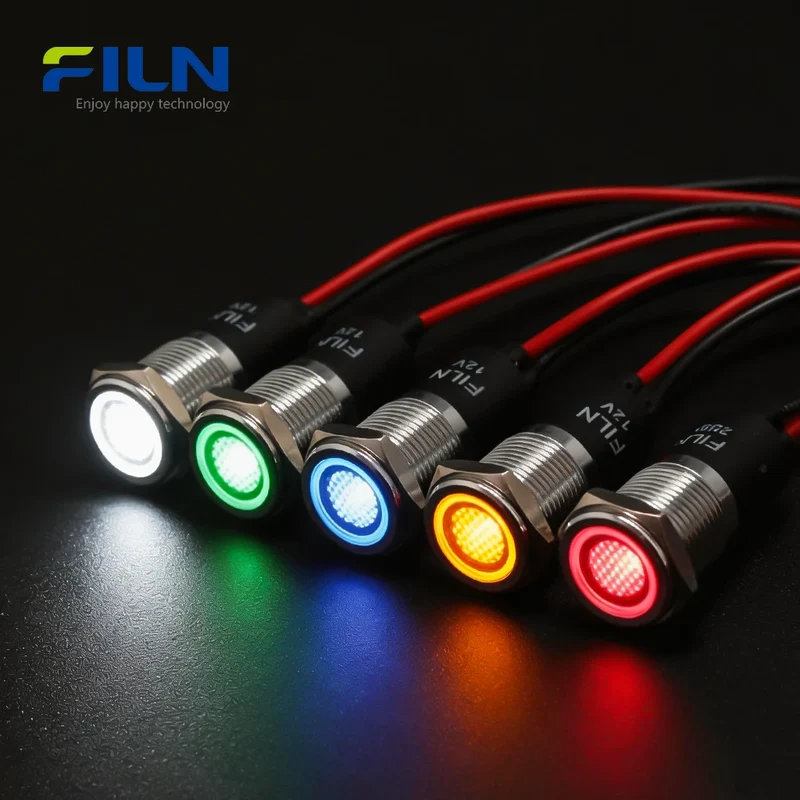

Signal Indicator Light with wire Metal Indicator Lamp IP67 Waterproof LED for Medical & Marine FILN

2,00 €1,13 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

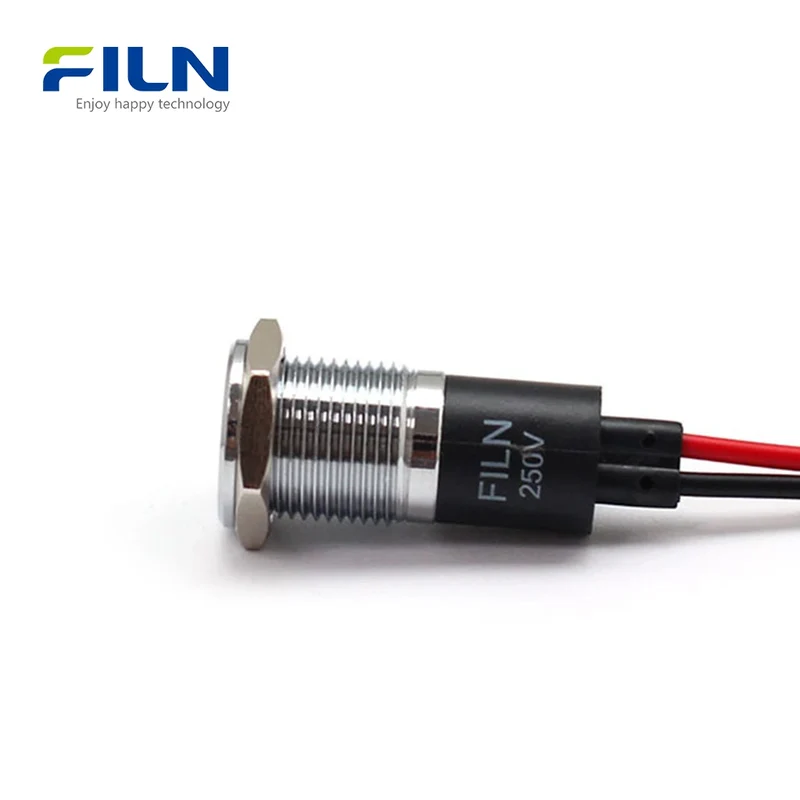

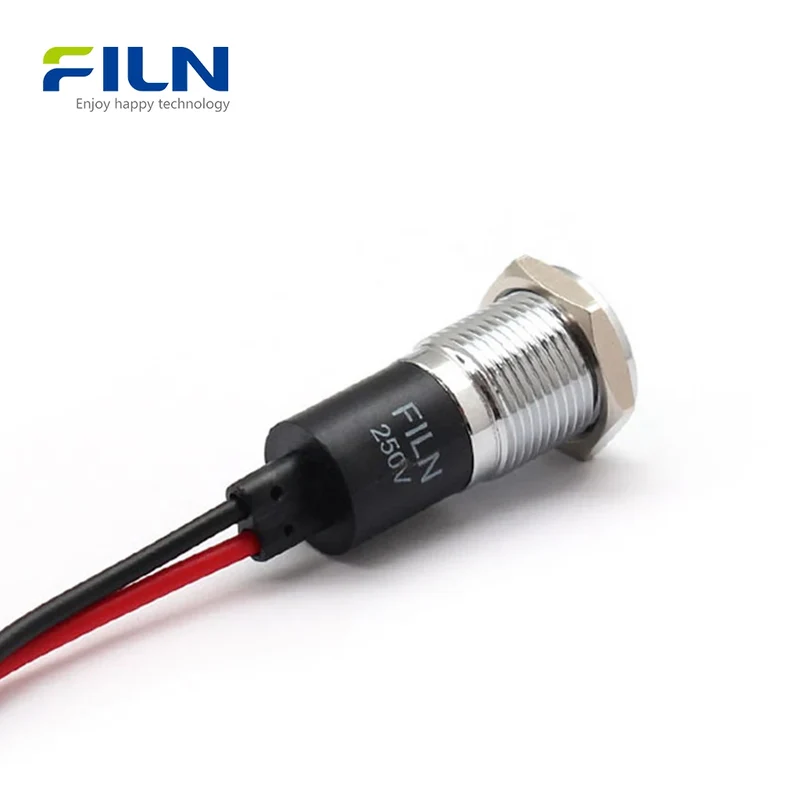

The 14mm signal indicator light (Model: FL1M-14FW-1) is a high-performance signaling component manufactured by FILN. This IP65/IP67 waterproof LED indicator features a durable metal flat-head design in silver or black finishes, offering a flush, aesthetic appearance that is easy to clean and resistant to impact. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, it ensures global compliance for industrial control panels, medical devices, marine systems, and new energy equipment. With support for 12V to 220V and customizable 15cm wire leads, it provides long-lasting reliability and high-brightness visibility for critical status monitoring.

Quick Specifications

Mounting Hole 14mm (0.55")
Voltage 12V, 24V, 110V, 220V (Customized)

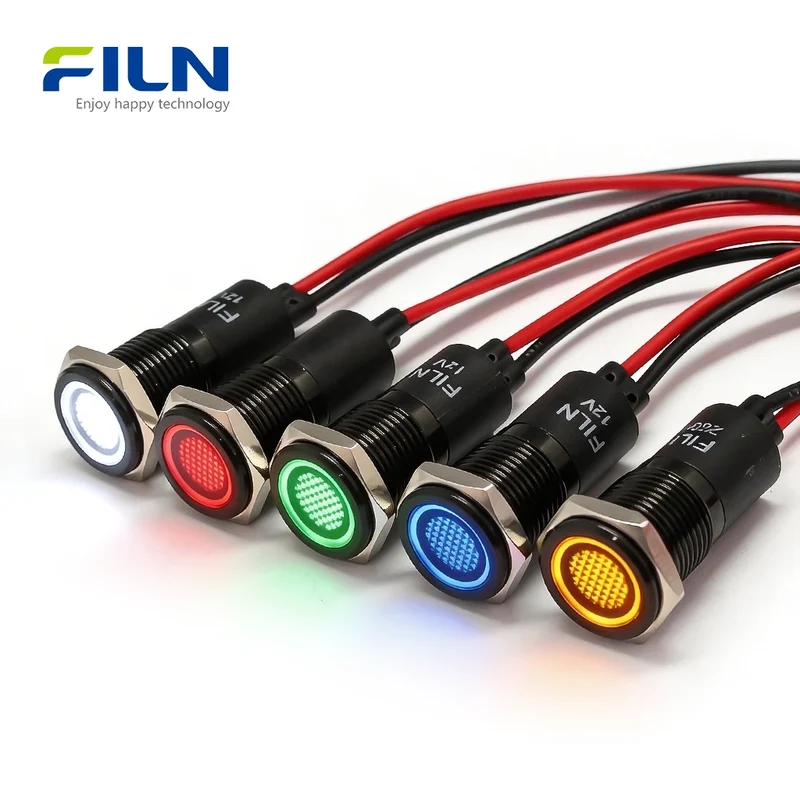

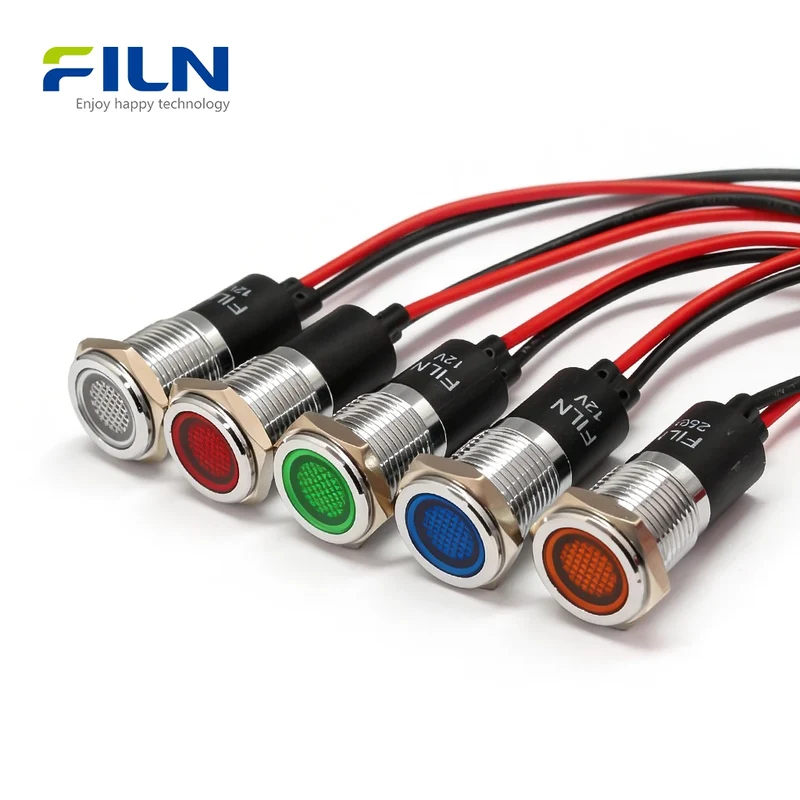

LED Color Red, Green, Yellow, Blue, White
Waterproof Rating IP65 / IP67
Wiring Type Wire Lead (15cm Standard)
Operating Temperature -40℃～80℃
Lifespan 50,000 Hours

Rated Working Parameters

Rated Voltage 3V - 380V (Customized)
Frequency(AC) 50～60Hz
Rated Current ≤20mA

Component Materials

Housing Brass (Silver or Black Chrome)
Lens Polycarbonate (PC)
Seal Ring Silica Gel O-Ring
Terminal Pure Copper
Wire Material UL1007 22AWG (15cm)

General Characteristics

Application Universal Signal Indication
Part Name FL1M-14FW-1 Signal Light
Operating Temperature -40℃～80℃
Storage Temperature -40℃～85℃
Relative Humidity ≤85% at +40℃
Ambient Temperature 5~35℃
Air Pressure 86~106Kpa
Waterproof Rating IP65/67

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown or flashover

Durability Characteristics

Continuous Working Life Test Condition Requirement
LED Reliability 30mA 1000h 50,000 hours

Resistant Performance

Test Type Parameters
High Temperature 80℃ for 96h
Low Temperature -40℃ for 96h
Moisture Resistance 40℃, 90-95%RH for 96h
Temperature Cycling -40℃ → 25℃ → 85℃ (5 Rounds)

Key Features

  • Premium Flat Head Design: Provides a sleek, flush mount profile that is aesthetically pleasing and reduces the risk of accidental damage.
  • Dual-Color Shell Options: Available in high-grade silver or black chrome-plated metal for various equipment styles.
  • Extended Lifespan: High-brightness LED chip ensures over 50,000 hours of continuous service.
  • Pre-Wired Convenience: Comes with 15cm UL-certified wire leads for rapid installation without the need for soldering.
  • Enhanced IP67 Waterproofing: Equipped with a precision-engineered 14mm O-ring and smooth-threading M14 nut.

Applications

  • Industrial: CNC machines, automation control panels, electrical cabinets.
  • Medical & Testing: Diagnostic equipment, laboratory instruments, testing devices.
  • Marine & Transportation: Yacht dashboards, marine control systems, EV charging piles.
  • Energy: New energy storage systems, power distribution units.

Installation Guide

  1. Prepare a 14mm diameter mounting hole on the panel surface.
  2. Ensure the waterproof O-ring is placed on the indicator body.
  3. Insert the 14mm signal indicator light from the front of the panel.
  4. Thread the M14 nut from the back of the panel onto the smooth metal threads.
  5. Tighten the nut securely to compress the O-ring for a waterproof seal.
  6. Connect the 15cm pre-wired leads to the corresponding power circuit.

What Is a Signal Indicator Light?

A signal indicator light is a critical visual component used to communicate the status of electrical circuits or mechanical processes to an operator. In industrial and medical environments, these lights act as the primary interface for safety and monitoring. The FL1M-14FW-1 model utilizes a flat-head design, which is specifically chosen for applications where a flush surface is required to prevent debris buildup or to match modern aesthetic standards. Unlike pin-type models (FL1M-14FJ-1), which require soldering, the wire-lead (FW) version offers pre-installed 15cm cables, significantly reducing assembly time and labor costs while providing a more secure connection in high-vibration environments like marine vessels or heavy machinery.

FILN Factory Direct Supply

FILN is a professional manufacturer providing factory-direct pricing and high-end customization services for global B2B clients.

  • Voltage Customization: Wide range from 3V to 380V.
  • Wire Customization: Length, gauge, and connector types tailored to your specs.
  • Shell Customization: Multiple metal finishes and head styles.
  • Fast Global Shipping: Efficient delivery for project-based orders.

Official Website: www.filn.com
Email: [email protected]

Frequently Asked Questions

1. Can I use this 14mm signal indicator light for marine dashboards?

Yes, with its IP67 waterproof rating and metal housing, it is perfect for marine and yacht applications.

2. What is the difference between FL1M-14FW-1 and the FJ-1 pin-type model?

The FW-1 features 15cm pre-wired leads for easy installation, while the FJ-1 (pin-type) requires soldering to the terminals.

3. Are custom wire lengths available for this signal light?

Absolutely. As a factory, FILN can customize wire lengths and add connectors to meet your specific needs.

4. Does it include the mounting nut and seal?

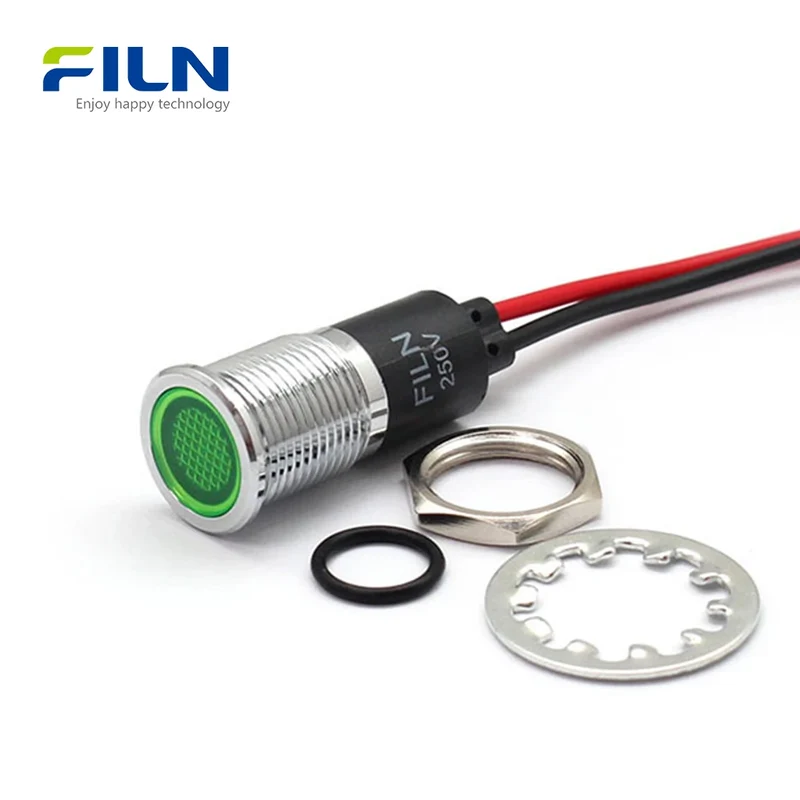

Yes, every unit comes with a smooth-threaded M14 nut and a high-quality O-ring waterproof seal.

5. Is this product suitable for medical testing equipment?

Yes, the flat-head design is ideal for medical devices that require flush, easy-to-sanitize surfaces.

6. Can the voltage be customized to 48V or 110V?

Yes, we support a wide range of voltages including 12V, 24V, 110V, and 220V, as well as specific custom values.

7. What are the benefits of the flat head design?

It provides a flush appearance on the panel, prevents snagging, and is easier to clean in sterile environments.

8. How long is the lifespan of the LED?

The high-quality LED chips are rated for a working life of over 50,000 hours.

9. Is the housing made of real metal?

Yes, it features a chrome-plated brass shell available in silver or black finishes for maximum durability.

10. Does FILN offer wholesale or bulk discounts?

Yes, as a manufacturer, we provide direct factory pricing for bulk orders and long-term partnerships.
