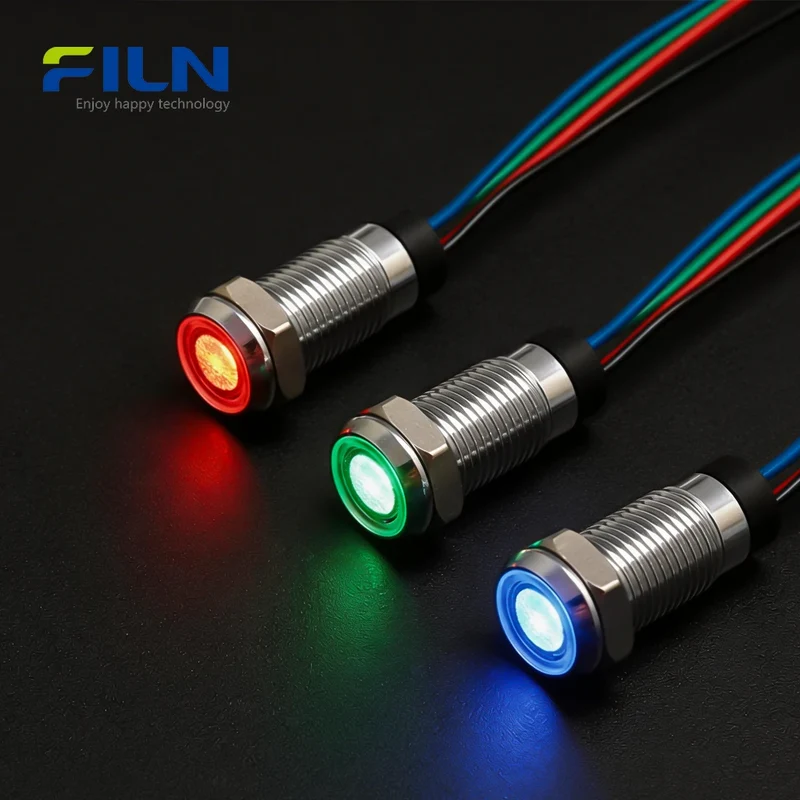

Tri-color LED Signal Lamp 8mm IP67 | 12V-220V RGB RGY Status Indicator FILN

2,18 €1,52 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Note: The default wiring for the dual-color indicator lights is Common Cathode. If you require Common Anode, please leave a note or contact us.

Product Overview

The Tri-color LED Signal Lamp (Model: FL1M-08FW-T-1) is a high-precision 8mm metal flat head indicator designed for multi-state status signaling. Featuring advanced RGB or RGY LED configurations, this lamp allows for three distinct colors in a single compact housing, available in Common Anode or Common Cathode versions. With an IP67 waterproof rating and a durable silver or black chrome finish, it is engineered for extreme environments. This versatile Tri-color LED Signal Lamp is ideal for industrial control panels, CNC machinery, and high-end automation equipment where visual clarity and space-saving design are critical.

Quick Specifications

Mounting Hole 8mm (0.31 inch)
Voltage Options 12V, 24V, 110V, 220V (Customizable)
LED Color Tri-color (RGB / RGY)
Wiring Method Common cathode by default. Please leave a note or contact us if common anode is required
Waterproof Rating IP65 / IP67
Wiring Type Wire Lead (20cm standard)
Lifespan 50,000 Hours

Rated Working Parameters

Rated Voltage 3V - 220V (Customized)
Frequency (AC) 50Hz ～ 60Hz
Rated Current ≤ 20mA

Component Materials

Housing Nickel-plated Brass / Black Aluminum
Lens Polycarbonate (PC)
Seal Ring Silicone (O-Ring included)
Wire Material UL1007 22AWG (20cm)

General Characteristics

Operating Temperature -40℃ ～ 80℃
Relative Humidity ≤85% at +40℃
Storage Temperature -40℃ ～ 85℃
Air Pressure 86 ～ 106Kpa

Electric Property

Property Test Condition Requirement
Insulation Resistance DC500V for 1 minute ≥ 100MΩ
Dielectric Strength 1500VAC / 5mA / 60s No breakdown

Key Features

  • Tri-color Versatility: Supports RGB or RGY combinations in one 8mm housing.
  • Industrial Durability: IP67 rated, resistant to water, oil, and dust.

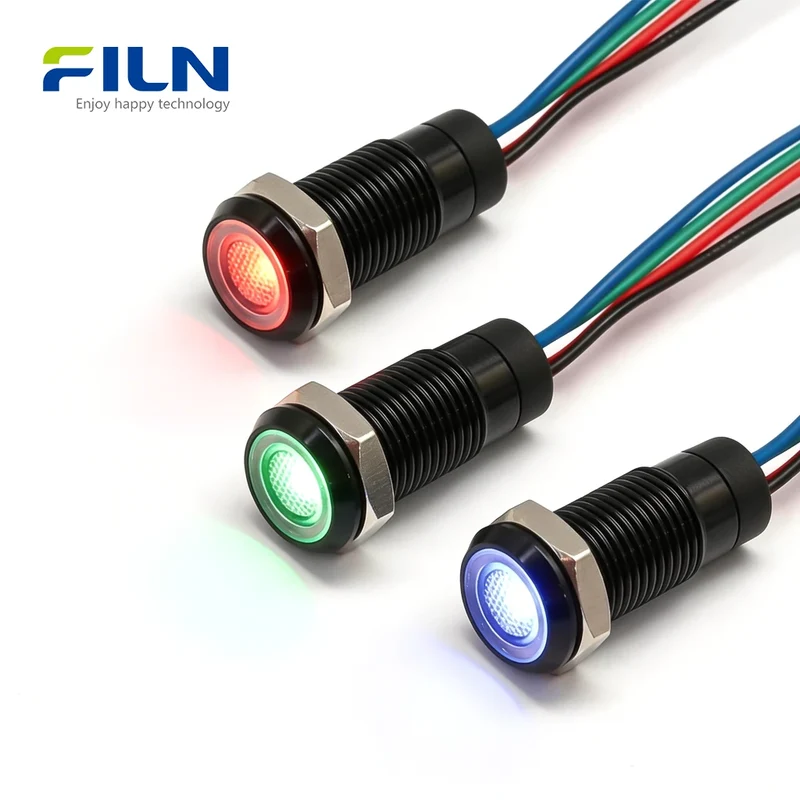

  • Premium Build: Metal flat head design with options for silver or black finishes.

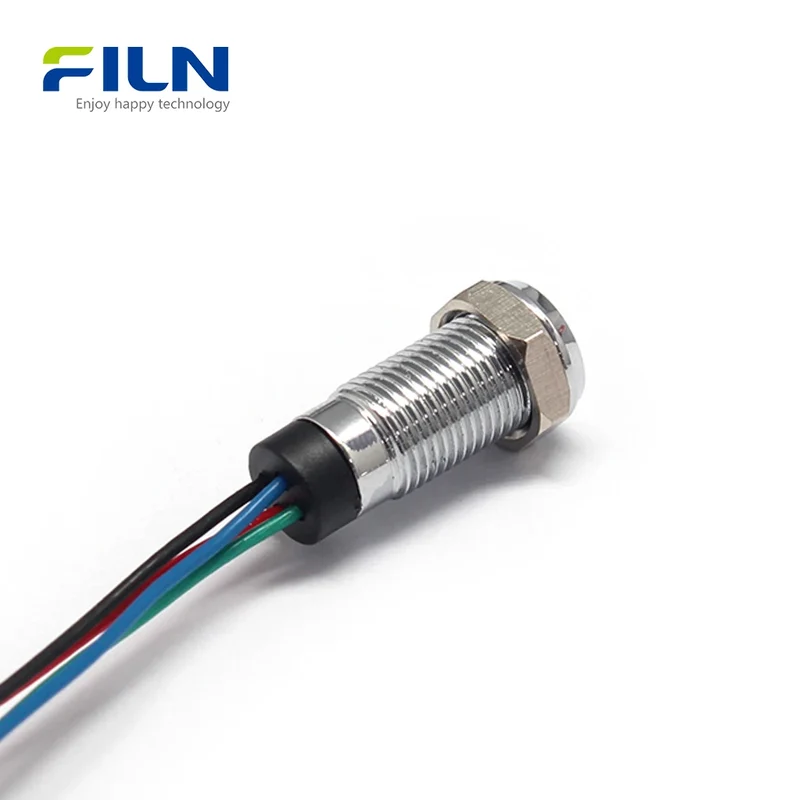

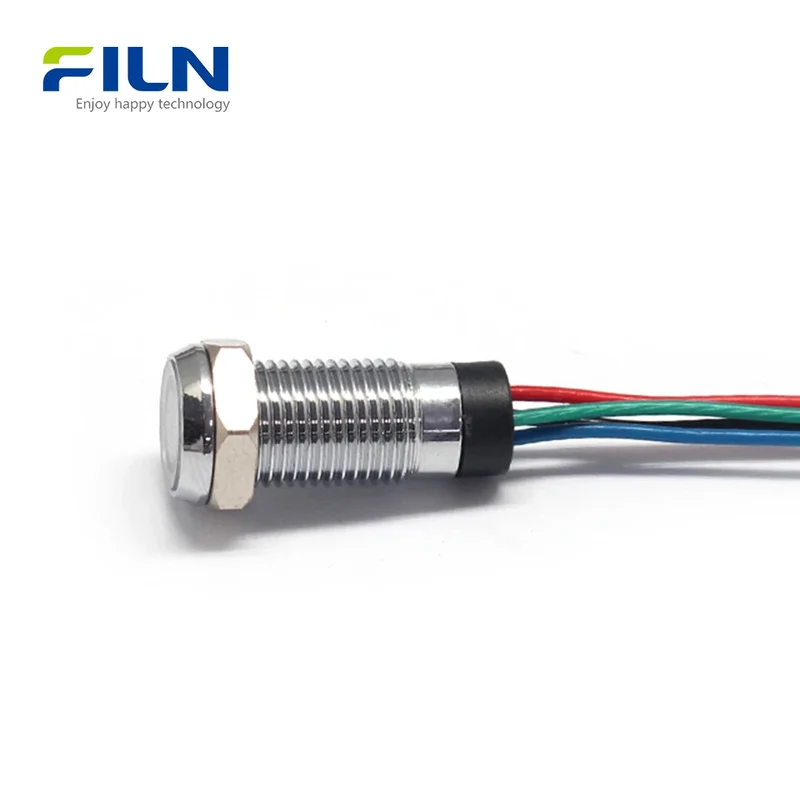

  • Plug-and-Play: Pre-wired with 20cm leads for rapid deployment.
  • Flexible Polarity: Choose between Common Anode or Common Cathode to fit your circuit.

Industrial & Commercial Applications

  • Industrial Control Panels & Automation systems
  • CNC Machinery & Metalworking equipment
  • Electrical Cabinets & Power Distribution
  • Marine Systems & Professional Audio Equipment
  • Medical Devices requiring multi-state status indicators
  • Smart Home Hubs and Custom PC Mods

Installation Guide

  1. Drill an 8mm (M8) hole into the desired mounting panel.
  2. Slide the O-ring onto the lamp body to ensure a waterproof seal.
  3. Insert the Tri-color LED Signal Lamp through the front of the panel.
  4. Secure the lamp from the rear using the provided M8 nut (smooth threading).
  5. Connect the 20cm wire leads according to your Common Anode/Cathode wiring diagram.

What Is a Tri-color LED Signal Lamp?

A Tri-color LED Signal Lamp is an advanced optoelectronic component that integrates three different light-emitting diodes (typically Red, Green, and Blue or Yellow) into a single metal housing. Unlike standard single-color indicators, the tri-color version provides complex status feedback—such as "Ready" (Green), "Processing" (Yellow), and "Error" (Red)—using a single 8mm mounting hole. This significantly reduces panel clutter while providing clear, intuitive machine-to-human communication in industrial and commercial environments.

FILN Factory Direct Advantage

  • ✅ Customization: Voltage, wire length, and connector types made to order.
  • ✅ Quality Control: Factory direct pricing with rigorous IP67 testing.
  • ✅ Global Logistics: Fast international shipping for B2B bulk orders.
  • ✅ Support: Expert technical assistance for wiring and integration.

Official Website: www.filn.com
Email Inquiry: [email protected]

Frequently Asked Questions

Q1: What is the difference between Wire Lead and Pin terminals?
A: Wire lead type (this model) comes with 20cm pre-soldered wires for easy connection, while pin terminals require soldering or quick-connect headers during installation.

Q2: Can I get this indicator in 220V AC?
A: Yes, we support customized voltages from 12V to 220V for all tri-color signal lamps.

Q3: How do I choose between Common Anode and Common Cathode?
A: Choose Common Anode if your circuit switches the negative side (Ground); choose Common Cathode if your circuit switches the positive side.

Q4: Is the 8mm size suitable for outdoor use?
A: Absolutely. Our IP67 rating ensures the lamp is fully protected against dust and immersion in water up to 1 meter.

Q5: Does it come with mounting accessories?

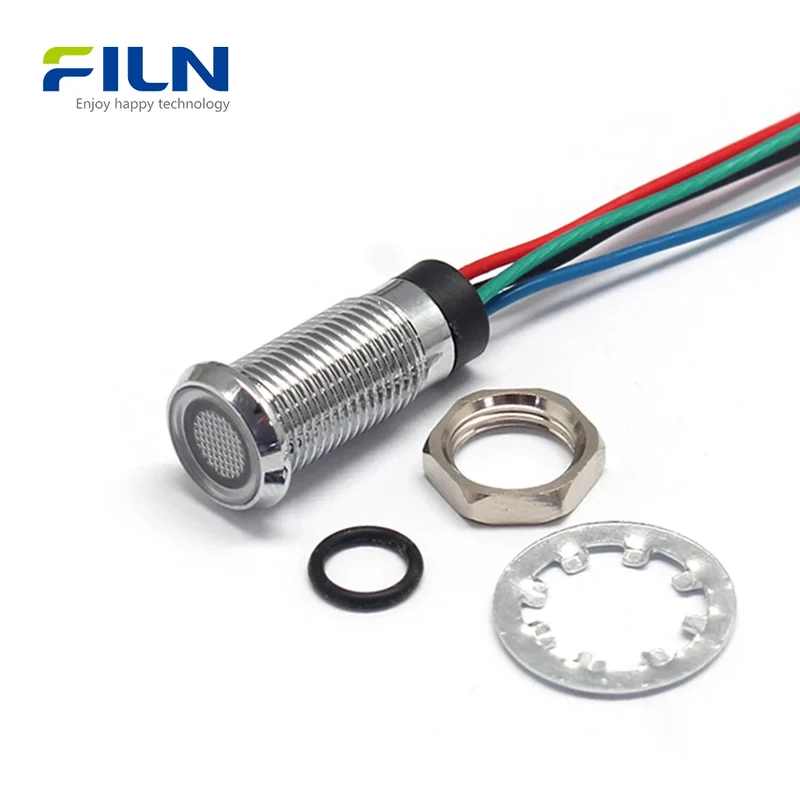

A: Yes, every lamp includes a high-quality O-ring and an M8 nut for a secure, waterproof fit.
