Anbieter: 8MM Metal Indicator Light

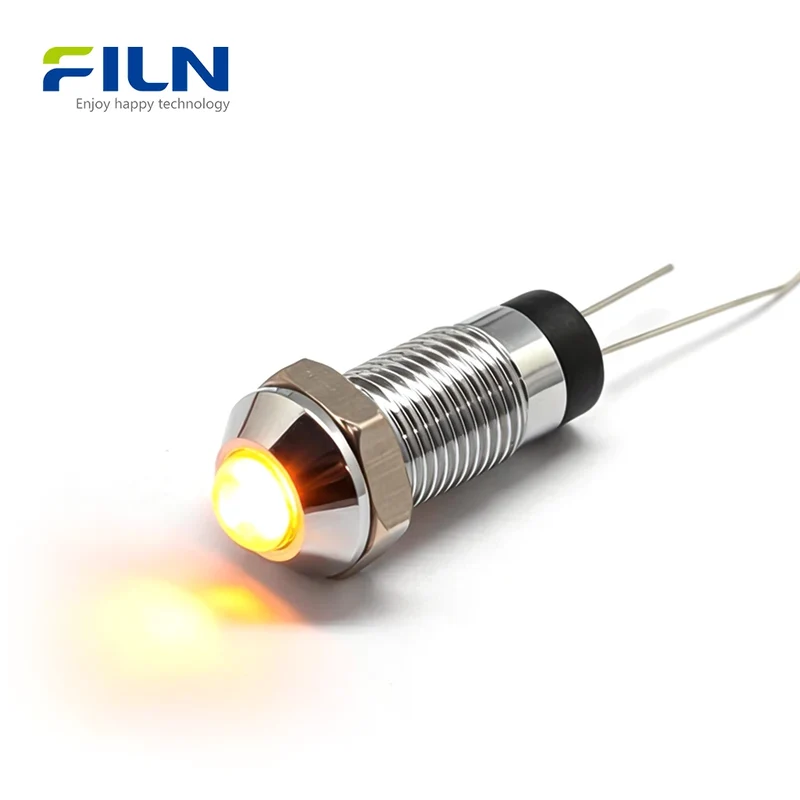

Yellow Indicator Light High Head Pin Terminal 3-220V 8mm FLIN

1,46 €0,98 €Im Angebot
Housing Color
Light Color
Voltage
Menge

Beschreibung

Product Overview

The 8mm Yellow Indicator Light (Model: FL1M-08SJ-3) is a professional-grade metal signaling solution engineered for durability and high visibility. Featuring a distinctive high head design and a rugged IP67 waterproof rating, this indicator is built to withstand harsh industrial environments. Its short-body construction makes it significantly more compact than standard models, allowing for seamless integration into small-space enclosures. Equipped with non-polar LED beads and versatile 12V to 220V support, it provides a reliable status signal for automation, power distribution, and marine systems.

Quick Specifications

Mounting Hole 8mm / 0.315 inch
Voltage 12-24V / 110-220V (Customizable)

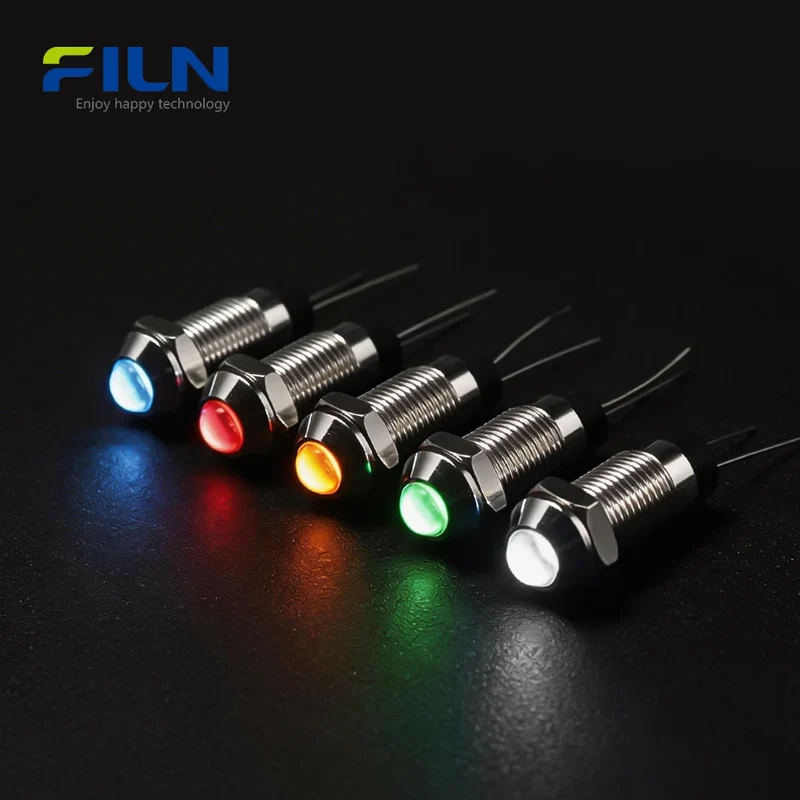

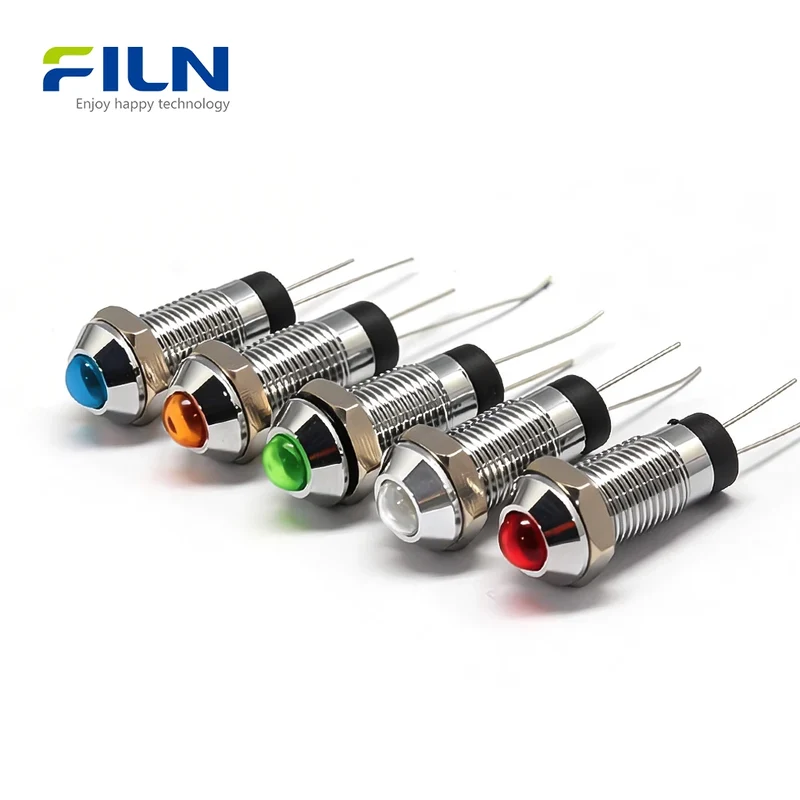

LED Color Yellow (Red, Green, Blue, White options)
Waterproof Rating IP65 / IP67
Operating Temperature -40℃ to +80℃
Lifespan 50,000 Hours
Wiring Type Pin Type (Terminal)

Rated Working Parameters

Rated Voltage Customized (12V-220V)
Frequency(AC) 50～60Hz
Rated Current ≤20mA

Component Materials

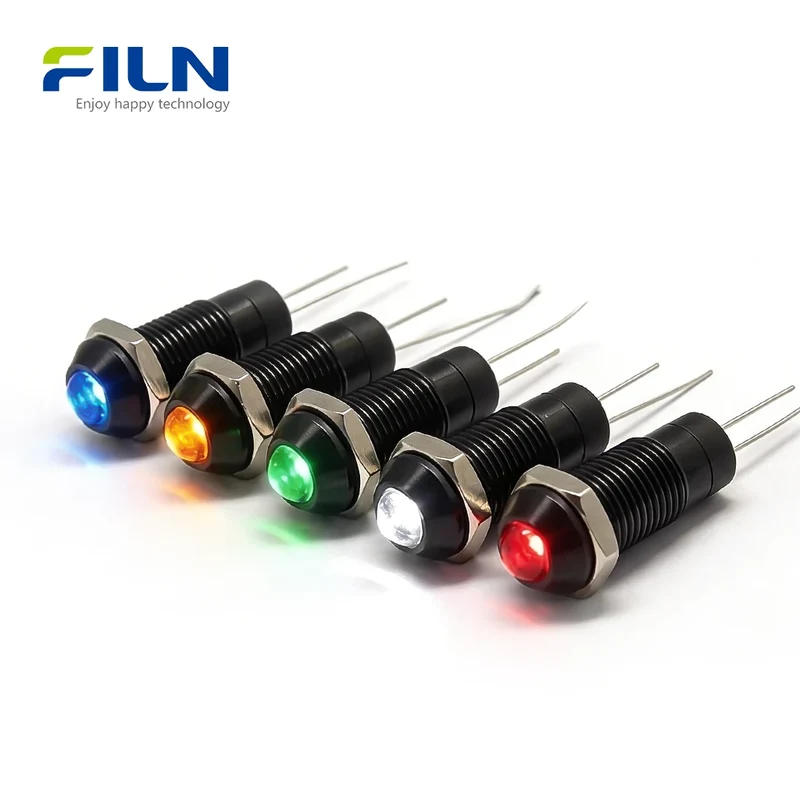

Housing Nickel-Plated Brass / Black Anodized
Lens Polycarbonate (PC)
Seal Ring Silica Gel (O-Ring)
Terminal Copper Pin

General Characteristics

Operating Temperature -40℃～80℃
Relative Humidity ≤85% at +40℃
Air Pressure 86~106Kpa
Ambient Temperature 5~35℃

Technical Performance

Property Requirement
Insulation Resistance ≥100MΩ (DC500V)
Dielectric Strength 1500VAC / 5mA / 60s (No breakdown)
Continuous Life 50,000 Hours (30mA test)

Key Features

  • High Head Design: Raised lens for superior side-angle visibility.
  • Space-Saving SJ-2 Model: Compact short-body design for narrow panel installation.
  • IP67 Waterproof: Fully sealed against dust and high-pressure water jets.
  • Universal Polarity: Non-polar LED beads simplify wiring for AC/DC.
  • Easy Installation: Smooth M8 threading with waterproof O-ring and nut included.

Applications

  • Industrial control panels and CNC machines
  • Electrical cabinets and automation equipment
  • Marine navigation and vehicle dashboard systems
  • Medical diagnostic and laboratory devices

Installation Guide

  1. Drill an 8mm diameter hole in the mounting panel.
  2. Fit the waterproof O-ring onto the indicator head.
  3. Insert the indicator through the panel hole from the front.
  4. Secure the unit from the back using the M8 metal nut.
  5. Solder your power leads to the pin terminals at the tail.

What Is a Yellow Indicator Light?

A Yellow Indicator Light is typically used as a caution or status signal in industrial environments. The FL1M-08SJ-3 features Pin Terminals, which are solid metal points for permanent soldering. Compared to Blade Terminals (plug-in type), pin terminals allow for a much shorter body length, making this indicator ideal for high-density control boxes and modern slim equipment.

Factory Direct Supply

  • ✅ Manufacturer Direct: FILN factory prices and strict quality control.
  • ✅ Customization: Voltage, wire length, and shell color options.
  • ✅ Fast Global Shipping: Rapid logistics for B2B industrial orders.

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. What is the mounting hole size for this yellow indicator light?
This model requires an 8mm (0.315 inch) hole. 2. Can I use the FL1M-08SJ-3 in a 220V AC circuit?
Yes, it supports customized voltages from 12V to 220V AC/DC. 3. Is the LED polarity sensitive?
No, it features non-polar LED beads for easier wiring. 4. What is the difference between FJ-1 and SJ-3 models?
SJ-3 is a high head model, while FJ-1 is flat head. SJ-3 is also a "short body" compact version. 5. Is this indicator light waterproof?
It is rated IP67, making it perfect for outdoor and marine use. 6. What materials are used for the housing?
We use high-quality nickel-plated brass or black anodized metal. 7. Does it include the mounting nut?

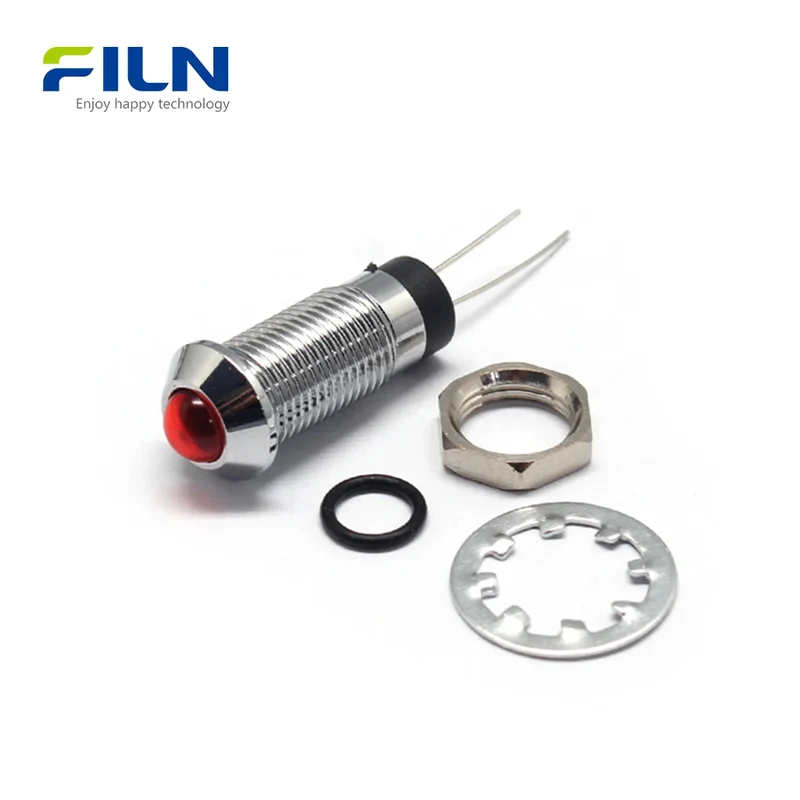

Yes, each unit comes with an M8 nut and a waterproof O-ring. 8. Can I customize the wire leads instead of pins?
Yes, FILN offers customization for wire length and connector types. 9. What is the lifespan of the LED?
It has a working life of 50,000 hours. 10. How does the high head design help?
The raised lens provides better visibility from different angles on a control panel.
